The PiddlyPi!

Post by Holydohnut » Thu Sep 21, 2017 11:31 am

Heavily inspired by moosepr's builds, (thanks dude!) but nonetheless, something all of my own, it is my pleasure to introduce.... The PiddlyPi!
Rocking an enormous 1.44" screen, a 550mah battery and rudimentary sound, it comes out at 7.5cm tall, 4cm wide and (slightly disappointingly) 2cm thick. Though I am thinking that better wire management might enable me to shave as much as 3mm off the thickness.

But the best part is, it was built with entirely off the shelf bits. And a build log post will follow soon which I'm hoping will encourage others to follow the self build route!
Top
User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 689 times
Contact:
Contact YaYa

Re: The PiddlyPi!

Post by YaYa » Thu Sep 21, 2017 12:23 pm

Coool... show us the internals please :mrgreen:
Follow me on instagram Image
Top
User avatar
Holydohnut
Posts: 194
Joined: Wed May 10, 2017 2:02 pm
Has thanked: 29 times
Been thanked: 68 times

Re: The PiddlyPi!

Post by Holydohnut » Thu Sep 21, 2017 12:42 pm

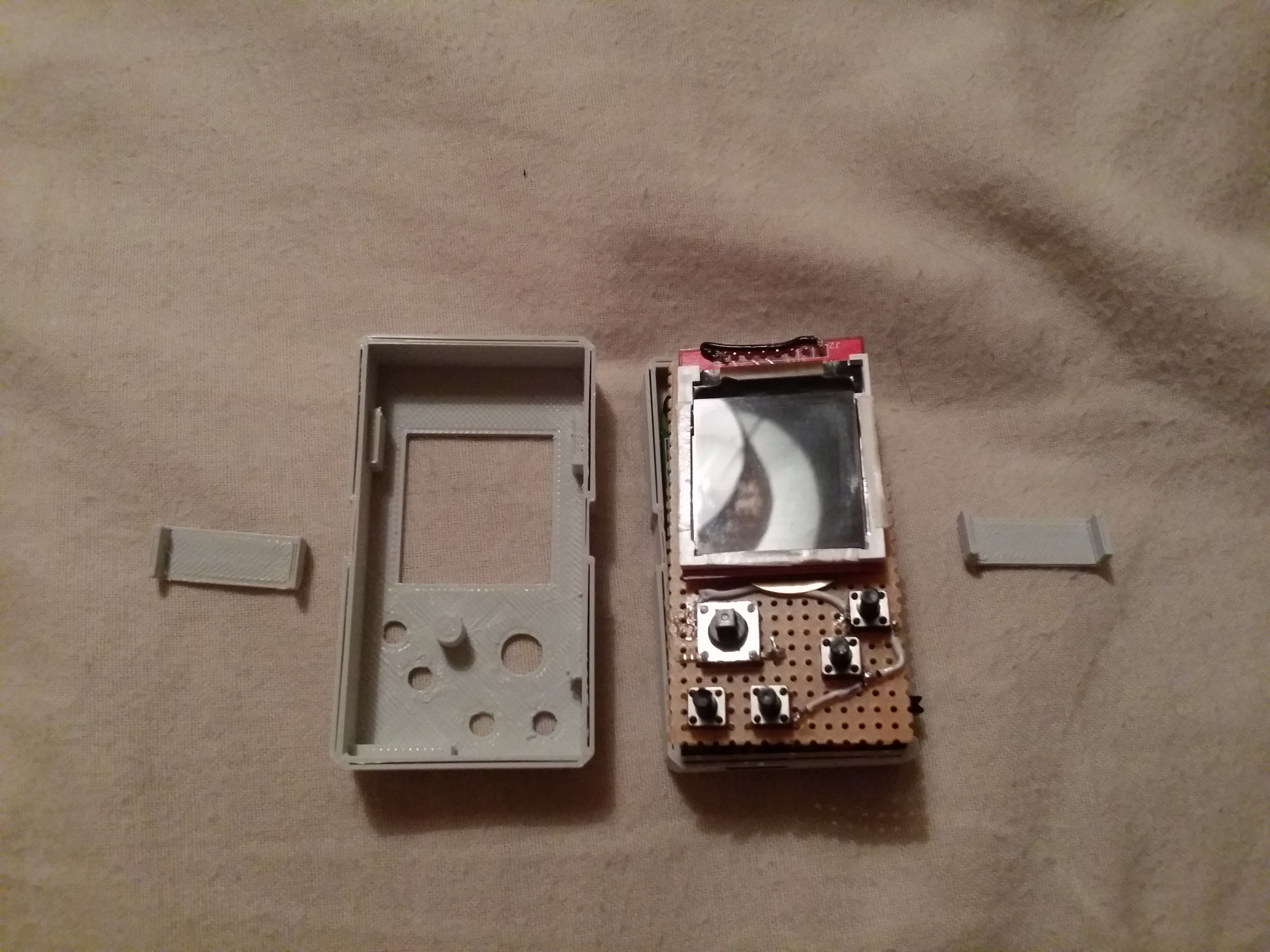

Wellllllll. I was going to save these for the build post. But since you asked so nicely! :D
Top
User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 689 times
Contact:
Contact YaYa

Re: The PiddlyPi!

Post by YaYa » Thu Sep 21, 2017 1:11 pm

Really tight build lol... i will be interested in your forthcoming build log :mrgreen:
Follow me on instagram Image
Top
User avatar
moosepr
Posts: 524
Joined: Wed Jan 25, 2017 6:18 am
Has thanked: 69 times
Been thanked: 241 times
Contact:
Contact moosepr

Re: The PiddlyPi!

Post by moosepr » Thu Sep 21, 2017 2:29 pm

Hey man, very nice! Glad I have inspired you!

Is that an off the shelf case? Or is it 3d printed?
Get a small cheep LCD in your project https://www.sudomod.com/forum/viewtopic.php?f=22&t=2312
Wrap it all round a battery https://www.sudomod.com/forum/viewtopic.php?f=13&t=2292
Or use a custom PCB to make it really small https://www.sudomod.com/forum/viewtopic.php?f=13&t=2512
or make it really really really really tiny!! https://www.sudomod.com/forum/viewtopic.php?f=13&t=2919
Top
User avatar
Holydohnut
Posts: 194
Joined: Wed May 10, 2017 2:02 pm
Has thanked: 29 times
Been thanked: 68 times

Re: The PiddlyPi!

Post by Holydohnut » Thu Sep 21, 2017 3:00 pm

3D printed and designed in Tinkercad. This is the 2nd to last of 15 prototypes in total! (I've just made another one with the clips integrated coz I wasn't happy with the grip)
Top
User avatar
rodocop
Posts: 1723
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 606 times
Been thanked: 608 times

Re: The PiddlyPi!

Post by rodocop » Fri Sep 22, 2017 3:16 pm

Super cool....I love all these cool things people post!!!
Top
User avatar
Holydohnut
Posts: 194
Joined: Wed May 10, 2017 2:02 pm
Has thanked: 29 times
Been thanked: 68 times

Re: The PiddlyPi!

Post by Holydohnut » Fri Sep 22, 2017 4:17 pm

In case (ho ho!) anyone's interested, here's a look at the majority of the prototypes! On their way to the bin. :-(
Top
User avatar
moosepr
Posts: 524
Joined: Wed Jan 25, 2017 6:18 am
Has thanked: 69 times
Been thanked: 241 times
Contact:
Contact moosepr

Re: The PiddlyPi!

Post by moosepr » Sat Sep 23, 2017 1:57 am

It's like that evolution of man picture! 😛

If I had that much access to a 3d printer I would be dangerous
Get a small cheep LCD in your project https://www.sudomod.com/forum/viewtopic.php?f=22&t=2312
Wrap it all round a battery https://www.sudomod.com/forum/viewtopic.php?f=13&t=2292
Or use a custom PCB to make it really small https://www.sudomod.com/forum/viewtopic.php?f=13&t=2512
or make it really really really really tiny!! https://www.sudomod.com/forum/viewtopic.php?f=13&t=2919
Top
User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 689 times
Contact:
Contact YaYa

Re: The PiddlyPi!

Post by YaYa » Sat Sep 23, 2017 2:07 am

moosepr wrote: ↑
Sat Sep 23, 2017 1:57 am
 It's like that evolution of man picture! 😛

If I had that much access to a 3d printer I would be dangerous
Hahaha... i suddenly reminded the human rising and evolving and then finishing behind the computer lol
:lol:
