Hi all
Been lurking in the forum for a while whilst gathering parts and am now ready to go !

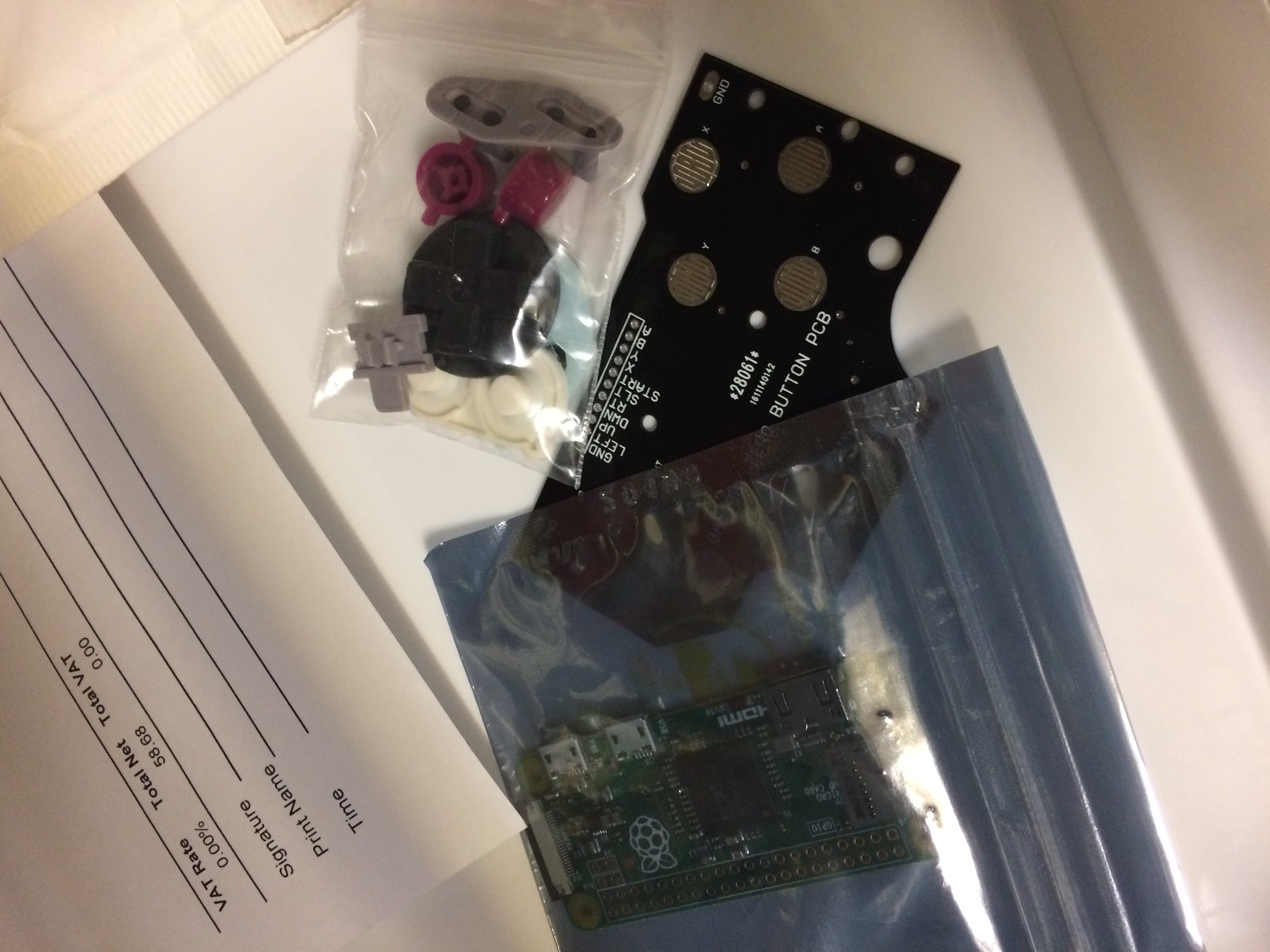

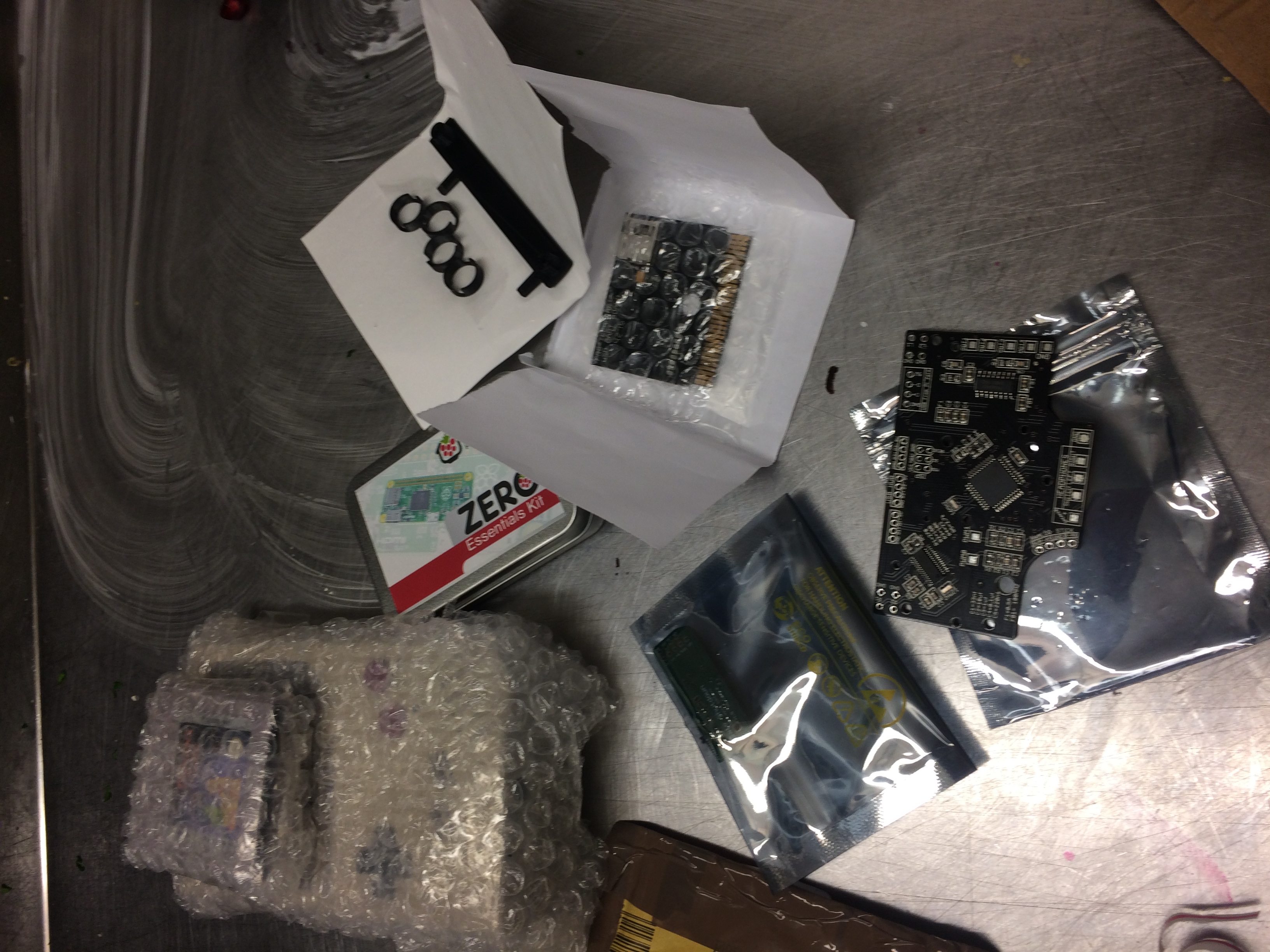

Parts in hand :
Helders aoi board
Safe shutdown switch
Button wells & screen bracket
Choice of buttons

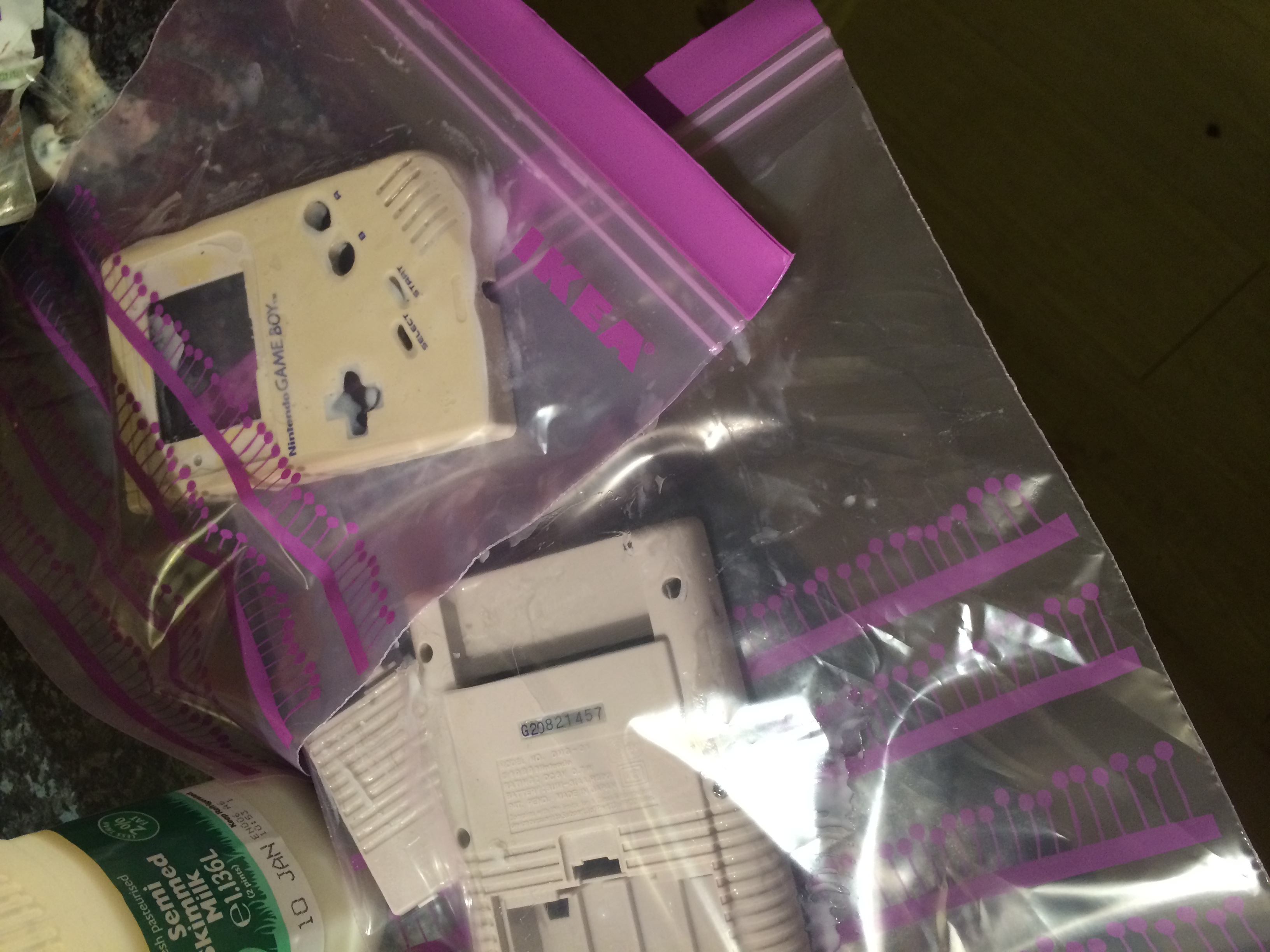

Broken DMG gameboy
Speaker
Pi zero
Screen
And a few other parts
Arriving next week :
Battery
Powerboost
Cable extension
Screen surround
Cart stickers
Going to be starting work this weekend and will update this post as I go.
Used to be active on the bacteria forums modding / portablising n64 & snes etc
But this is my first build using pi
So I may need some help at some point
Slash125s first gbz build
Re: Slash125s first gbz build
Got a few bits done this weekend :
- Attachments
-
- Mmmmmm blonde
- IMG_0725.JPG (1.86 MiB) Viewed 6242 times
-

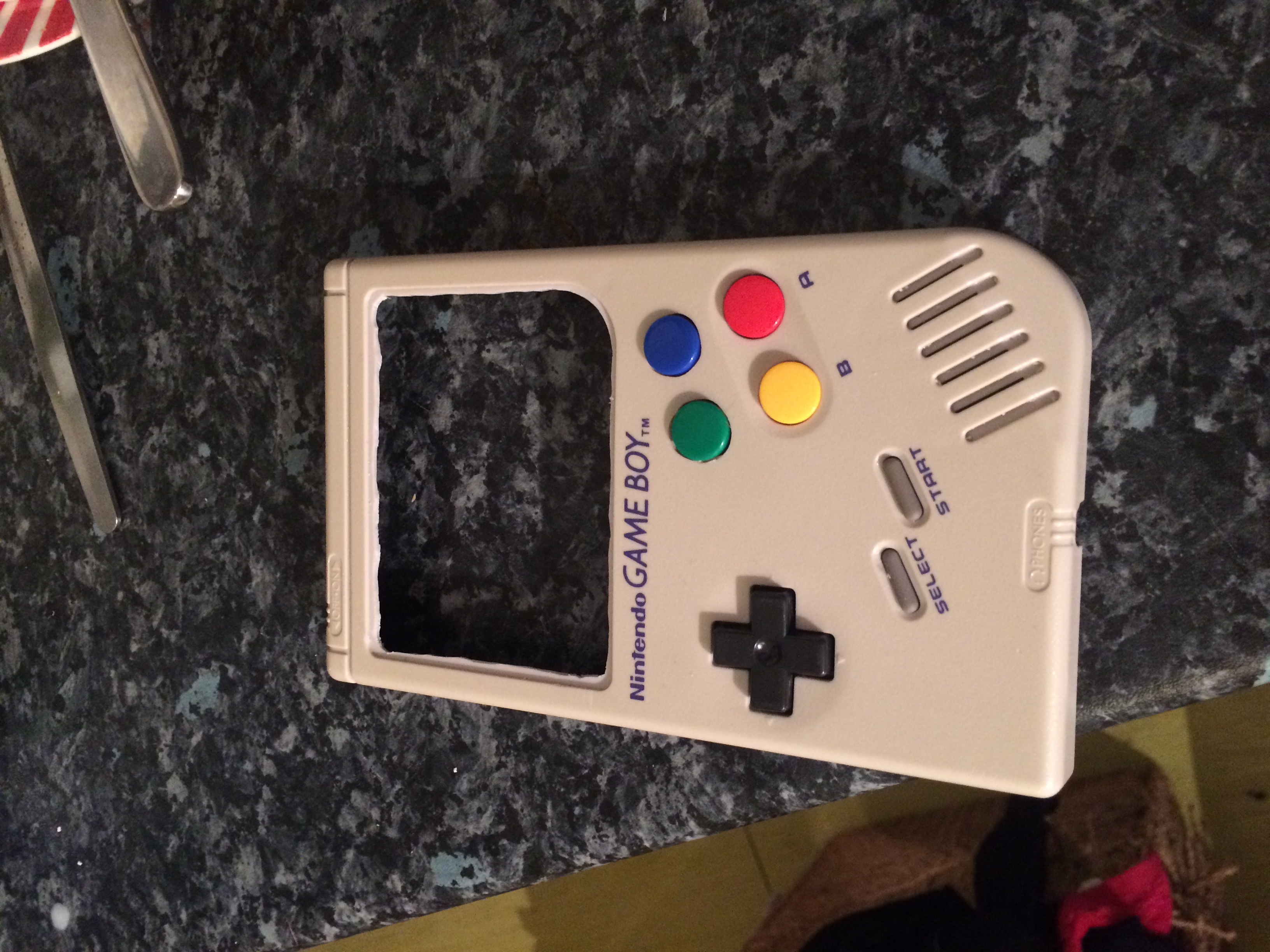

- Button mock up
Quite happy - IMG_0724.JPG (1.37 MiB) Viewed 6242 times
- Button mock up
-

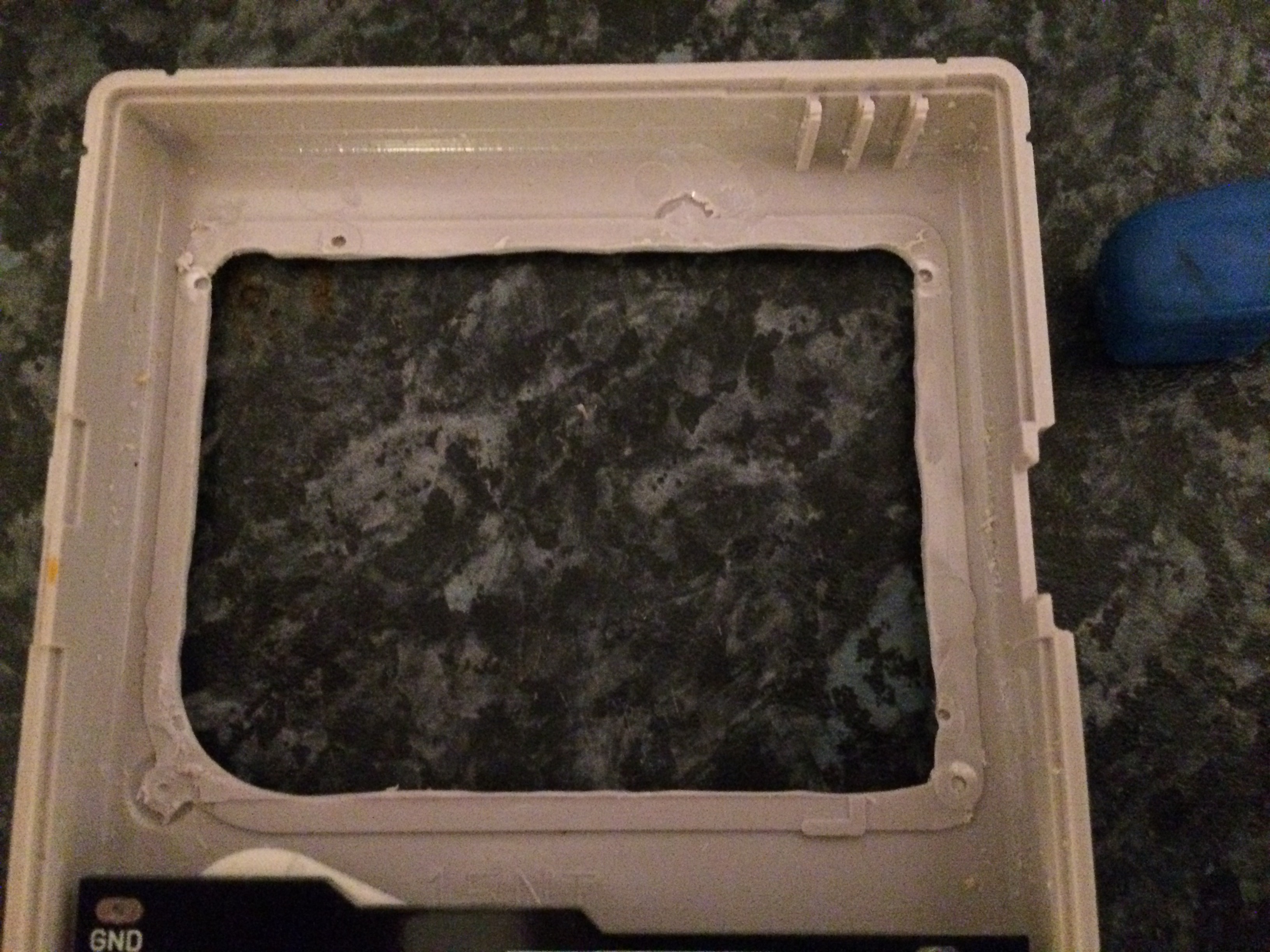

- Smoothed out area ready for screen
- IMG_0723.JPG (1.28 MiB) Viewed 6242 times
-

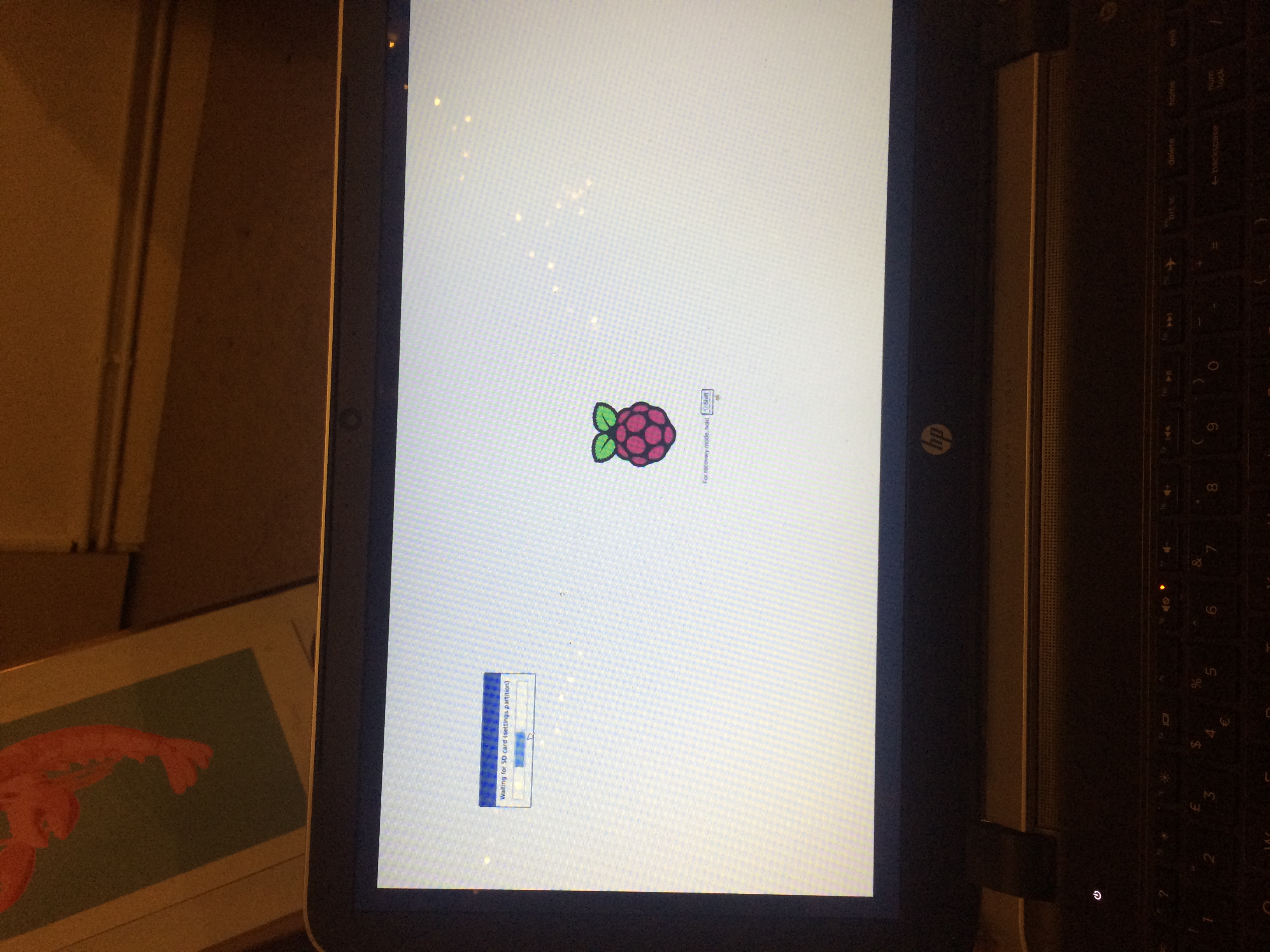

- It lives ...... sort of
- IMG_0722.JPG (1.39 MiB) Viewed 6242 times
Re: Slash125s first gbz build
Small update
Screen surround & cart label have arrived from retrofresh
Both look really nice
I'll be finishing my retropie install tonight
And wiring my aio board to a micro USB cable I have cut
So I can test controls
But keep it plugged in via USB to zero until I'm ready to solder
Screen surround & cart label have arrived from retrofresh
Both look really nice
I'll be finishing my retropie install tonight
And wiring my aio board to a micro USB cable I have cut
So I can test controls
But keep it plugged in via USB to zero until I'm ready to solder
- Attachments
-
- IMG_0727.JPG (1.06 MiB) Viewed 6217 times
- abrugsch
- Posts: 971
- Joined: Tue Aug 02, 2016 10:00 am
- Has thanked: 356 times
- Been thanked: 430 times
- Contact:
Re: Slash125s first gbz build
Had a bit of time this weekend so made some progress
Got the front of case trimmed up properly
Added buttons ( I know the colours are wrong )
Gotta switch them round
Retropie set up

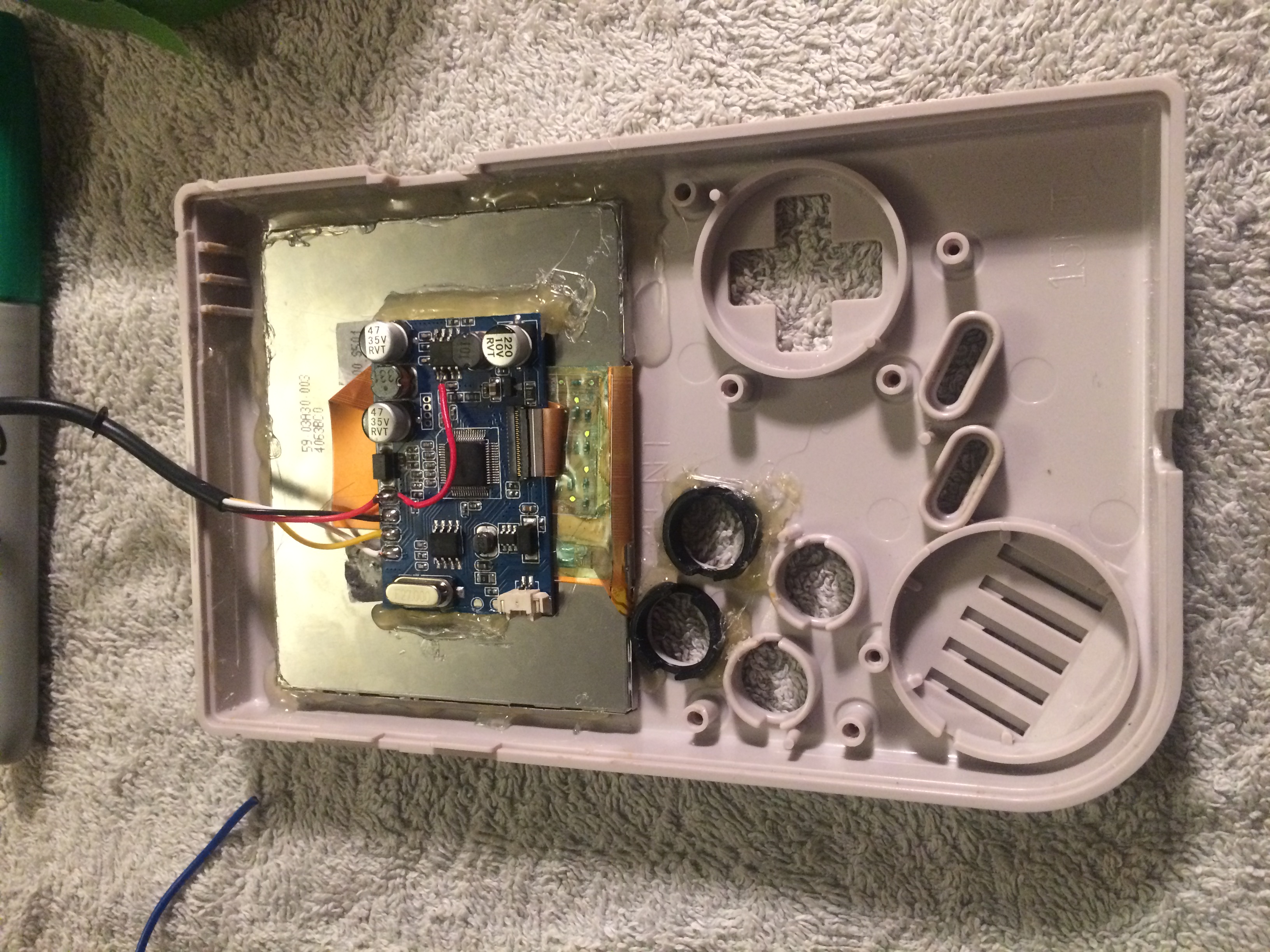

Screen tested , 5v conversion done and fitted

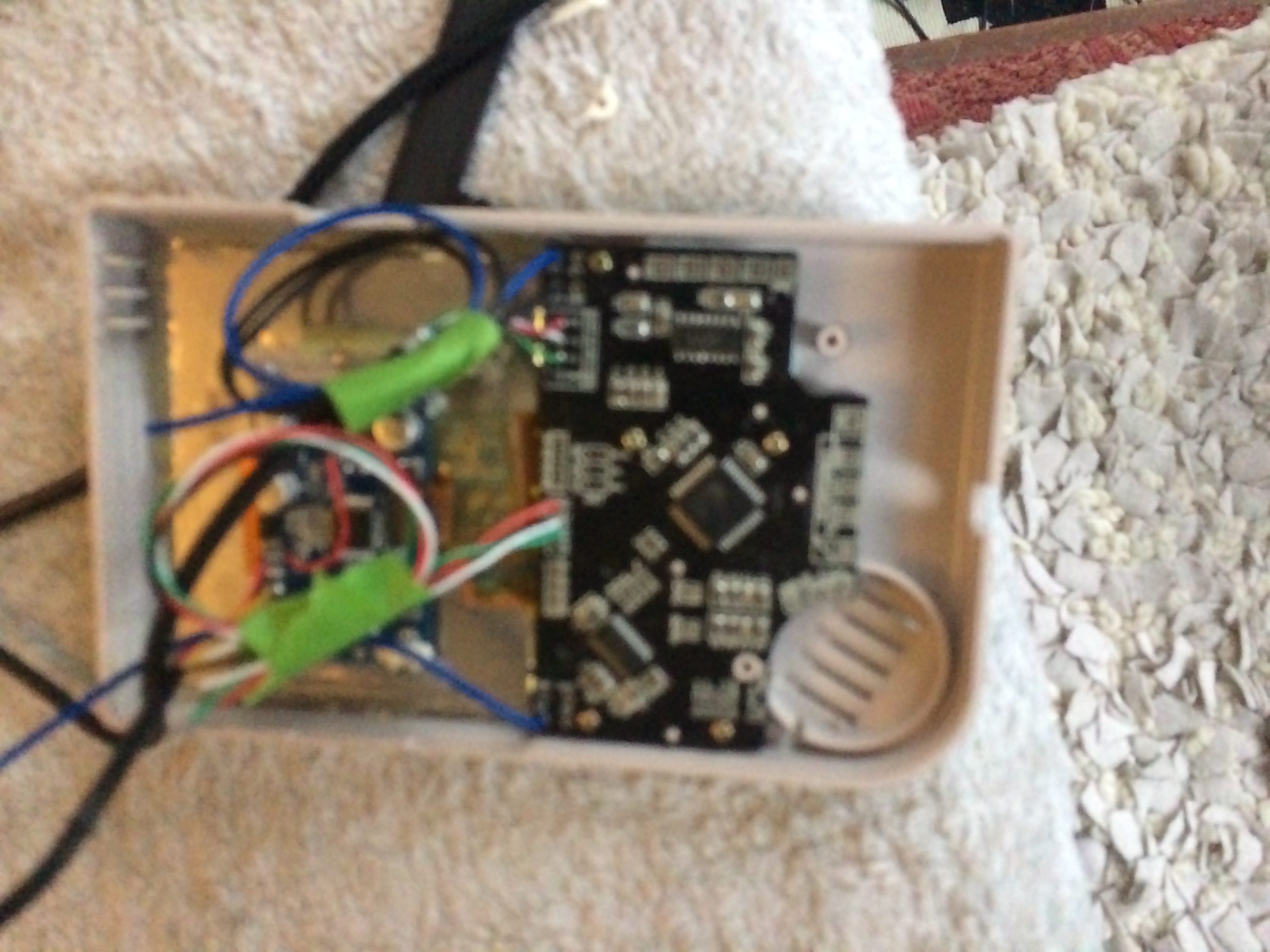

Wired up USB & hub from aio board and fitted that
Works fine ...... picked up all inputs

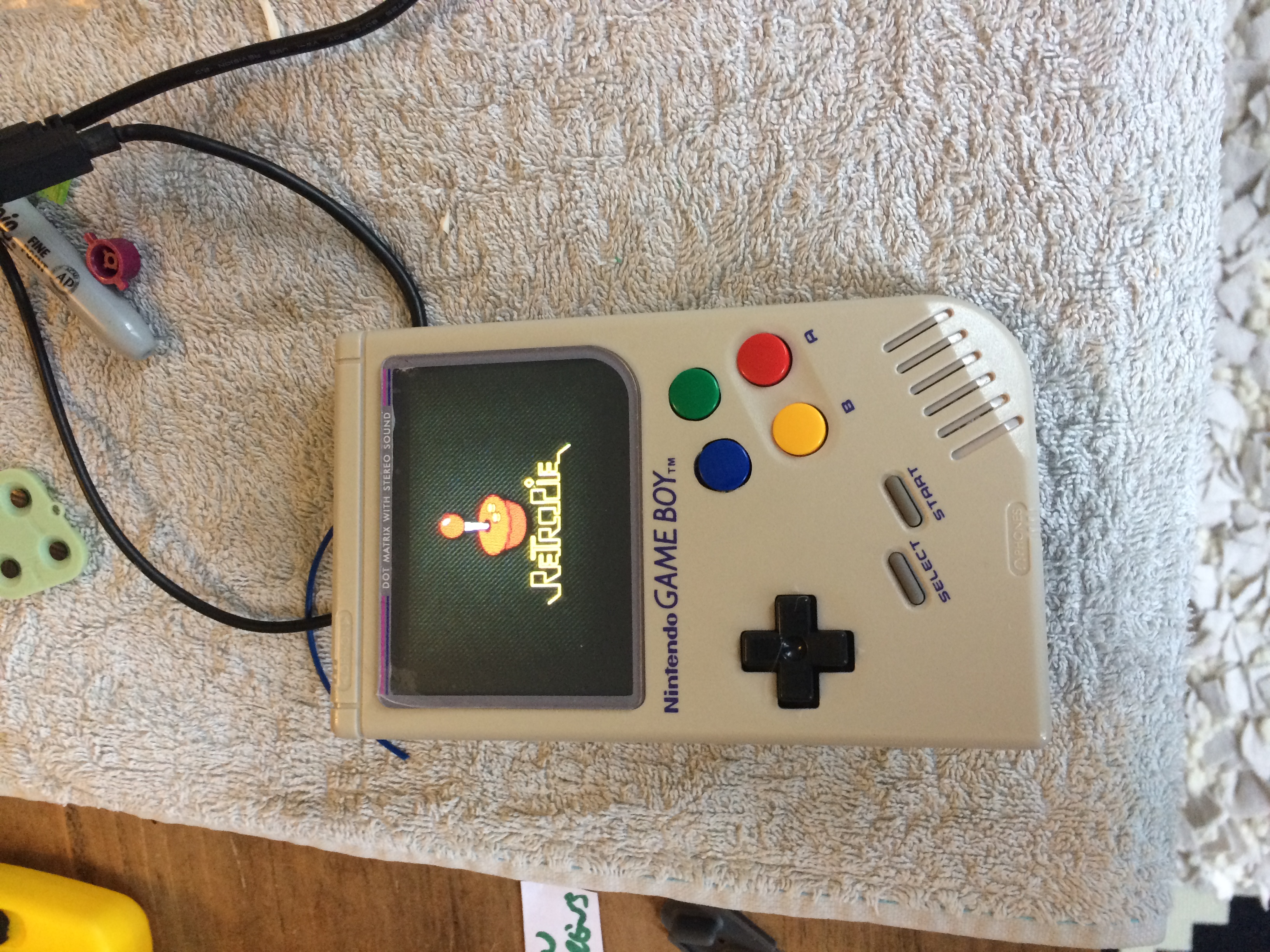

Test fitted screen surround
Quite happy with it all so far
Got the front of case trimmed up properly
Added buttons ( I know the colours are wrong )
Gotta switch them round
Retropie set up
Screen tested , 5v conversion done and fitted
Wired up USB & hub from aio board and fitted that
Works fine ...... picked up all inputs
Test fitted screen surround
Quite happy with it all so far
- Attachments
-
- IMG_0748.JPG (865.14 KiB) Viewed 6102 times
-
- IMG_0747.JPG (2.49 MiB) Viewed 6102 times
-
- IMG_0745.JPG (1.47 MiB) Viewed 6102 times
Re: Slash125s first gbz build
Was looking for advice on a few things though
First I found these from an old project and am considering using them as l / r buttons as I don't really like the feel of tacts
Thoughts ?????
Also
Anybody had issues with abxy buttons not feeling quite right when pressed ?
And have a way to sort
First I found these from an old project and am considering using them as l / r buttons as I don't really like the feel of tacts
Thoughts ?????
Also
Anybody had issues with abxy buttons not feeling quite right when pressed ?
And have a way to sort
- Attachments
-
- IMG_0749.JPG (1.03 MiB) Viewed 6101 times
