update 04/10/2017
New post to restore the ability to use the fan with the SAIO alone (without the Pi3Ext)

http://www.sudomod.com/forum/viewtopic. ... 039#p46039

Hail to the king baby

[Eccho]

I can only click once on the thank button

[YaYa]

update 04/10/2017

The cartridge, as always, no glue

SD Card insertedShow

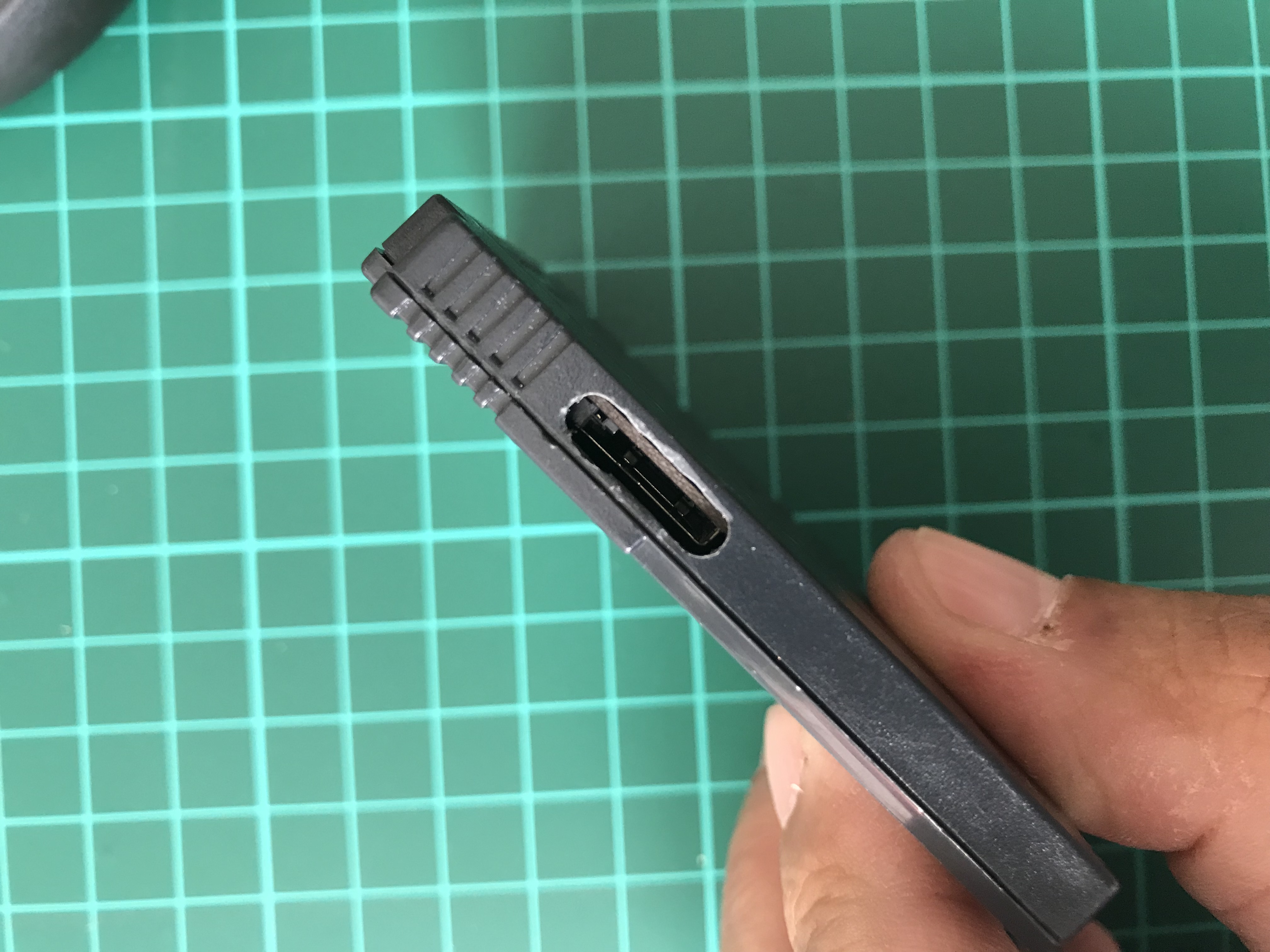

Without the SD cardShow

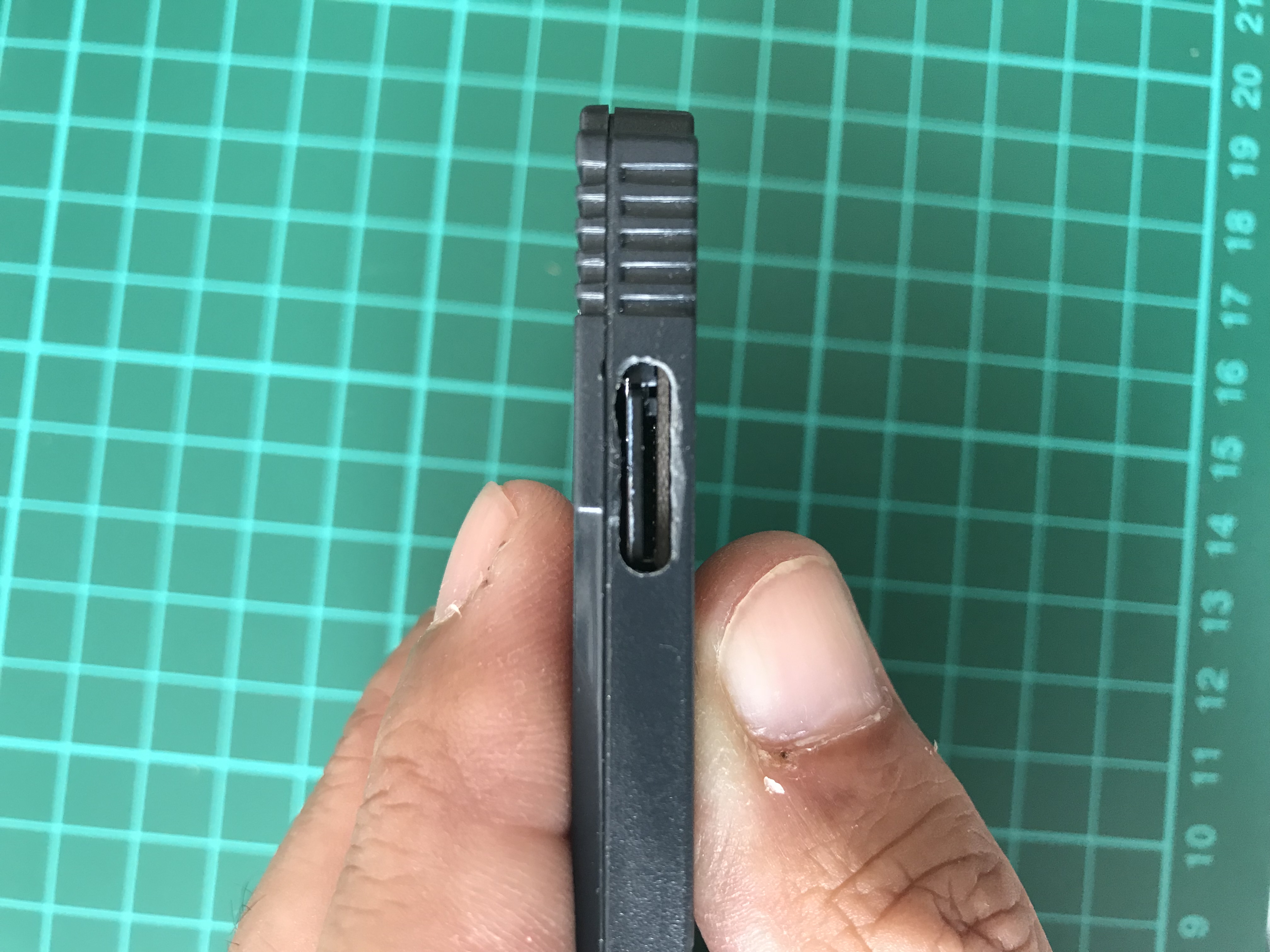

The front shell cutout to let some room to the LEDSShow

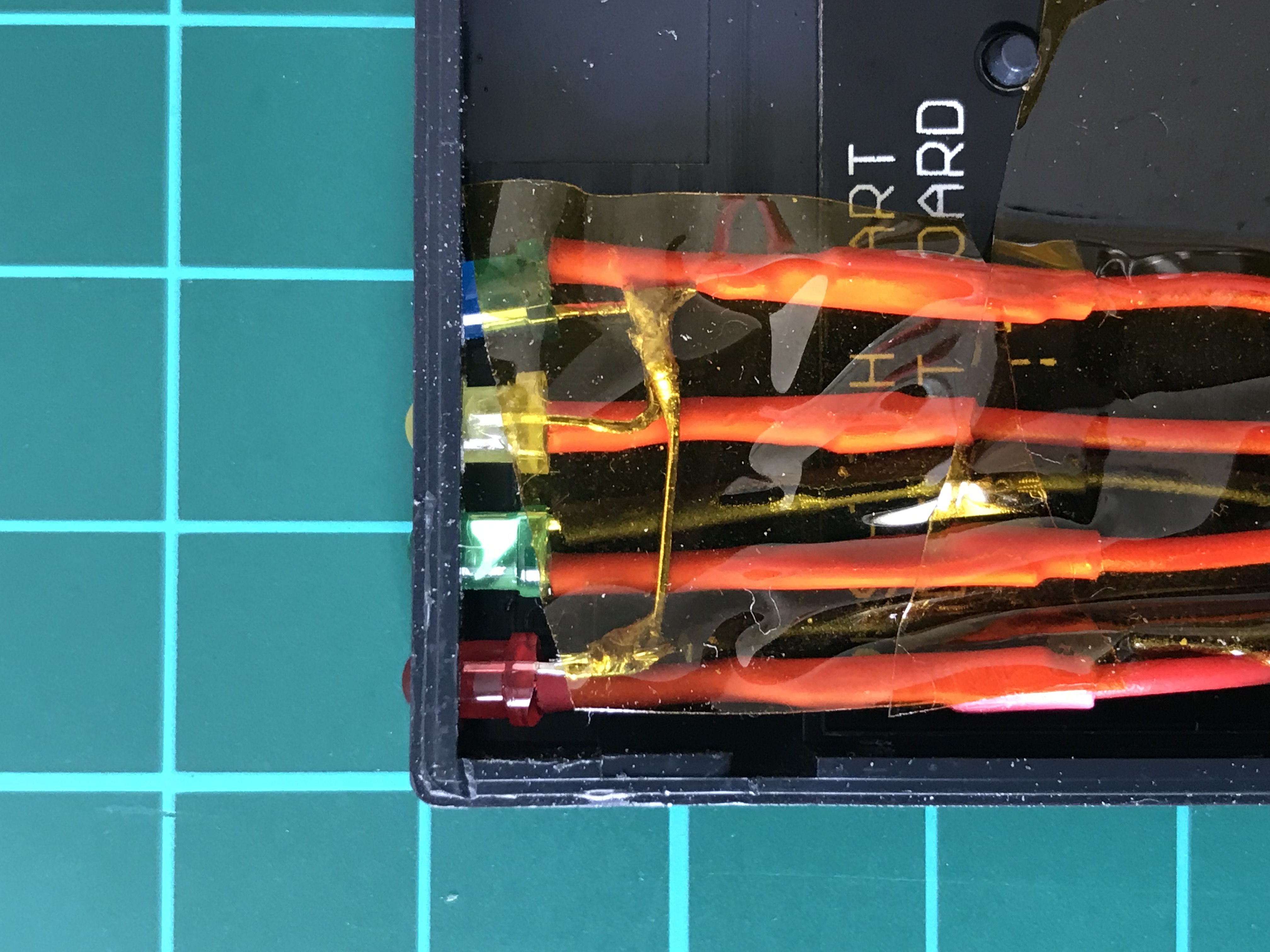

The ledsShow



This one was a try. I'm not satisfied by the result...

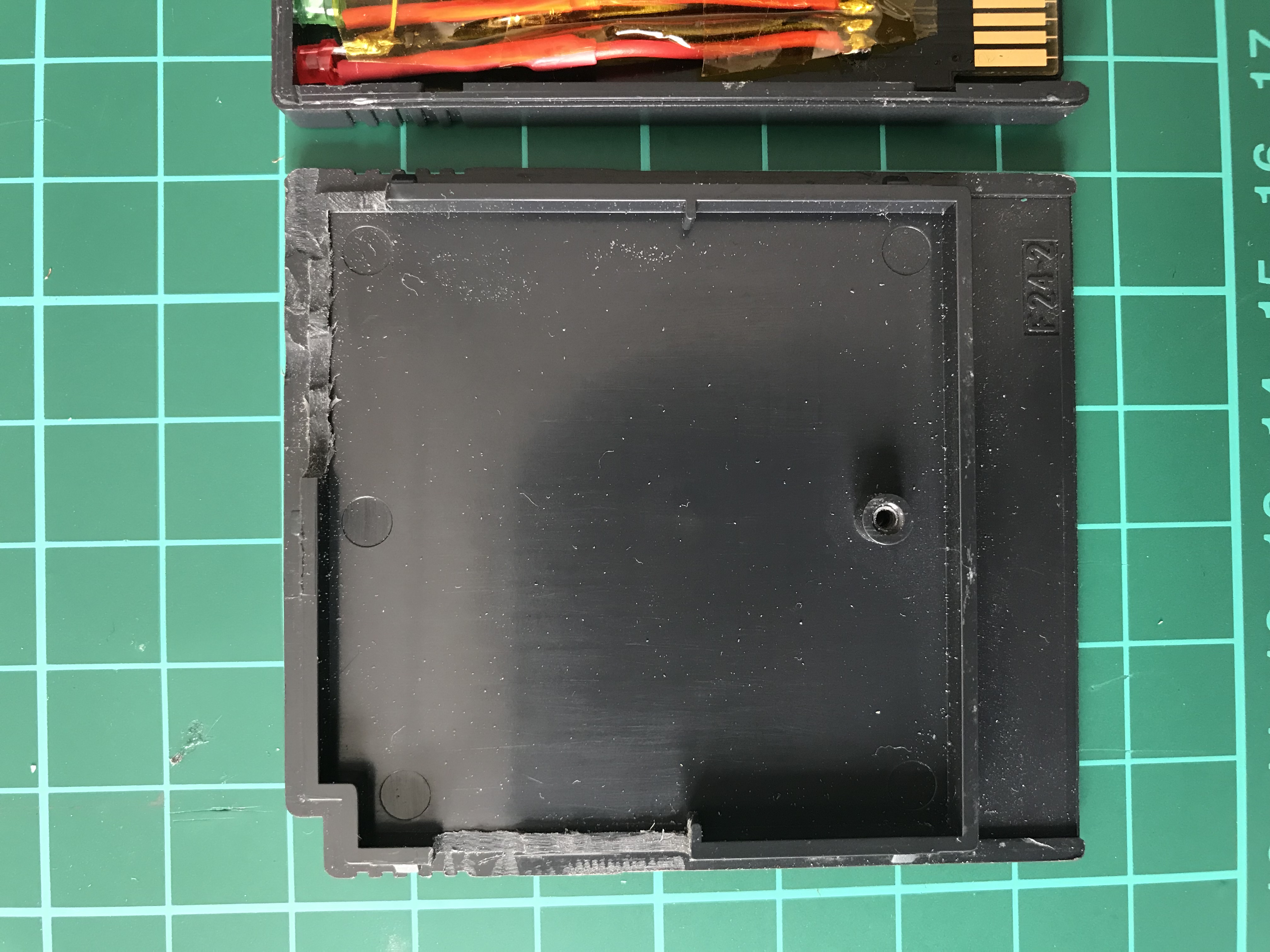

The cutout on the side is ugly because the pastique was so old that it was like dry sand as i was milling into it.
I've putted the LEDS too close to the shell and thus, i had to grind the font cover to let room for the first led.
The soldering is awful as i was using my old and not adjustable iron for this job (i was waiting for my kit from amazon)

I'm next going to try another thing... Transparent orange cartridge from Kitsch Bent with the snap off leds board from Kite's SAIO. This will give me a clean result and tiny beautiful LEDS.

You wonder why this as i have everything on the board yet ? Just for the challenge and the fun

I also forgot to mention that Wifi/Power/Status have a common ground and Charge is independant.
You can see on my wiring that the frist 3 mentionned led have the groung leg soldered together. This allows you to free up some pads from Prs-Tech’s SD card reader

[YaYa]

update 04/10/2017

New power consumption test

SpoilerShow


Testing conditions :
- brightness to max
- sound to max (speaker)
- wifi enabled
- fan always on
- overclocking

Code: Select all

arm_freq=1000
gpu_freq=500
core_freq=500
sdram_freq=500
sdram_schmoo=0x02000020
over_voltage=2
sdram_over_voltage=2

Played Samurai Shodown 5 Special for 1 hour (lr-fbalpha)

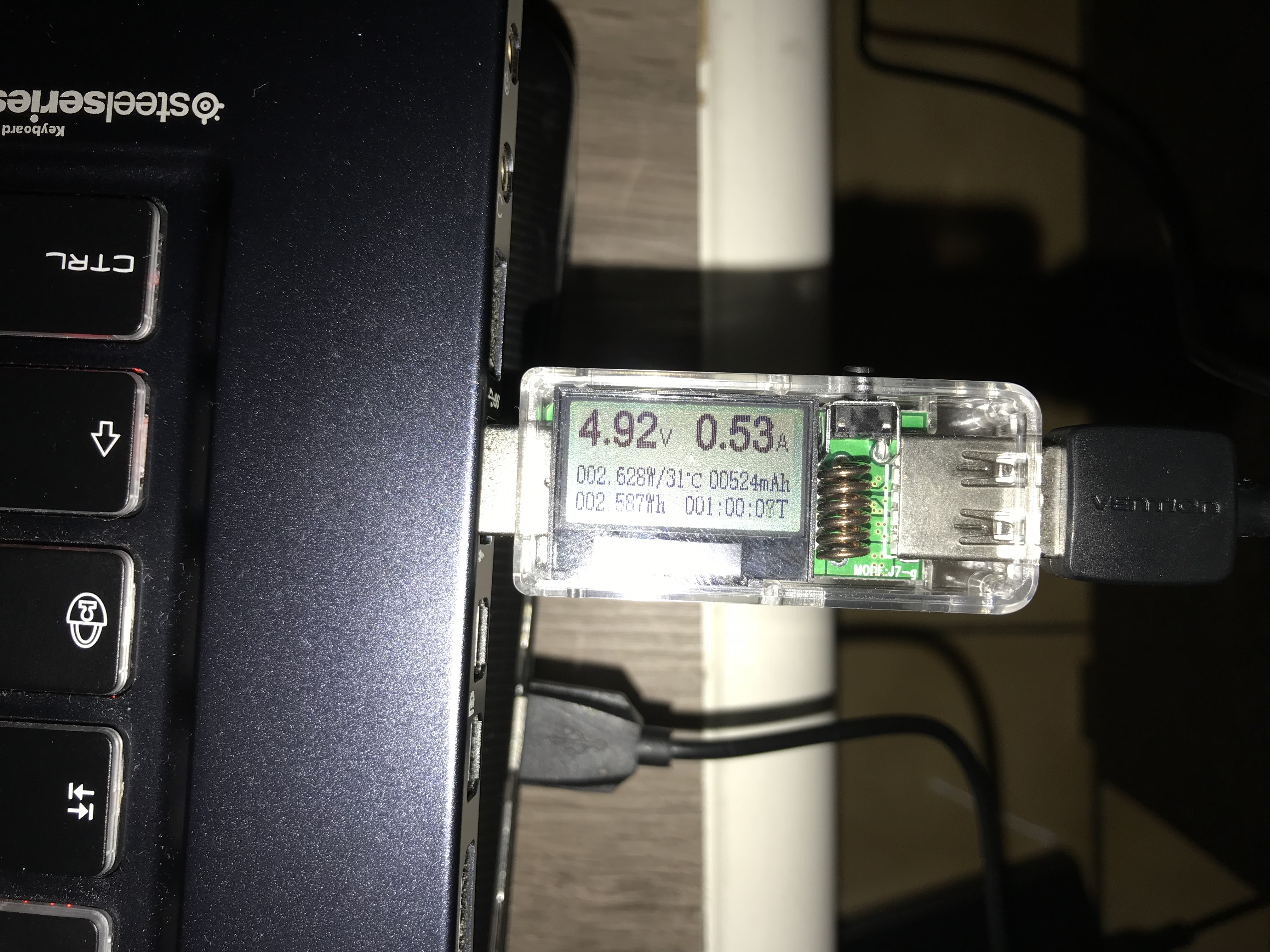

Total consumption : 524mAh

This is really good.
I am really satisfied with the result.

So i can say that my play time will be between 11 hours and 9 hours

If i take in count the battery effciency (which i cannot test for now) i should expect playtime of about 8 hours at full load.

[gilbertotron]

Dude that is awesome!
Well done!
Now you just need to add your tweeks into Kite's image and make a setting called "Economy Mode" that switches them all on!

[YaYa]

Thank you gilbertotron

I’ll take a look at how to add those features to kite’s image.
I’m already in close touch with him for some contribution to his wiki on his github

https://github.com/geebles/Super-AIO/wi ... i3-Adapter

https://github.com/geebles/Super-AIO/wi ... D-activity

I didn’t finish my tutorial to optimisation, i have more to come...
