Re: HoolyHoo's GBZ with Kite's SAIO

Post by drafterITA » Wed Apr 05, 2017 6:46 am

HoolyHoo wrote:
Wed Apr 05, 2017 6:42 am
drafterITA wrote:
Wed Apr 05, 2017 6:30 am
TheDeviantZen wrote:
Wed Apr 05, 2017 6:25 am


https://www.aliexpress.com/item/UXCELL- ... 0832b2f017
https://www.aliexpress.com/item/SK23D07 ... a9e080d4d1
Are These good or it will not work like the SK-22H07?
check ebay too :)
http://www.ebay.it/itm/20PCS-6mm-High-S ... Swn7JYFDUn
Those do look like the ones I used. :D
I saw in the description of the item that they are 2 positions switches, and they have 6 pins, so.. I ordered one bag. They are shipped from China, so it might take a while before they arrive.. Oh well, Kite SAIO board is also expected around the end of May, it should be okay :)
Cheers! :D
drafterITA

User avatar
HoolyHoo
Posts: 766
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 206 times
Been thanked: 741 times

Re: HoolyHoo's GBZ with Kite's SAIO

Post by HoolyHoo » Wed Apr 05, 2017 6:49 am

drafterITA wrote:
Wed Apr 05, 2017 6:46 am
HoolyHoo wrote:
Wed Apr 05, 2017 6:42 am
drafterITA wrote:
Wed Apr 05, 2017 6:30 am


check ebay too :)
http://www.ebay.it/itm/20PCS-6mm-High-S ... Swn7JYFDUn
Those do look like the ones I used. :D
I saw in the description of the item that they are 2 positions switches, and they have 6 pins, so.. I ordered one bag. They are shipped from China, so it might take a while before they arrive.. Oh well, Kite SAIO board is also expected around the end of May, it should be okay :)
Yes on the 6 pins. You only need two pins for our use. I just snipped off the other legs, since they are not needed.

User avatar
drafterITA
Posts: 120
Joined: Fri Feb 24, 2017 8:15 am
Location: Italy
Has thanked: 66 times
Been thanked: 19 times
Contact:

Re: HoolyHoo's GBZ with Kite's SAIO

Post by drafterITA » Wed Apr 05, 2017 10:33 am

Soo.. my dad destroyed his phone, so I ravaged it for parts (Samsung Galaxy S4, the battery is unfortunately too big..) and I could cut the battery connector in 1 piece. But I have no clue if it could fit the battery you used @HoolyHoo, could you, when you have time, tell me the measurements of the connections on the battery? What's the distance between each one of them etc etc..
Thank you very much :D
Cheers! :D
drafterITA

User avatar
HoolyHoo
Posts: 766
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 206 times
Been thanked: 741 times

Re: HoolyHoo's GBZ with Kite's SAIO

Post by HoolyHoo » Wed Apr 05, 2017 5:16 pm

drafterITA wrote:
Wed Apr 05, 2017 10:33 am
Soo.. my dad destroyed his phone, so I ravaged it for parts (Samsung Galaxy S4, the battery is unfortunately too big..) and I could cut the battery connector in 1 piece. But I have no clue if it could fit the battery you used @HoolyHoo, could you, when you have time, tell me the measurements of the connections on the battery? What's the distance between each one of them etc etc..
Thank you very much :D
Yeah you need that s2 battery. Height wise and width is perfect. Length needs a very slight modifican to the case. Only need to trim about 1mm from one of the sides for a tight fit or both sides if you want it loose in the case. There is a lip on both sides that makes that possible. You won't even notice it's altered. The plastic there is about 2mm thick so you don't need to completely cut that wall out.

I measured the distance between each of the four tabs and it's hard to get a perfect reading but it's pretty close to 2.5mm from center to center of each tab. I believe the first and third pins are the two you need.

User avatar
drafterITA
Posts: 120
Joined: Fri Feb 24, 2017 8:15 am
Location: Italy
Has thanked: 66 times
Been thanked: 19 times
Contact:

Re: HoolyHoo's GBZ with Kite's SAIO

Post by drafterITA » Wed Apr 05, 2017 11:04 pm

HoolyHoo wrote:
Wed Apr 05, 2017 5:16 pm
Yeah you need that s2 battery. Height wise and width is perfect. Length needs a very slight modifican to the case. Only need to trim about 1mm from one of the sides for a tight fit or both sides if you want it loose in the case. There is a lip on both sides that makes that possible. You won't even notice it's altered. The plastic there is about 2mm thick so you don't need to completely cut that wall out.

I measured the distance between each of the four tabs and it's hard to get a perfect reading but it's pretty close to 2.5mm from center to center of each tab. I believe the first and third pins are the two you need.
Thank you very much :)
I'll measure that connector I have and post some pictures if it fits!
Cheers! :D
drafterITA

User avatar
diegoquimico
Posts: 1
Joined: Fri Oct 28, 2016 7:53 am
Location: SPAIN

Re: HoolyHoo's GBZ with Kite's SAIO

Post by diegoquimico » Thu Apr 06, 2017 5:58 am

Which cell pone did you use to extrac pogo pìns? Thanks!! (Pics?)

User avatar
HoolyHoo
Posts: 766
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 206 times
Been thanked: 741 times

Re: HoolyHoo's GBZ with Kite's SAIO

Post by HoolyHoo » Thu Apr 06, 2017 6:05 am

diegoquimico wrote:
Thu Apr 06, 2017 5:58 am
Which cell pone did you use to extrac pogo pìns? Thanks!! (Pics?)
Here is the actual connector that goes with that battery.

http://www.witrigs.com/replacement-part ... 2-gt-i9100

User avatar
abrugsch
Posts: 971
Joined: Tue Aug 02, 2016 10:00 am
Has thanked: 356 times
Been thanked: 430 times
Contact:

Re: HoolyHoo's GBZ with Kite's SAIO

Post by abrugsch » Thu Apr 06, 2017 6:18 am

drafterITA wrote:
Wed Apr 05, 2017 10:33 am
Soo.. my dad destroyed his phone, so I ravaged it for parts (Samsung Galaxy S4, the battery is unfortunately too big..) and I could cut the battery connector in 1 piece. But I have no clue if it could fit the battery you used @HoolyHoo, could you, when you have time, tell me the measurements of the connections on the battery? What's the distance between each one of them etc etc..
Thank you very much :D
The S4 might just use the same battery terminal pitch. The S3 certainly does.

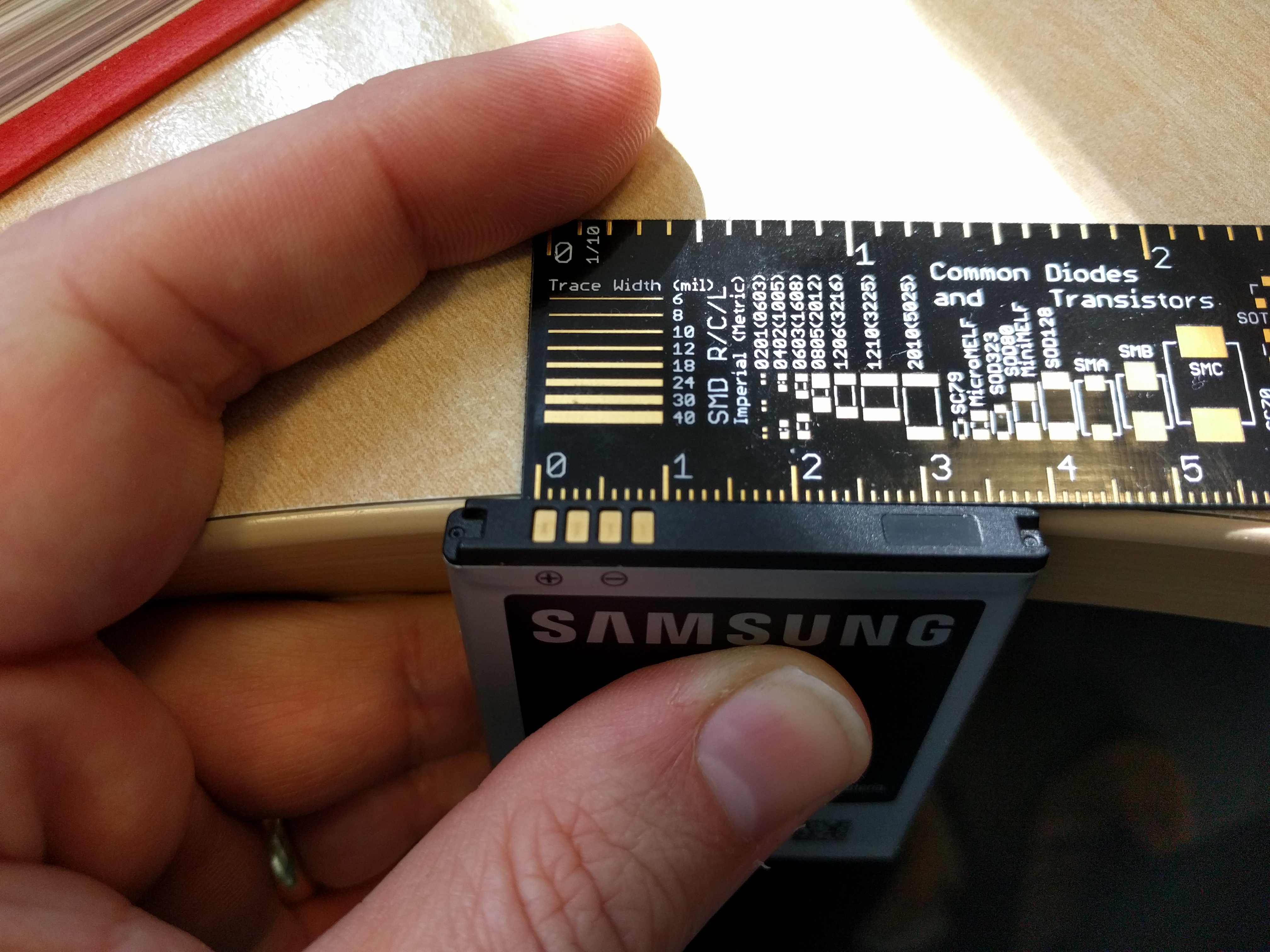

Anyway here's the S2 battery:

User avatar
drafterITA
Posts: 120
Joined: Fri Feb 24, 2017 8:15 am
Location: Italy
Has thanked: 66 times
Been thanked: 19 times
Contact:

Re: HoolyHoo's GBZ with Kite's SAIO

Post by drafterITA » Thu Apr 06, 2017 7:30 am

abrugsch wrote:
Thu Apr 06, 2017 6:18 am
drafterITA wrote:
Wed Apr 05, 2017 10:33 am
Soo.. my dad destroyed his phone, so I ravaged it for parts (Samsung Galaxy S4, the battery is unfortunately too big..) and I could cut the battery connector in 1 piece. But I have no clue if it could fit the battery you used @HoolyHoo, could you, when you have time, tell me the measurements of the connections on the battery? What's the distance between each one of them etc etc..
Thank you very much :D
The S4 might just use the same battery terminal pitch. The S3 certainly does.
Anyway here's the S2 battery:
If those in your picture are cm, then my connector should be perfect :)
Thank you abrugsch and HollyHoo :D
Cheers! :D
drafterITA

User avatar
HoolyHoo
Posts: 766
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 206 times
Been thanked: 741 times

Re: HoolyHoo's GBZ with Kite's SAIO

Post by HoolyHoo » Thu Apr 06, 2017 7:46 am

drafterITA wrote:
Thu Apr 06, 2017 7:30 am
abrugsch wrote:
Thu Apr 06, 2017 6:18 am
drafterITA wrote:
Wed Apr 05, 2017 10:33 am
Soo.. my dad destroyed his phone, so I ravaged it for parts (Samsung Galaxy S4, the battery is unfortunately too big..) and I could cut the battery connector in 1 piece. But I have no clue if it could fit the battery you used @HoolyHoo, could you, when you have time, tell me the measurements of the connections on the battery? What's the distance between each one of them etc etc..
Thank you very much :D
The S4 might just use the same battery terminal pitch. The S3 certainly does.
Anyway here's the S2 battery:
If those in your picture are cm, then my connector should be perfect :)

Thank you abrugsch and HollyHoo :D
Looks like an exact match to me. :D
