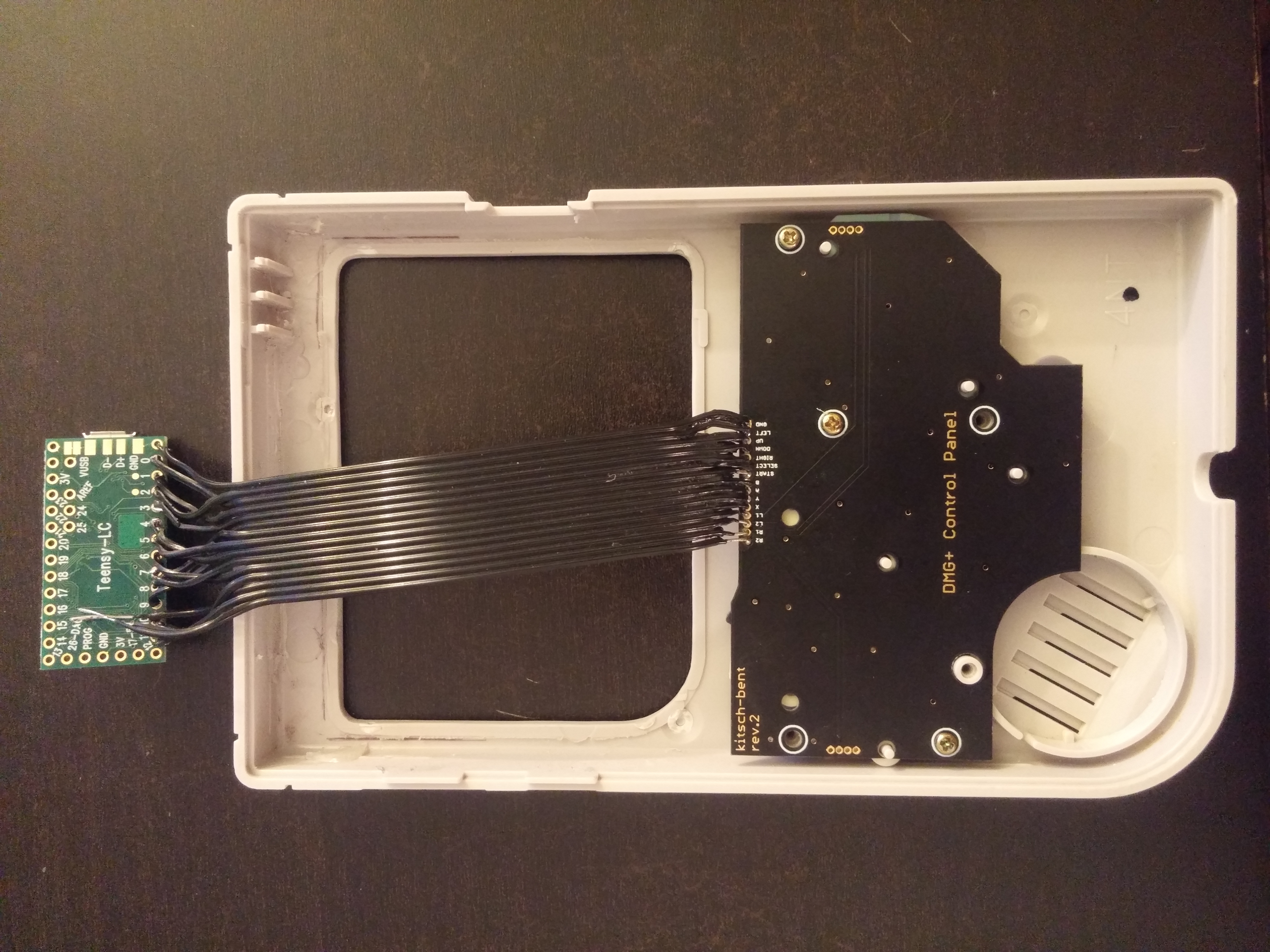

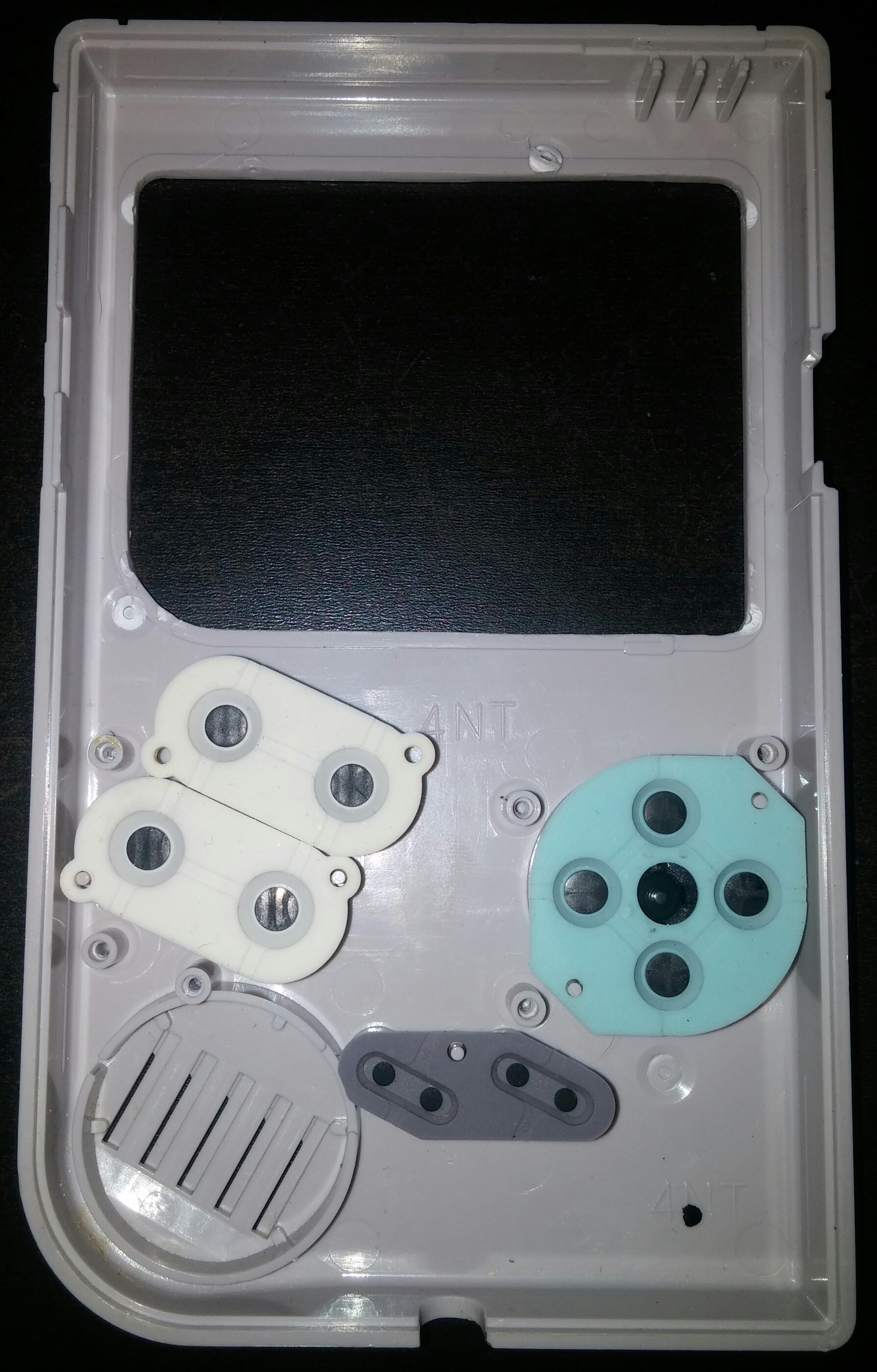

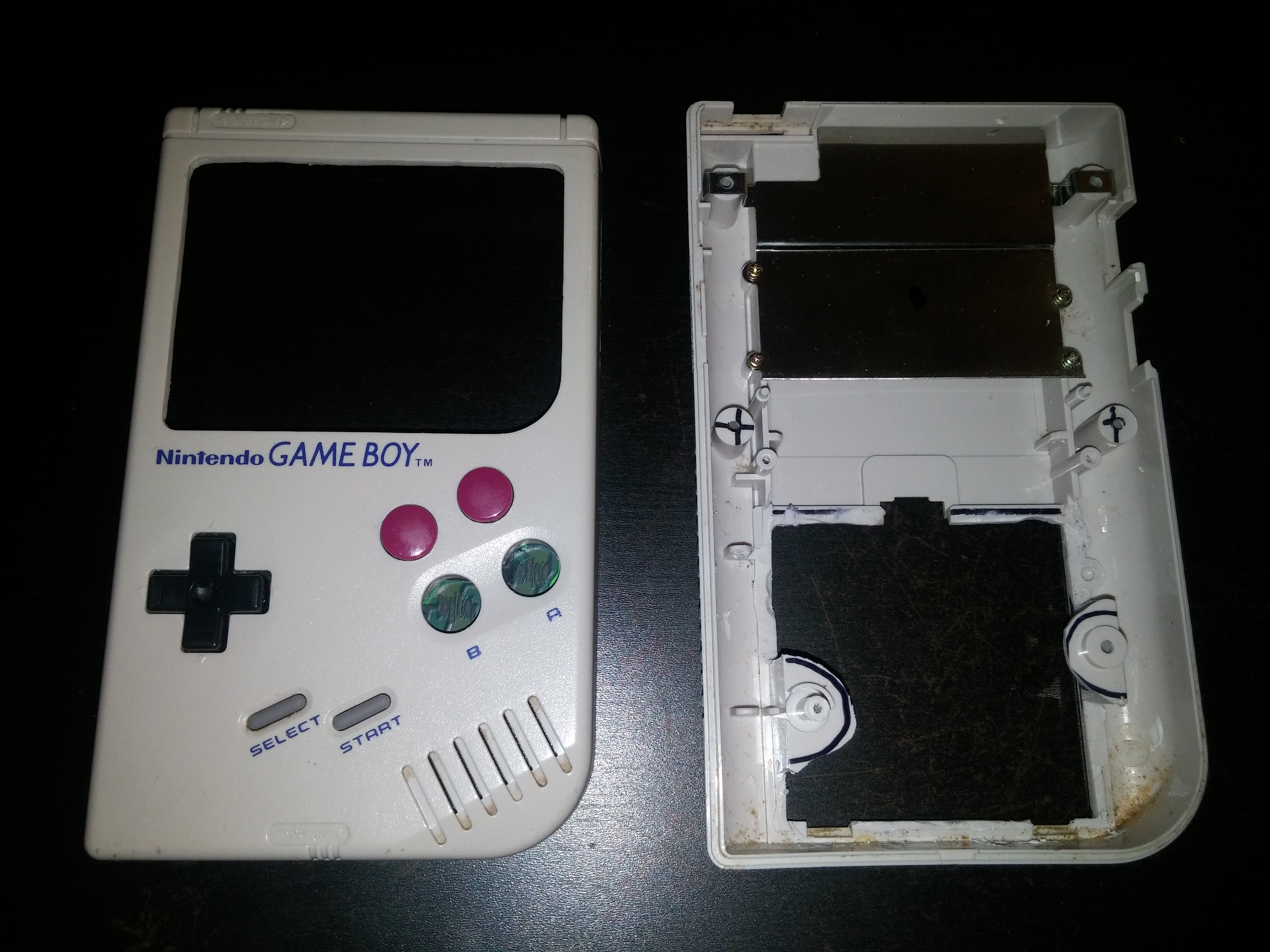

Here's what I have so far. Let me know what you guys think!
- Attachments
-
- 20160607_192937-1.jpg (442.94 KiB) Viewed 11674 times
-
- 20160502_211404.jpg (3.84 MiB) Viewed 11674 times
-
- 20160513_074337-1.jpg (787.56 KiB) Viewed 11674 times
-
- 20160602_221036.jpg (5.84 MiB) Viewed 11674 times
- wermy
- Site Admin
- Posts: 1346
- Joined: Tue May 03, 2016 8:51 pm
- Has thanked: 620 times
- Been thanked: 1322 times
- Contact:
Re: Kalen's GBZ

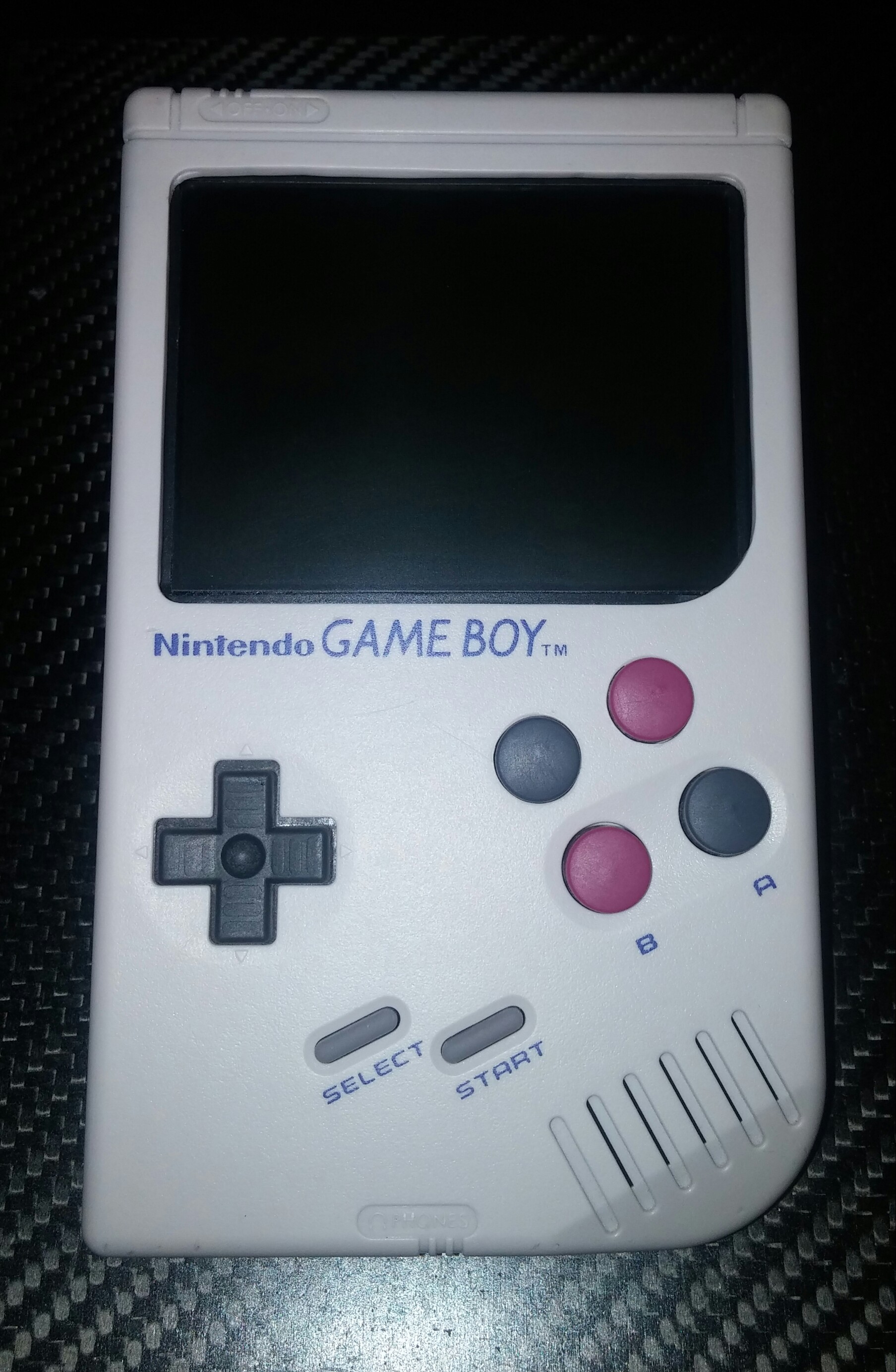

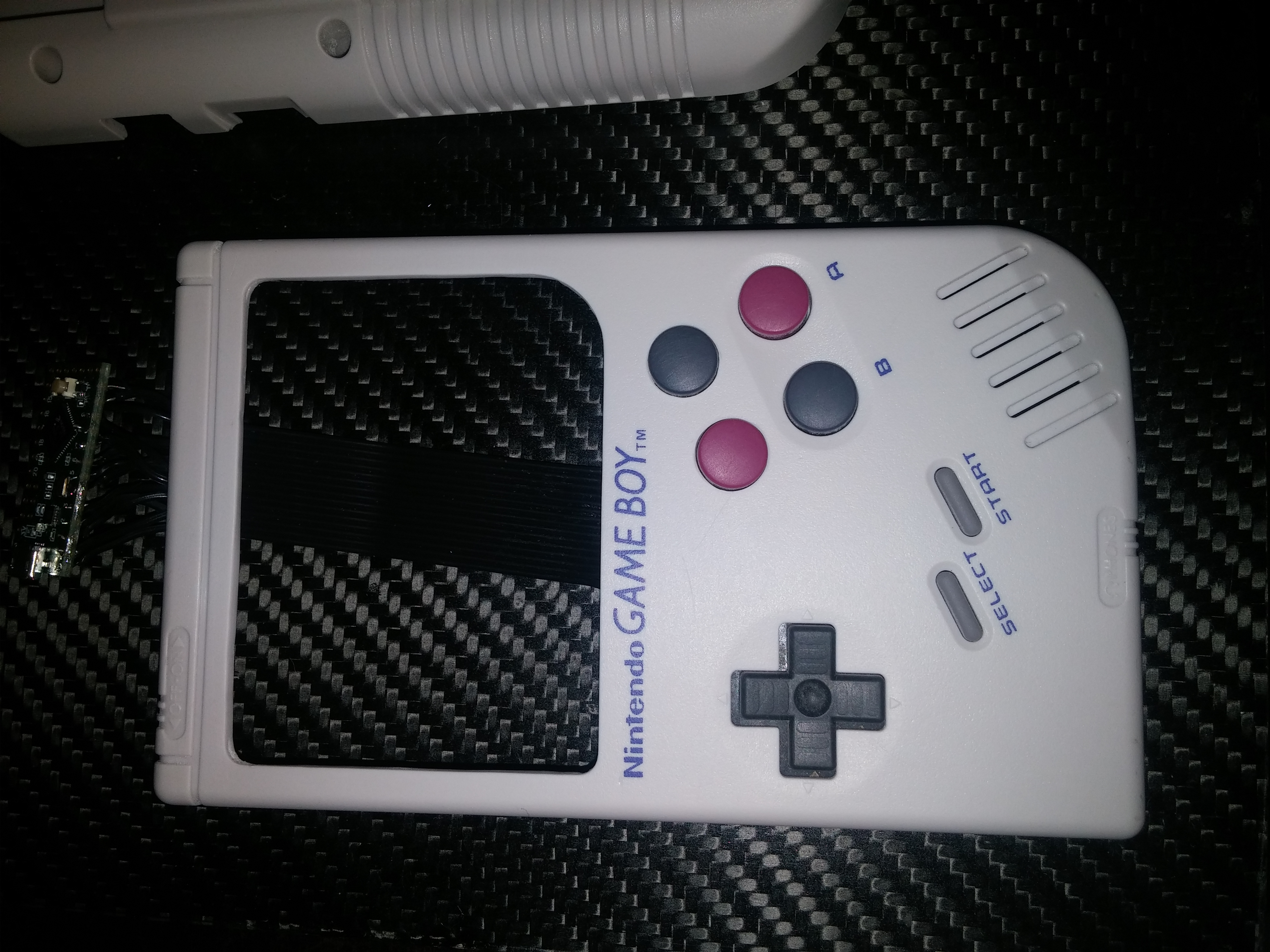

Decided to sand the whole case and buttons with a red scotch bright pad. All the shiny plastic is now a nice clean matte finish.
- Attachments
-
- 20160612_005124.jpg (4.46 MiB) Viewed 11479 times
-
- 20160612_005033.jpg (3.33 MiB) Viewed 11479 times
-
- 20160612_004953.jpg (3.89 MiB) Viewed 11479 times
Re: Kalen's GBZ

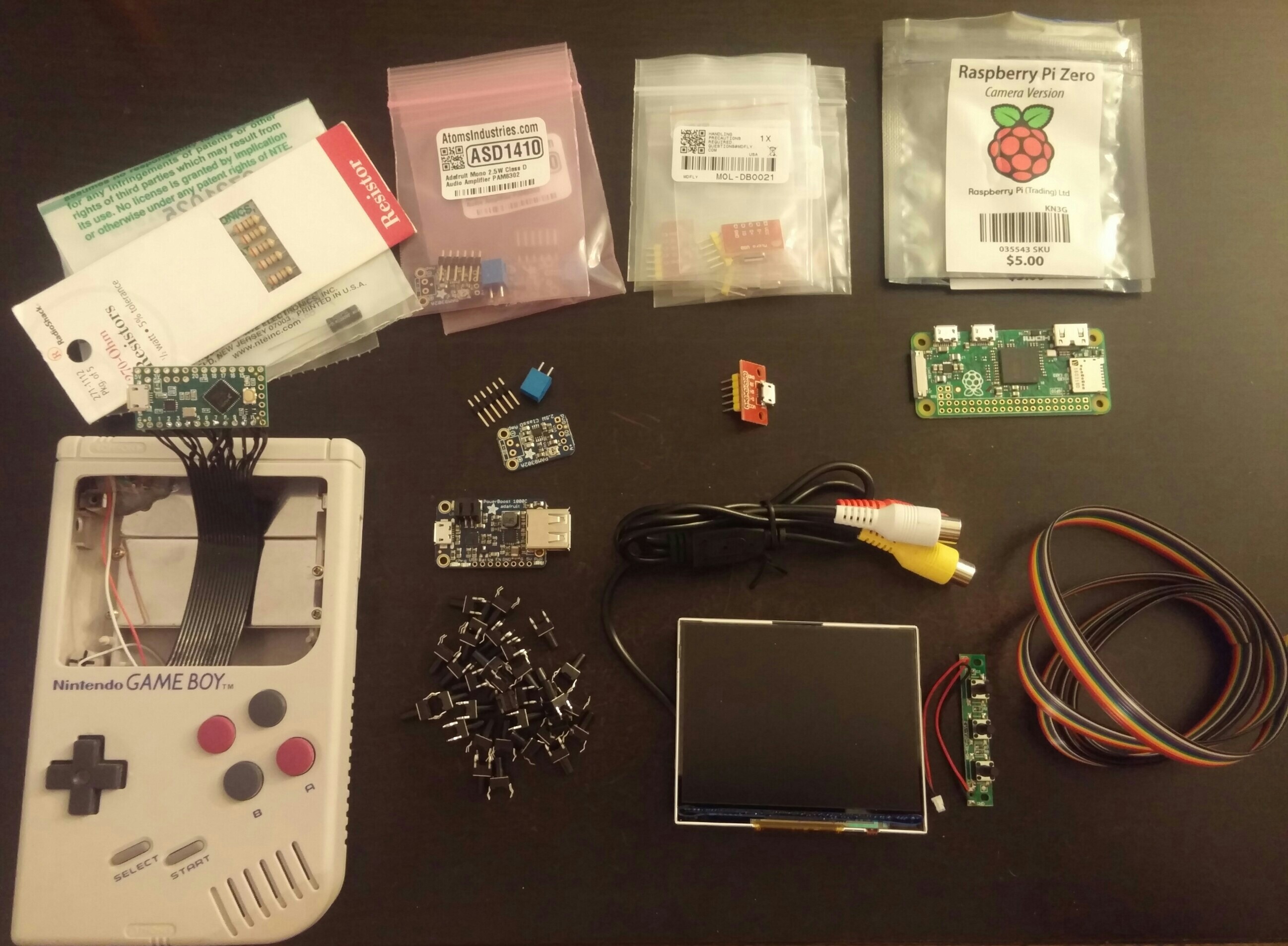

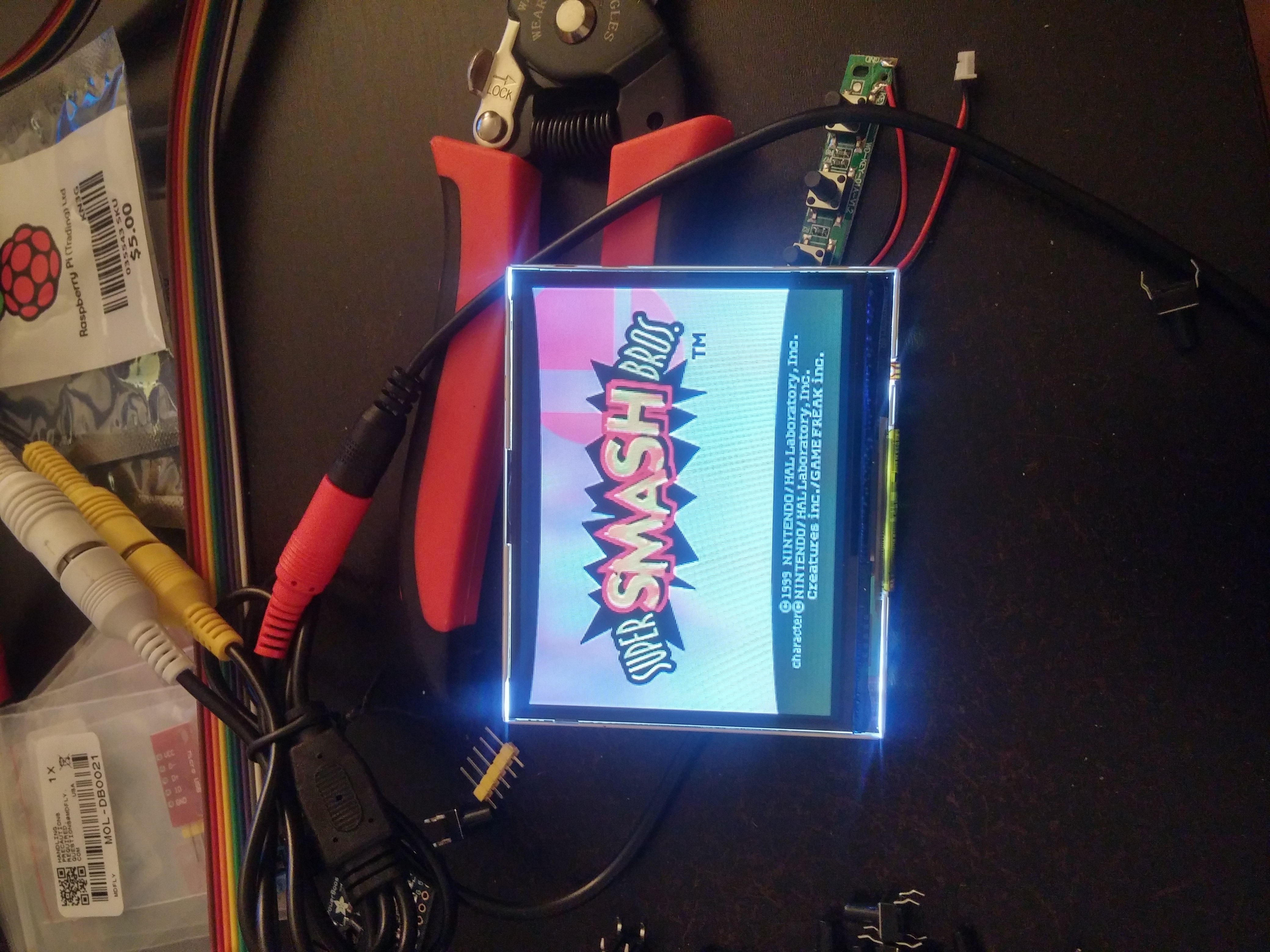

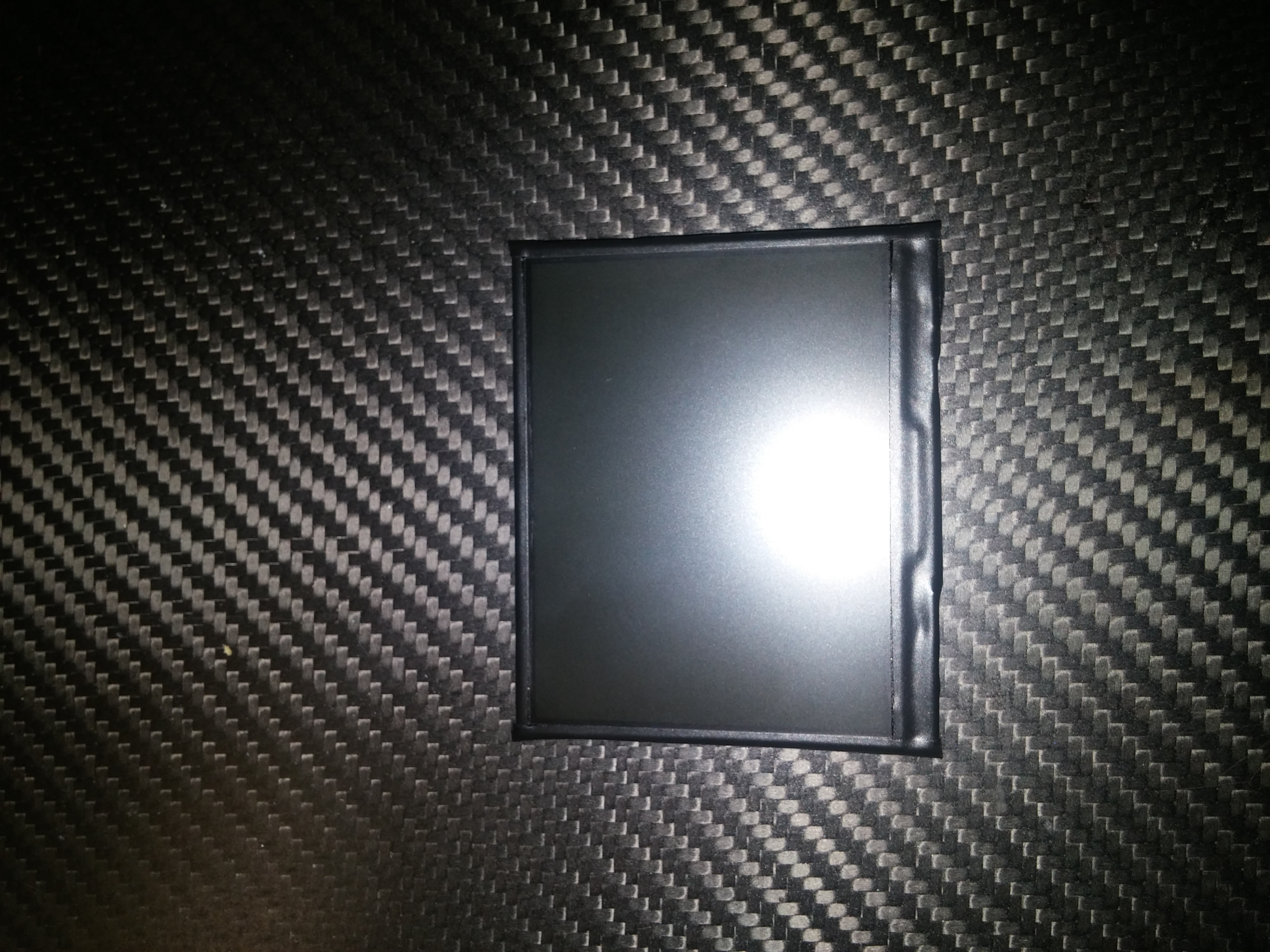

Finally got a lot of needed parts in the mail. Ended up buying multiple of everything just in case I mess something up. I'm using one of the back up camera screens and upon dismantling it the front metal bezel pulled off and I was upset at first but I ended up just using some electrical tape to secure it to the back of the screen. Should hold up better then painting it since I'm not planning on using a screen protector because I like the matte look of the screen with out one.
- Attachments
-
- 20160620_133940.jpg (4.51 MiB) Viewed 11356 times
-
- 20160620_114403_HDR.jpg (4.76 MiB) Viewed 11358 times
-
- 20160619_131212-1-1.jpg (637.34 KiB) Viewed 11358 times
Re: Kalen's GBZ

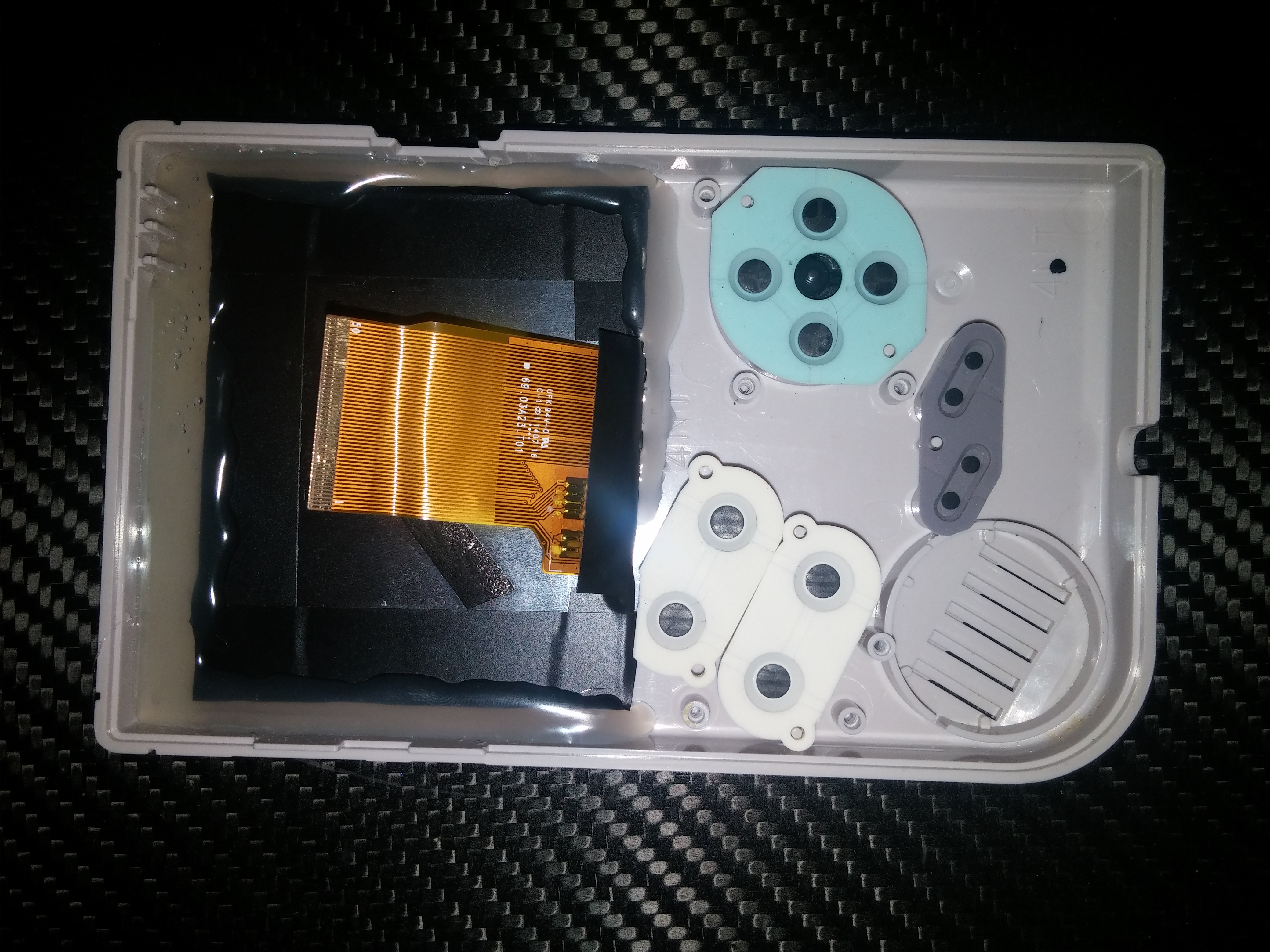

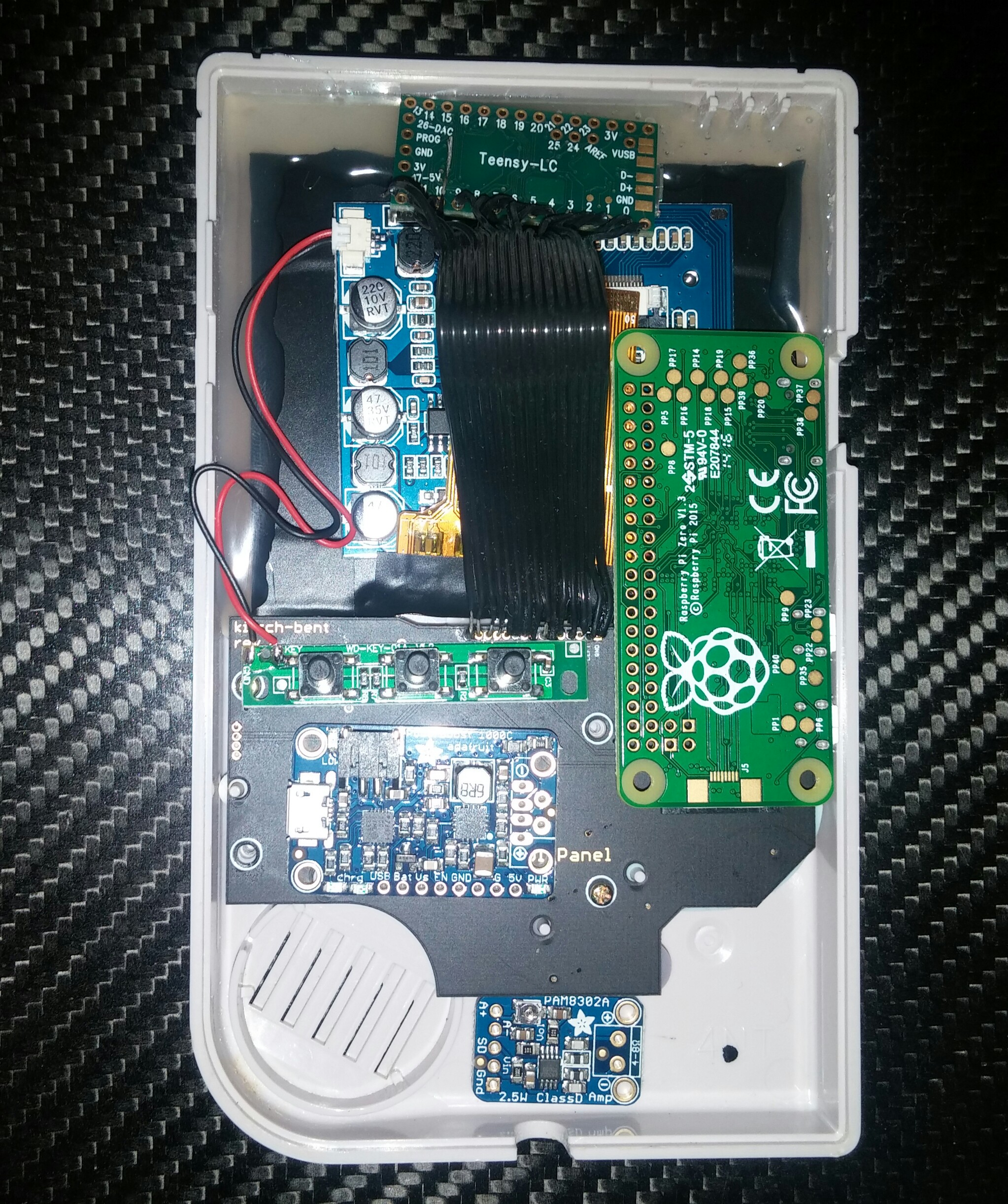

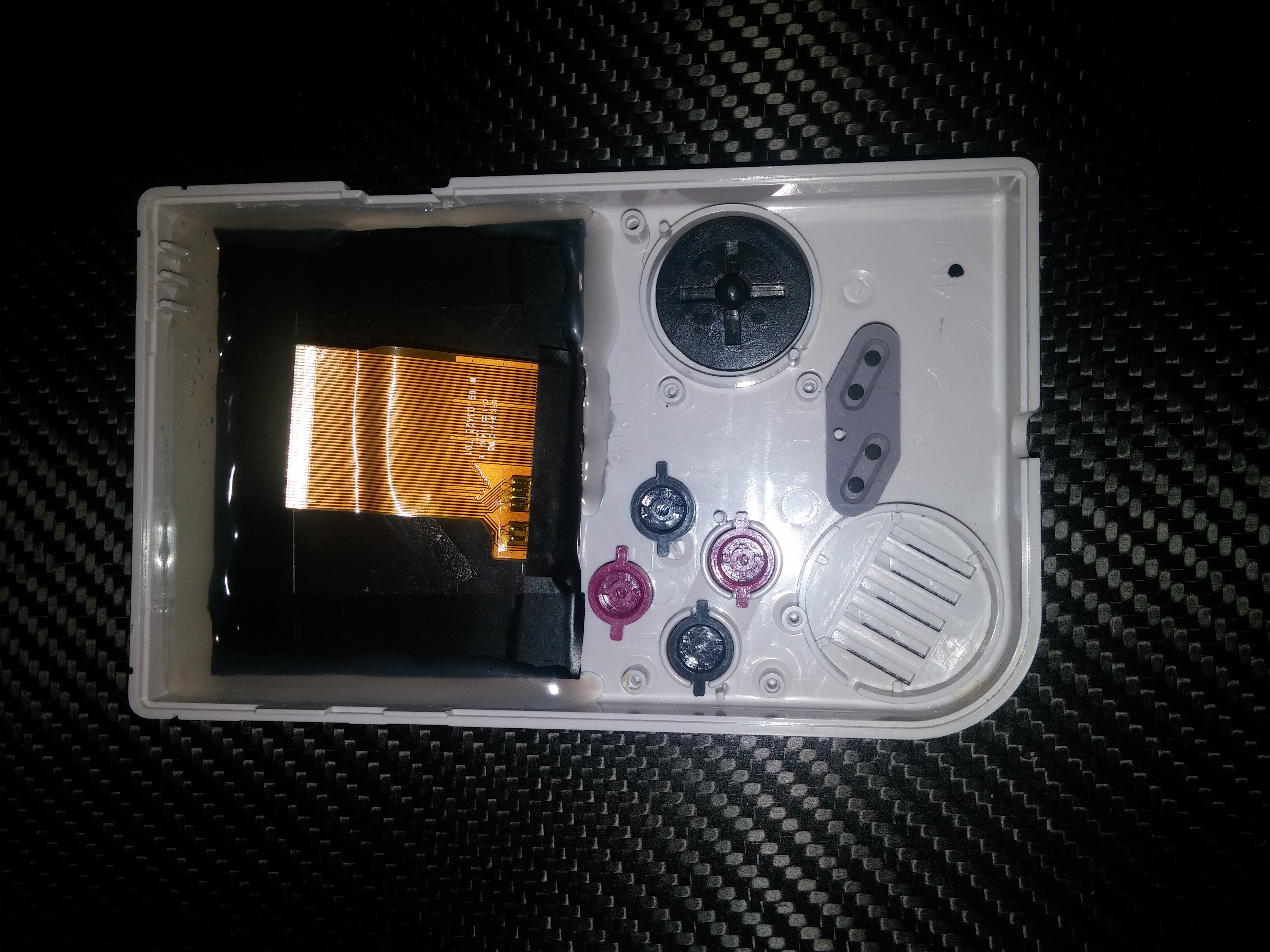

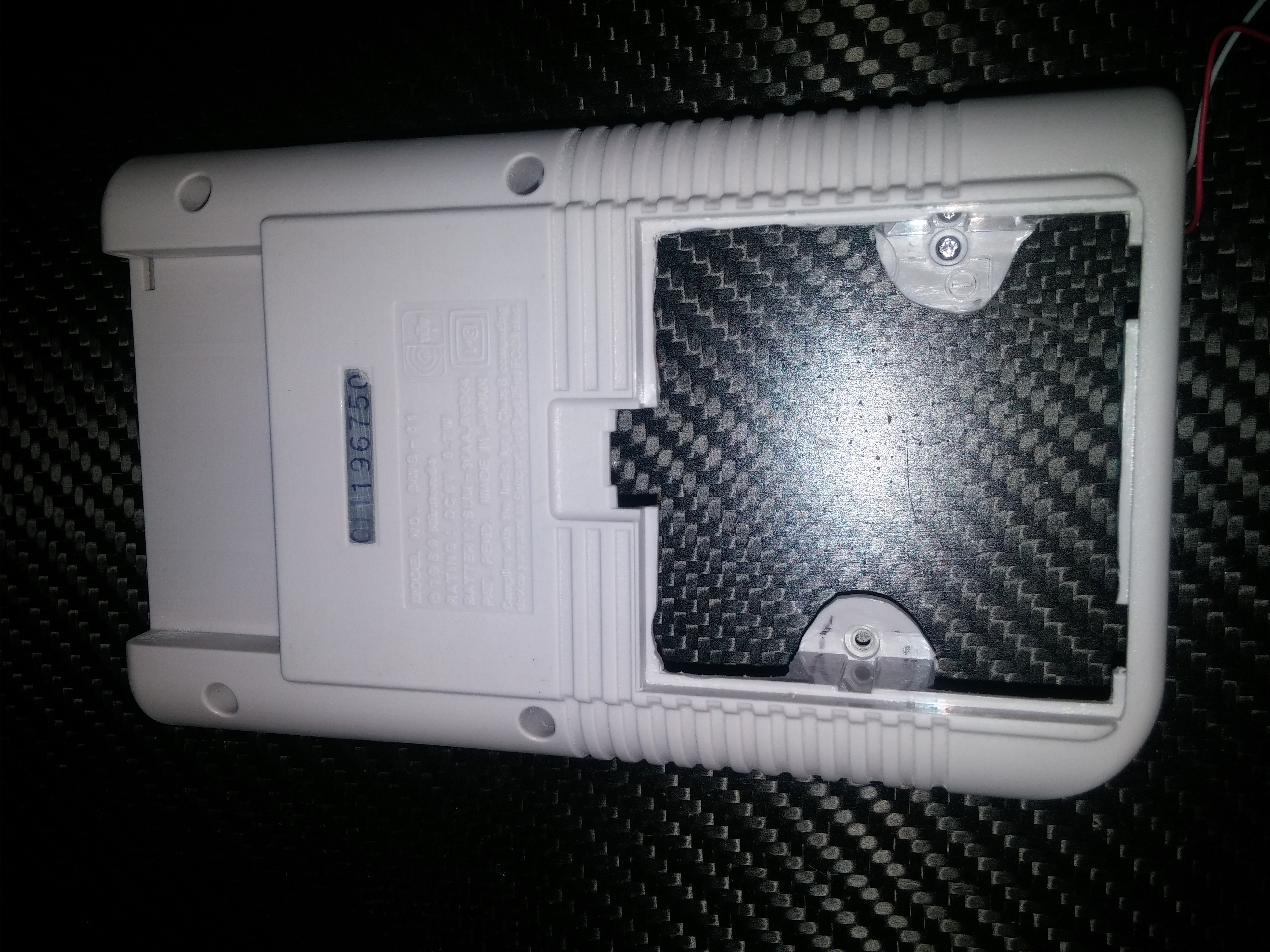

Got the screen mounted and did a mock up of the board placements. Still waiting for a few more things in the mail so I'm holding off on the wiring.
- Attachments
-
- 20160620_163702-1.jpg (765.78 KiB) Viewed 11283 times
-
- 20160620_160630-1.jpg (1.3 MiB) Viewed 11283 times
-
- 20160620_155550.jpg (4.03 MiB) Viewed 11283 times
-
- 20160620_155416.jpg (3.92 MiB) Viewed 11283 times
- Kilren
- Posts: 574
- Joined: Wed May 11, 2016 4:40 pm
- Location: Washington, USA
- Has thanked: 35 times
- Been thanked: 84 times
Re: Kalen's GBZ
I get a kick out of your buttons. For some reason, they remind me of Harley Quinn.
[spoiler="Harley Quinn"][/spoiler]
[spoiler="Harley Quinn"][/spoiler]
Re: Kalen's GBZ
Haha thanks. They're all factory game boy buttons. The black ones are from a clear play it loud case.Kilren wrote:I get a kick out of your buttons. For some reason, they remind me of Harley Quinn.
[spoiler="Harley Quinn"][/spoiler]
Re: Kalen's GBZ

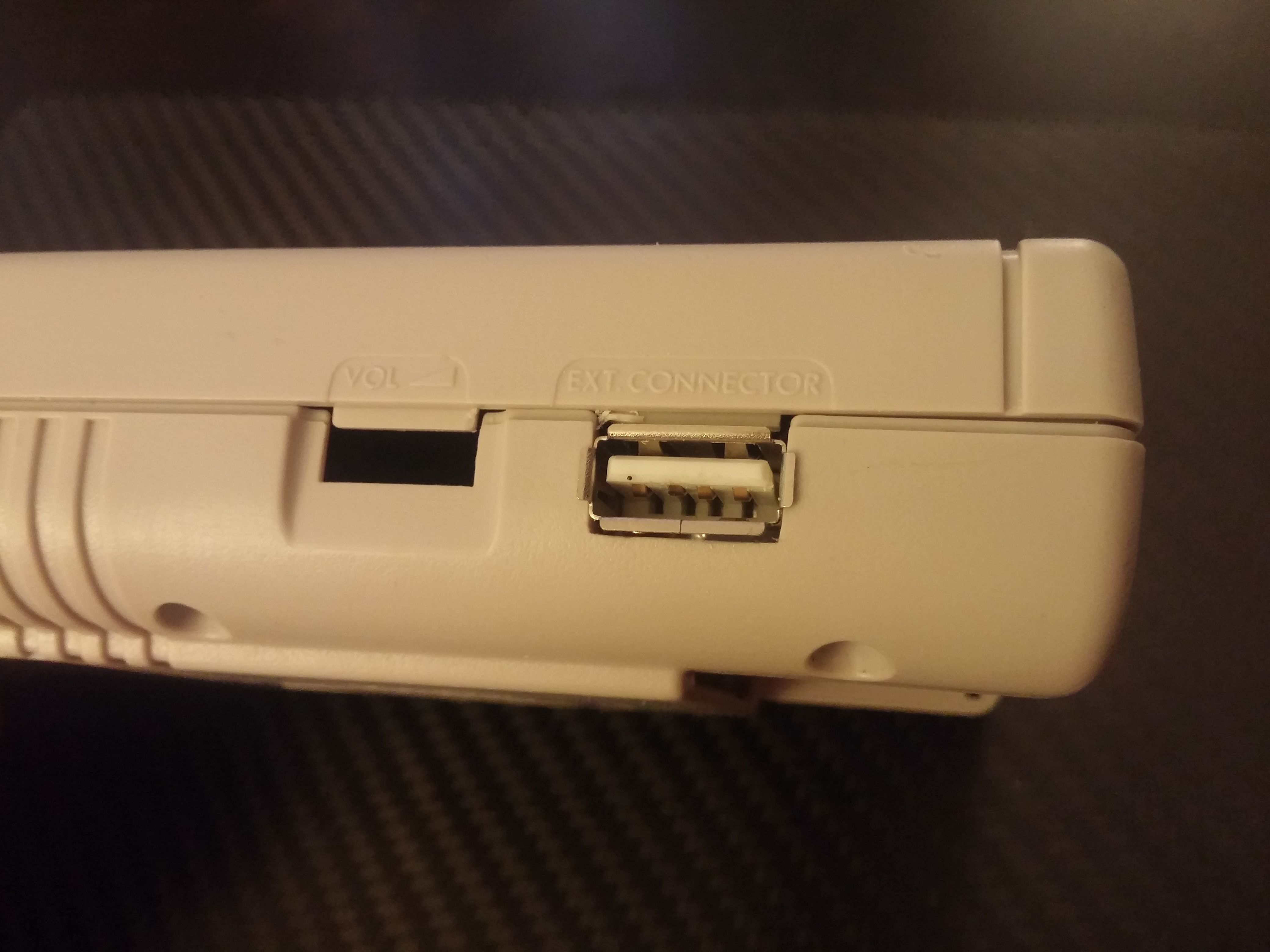

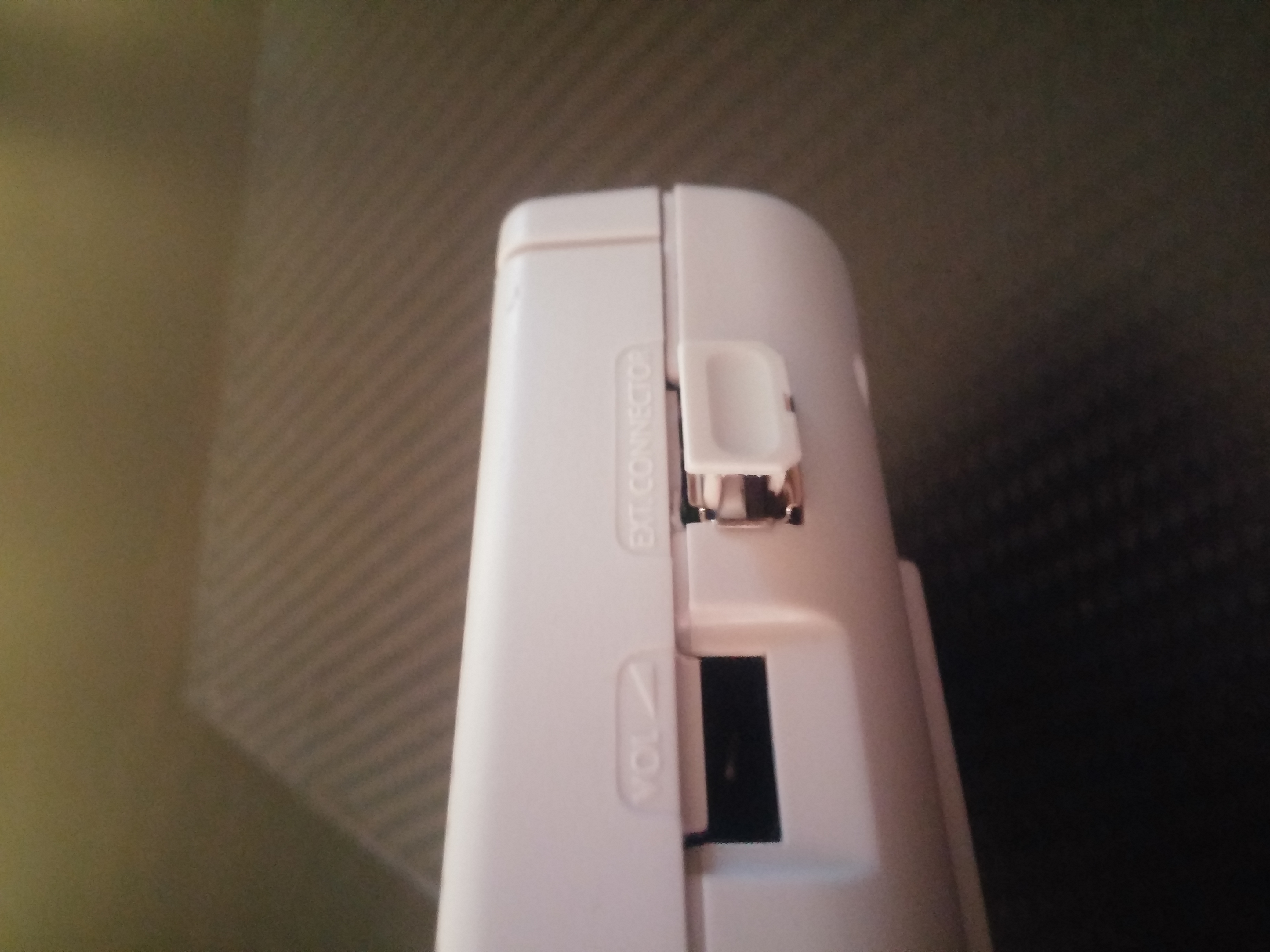

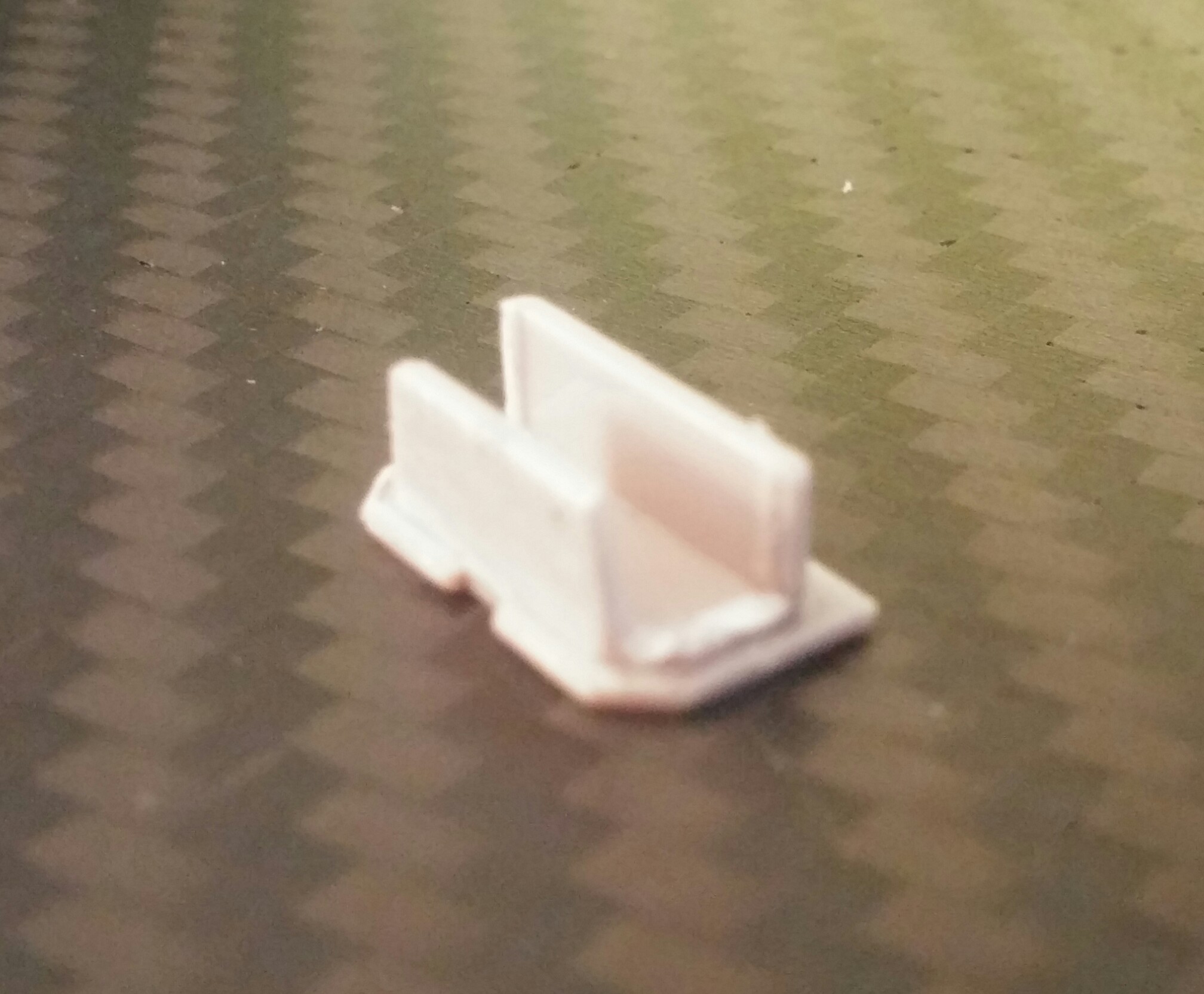

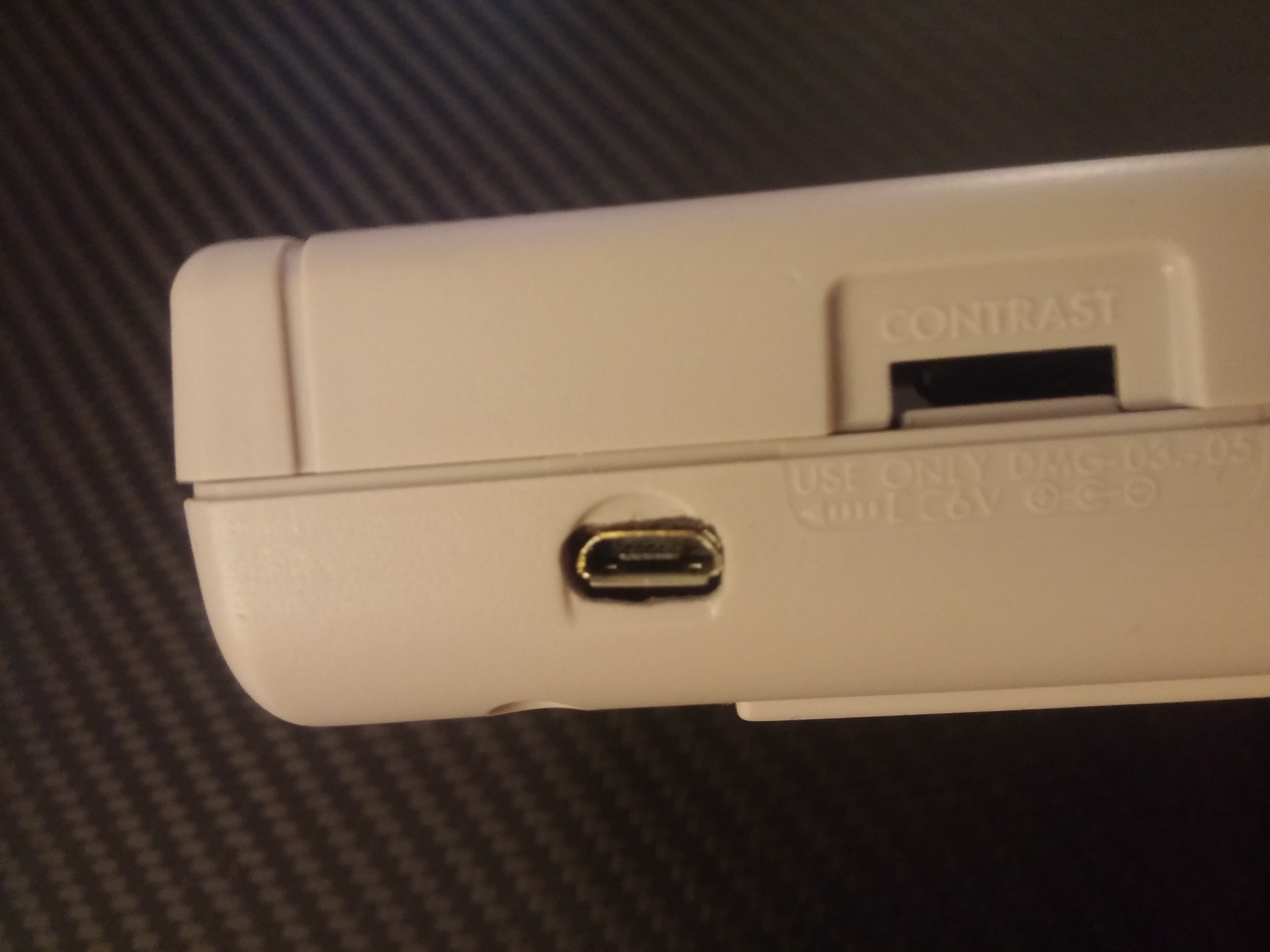

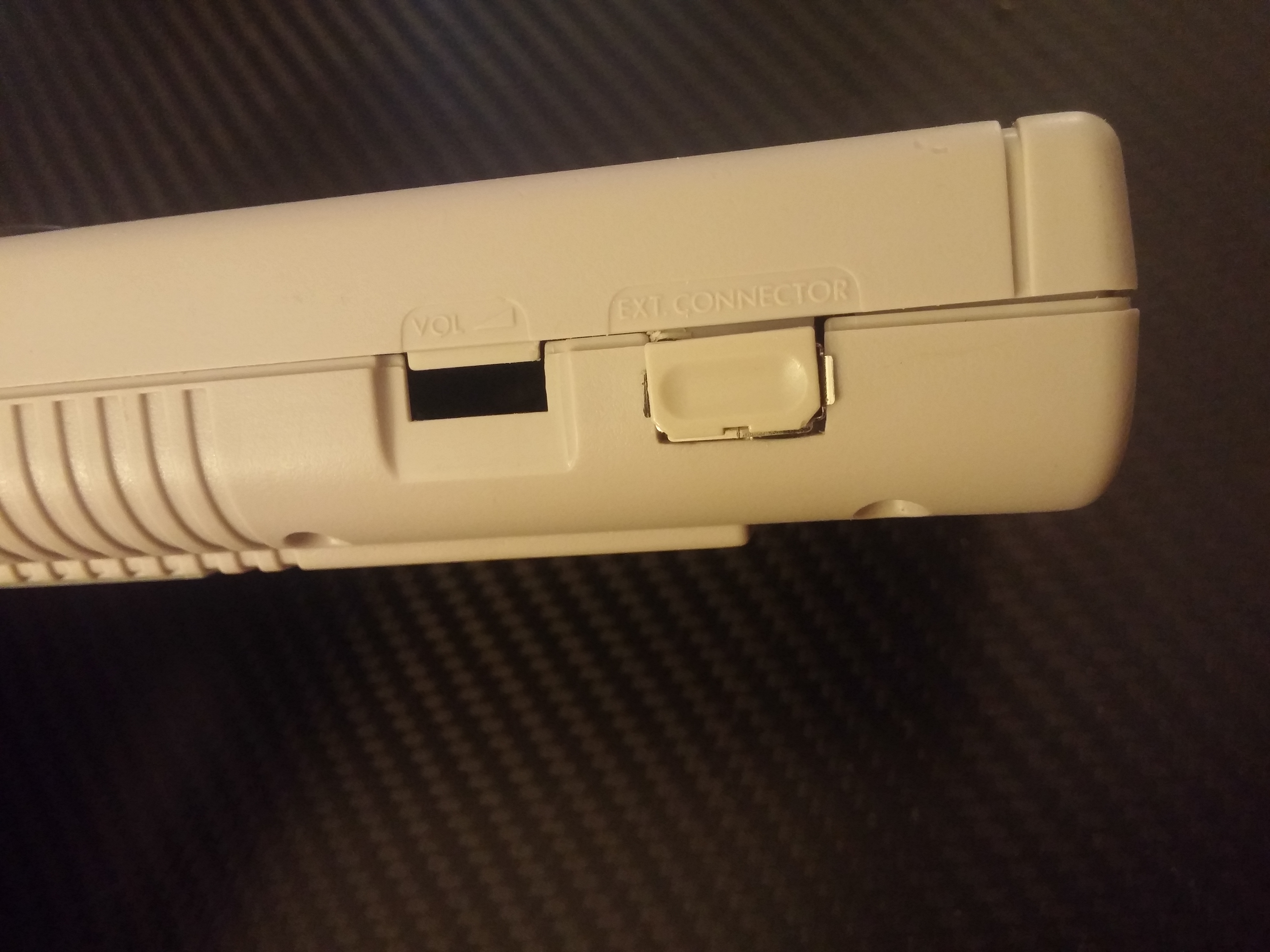

Got the USB port and the micro USB charging port installed. I was able to modify the orginal extension port cover to work with the new USB port.
- Attachments
-
- 20160628_162451.jpg (3.07 MiB) Viewed 10981 times
-
- 20160628_173951-1.jpg (367.57 KiB) Viewed 10981 times
-
- 20160628_174429.jpg (2.62 MiB) Viewed 10981 times
-
- 20160628_162524.jpg (3.08 MiB) Viewed 10981 times
-
- 20160628_162435.jpg (3.11 MiB) Viewed 10981 times
