Power boost/charger wiring

Post by gargoyle67 » Tue Jul 12, 2016 11:40 am

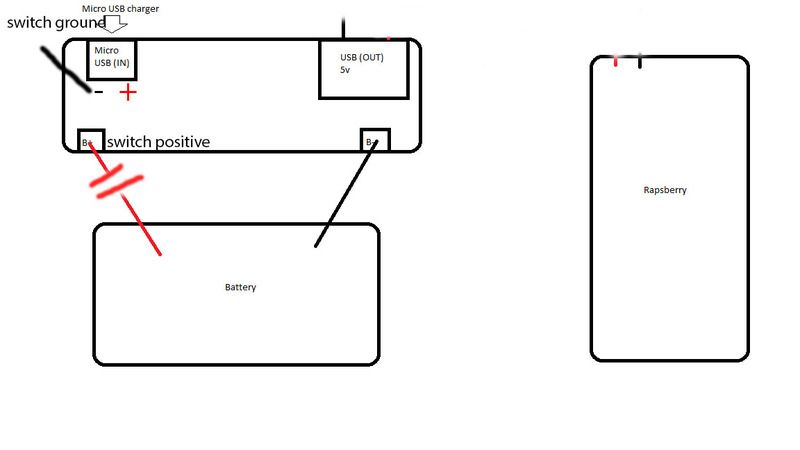

I have the pictured power booster instead of the Adafruit 1000c one, Has anyone got a wiring diagram of how they wired it at all ?

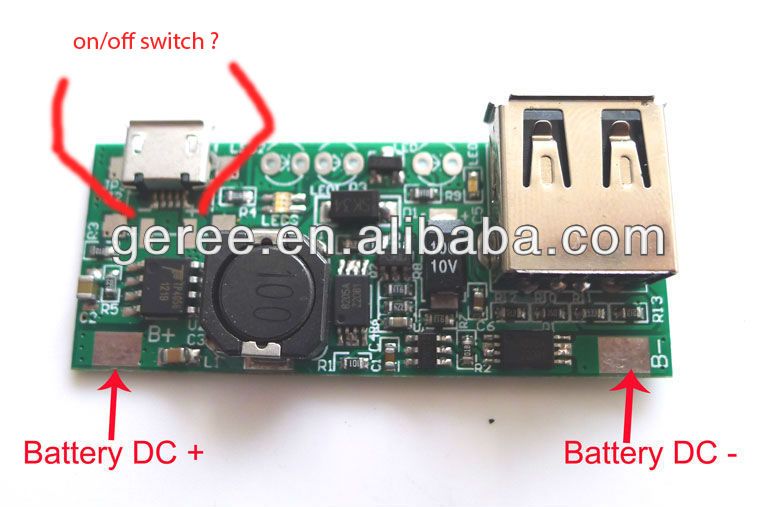

Some of the questions I have are> do I wire the on/off switch to the +/- behind the micro usb charge in port as I've highlighted in the picture ?
As this board doesn't have the enable pin as on the Adafruit board.

The battery connects to the DC+/DC- , Should I connect a the battery instead to a prototyping board instead and then loop wires back from that board to the DC+/DC- so I can also use the prototyping board to power my pi board ?

Noob questions I know but hay I'm fairly noobish :)



User avatar
BadBert
Posts: 377
Joined: Wed Jun 29, 2016 4:14 am
Location: Hoogerheide, Netherlands
Has thanked: 100 times
Been thanked: 61 times
Contact:

Re: Power boost/charger wiring

Post by BadBert » Tue Jul 12, 2016 1:08 pm

Interested in this too ;)
My first GBZ build -=HERE=- -> Became a gift to my little brother!
My 2nd GBZ build -=WIP HERE=- -> going with HDMI!

Nosfay
Posts: 25
Joined: Mon May 23, 2016 4:32 pm
Been thanked: 3 times

Re: Power boost/charger wiring

Post by Nosfay » Tue Jul 12, 2016 7:48 pm

Hi,
do I wire the on/off switch to the +/- behind the micro usb charge in port as I've highlighted in the picture ?
No, your on/off switch will be at the board output (+5v).
The battery connects to the DC+/DC- , Should I connect a the battery instead to a prototyping board instead and then loop wires back from that board to the DC+/DC- so I can also use the prototyping board to power my pi board ?
Connect your battery directly to DC+/DC-, because lithium battery have 3.7v current and raspberry need 5v.

Here is a little diagram I did for you ;)


You can use a prototyping board after the on/off switch to split your 5v current to supply your rapsberry, screen and sound amp.

To wire +5v output, you can desolder USB port and use it pin, or just solder on pin with v+ v- or something like that on the other board side.

User avatar
gargoyle67
Posts: 73
Joined: Fri Jun 17, 2016 3:13 pm
Has thanked: 48 times
Been thanked: 16 times

Re: Power boost/charger wiring

Post by gargoyle67 » Wed Jul 13, 2016 12:32 am

Nice thank you for taking the time. ;)

User avatar
Fleder
Posts: 849
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 183 times
Been thanked: 258 times

Re: Power boost/charger wiring

Post by Fleder » Wed Jul 13, 2016 1:52 am

If you plan on using the graceful shutdown method, okay.
But if you do not, you should wire the on/off switch (if you want to cut off the battery to stop it from being drained)
between the battery and the Power Supply, not at the output.
Sure, it is not much, but the Power Supply will still be powered the other way and drains a tiny amount of power.
Make sure your on/off switch can cope with the mAh.

User avatar
gargoyle67
Posts: 73
Joined: Fri Jun 17, 2016 3:13 pm
Has thanked: 48 times
Been thanked: 16 times

Re: Power boost/charger wiring

Post by gargoyle67 » Wed Jul 13, 2016 6:51 am

Fleder wrote:If you plan on using the graceful shutdown method, okay.
But if you do not, you should wire the on/off switch (if you want to cut off the battery to stop it from being drained)
between the battery and the Power Supply, not at the output.
Sure, it is not much, but the Power Supply will still be powered the other way and drains a tiny amount of power.
Make sure your on/off switch can cope with the mAh.
Thanks Fleder, I did wonder about the battery drain, The booster isn't Adafruit so I don't think I can use the graceful shut down.
I'll be using a 3000mah and the original GB on/off switch not sure what mah load it can take ?
So for the switch I should attach ground to my micro ac in - as in my original post above and the positive switch red wire between the battery's + cable and the boosters + solder point ?
like this> ?

User avatar
Fleder
Posts: 849
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 183 times
Been thanked: 258 times

Re: Power boost/charger wiring

Post by Fleder » Wed Jul 13, 2016 7:29 am

gargoyle67 wrote:Thanks Fleder, I did wonder about the battery drain, The booster isn't Adafruit so I don't think I can use the graceful shut down.
I'll be using a 3000mah and the original GB on/off switch not sure what mah load it can take ?
So for the switch I should attach ground to my micro ac in - as in my original post above and the positive switch red wire between the battery's + cable and the boosters + solder point ?
like this> ?
I am not sure about the original one, but the alternatives are usually around 500mAh,
so they might not be suited to sustain 1/2A while charging.
They might work, but could get hot, that depends on the thickness of the material that is used for the contact pads.

Keep in mind that you have to shutdown the Pi manually with the EmulationStation or via terminal command,
do not just toggle the switch to cut the power. Shut it down, then toggle the switch.

If you want the switch to just cut the power completely, wire it between the V+ of the battery and the Power Supply Module.
I am not talking about the original Power Switch, i am talking about another one that cuts the power from the battery to the power supply.

If you want to know how to wire the original on/off switch, just watch wermys youtube videos.

User avatar
BadBert
Posts: 377
Joined: Wed Jun 29, 2016 4:14 am
Location: Hoogerheide, Netherlands
Has thanked: 100 times
Been thanked: 61 times
Contact:

Re: Power boost/charger wiring

Post by BadBert » Wed Jul 13, 2016 7:49 am

If you put the switch inbetween the battery + and + on the board, you have to remember to keep it switched on while charging...

I thought the alternativewould also have an pin tondisable/enable.... Because bow, i dont know if my switch can cope with the power that iis draw.
Is it best to put it in the battery power line? Or the 5v out from usb?
My first GBZ build -=HERE=- -> Became a gift to my little brother!
My 2nd GBZ build -=WIP HERE=- -> going with HDMI!

User avatar
gargoyle67
Posts: 73
Joined: Fri Jun 17, 2016 3:13 pm
Has thanked: 48 times
Been thanked: 16 times

Re: Power boost/charger wiring

Post by gargoyle67 » Wed Jul 13, 2016 7:51 am

Thanks, Yes I realize about shutting down emustation first as to not cause corruption on the SD card :)
The trouble with following wermys video guide is my boost board isn't a Adafruit one so I haven't got an (EN) pin on it :(

User avatar
BadBert
Posts: 377
Joined: Wed Jun 29, 2016 4:14 am
Location: Hoogerheide, Netherlands
Has thanked: 100 times
Been thanked: 61 times
Contact:

Re: Power boost/charger wiring

Post by BadBert » Wed Jul 13, 2016 8:03 am

I bought the same board as it was stated as alternative on the wiki.....
Now i am thinking i should have bought the adafruit one!
My first GBZ build -=HERE=- -> Became a gift to my little brother!
My 2nd GBZ build -=WIP HERE=- -> going with HDMI!
