Post by Robots86 » Thu Jun 30, 2016 2:18 am

Hi sudo mod :mrgreen:

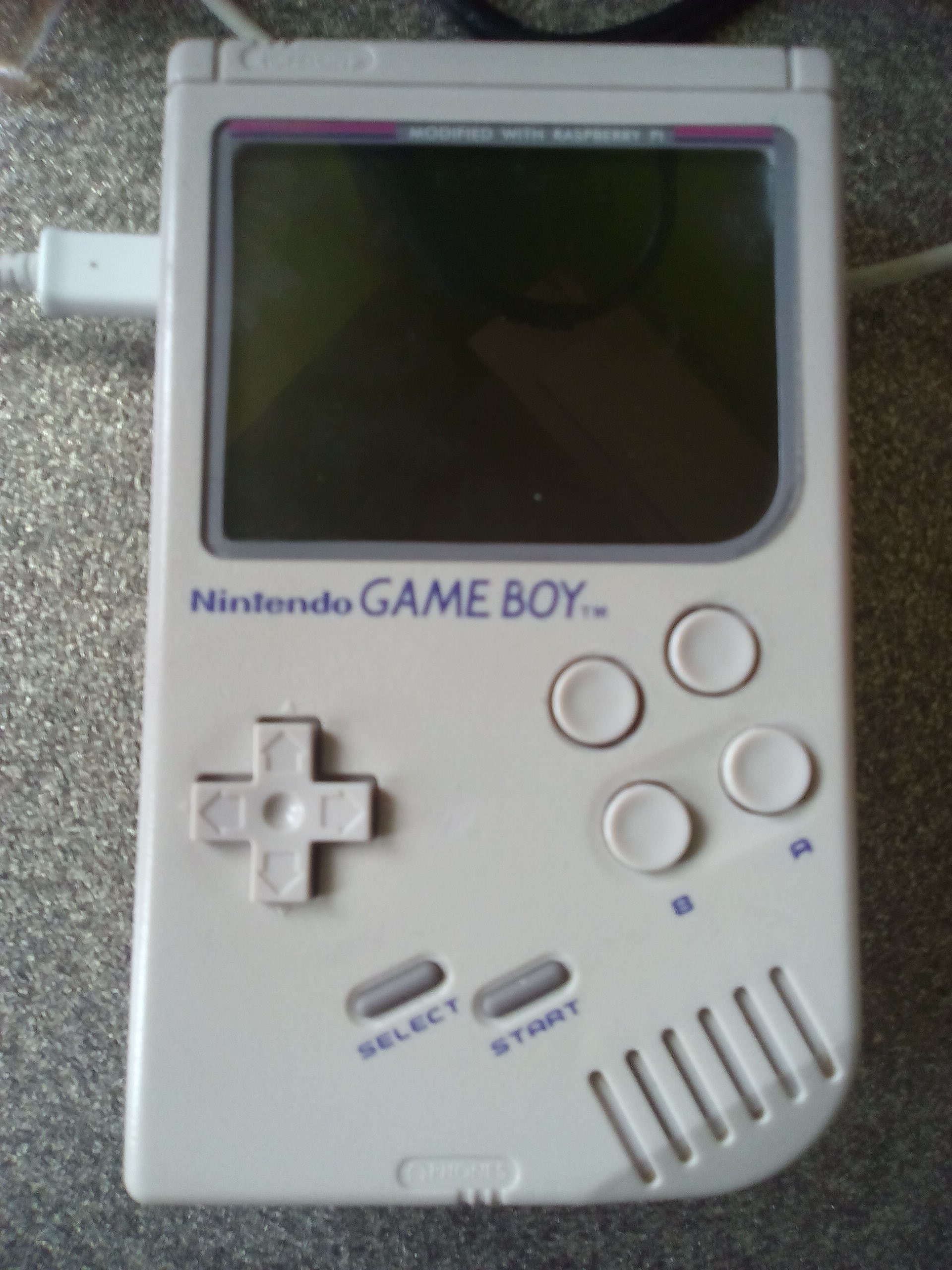

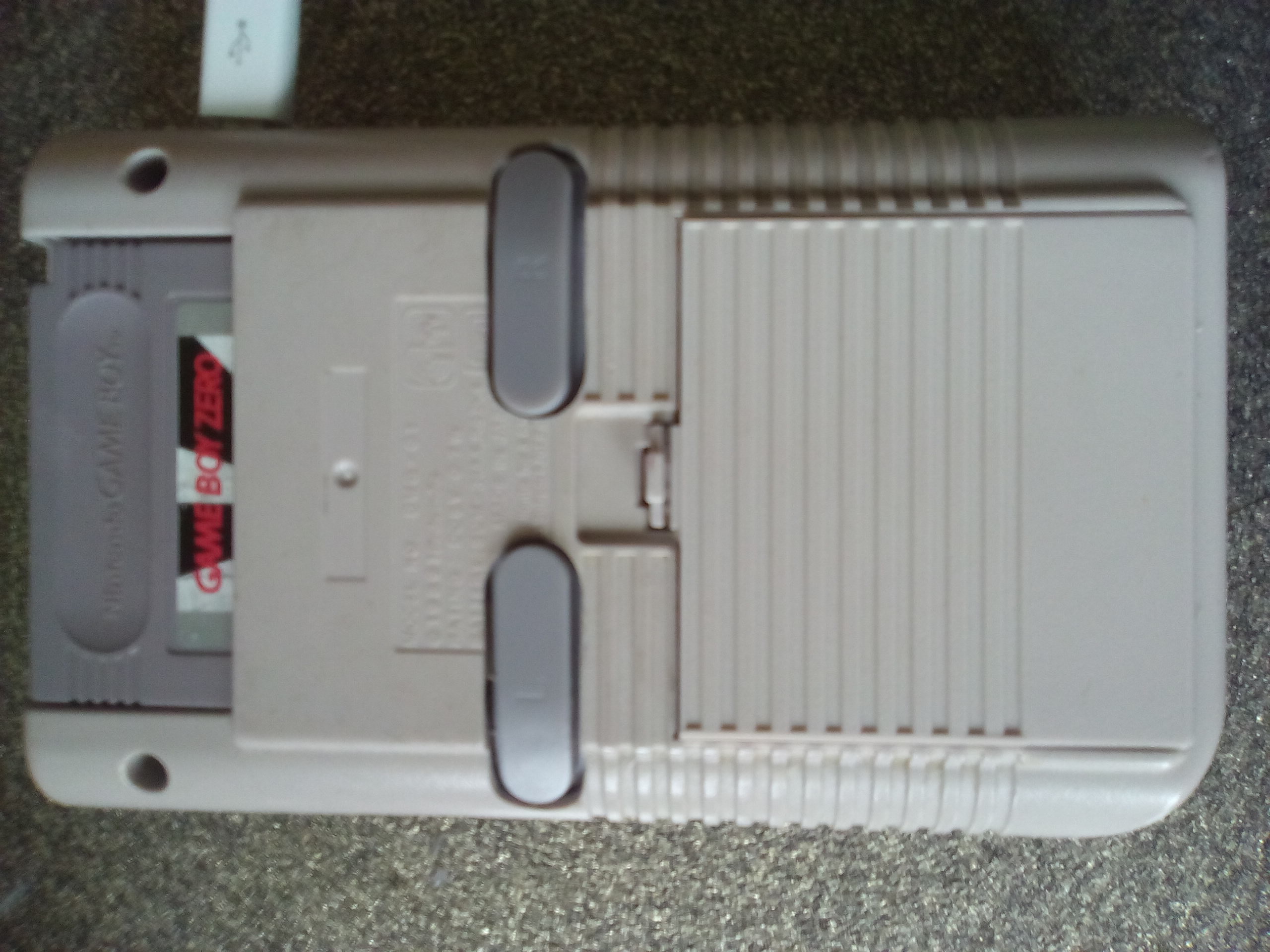

I just wanted to share some photos of my completed project.
Its actually my second build, the first not going quite to plan. My cutting and drilling was not very clean and i had issues with some button inputs. Anyway i stripped some parts and recycled them over to v2!

For V2 i decided to use the SNES L & R buttons.
I have no cartridge reader or hdmi out. I couldn't close the case with a full size usb out so i matched it up with the charger port and fitted a micro usb instead.

Here's some photos. Sorry for the poor quality....

A special thanks goes out to wermy for making all this possible and bringing everyone together.
Thanks to all the regulars like fleder, chiz, brian etc for being there to answer my questions and to everyone else at the forums for all the help and support.
Thanks to grenade for organising my button pcb
And thanks to dom for my screen surround and cartridge sticker.



Next project i want to do something similar but with a pi3. More power, more buttons, more games :mrgreen:
Last edited by Robots86 on Thu Jun 30, 2016 3:14 am, edited 1 time in total.

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: robots86 GBZ

Post by Kilren » Thu Jun 30, 2016 2:23 am

Oops, pressed the thanks button trying to get to the quote button. Oh well, you're an alright guy with a good attitude, so thanks!

The gbz looks great! The white buttons are an interesting take that makes it look quite clean.

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: robots86 GBZ

Post by Robots86 » Thu Jun 30, 2016 2:31 am

Thanks Kilren. Yeah the matching buttons look great against the shell. I noticed a similar one which was all black and thought it would look good in white.... I went with NES buttons because i like the arrows on the d pad :mrgreen:

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: robots86 GBZ

Post by Kilren » Thu Jun 30, 2016 2:33 am

Robots86 wrote:Thanks Kilren. Yeah the matching buttons look great against the shell. I noticed a similar one which was all black and thought it would look good in white.... I went with NES buttons because i like the arrows on the d pad :mrgreen:
Where did you get the buttons?

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: robots86 GBZ

Post by Robots86 » Thu Jun 30, 2016 2:36 am


User avatar
dirtybeagles
Posts: 386
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 64 times

Re: robots86 GBZ

Post by dirtybeagles » Thu Jun 30, 2016 7:19 am

Did you modify the battery case clip? Can you post more photos if you modified it? It looks like you did from the picture. I am trying to figure out how I want to modify mine to fit my larger battery.

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: robots86 GBZ

Post by Robots86 » Thu Jun 30, 2016 7:48 am

Yeah i cut it shorter and put a small join in the end and added some epoxy for strength. I will sort a photo out

User avatar
chiz
Posts: 228
Joined: Thu May 05, 2016 12:05 am
Has thanked: 29 times
Been thanked: 119 times

Re: robots86 GBZ

Post by chiz » Thu Jun 30, 2016 12:00 pm

@robots86
Wow! This is a great surprise! Believe it or not, I was searching for your build in the show-off forum and since I didn't see your post, I thought you're still waiting on parts. And here you are posting a completed build! :shock:

Very nice build overall! I also like the white buttons - clean and unique. Very in seeing build pics if you have them. :)

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: robots86 GBZ

Post by Robots86 » Fri Jul 01, 2016 2:11 am

dirtybeagles wrote:Did you modify the battery case clip? Can you post more photos if you modified it? It looks like you did from the picture. I am trying to figure out how I want to modify mine to fit my larger battery.

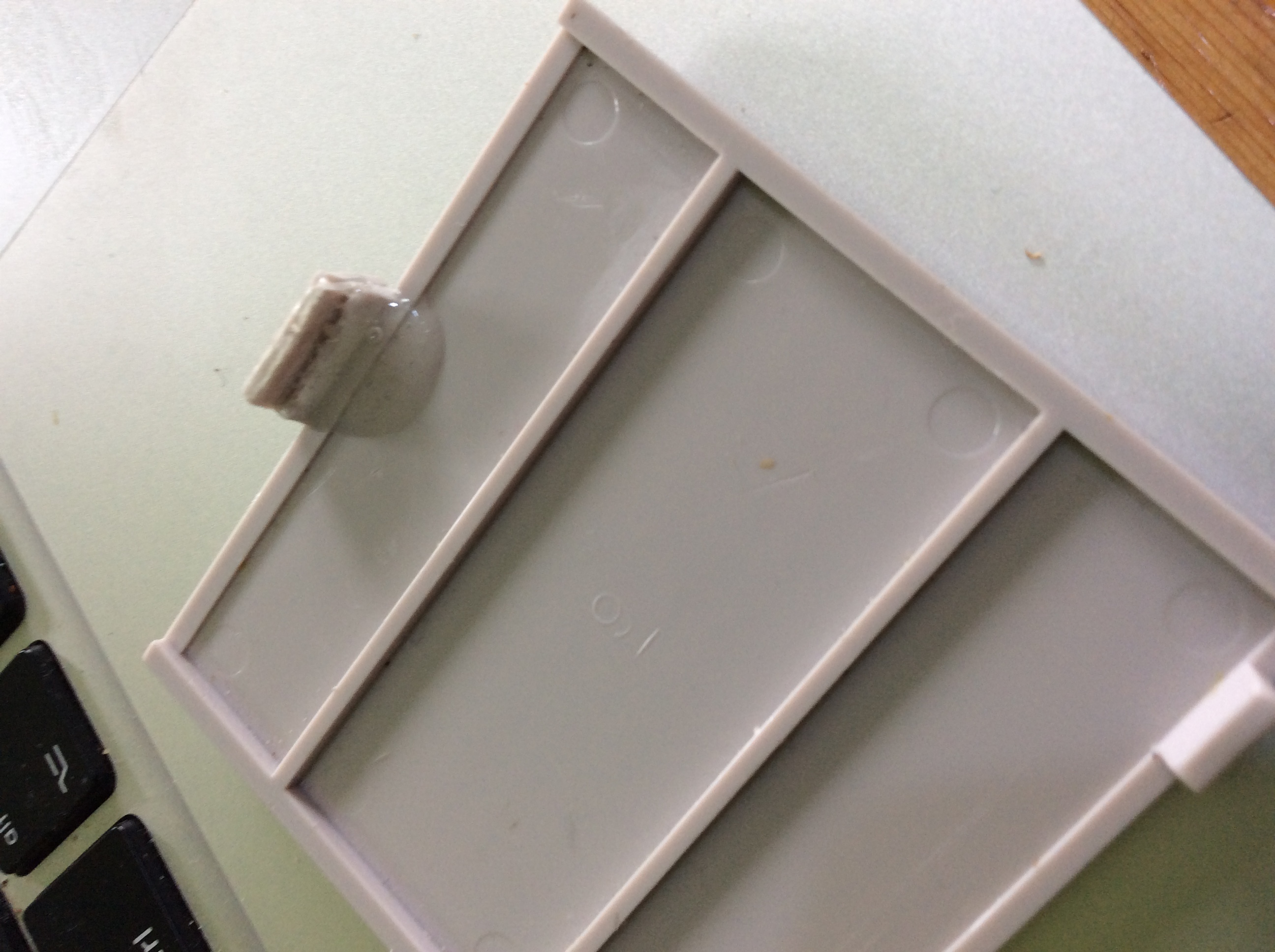

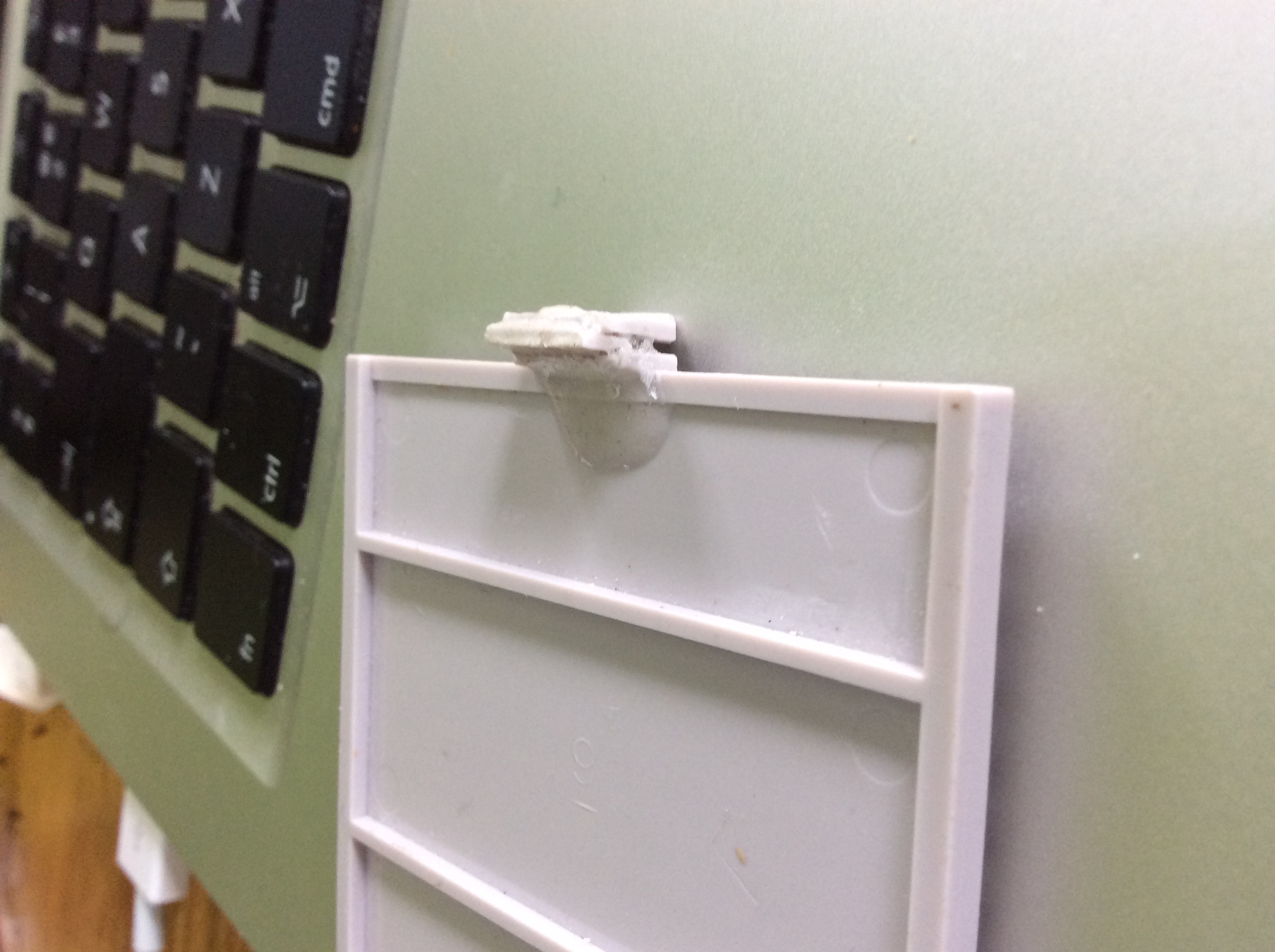

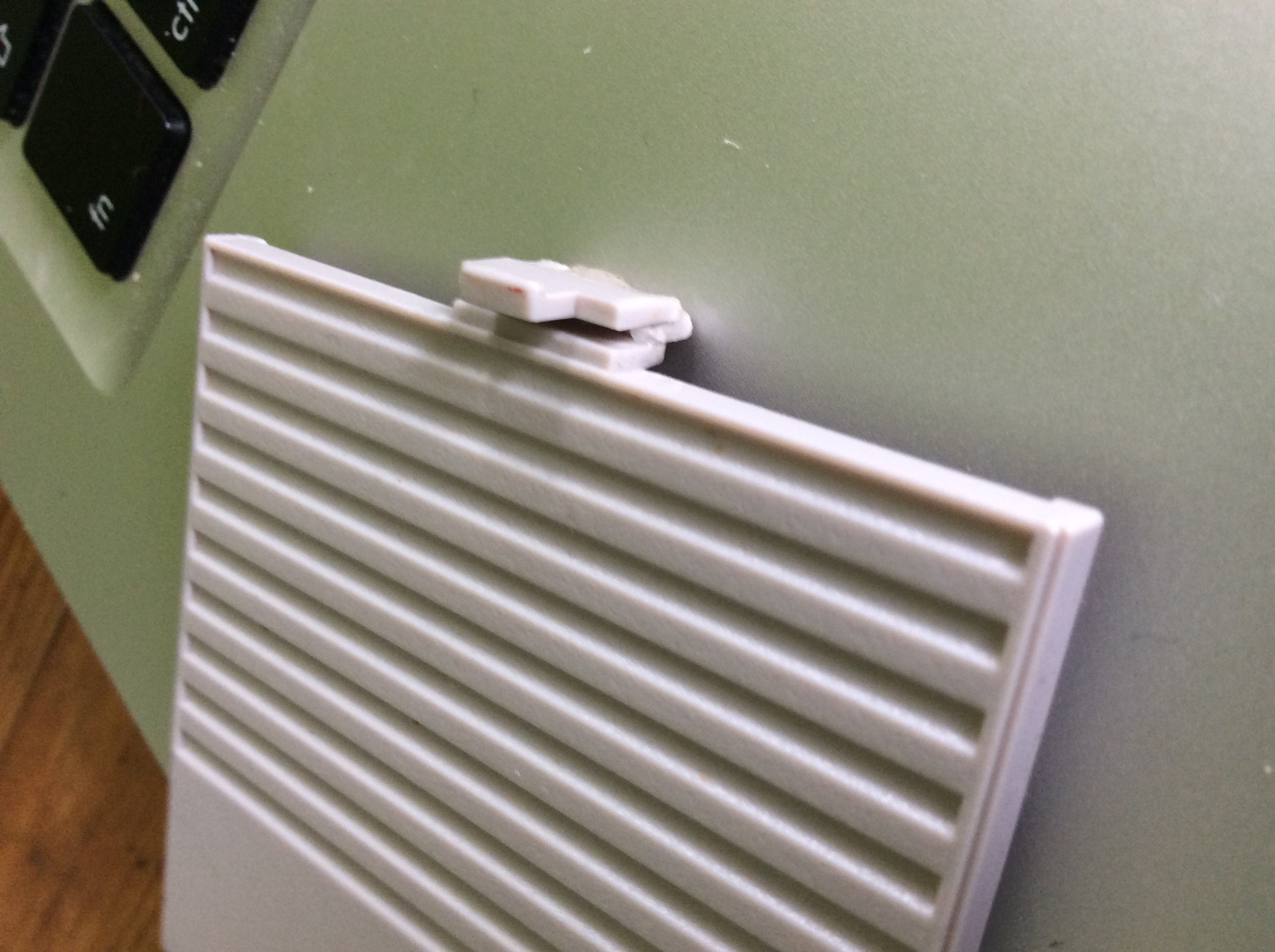

Hey db. Some photos as promised.
I basically cut the original off, shortened it and then made a join in the end.
It kind of works the same but theres not really any bend in it like before. But it sits in nicely and is secure enough not to fall out.

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: robots86 GBZ

Post by Robots86 » Fri Jul 01, 2016 2:17 am

chiz wrote:@robots86
Wow! This is a great surprise! Believe it or not, I was searching for your build in the show-off forum and since I didn't see your post, I thought you're still waiting on parts. And here you are posting a completed build! :shock:

Very nice build overall! I also like the white buttons - clean and unique. Very in seeing build pics if you have them. :)

Thanks for the feedback chiz and the inspiration for SNES buttons. My cut out for them is really clean but slightly larger than ideal. Still happy with it though.
Yeah my camera was so rubbish that i didn't bother with build photos. Ive got a few i took at the very start and I've just borrowed a camera now for some more completed photos..
Sorry that theres not much of in progress but I'm happy to answer any questions :mrgreen:
