YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Tue Aug 29, 2017 11:31 pm

The plan is to make a version with kites SAIO and (updated) 320x240 (old 640x480) display.

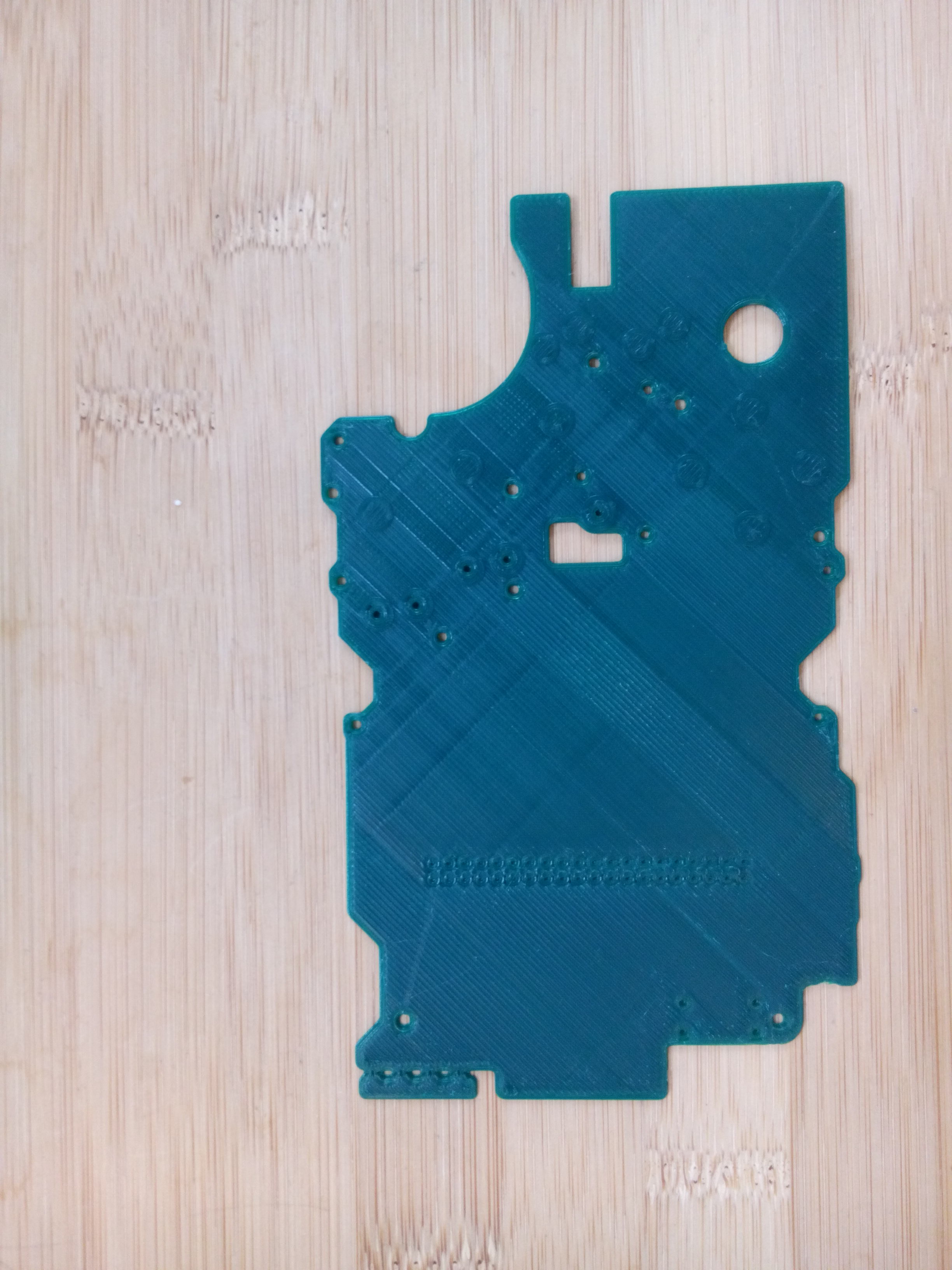

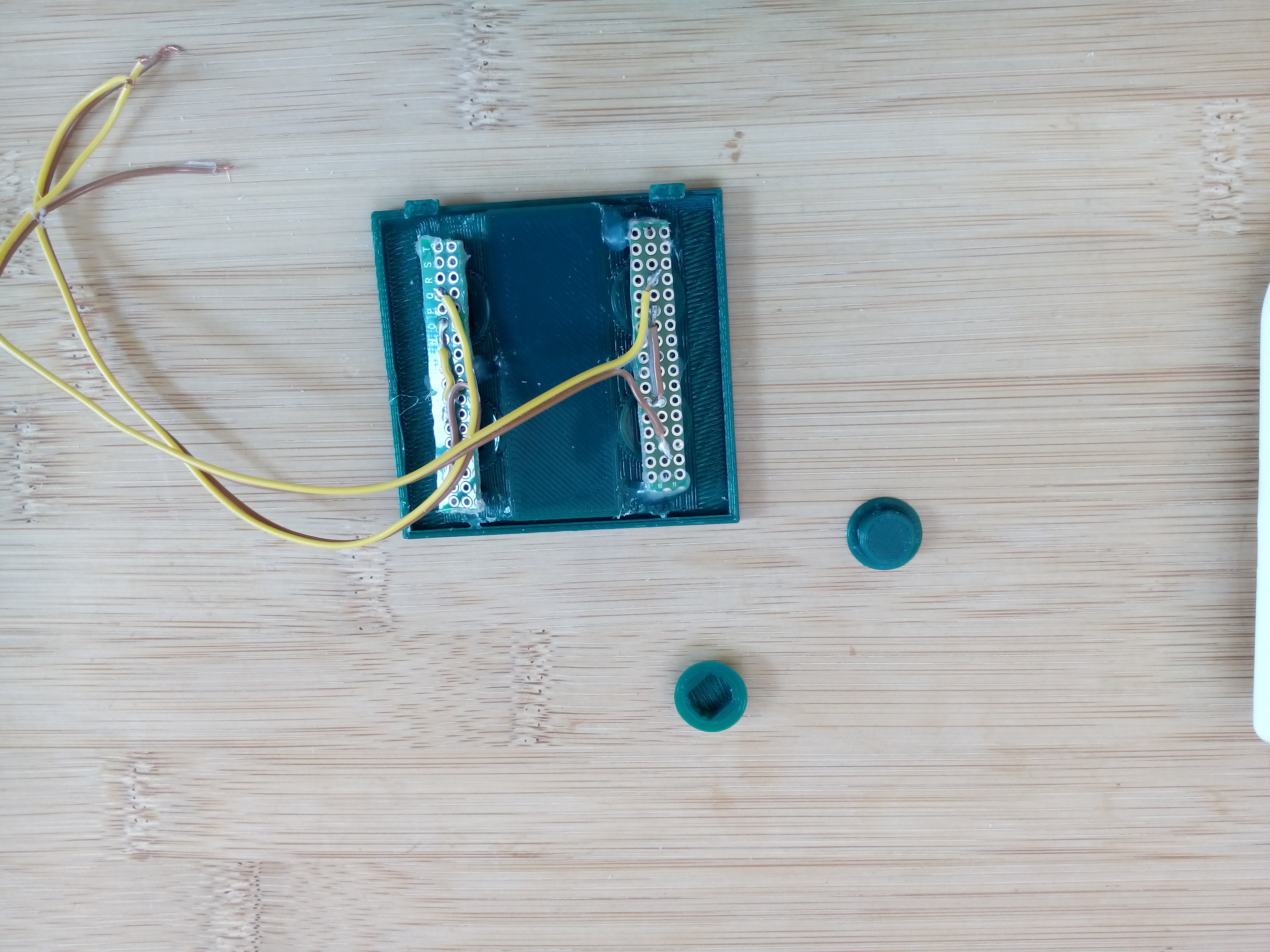

Dummy board for testing
SpoilerShow
https://www.file-upload.net/download-12 ... 1.stp.html
https://www.file-upload.net/download-12 ... 1.stl.html

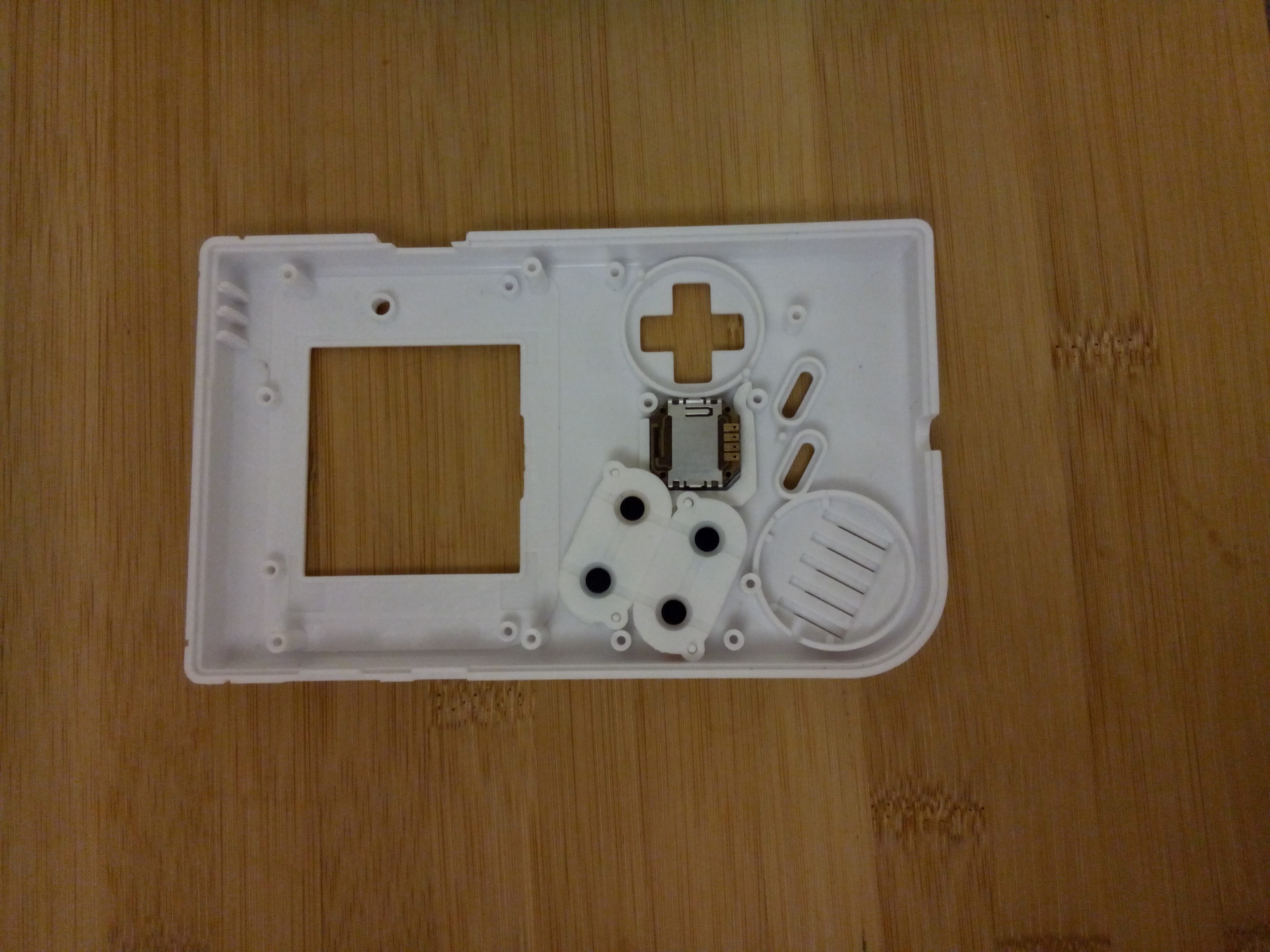

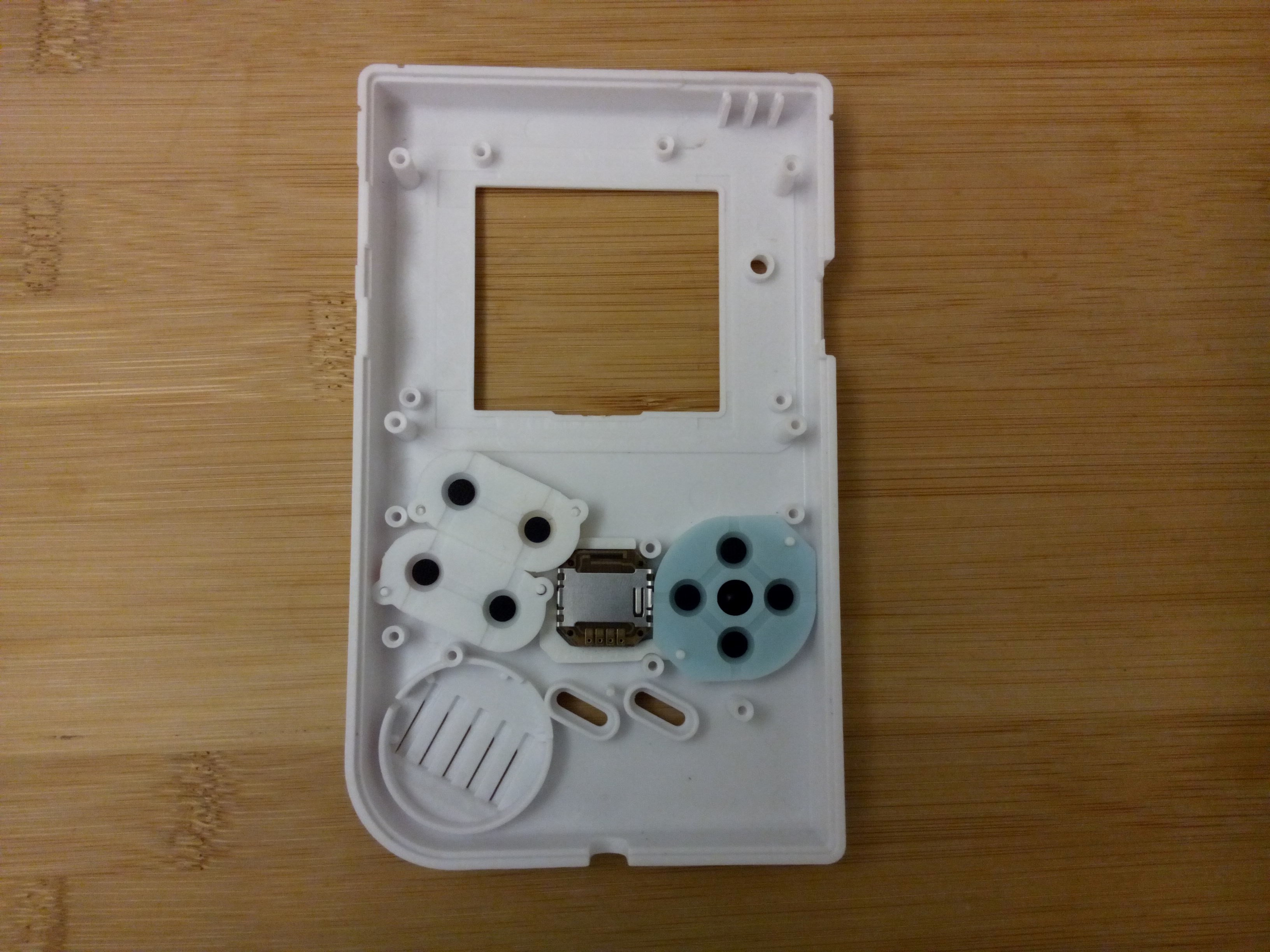

Holes for XY buttons and one PSP1000 joystick
The drilled holes for XY are 10,5mm. The holder is not yet glued, later he gets one or two drops epoxy. It fits really well for tests.
SpoilerShow

I made some drilling jigs for my version. I will upload them next week. (I am in holliday next days)
Last edited by moooarcuuuus on Thu Oct 19, 2017 11:08 pm, edited 1 time in total.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
smoothoperator
Posts: 104
Joined: Tue Apr 25, 2017 2:59 pm
Location: Michigan, USA
Has thanked: 78 times
Been thanked: 40 times

Re: YaGz - Yet another Gameboy zero

Post by smoothoperator » Wed Aug 30, 2017 5:33 am

Where did you get that holder? It looks real nice and very functional. I would like to get my hands on one.
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Wed Aug 30, 2017 7:49 am

I printed the holder. Next week you get the file.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Wed Sep 06, 2017 1:20 am

I can not give you the step files from the 3D-parts for improvements. Only .stl is allowed on this forum.

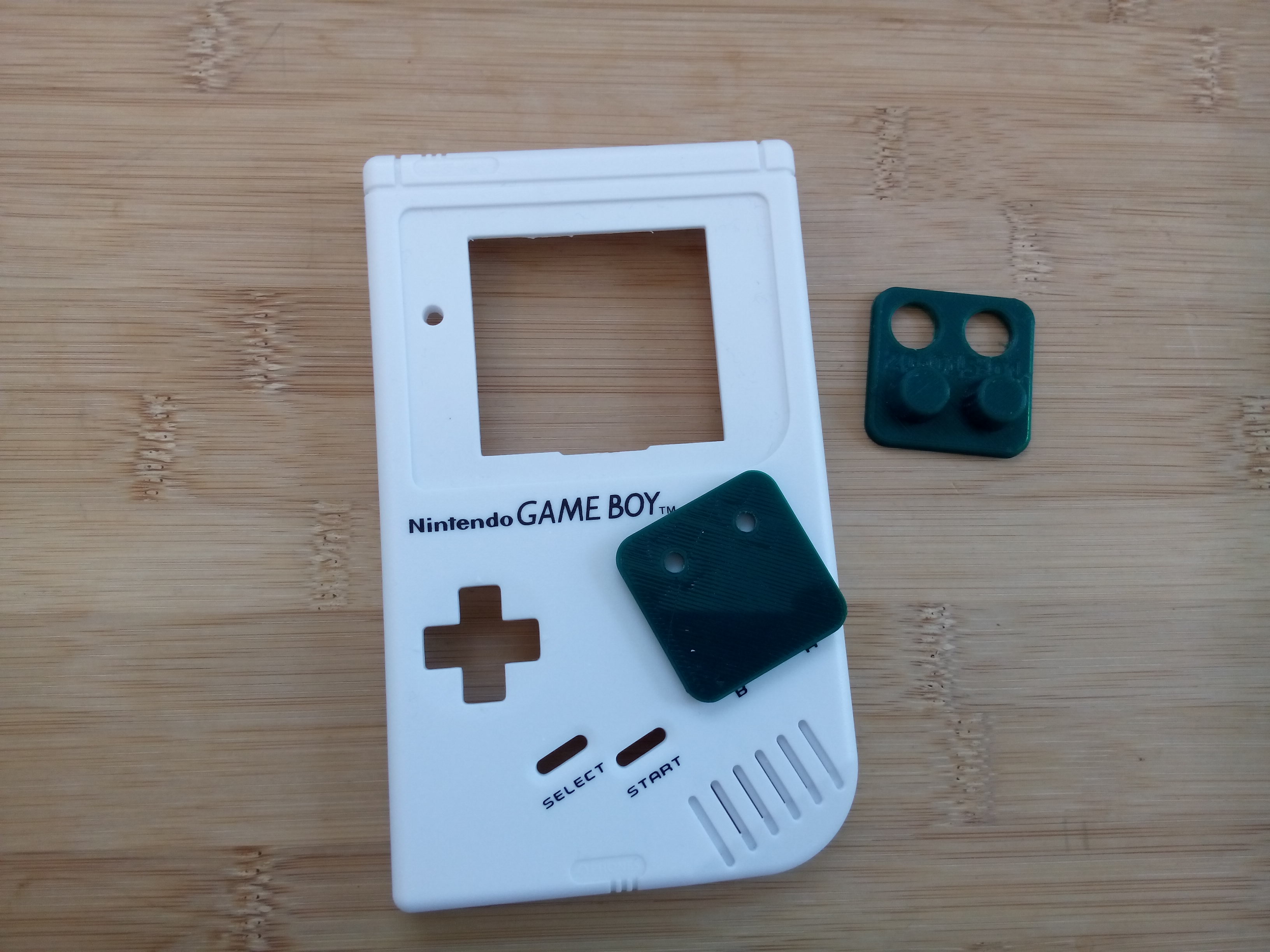

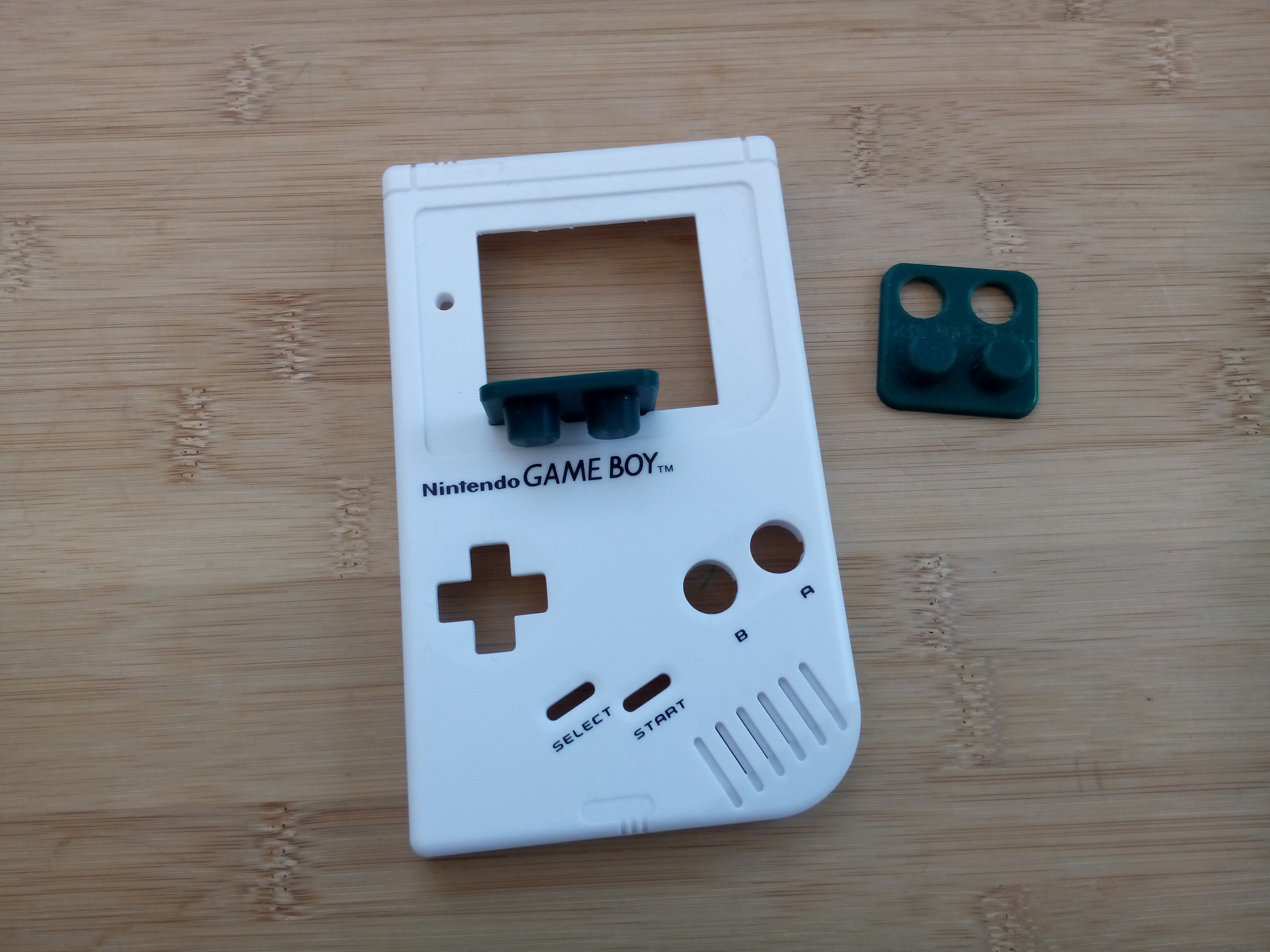

Here are two drilling jigs for the XY buttons:
SpoilerShow
20-009-01-DrillJig.stl
(5.52 MiB) Downloaded 453 times
20-015-01-DrillJig.stl
(5.91 MiB) Downloaded 505 times

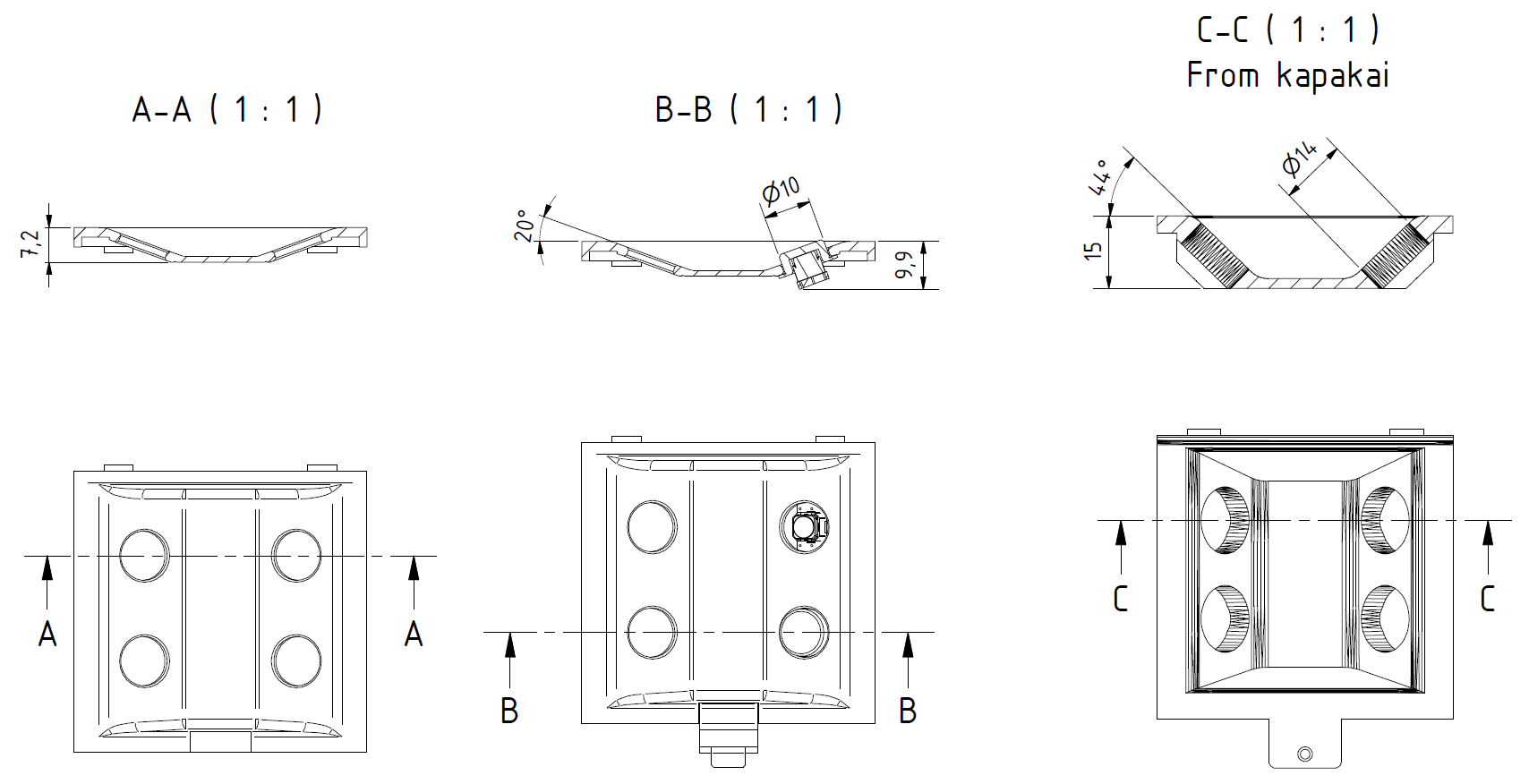

This is my holder (20-014-01) for the XY buttons and PSP joystick. Part 20-016-01 is an insert for the holder, it is a drilling jig (same size as the PSP joystick).
SpoilerShow
20-014-02-XYHolder.stl
(841.96 KiB) Downloaded 483 times
20-016-01-DrillJig.stl
(204.93 KiB) Downloaded 448 times

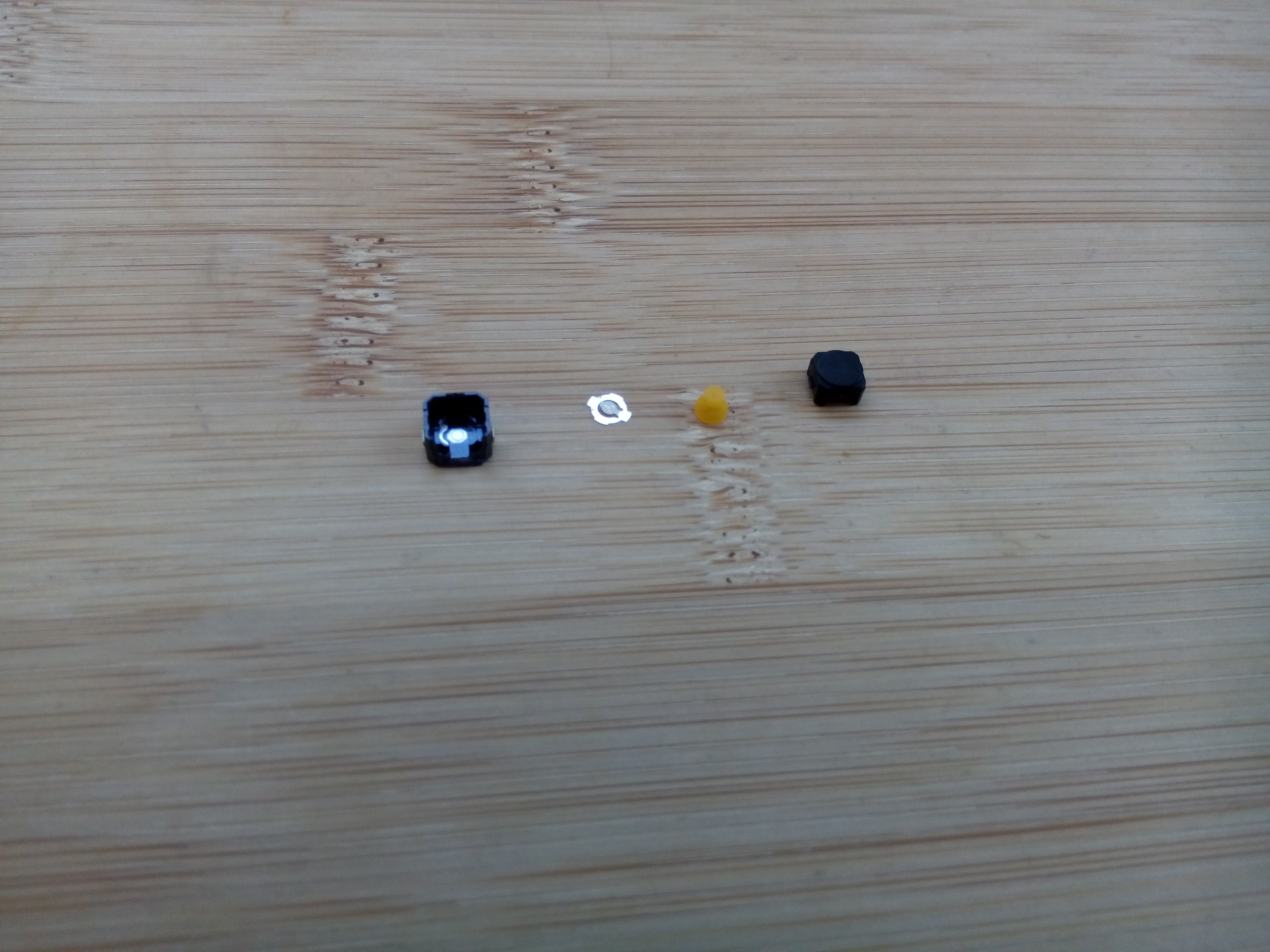

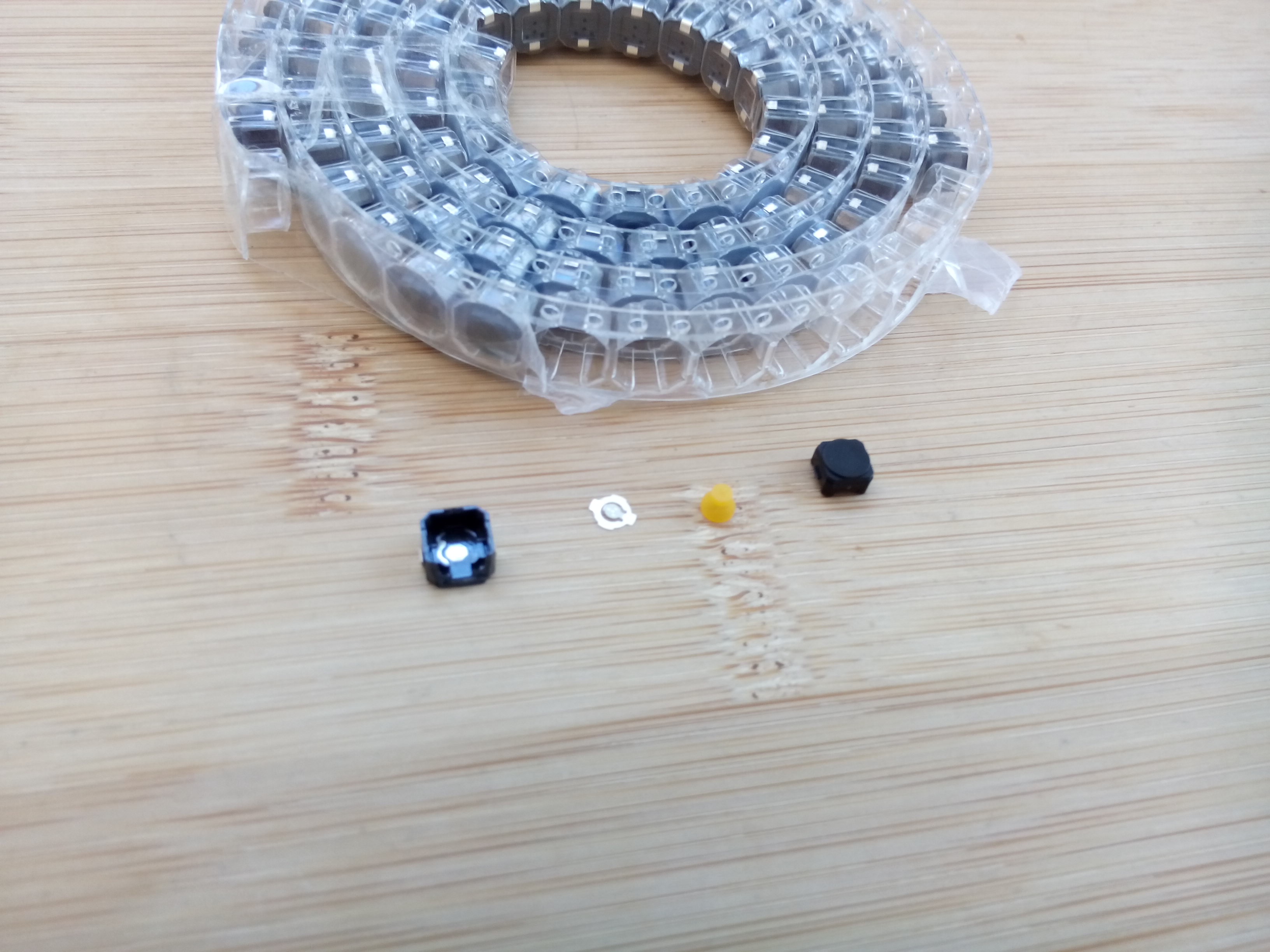

I hate "clicky" buttons on mobile devices. So I have to use rubberdome buttons for the shoulder buttons. Same principle as the gameboy buttons, silicone with conductive bottom surface. I made a video "Buttons-final.mp4", the sound is important.
SpoilerShow
Buttons-final.mp4
(4.95 MiB) Downloaded 497 times
Link to the buttons:

http://www.alps.com/prod/info/E/HTML/Ta ... HE010.html
http://eu.mouser.com/ALPS/Electromechan ... btZ1z0zlgm
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Mon Sep 11, 2017 7:43 am

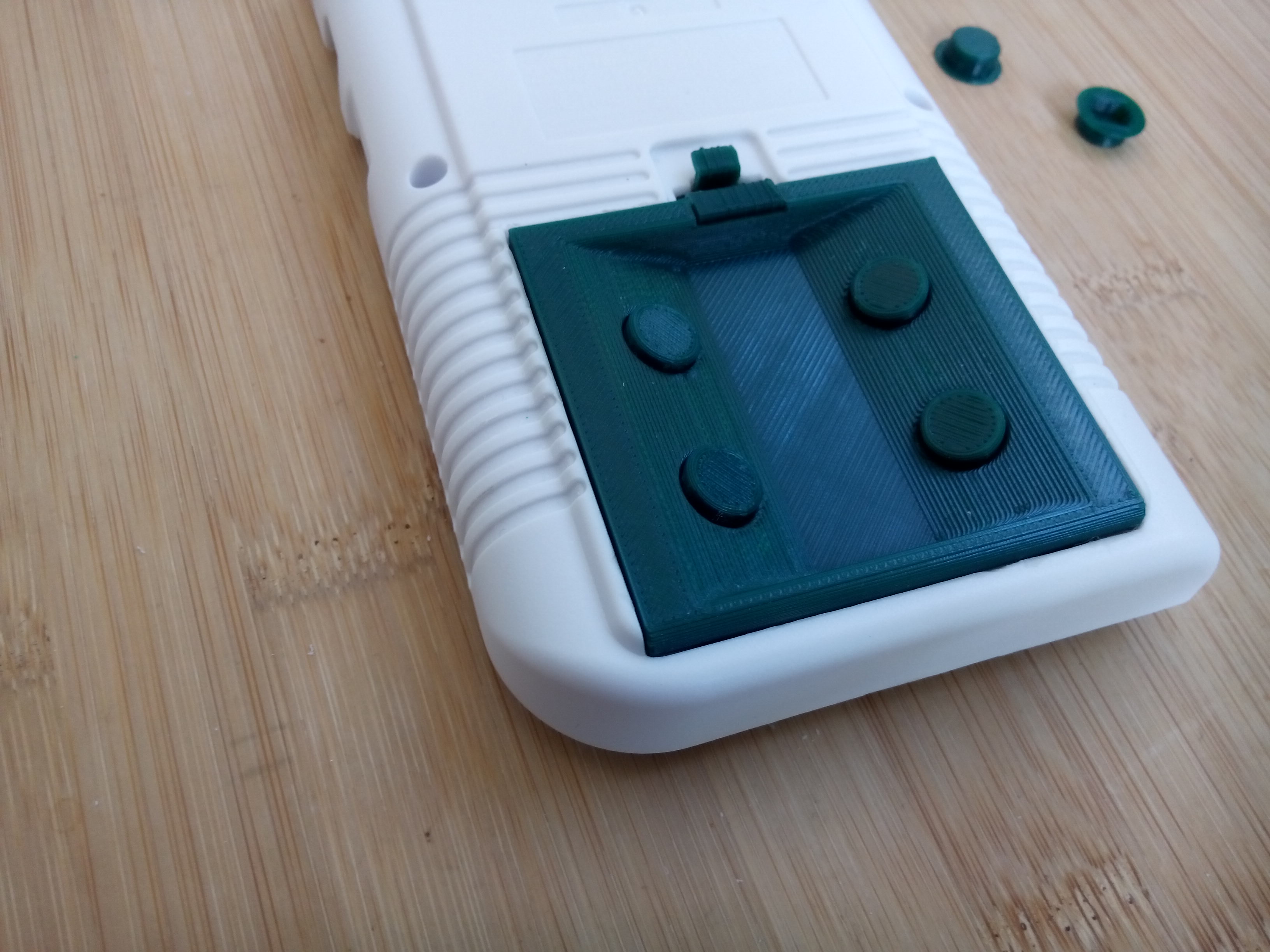

My Gz should be able to lie flat on the ground. The holder is like the idea from kapakai and smoothoperator: http://www.sudomod.com/forum/viewtopic.php?f=42&t=2899

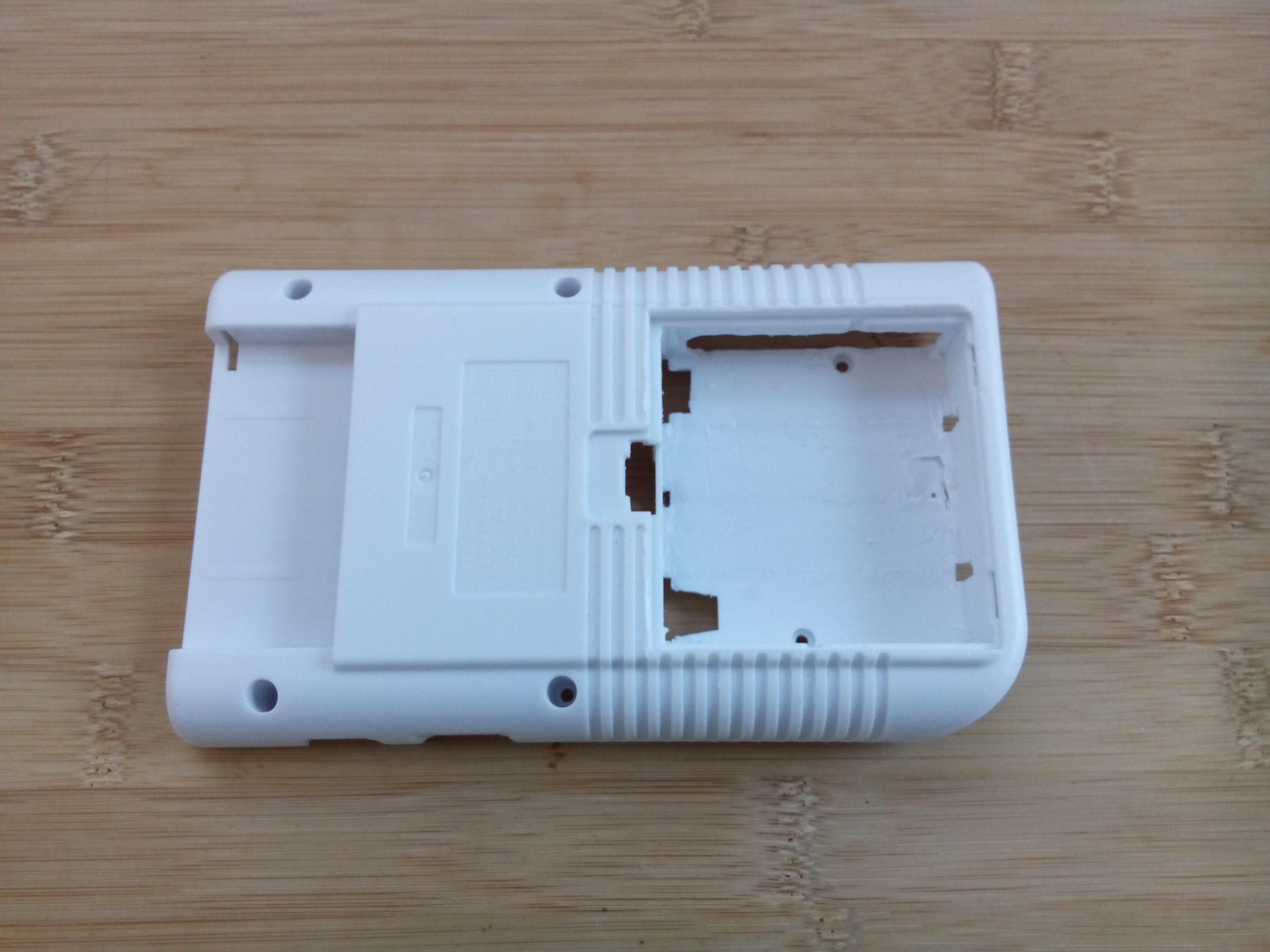

On my version the battery should be under the trigger buttons. So I made smaller version. The final will be white, glued with some epoxy. The snap clip need some rework, so I upload it later (one or two weeks). The battery has a capacity of 2,5Ah. It feels very good in hand.


SpoilerShow
20-017-02-Button.stl
(2.93 MiB) Downloaded 419 times
20-022-01-Holder.stl
(2.23 MiB) Downloaded 414 times
20-024-01-Block.stl
(684 Bytes) Downloaded 394 times

The step-files will come soon.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Mon Sep 11, 2017 11:14 pm

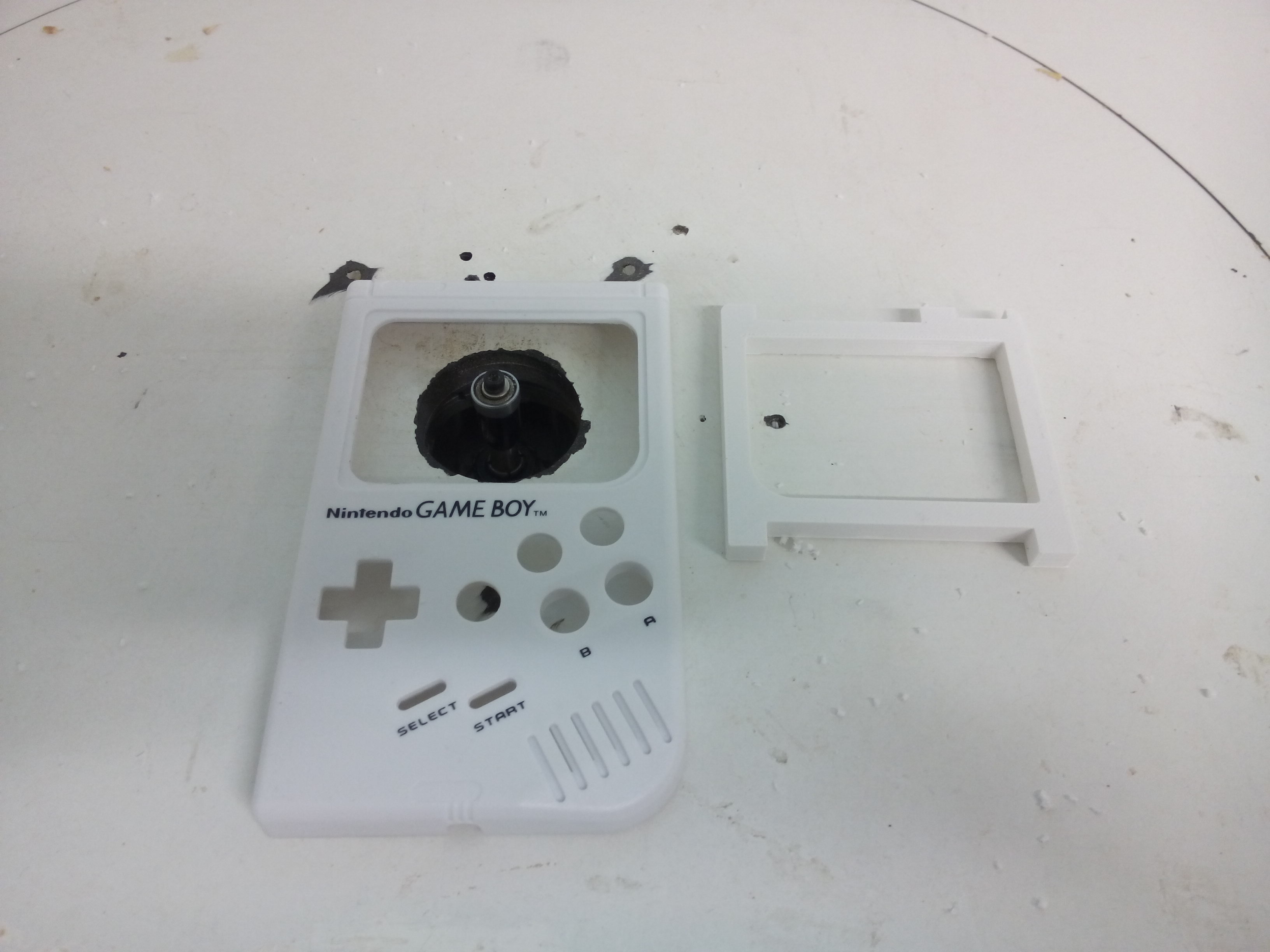

For my screen opening I used a milling jig, the idea is from HoolyHoo viewtopic.php?f=22&t=2715

In my china DMG-case, the aspect ratio was a little bit different. So I changed the jig and changed the side faces to 2mm. My screen sourround has 2,5mm.
SpoilerShow
20-025-01-MillingJig.stl
(130.93 KiB) Downloaded 418 times
Outlines as A4 PDF 1:1: https://www.file-upload.net/download-12 ... g.pdf.html

Last edited by moooarcuuuus on Mon Oct 23, 2017 11:11 pm, edited 2 times in total.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 689 times
Contact:
Contact YaYa

Re: YaGz - Yet another Gameboy zero

Post by YaYa » Tue Sep 12, 2017 4:33 am

Really nice cutting :D
Thanks for sharing the stl file !
Follow me on instagram Image
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Tue Sep 12, 2017 6:53 am

You welcome.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over
Top
Fixmylife
Posts: 28
Joined: Tue May 02, 2017 11:43 pm
Has thanked: 1 time
Been thanked: 3 times

Re: YaGz - Yet another Gameboy zero

Post by Fixmylife » Tue Sep 12, 2017 12:29 pm

Nice wish i saw this before .. this is the analog stick holder i made with some hot glue and a 3d pen
Attachments
Top
User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YaGz - Yet another Gameboy zero

Post by moooarcuuuus » Wed Sep 13, 2017 12:11 am

If it works, everything is fine. The middle joystick is a little twisted.

Next step: wait for Kites board.
