Hey,

does Kites bracket has the same distance between the buttons as your bracket?

Hey,

take a look into the Sudo Wiki, there are some power supplys listed. The banggood one works fine and cost only ~3,5$ (link to shop below the picture).

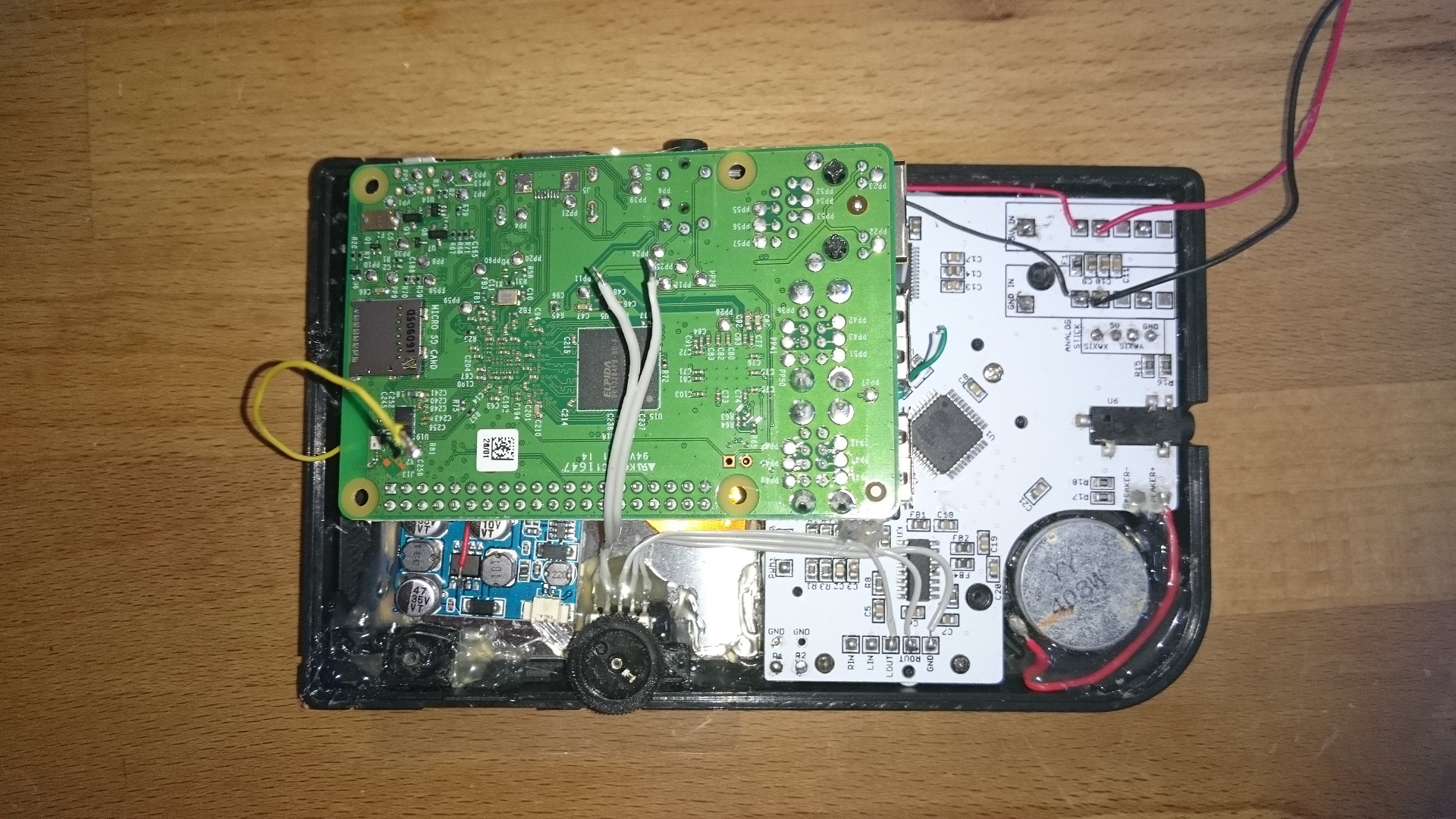

Here is a picture.
The two wires got to the pads 25 and 26, the other to the Aio

Hey, how did you wire your sound output? For my build I´ve used the build in audio of the RPi3. Just wire the input on the potentiometer directly to the test pads. PP25 L Audio PP26 R Audio Lout, Rout and Gnd from potentiometer to the Aio board an it should work fine. By this way you don´t have to w...

I would also take one.

Have you twisted the data wires?
I´m also using Helders AIO with a Pi3.

I just soldered the data wires to the Pi without twisting and it didn´t recognize a gamepad.
After that I desoldered the cables, twisted them and the Pi recognized it.

I also would order one of those pre-stripped Pi´s. I desoldered one on my own, and that´s pretty much work for an unskilled solderer like me (also ripped some pads off and failed to remove some gpio pins...). The price depends on you. How long you need to do all this? I always prefer the lowest pric...

I have created a simple stand for my GBZ. With my printer the parts fit tight, so no glue was needed to put it together. [spoiler="Pictures"] DSC_0139.JPG DSC_0141.JPG DSC_0143.JPG DSC_0144.JPG [/spoiler] Don´t know how to upload the .stl files here so I uploaded the files on thingiverse. If someone...

That looks great.
I think I will 3D print something similar for my Game Boy.

derebbe wrote:@all Has anyone of you received an email with a shipping confirmation from paypal (like Helder is doing it when he sends something)?

Hey,

I didn´t receive a shipping confirmation, too.
But my board arrived today.
