I tested "my" wiring - the connectors of the black, red, yellow wired connect....
But of course it's not the connector you indicated (for which I don't have a connection cable...)

This is the connector in question: Just to clarify, you are using the small 3pin cable in this connector and connecting it up the the "AVOL" matching connector on the CSO? Uhhh... So I tried to wire up the 3 pin cable that comes from the 6 pin connector cable (where the other 3 pin connector goes t...

Hi!

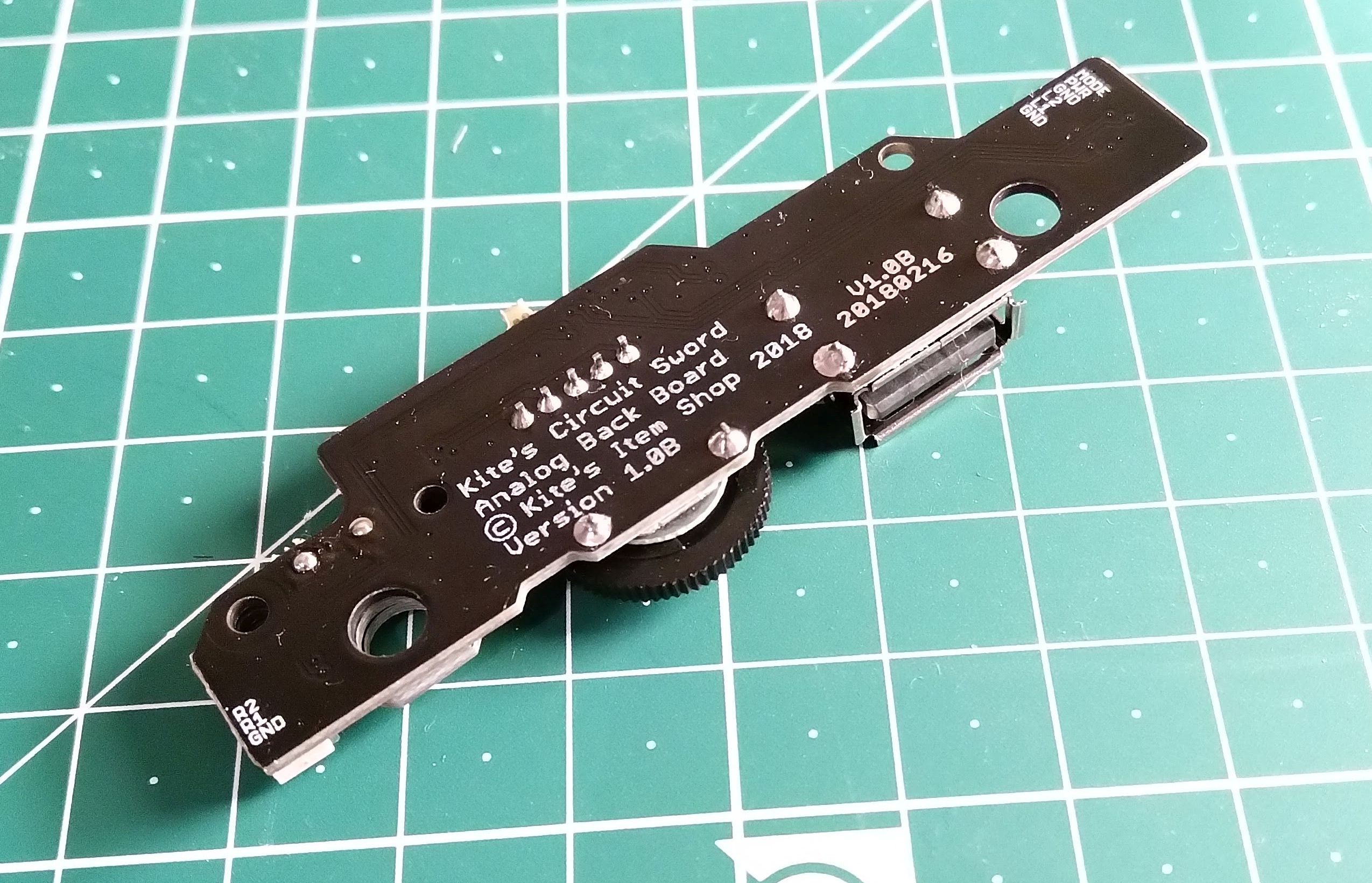

Here are the pictures of the CS board: I read about the connector but am not quite sure what connector could potentially require resoldering - would it be possible to indicate this on a picture?

Hi Kite! Instead of opening a new thread, I thought I'd add to this one since my issue seems to me similar: I got a CS and a CS Lite. I'm currently assembling the CS with the analog volume option. Sound works, but the analog wheel doesn't change the volume. The config gives me the following in three...

Hi! Thanks for your reply... so I'll wait for my multimeter (ordered...) to check what voltage actually arrives at the board. The jumper cable appears to be ok - it does affect the screen when i touch other pins than the second (and a non connected red cable doesn't). Maybe I'll also resolder the ca...

Hi all! Fairly new to this community - finally have most components to start building. I got a BW screen from Amazon and looks like variant 9 was inside. Thanks to VeteranGamer I found out that I don't have to remove the chip, instead I soldered a jumper cable to "convert to 5v". The screen is worki...

Hi!
Struggling to understand what do do with my v9 screen - the wiki recommends (1) desoldering an IC, (2) adding a cable.
Is this 'either or' or do i need to do both?
This thread suggests to my beginner's mind that the cable could be enough?
Thanks!

So.... if there are any PCBs left or if you're starting a new production run, I'd be more than interested
