DSLite Pi Zero Understar's project (update 02.02.22)

[understar]

Hi sudomod!
I finished my first DSL build

update 14/03/2018
new 3.2 inch 18P SPI TFT LCD Screen

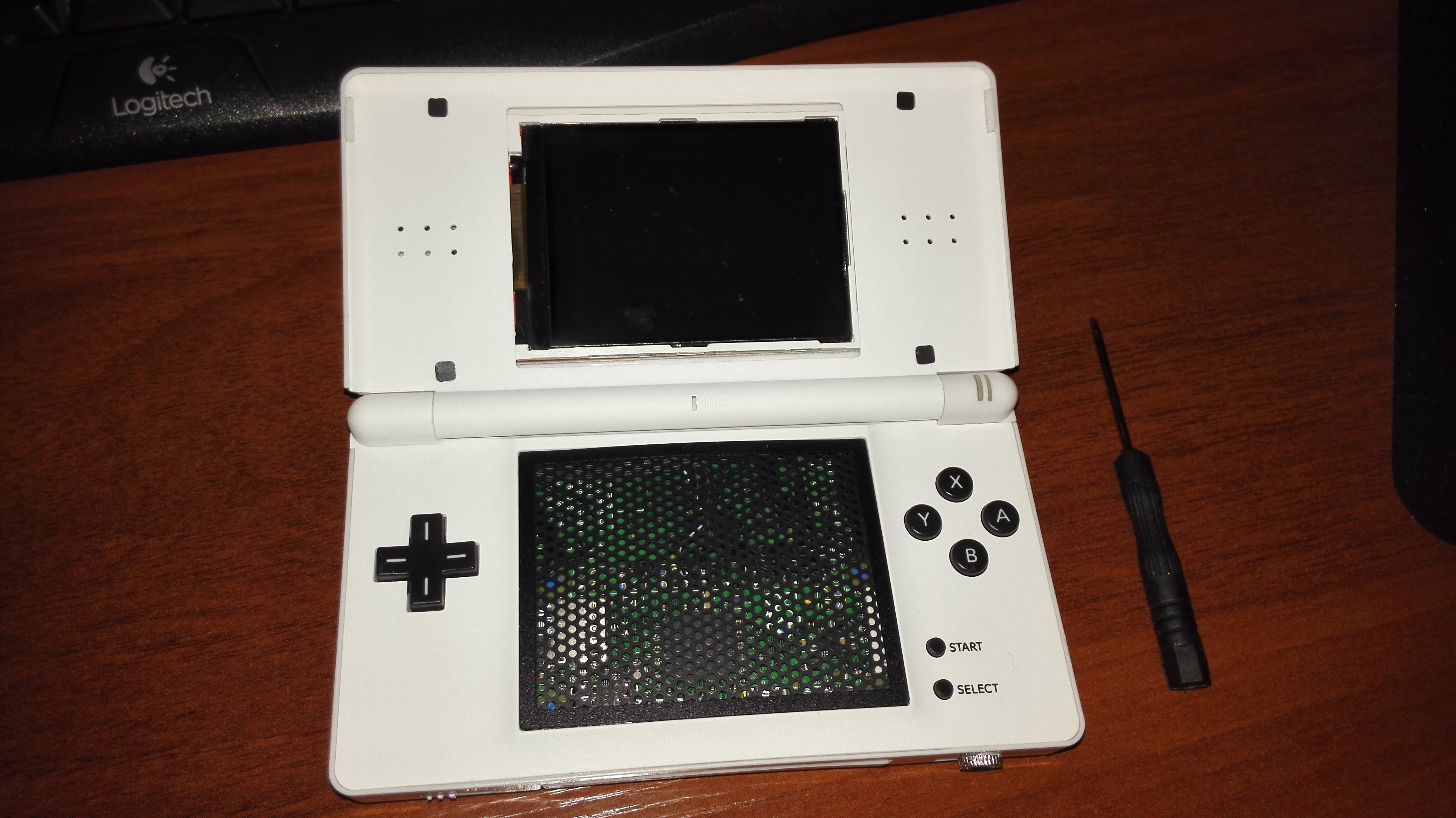

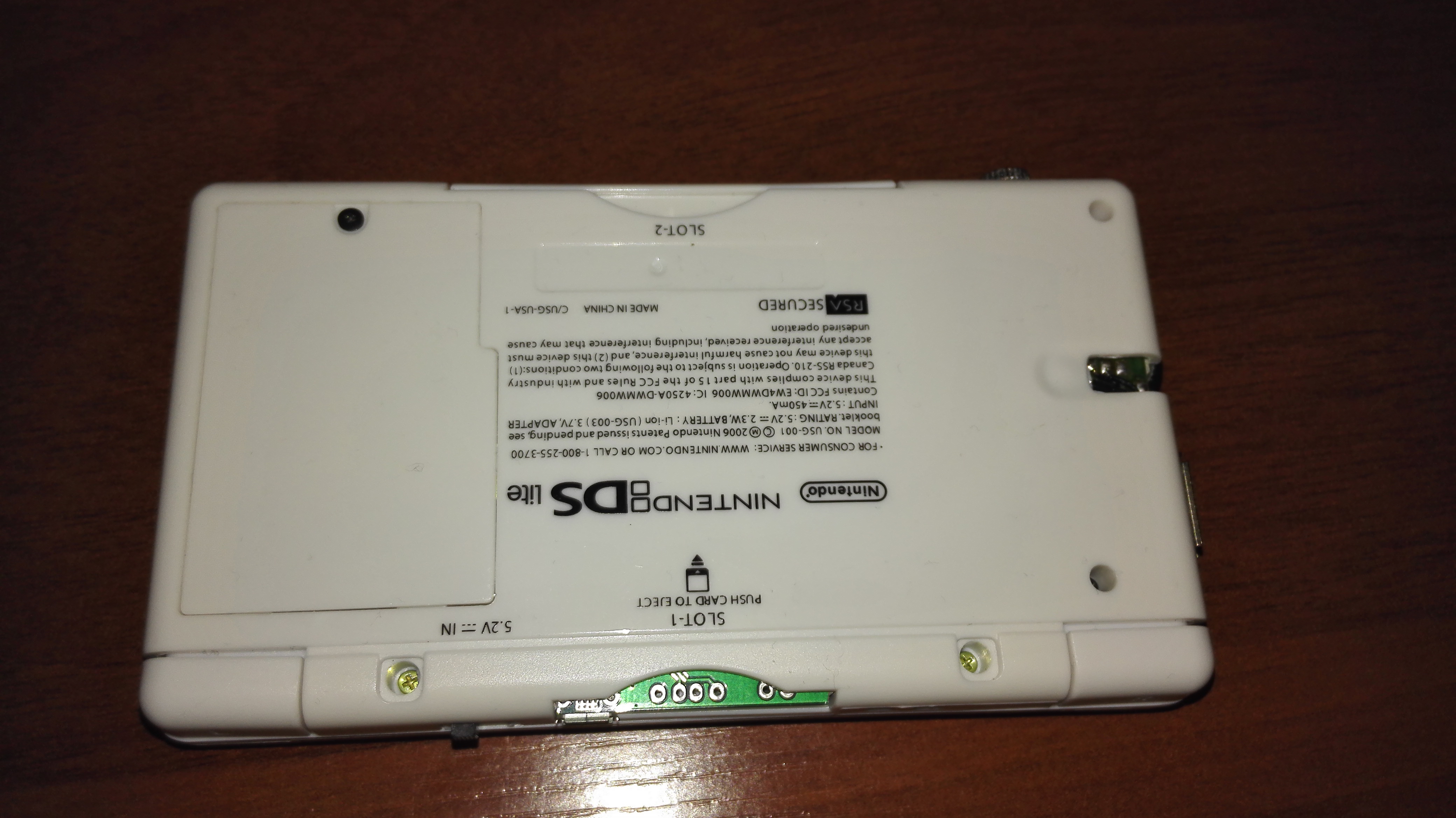

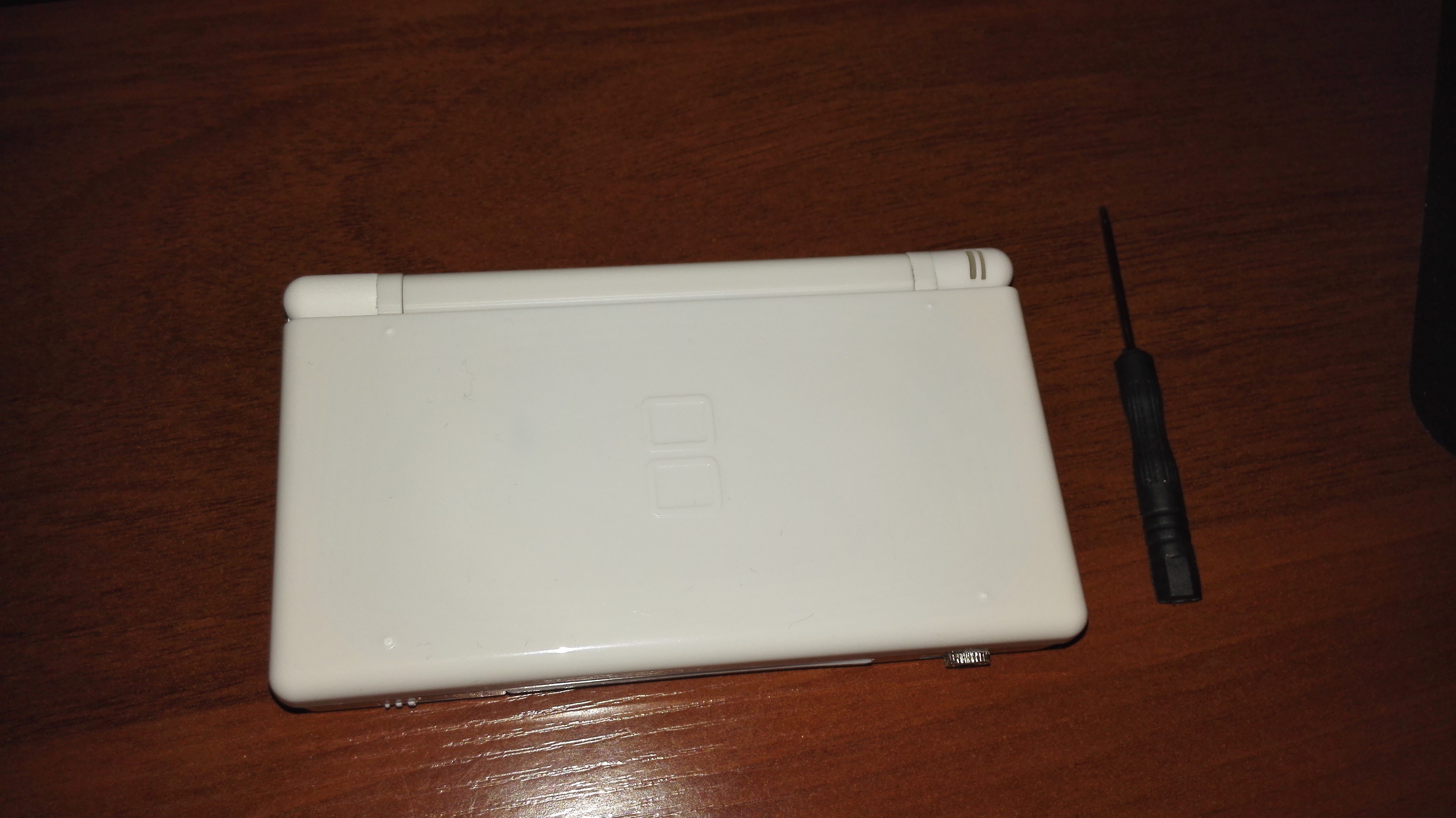

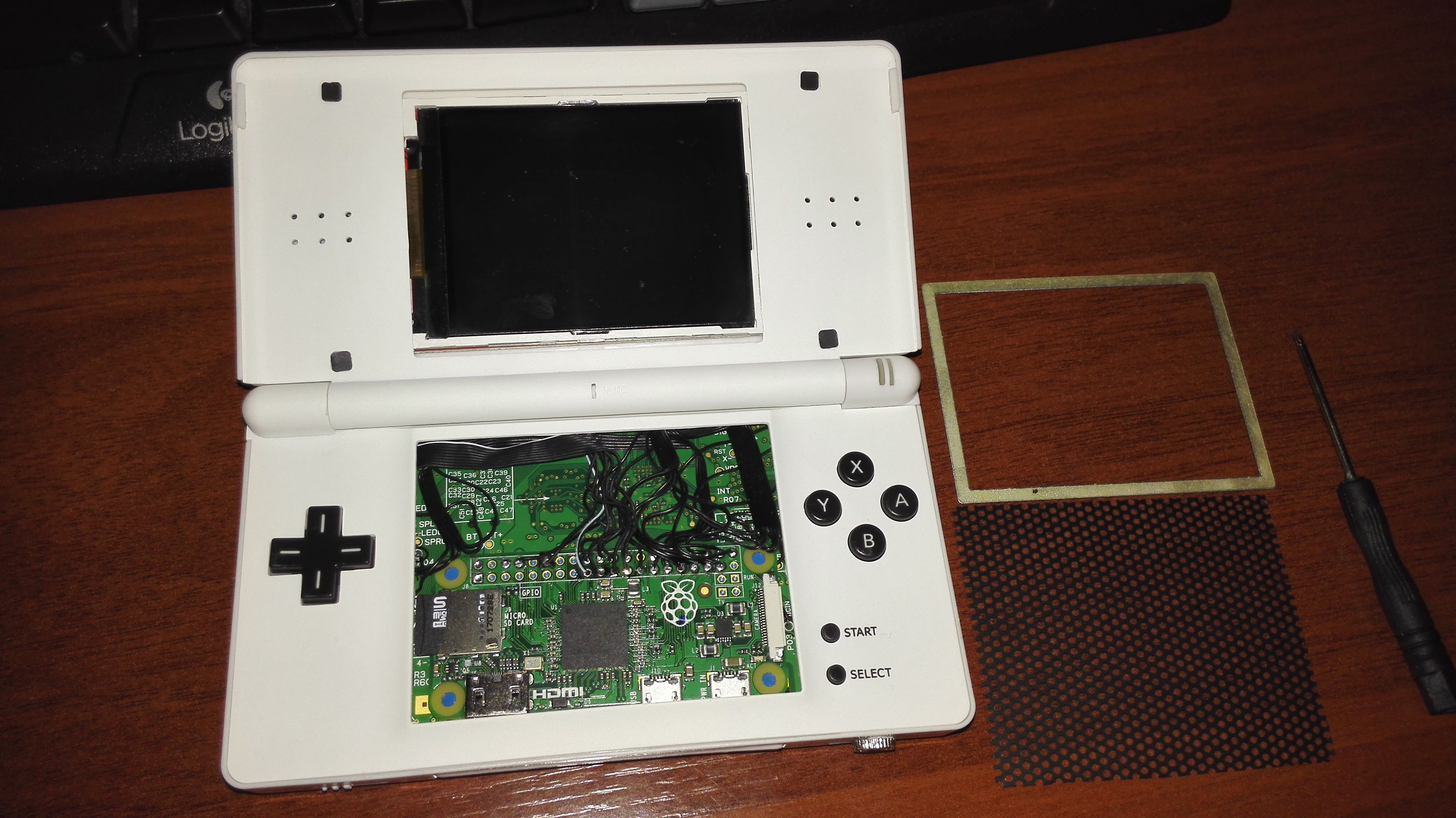

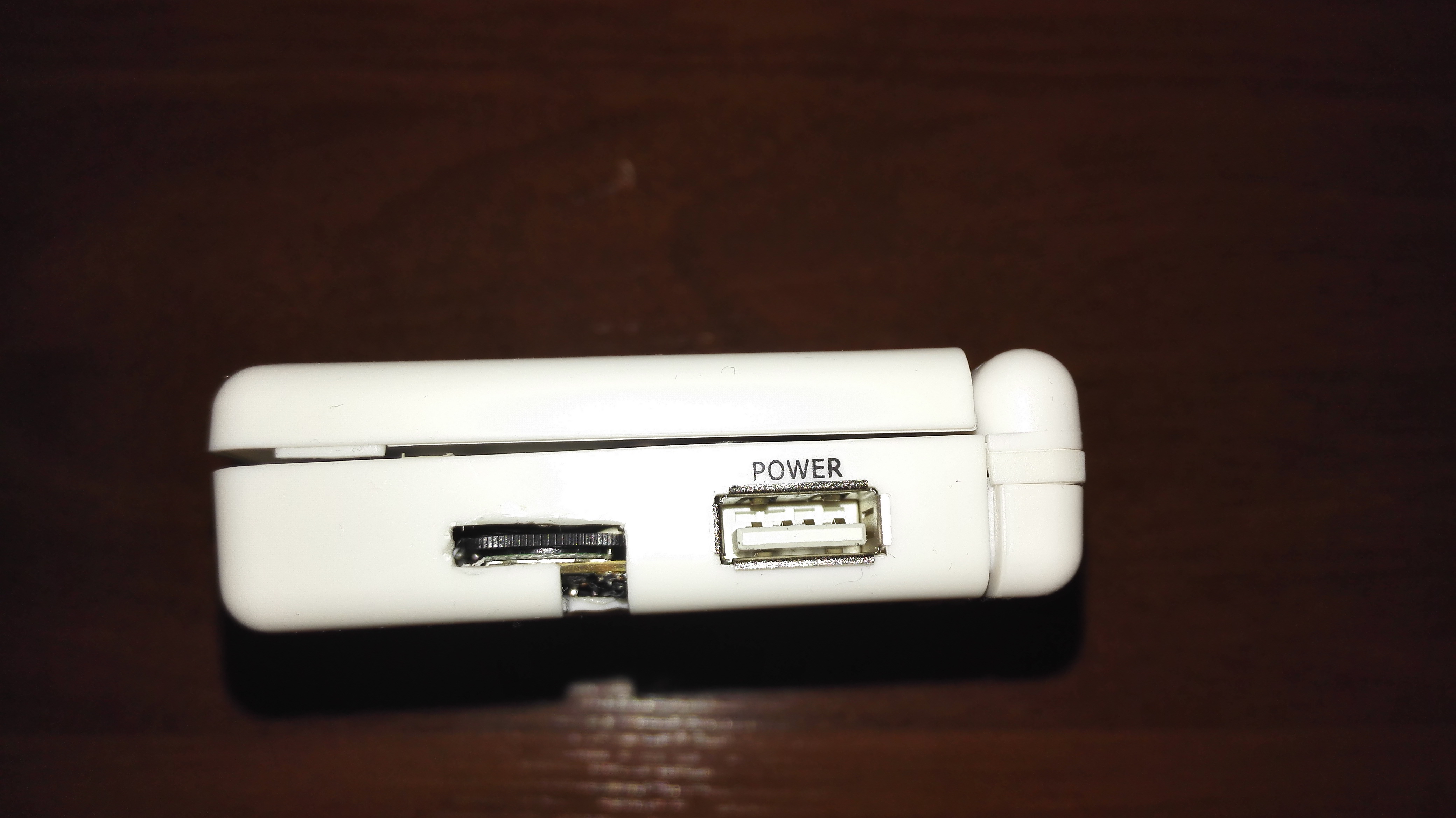

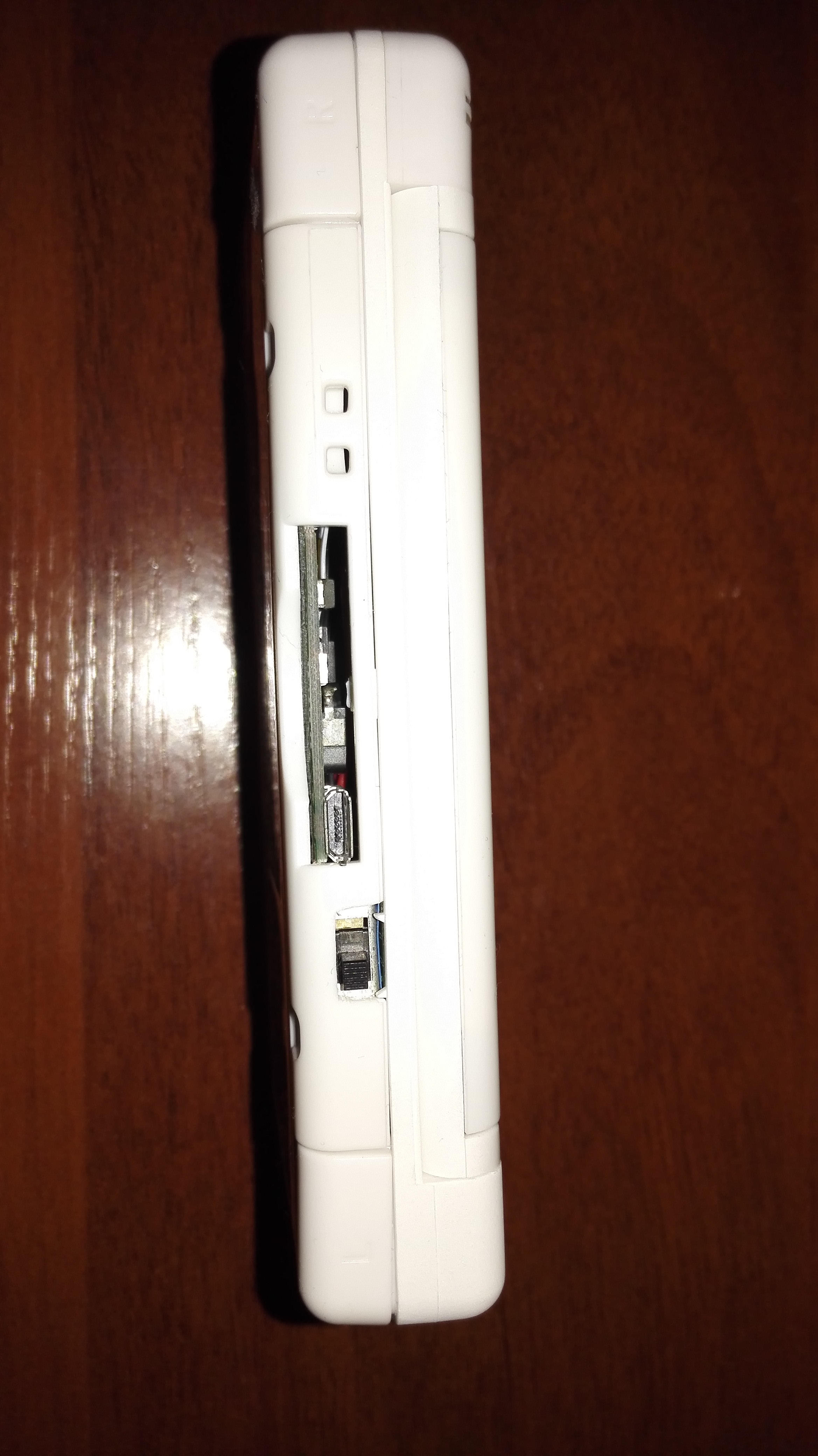

pictures of the finished DSL PiShow


11 (2).jpg (2.53 MiB) Viewed 92165 times



14 (2).jpg (1.43 MiB) Viewed 92165 times



... moreShow

... 3.2 inch screenShow






Parts List used in this build are:

Raspberry Pi Zero W
GB Classic Volume Switch Potentiometer

Screen: 2.8" ILI9341-based SPI TFT screen
update 14/03/18
3.2 inch 18P SPI TFT LCD Screen

USB sound card
USB HUB
Speaker:
Battery charger
Mini Digital Amplifier Board
Battery: 2x1700mAh
DS Lite buttons
Repair Parts for Nintendo DS Lite
DS Lite mb
DS Lite white case
Power switch
Female Audio Stereo Jack

Subtotal(14 Items):US $93.42
Shipping Cost :US $6.90
All Total: US $100.32

and...
Double-sided tape
Wire
SD card

[TheHappiestBug]

I love the grill on the bottom! So clean.

[ABH]

Great project
I’m working in one
Btw is that 3.2 screen?

[understar]

Great project
I’m working in one
Btw is that 3.2 screen?

that 2.8 screen. 3.2 is much bigger

[ABH]

Great project
I’m working in one
Btw is that 3.2 screen?

that 2.8 screen. 3.2 is much bigger

I saw this guy using them it looks good
https://www.flickr.com/photos/phenakite/25013447746/

[understar]

Great project
I’m working in one
Btw is that 3.2 screen?

that 2.8 screen. 3.2 is much bigger

I saw this guy using them it looks good
https://www.flickr.com/photos/phenakite/25013447746/

looks good, but the case does not close
https://www.flickr.com/photos/phenakite ... otostream/

[understar]

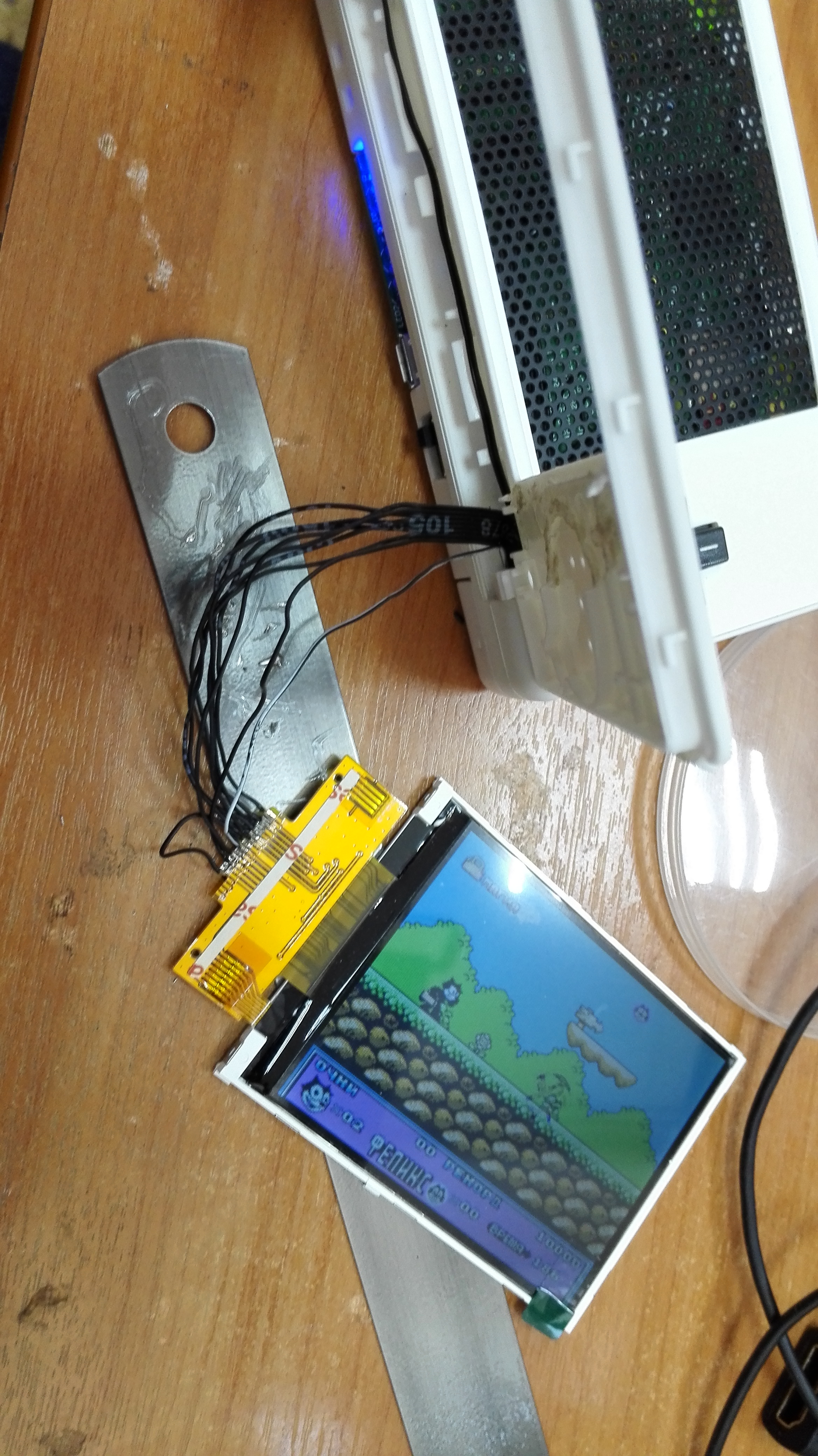

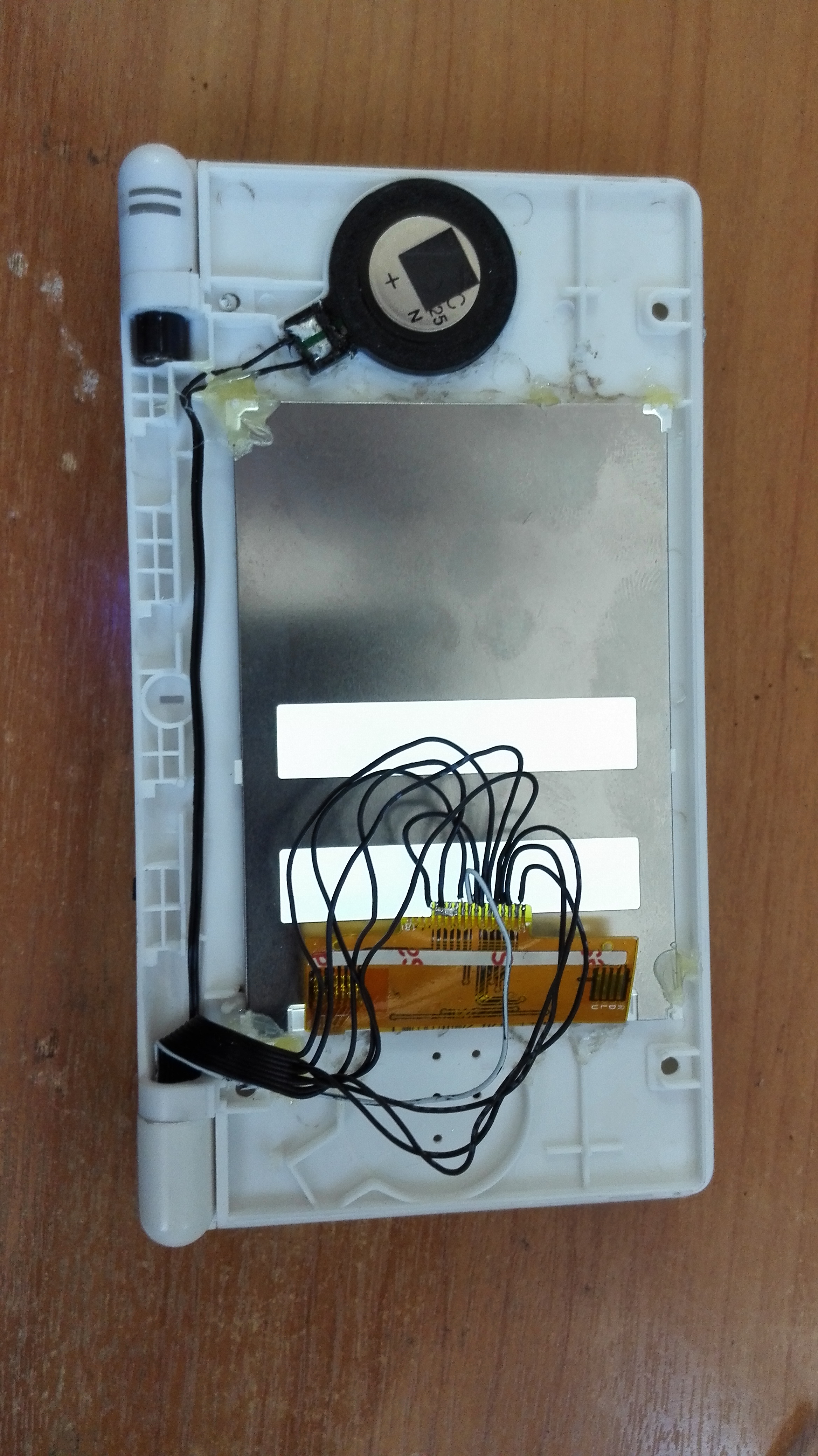

new 3.2 inch screen



[EladioPinto]

new 3.2 inch screen

You are doing the raspberry pi that I am planning, including how to put the screen spi what relief is knowing that will work, haha hear a lot of work on soldering the ends of the wires in the flexible cable, the screen was "slipping" inside the carcass , could send more photos of how the positioning of the screen was, how it did to hit the correct position, had to do some adjustment in the carcass such as increase the display area of the screen, and in relation to battery, how many hours of game play can you with this new screen?

Again, congratulations.

[understar]

*lost picture fix

[LaoTzunem]

Can you make a tutorial?
