VERTIPIE - The Mini Vertical Handheld Bartop Project

[YaYa]

Errr what is NSFW tag lol, sorry you know i’m not perfect, i’m french

NSFW means "Not Safe For Work," so moosepr means that these cabinets and graphics to too sexy for looking at on the job!

I would have to agree!

Now i got it

[ABH]

Great that’s really PROFESSIONAL work !
Thanks for sharing

[grundle]

Do you know if @WillbakesPi would share his Vertipie image? I'm looking to outfit a vertical bartop cab and my alternative is using the old version...

[YaYa]

Do you know if @WillbakesPi would share his Vertipie image? I'm looking to outfit a vertical bartop cab and my alternative is using the old version...

You should discuss this with him but he has put more than a year of effort on this image so i’m not sure he will freely share this. He is continuously growing the supported number of systems. But i cannot talk for him.

Contact him via discord or via instagram

[YaYa]

Updates :

Hello fellow members !

It’s been quite a while since i didn’t post progress of this project so here it is

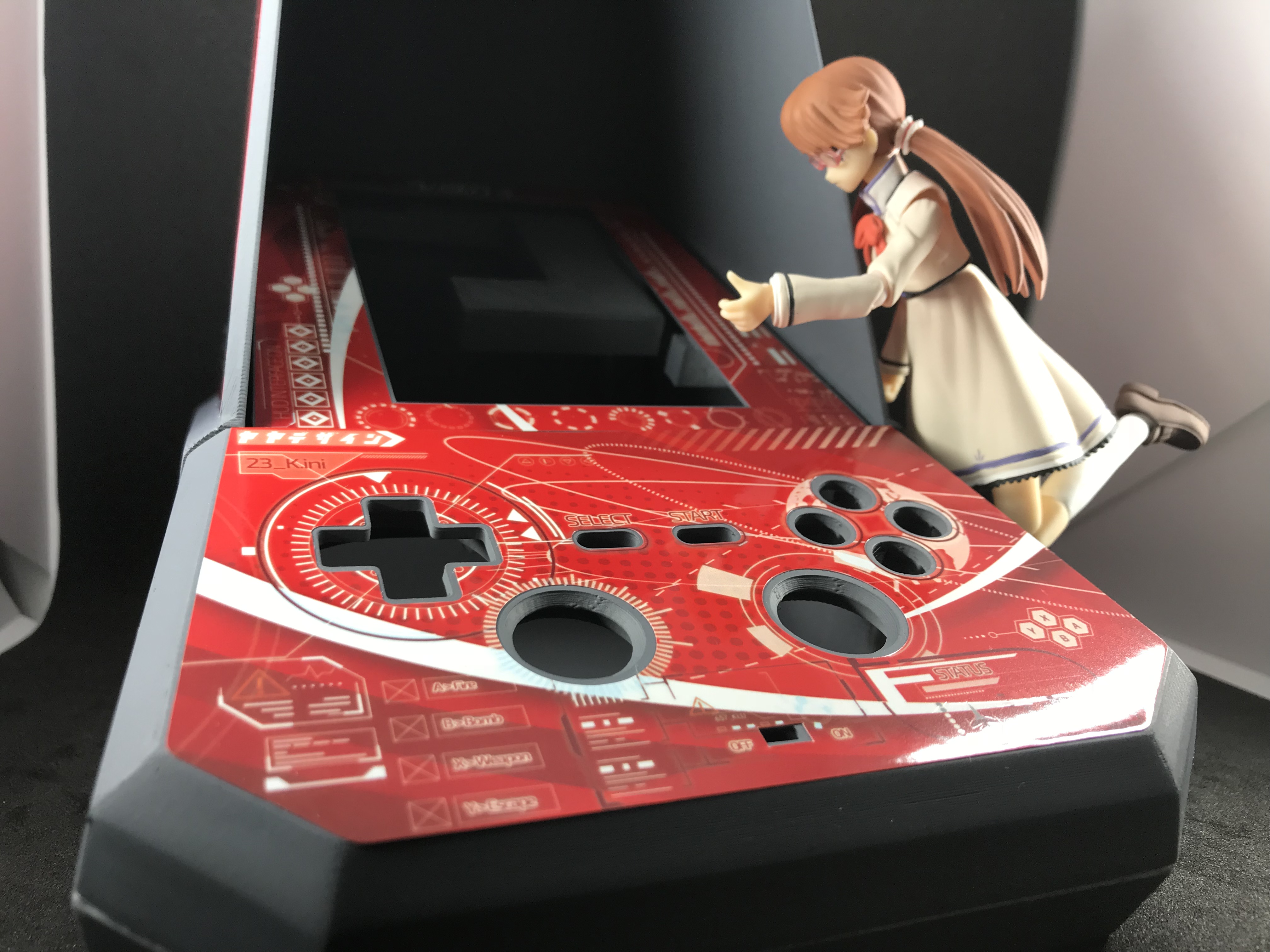

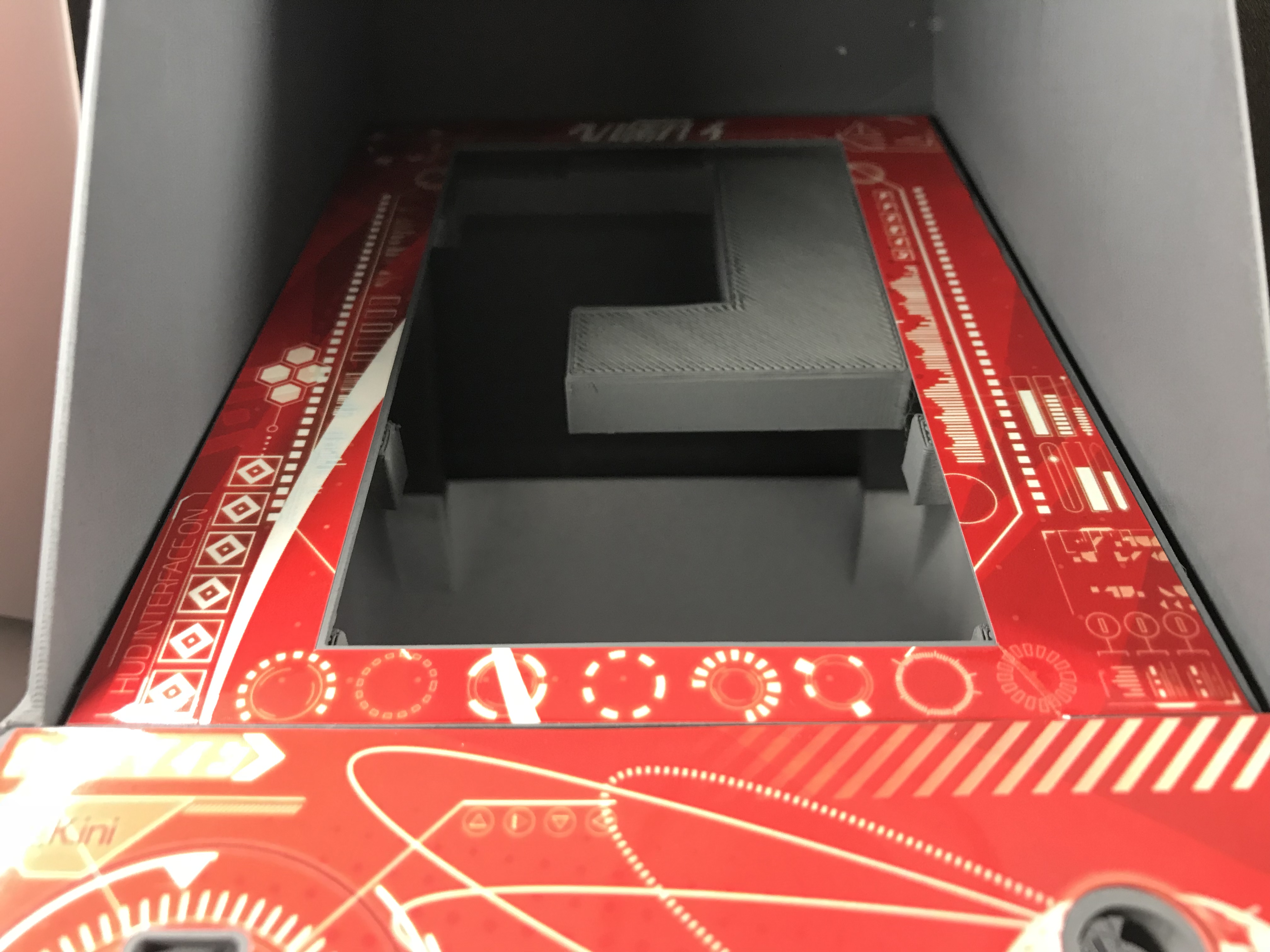

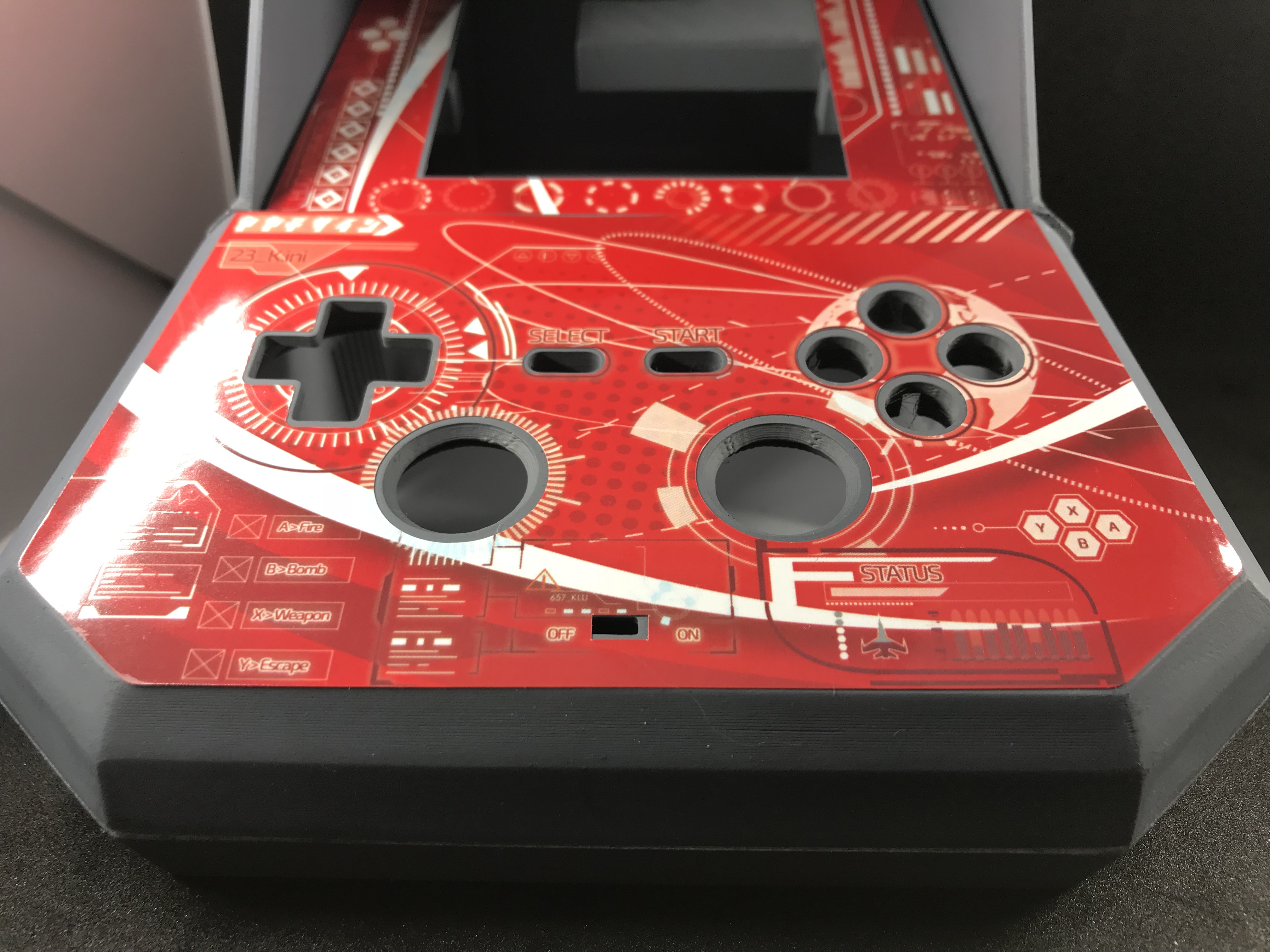

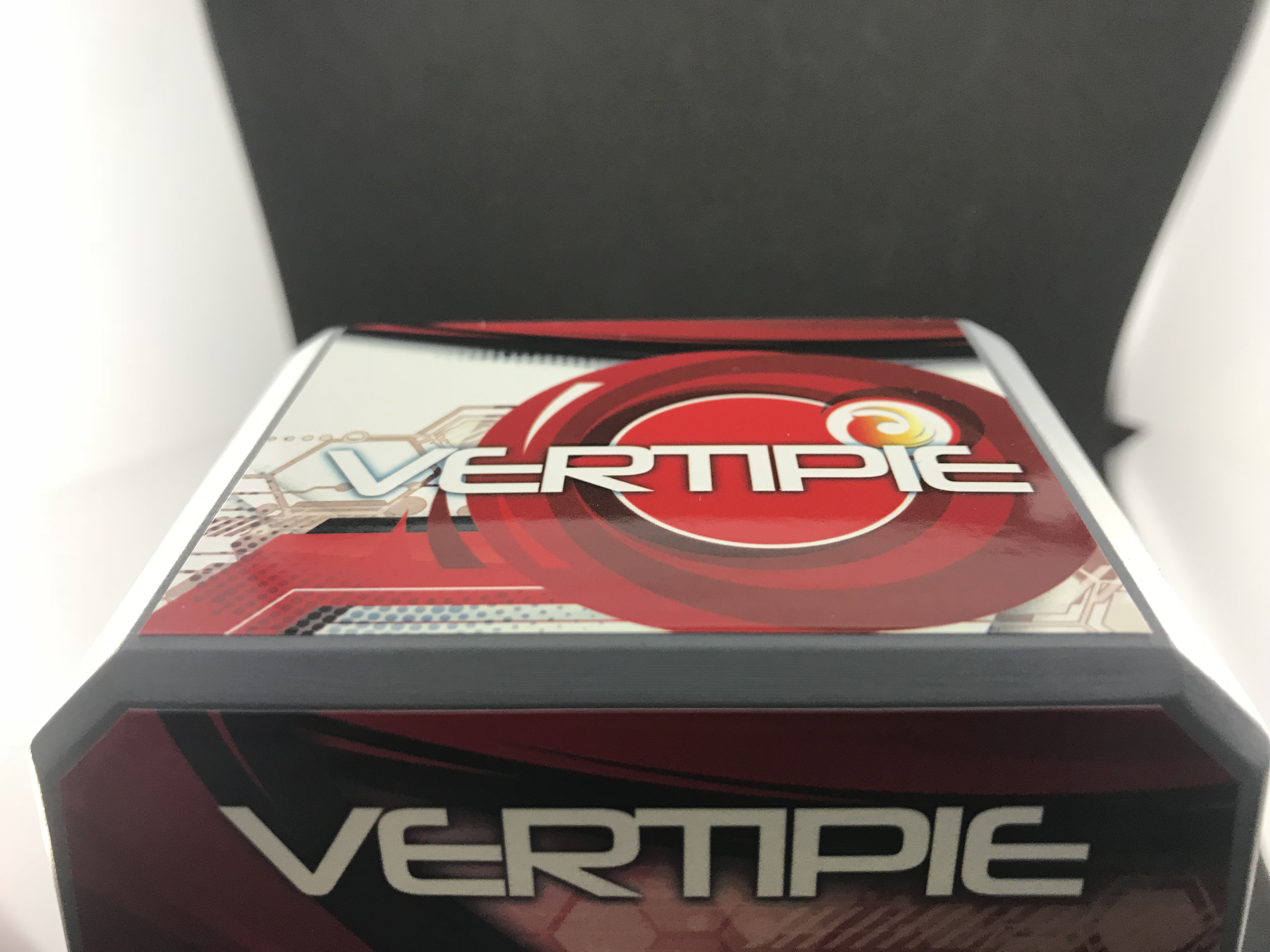

I’ve ordered some decals and the result is perfect.

You can now buy them from my shop.









[YaYa]

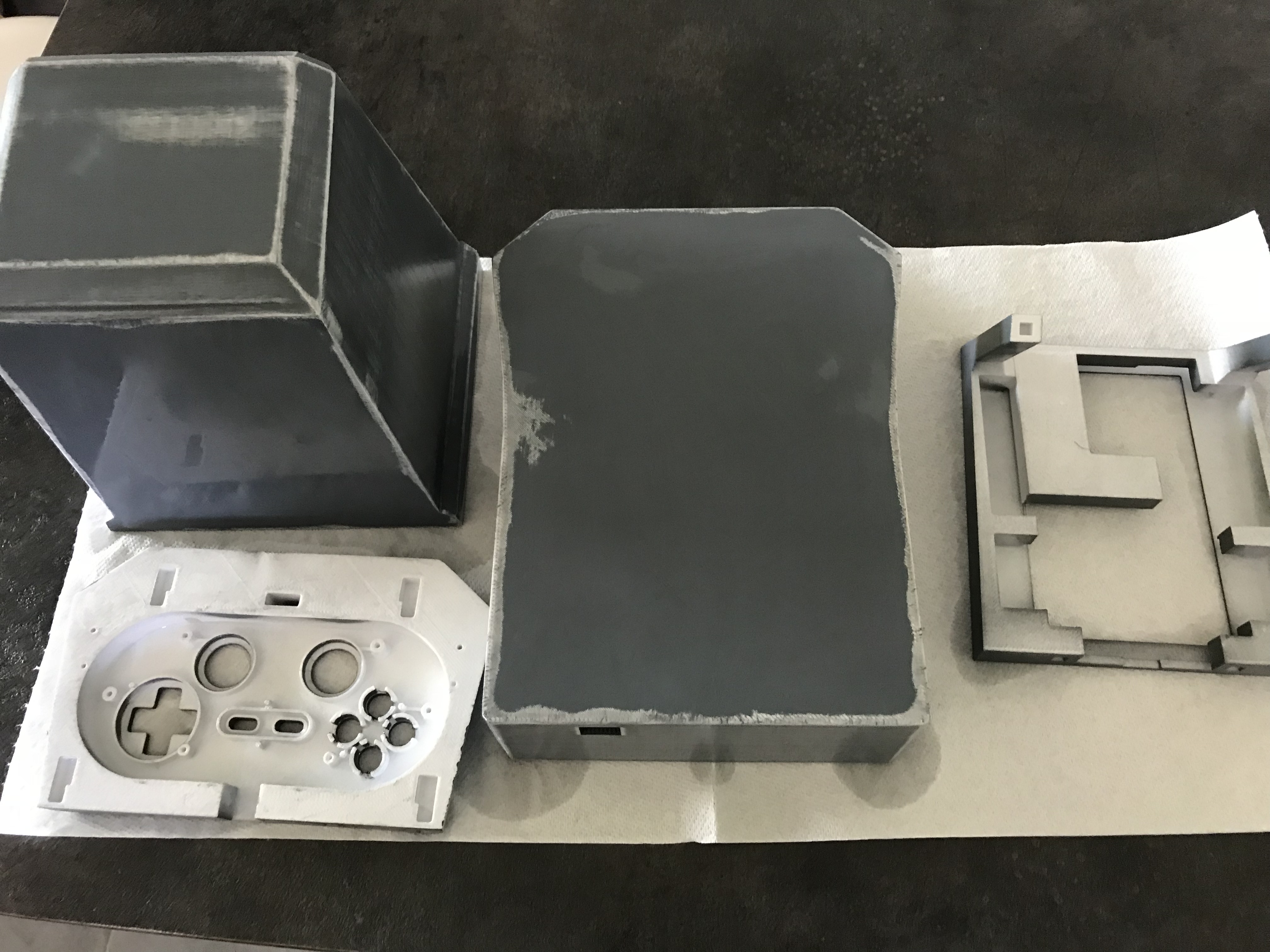

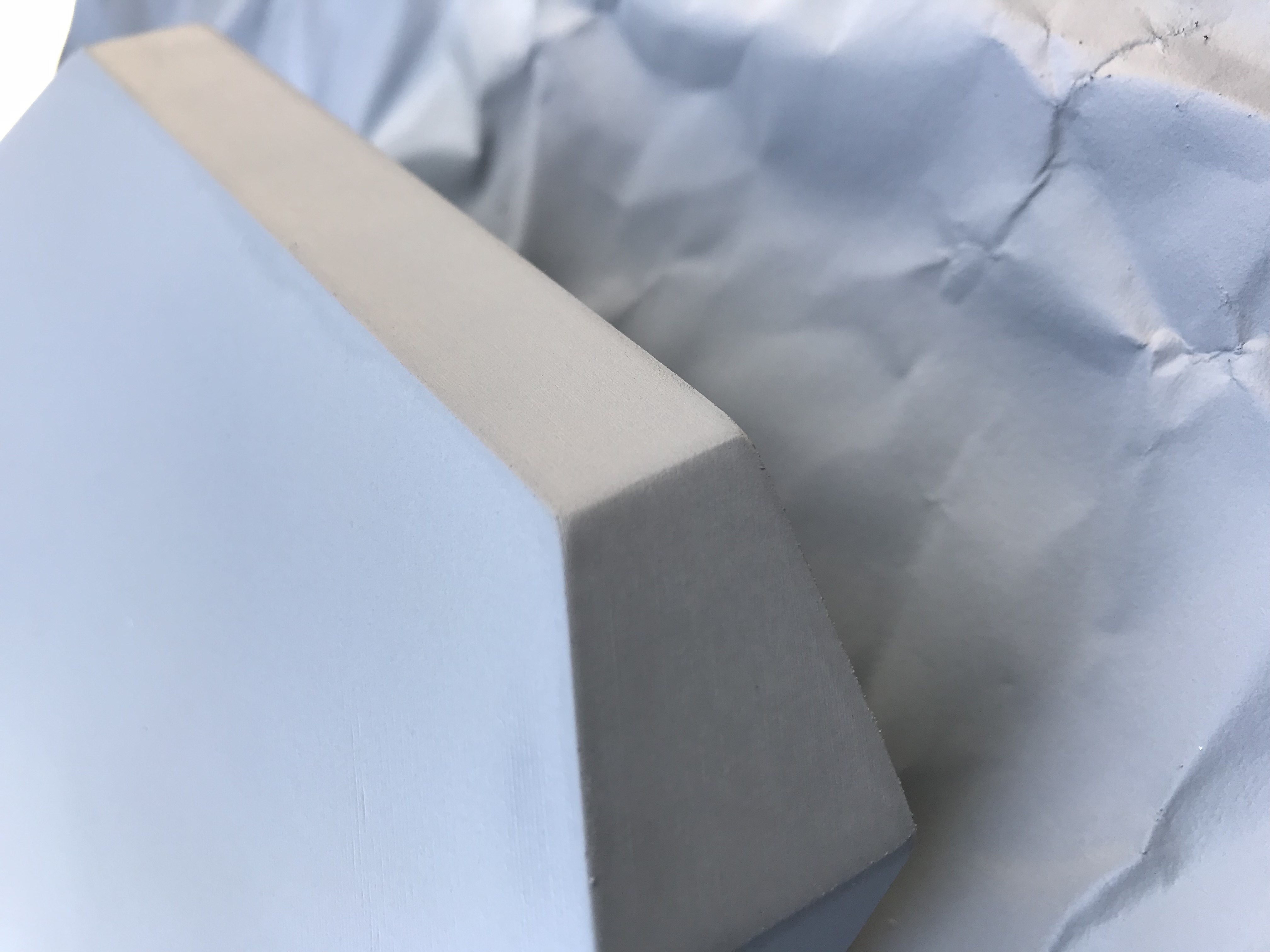

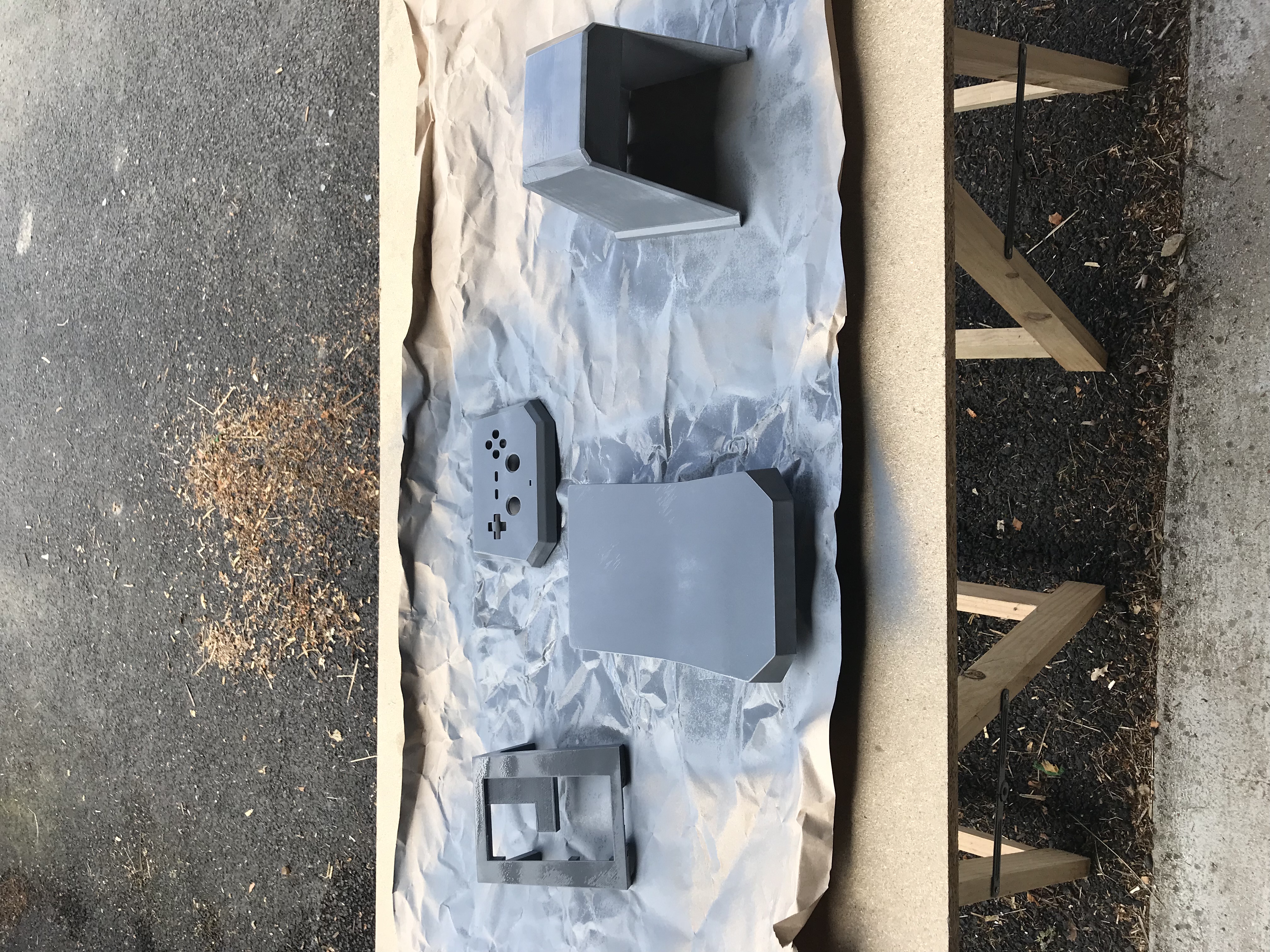

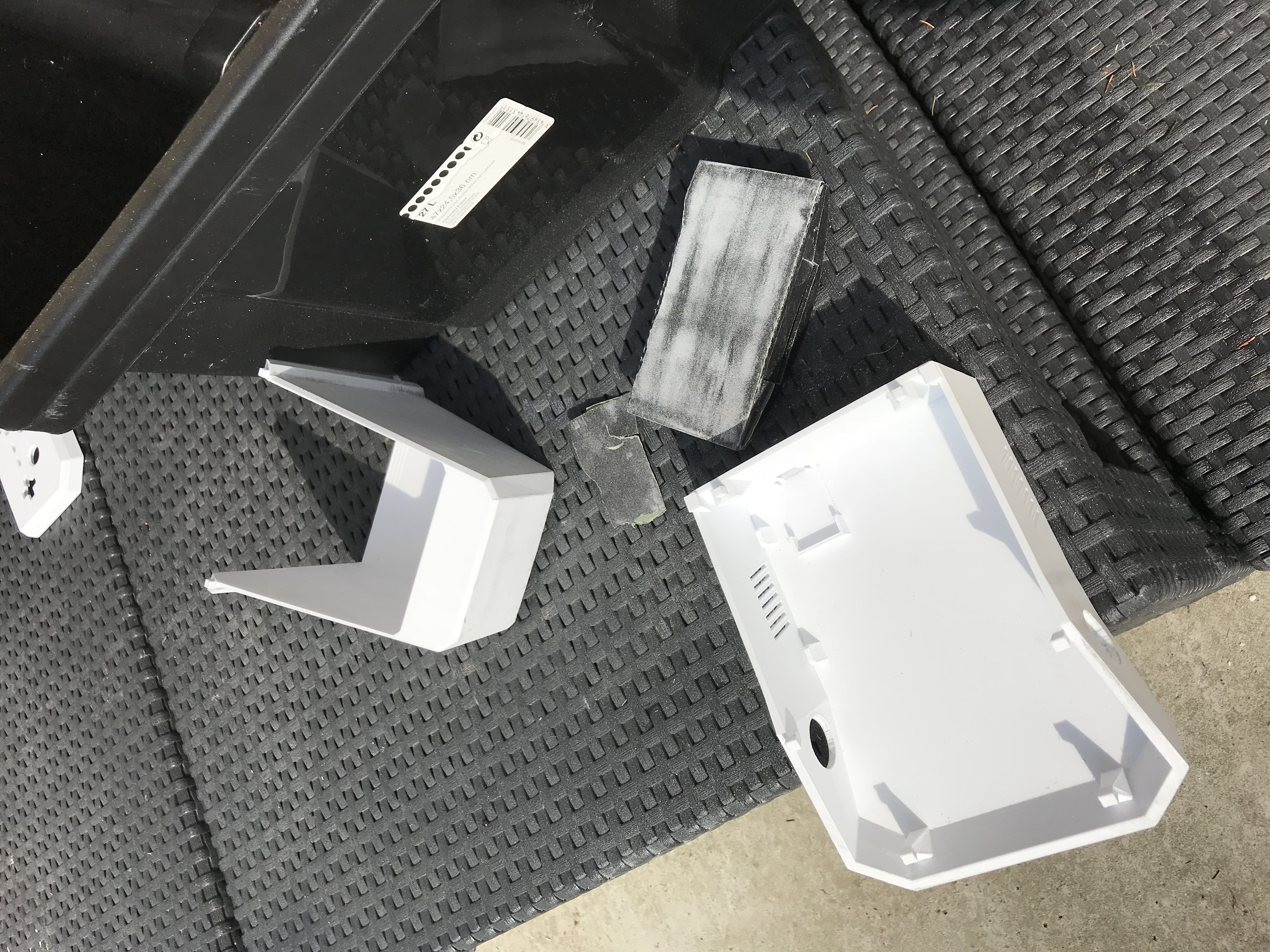

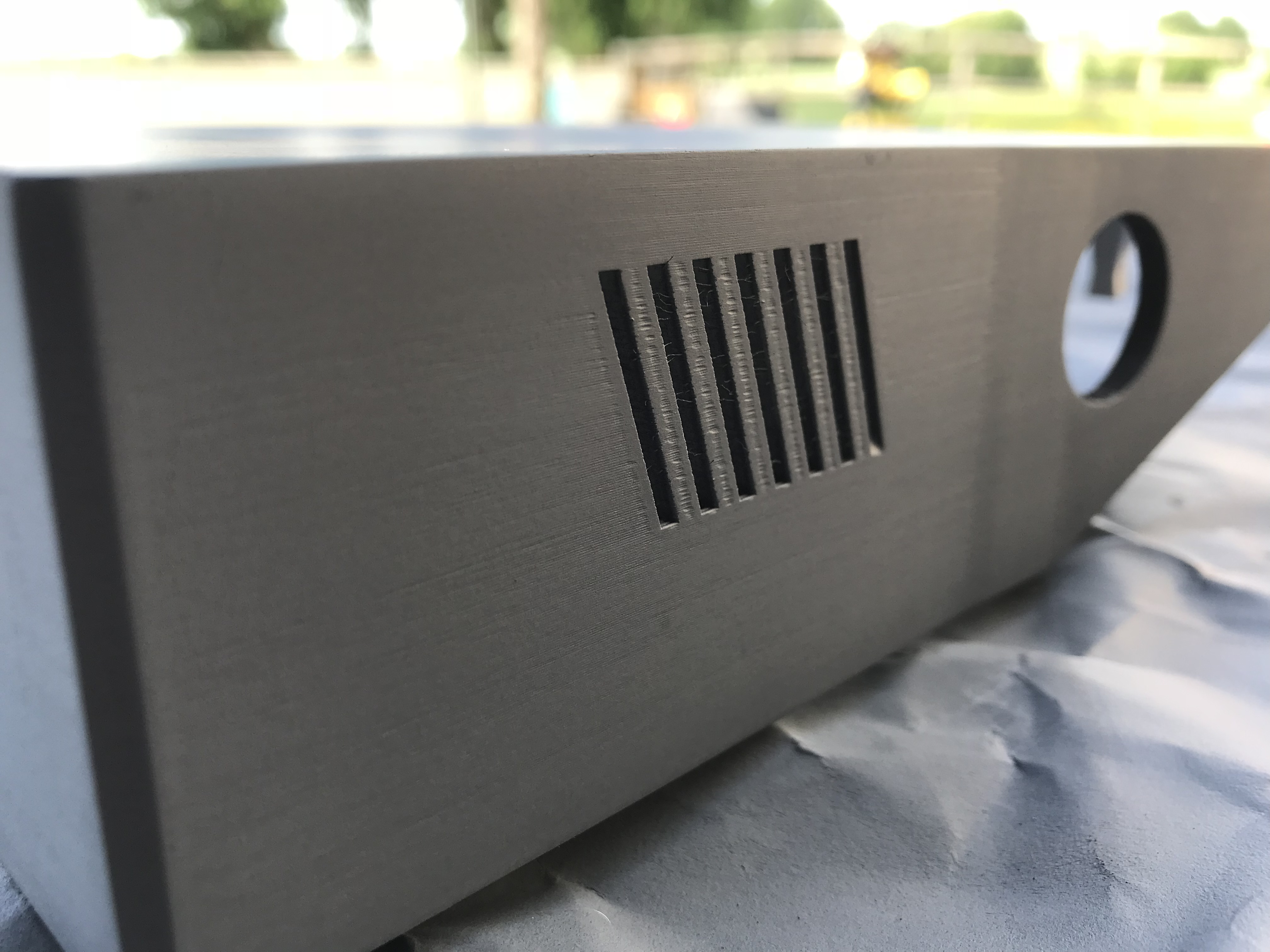

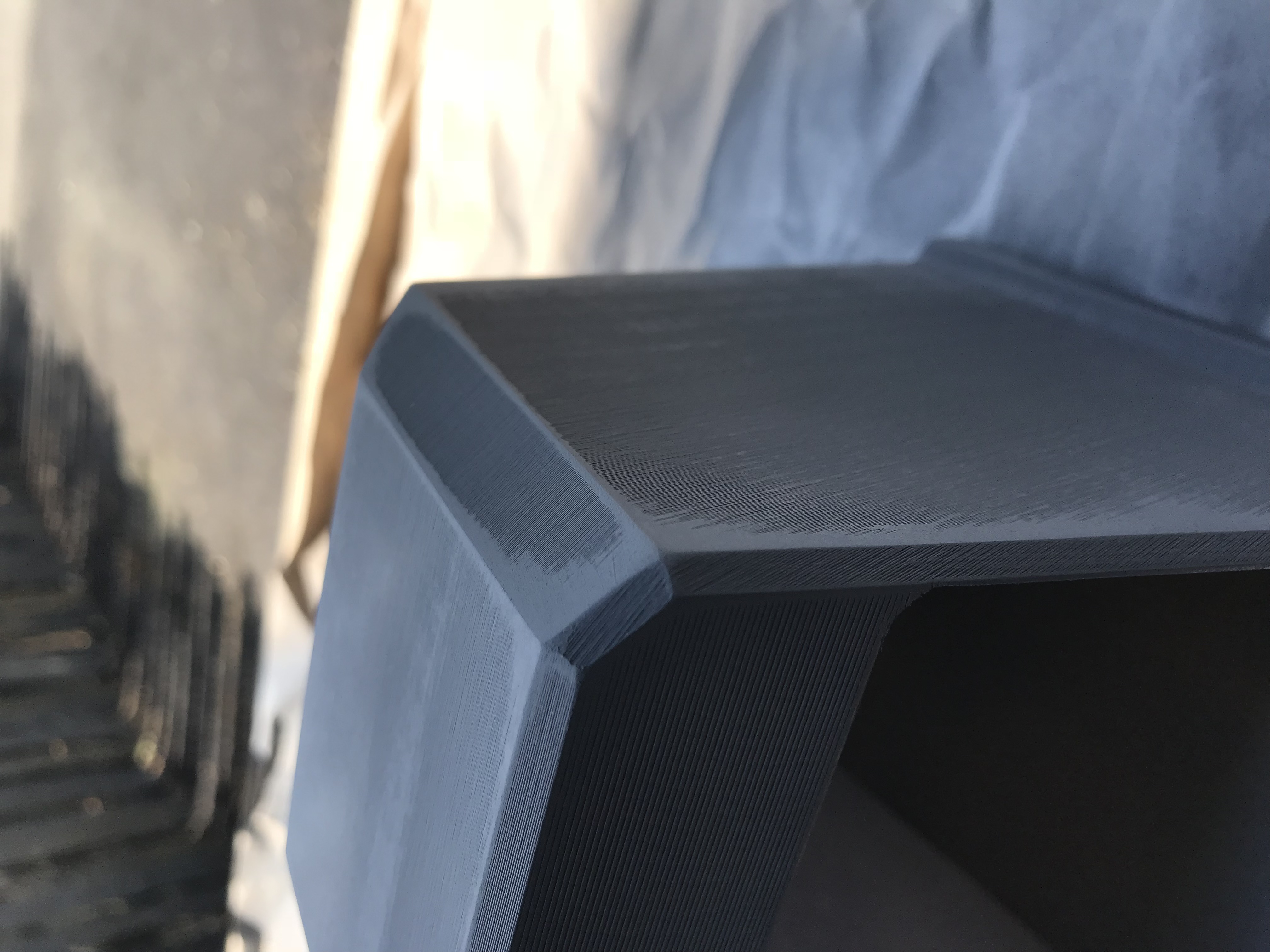

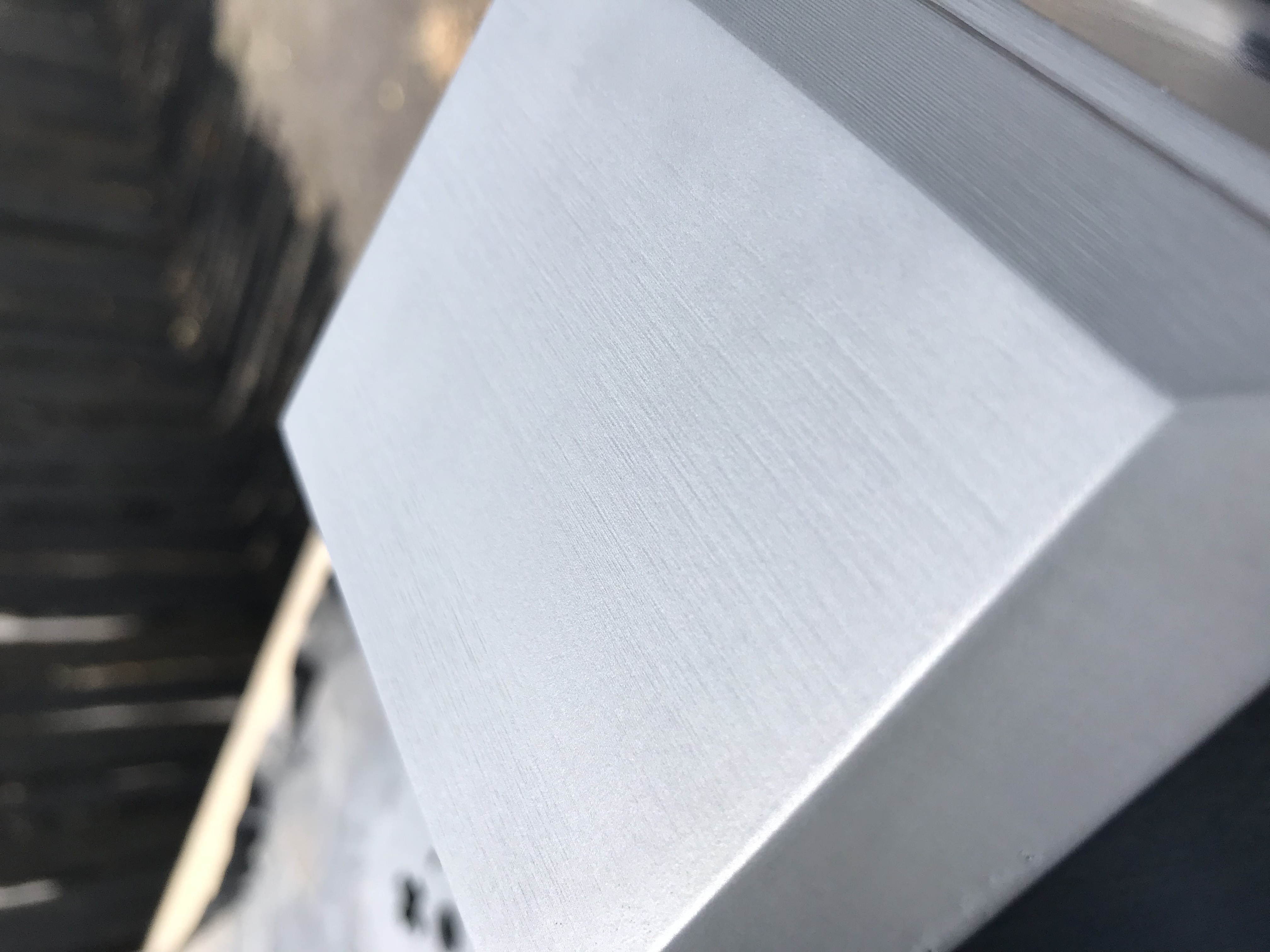

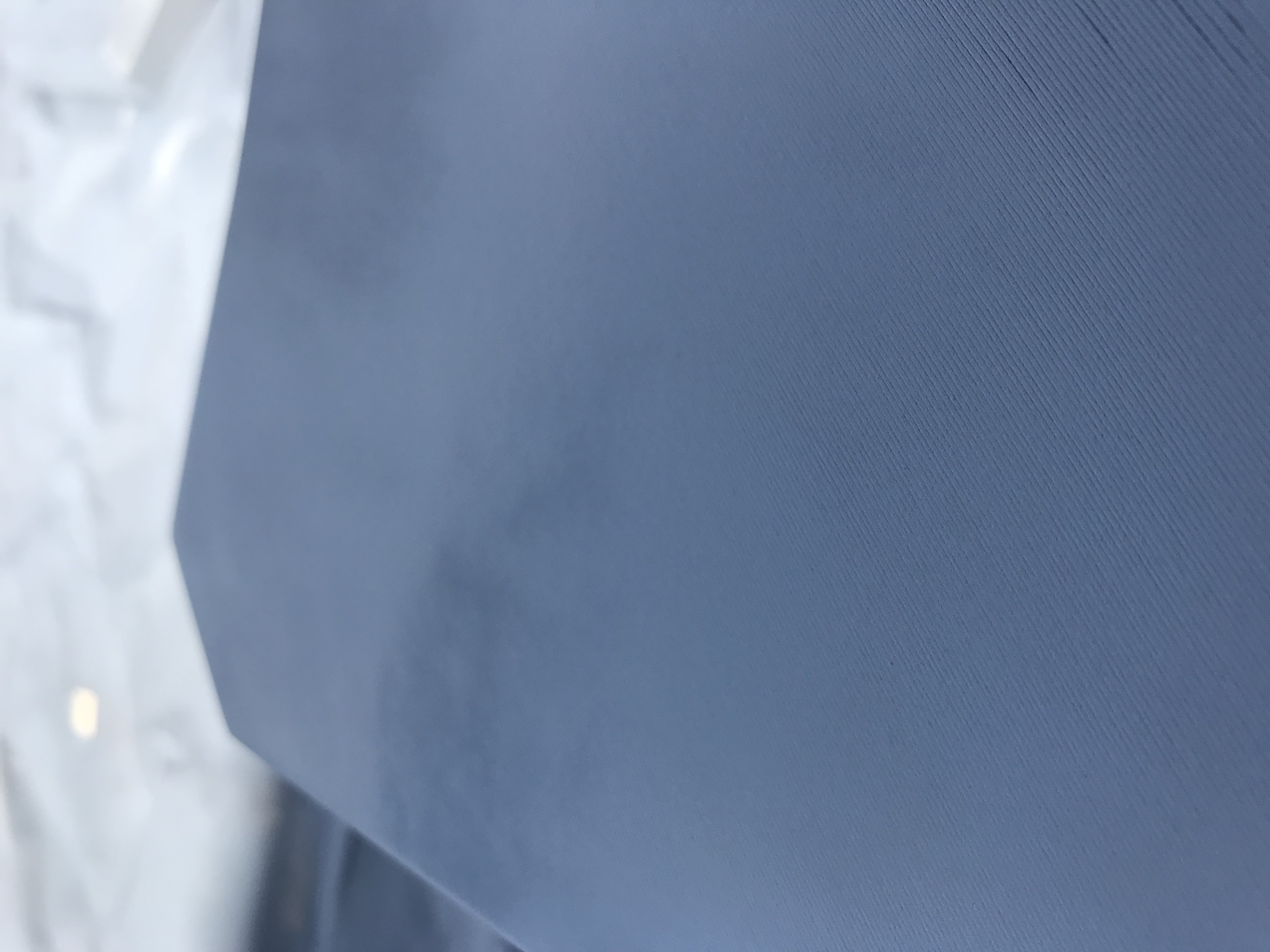

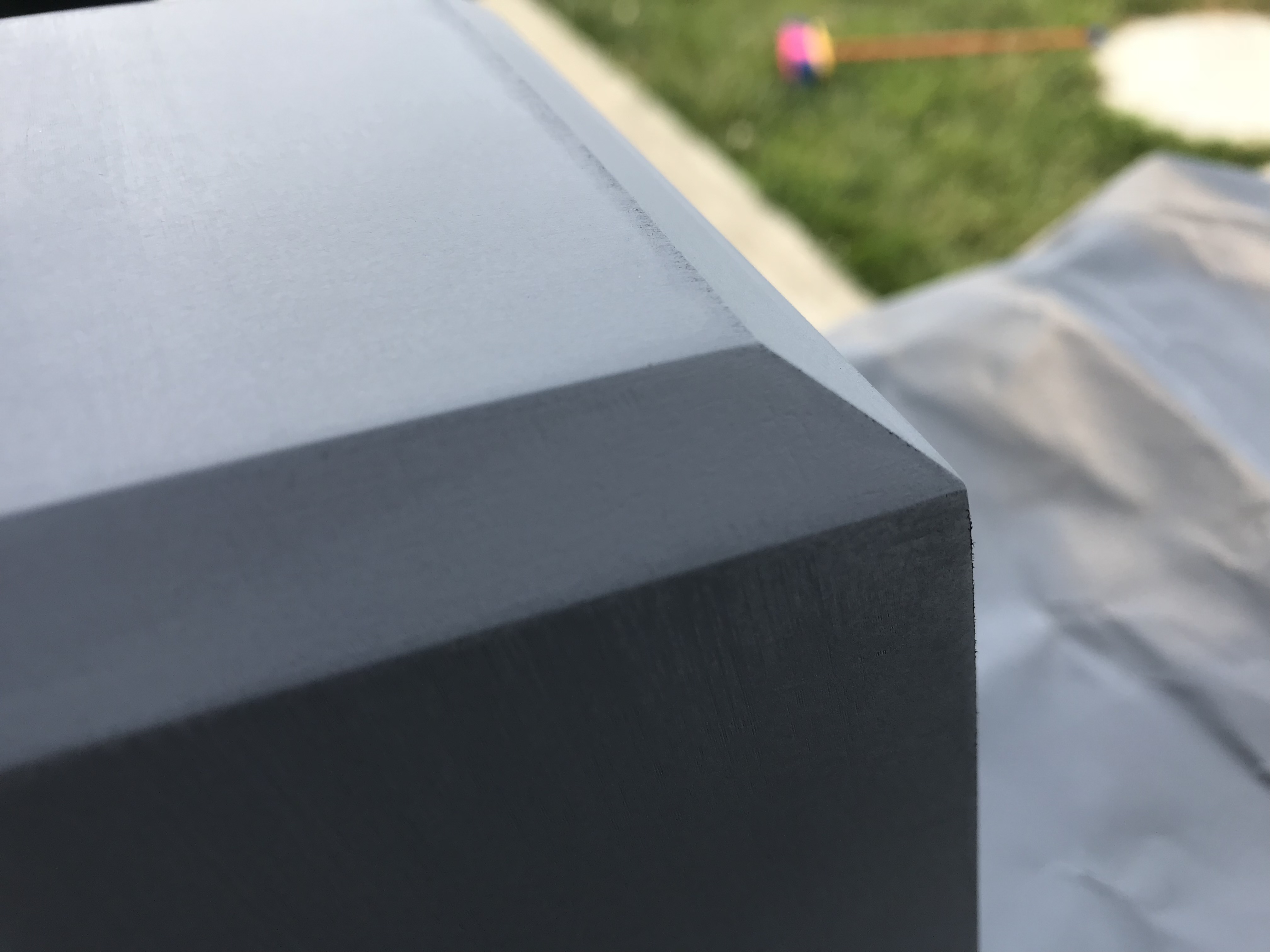

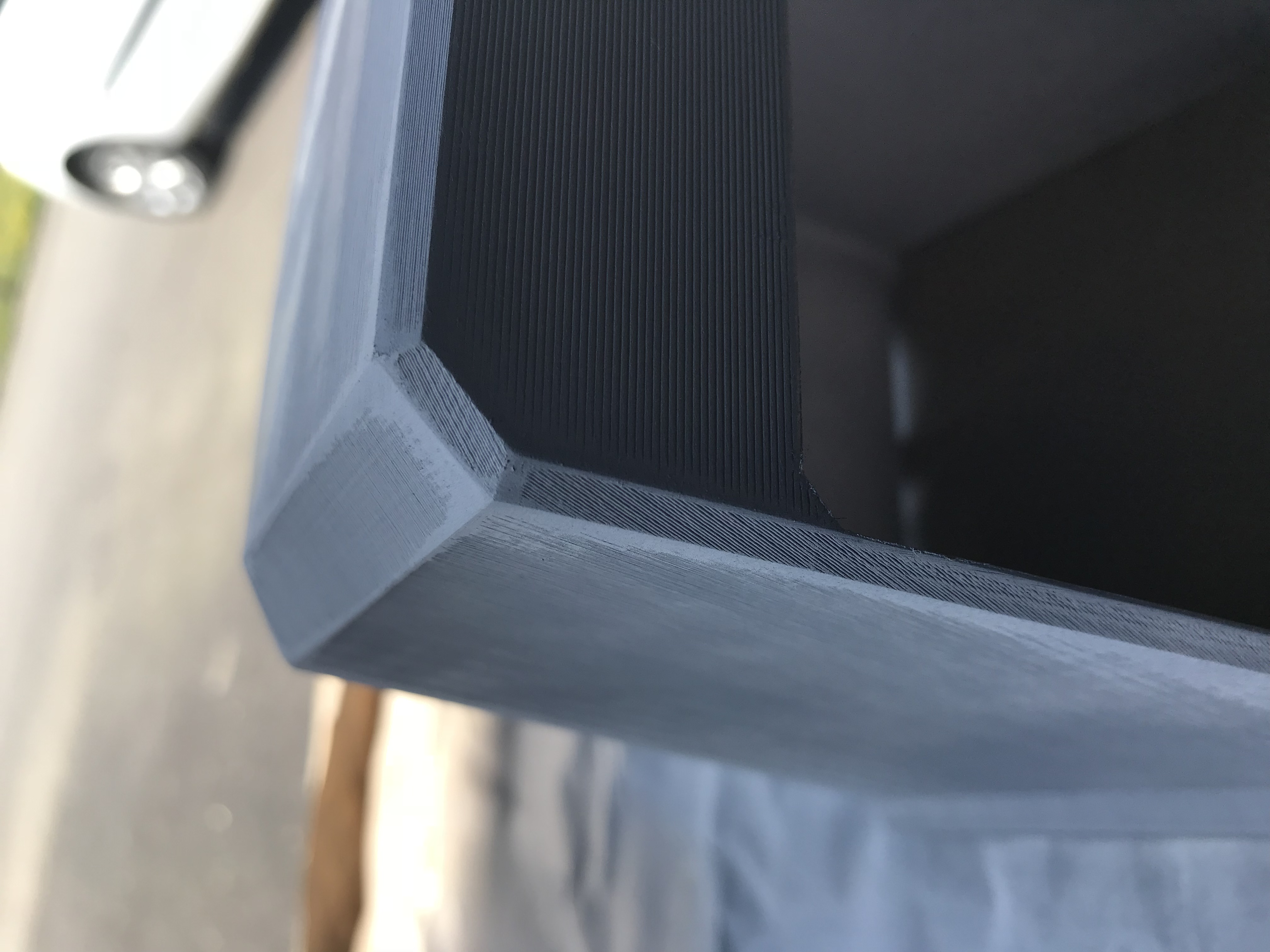

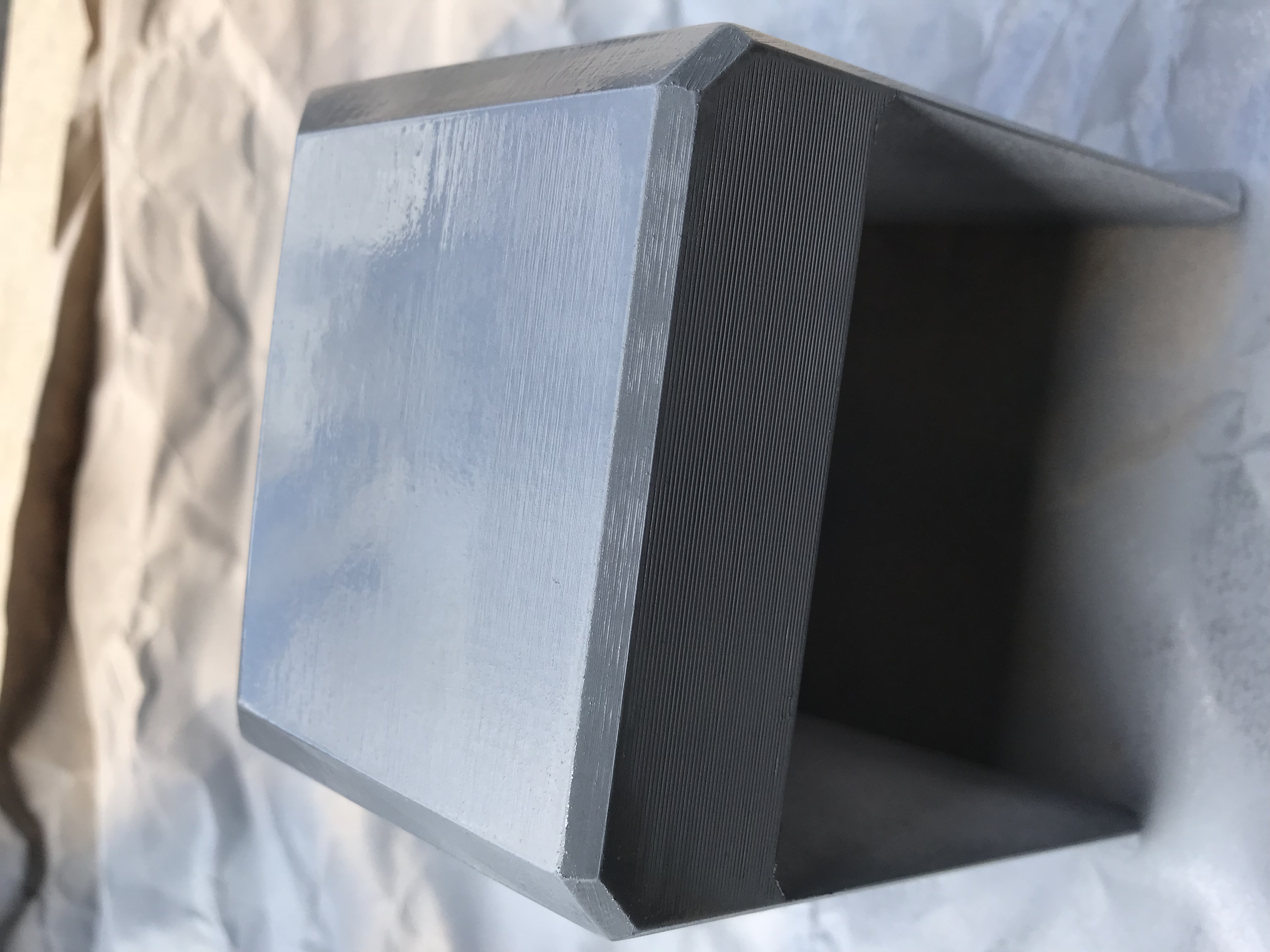

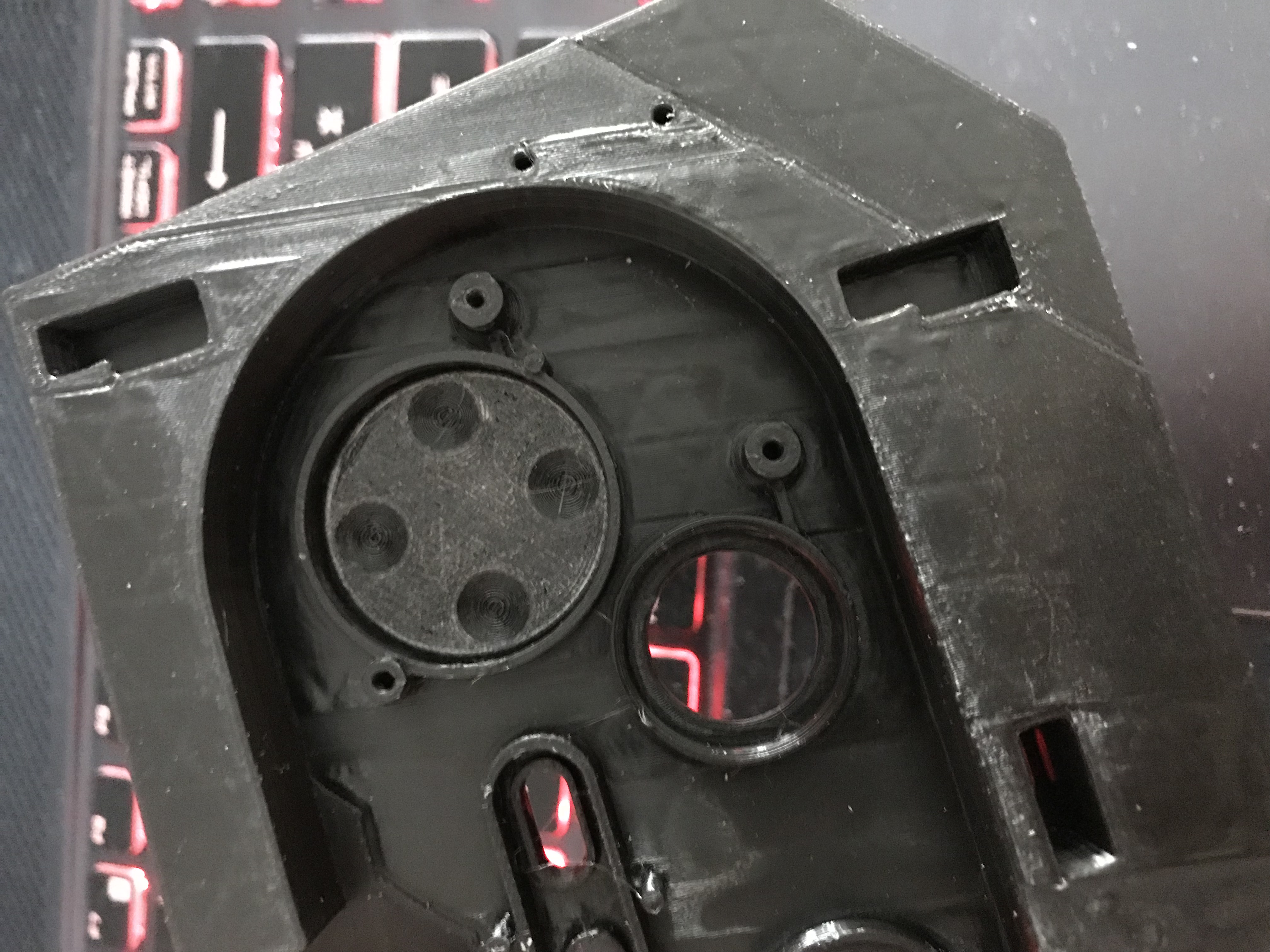

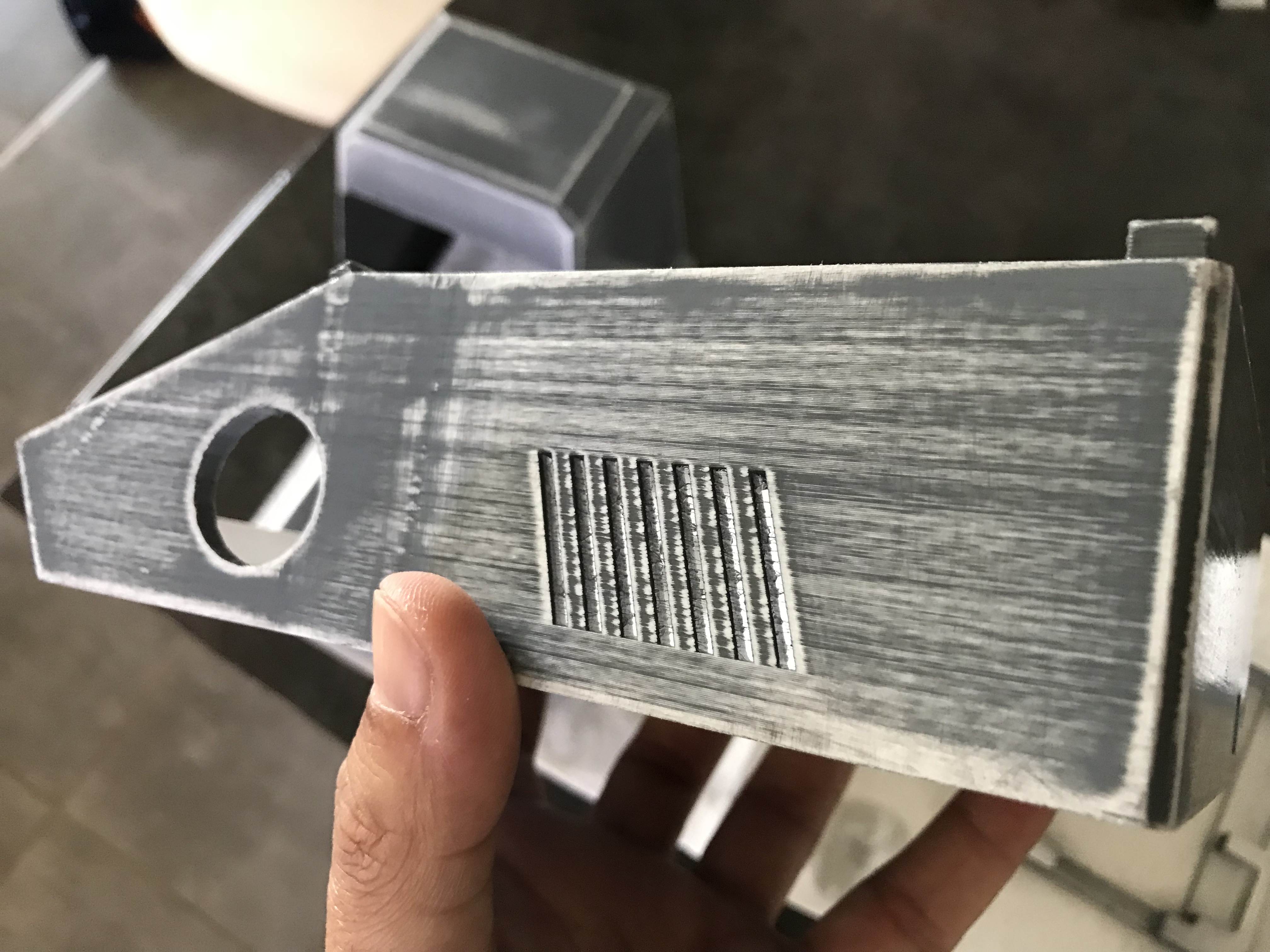

The case was sanded and primed/ filled 4 times with 200 grade sand paper and a professional automotive grade filler.

The result is awesome. The pictures are taken at diffrent stages of passes.

The thinner you’ll print, the less work you’ll have.

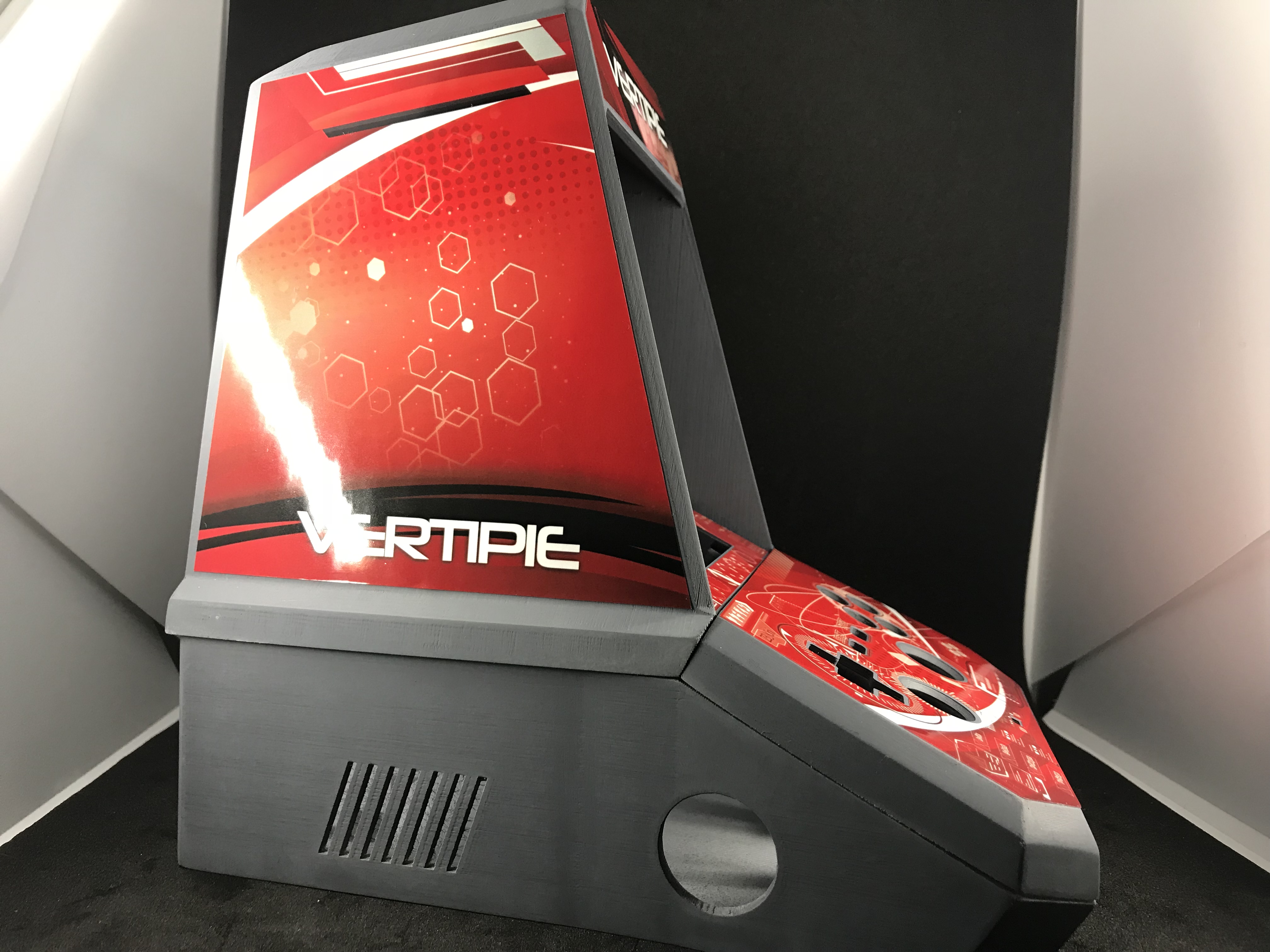

Initially, i should have painted the case after preparing it but i received the stickers while finishing the priming and as i had preordres on the stickers, i’ve quickly made a testing (see photos above) and as the result is perfect with that color combination, i left it as it

[YaYa]

Now that the cosmetic parts are set up, i needed to go deeper in this cabinet so i’ve started from scratch the complete redesign of it under Fusion 360.

I have plenty of respect for the original creator’s work but their model is plenty of bug and doesn’t suits exactly my needs.

I had a small time of adaptation needed as it was my first time on that software, i’m an old school mesh guy

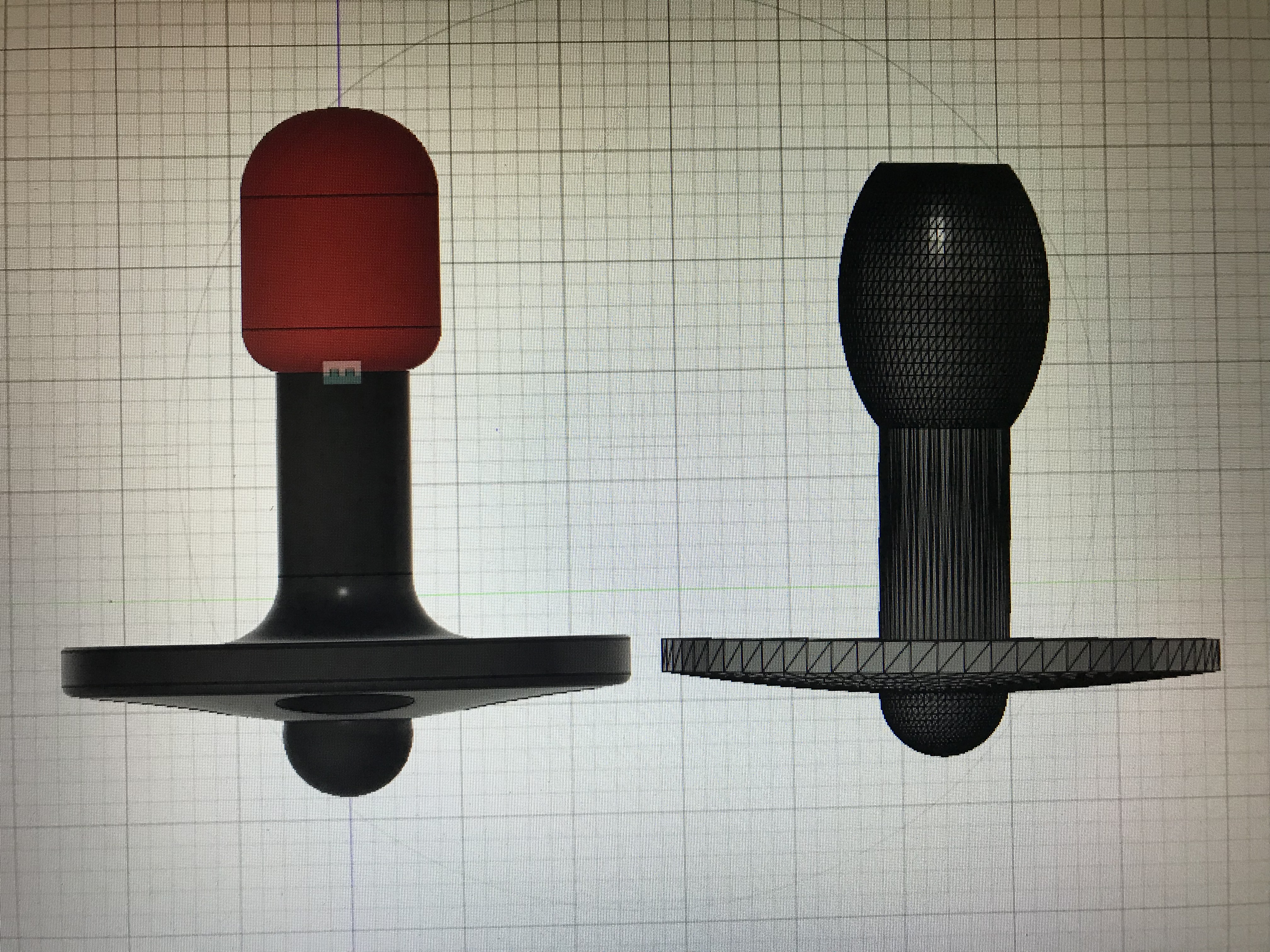

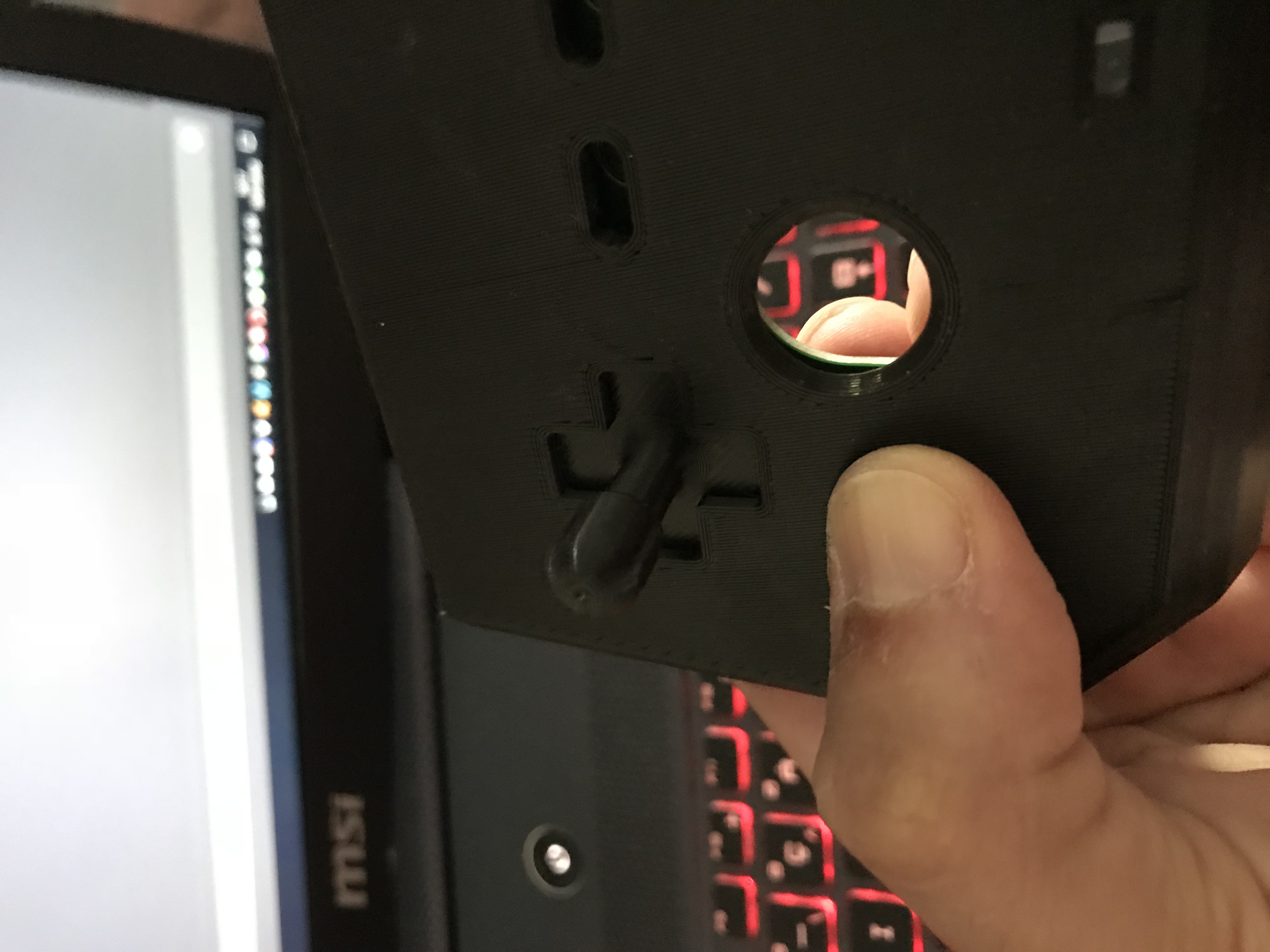

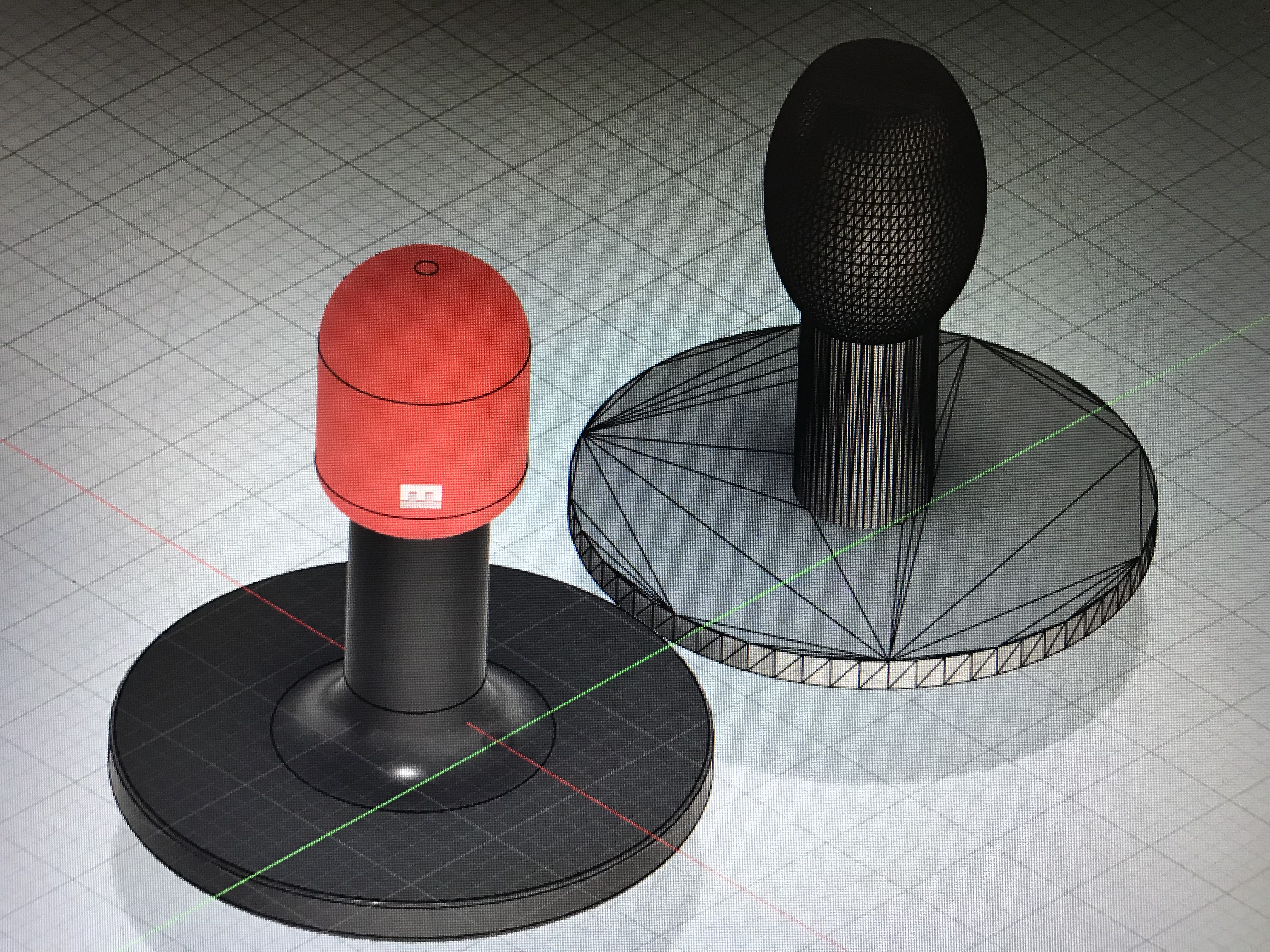

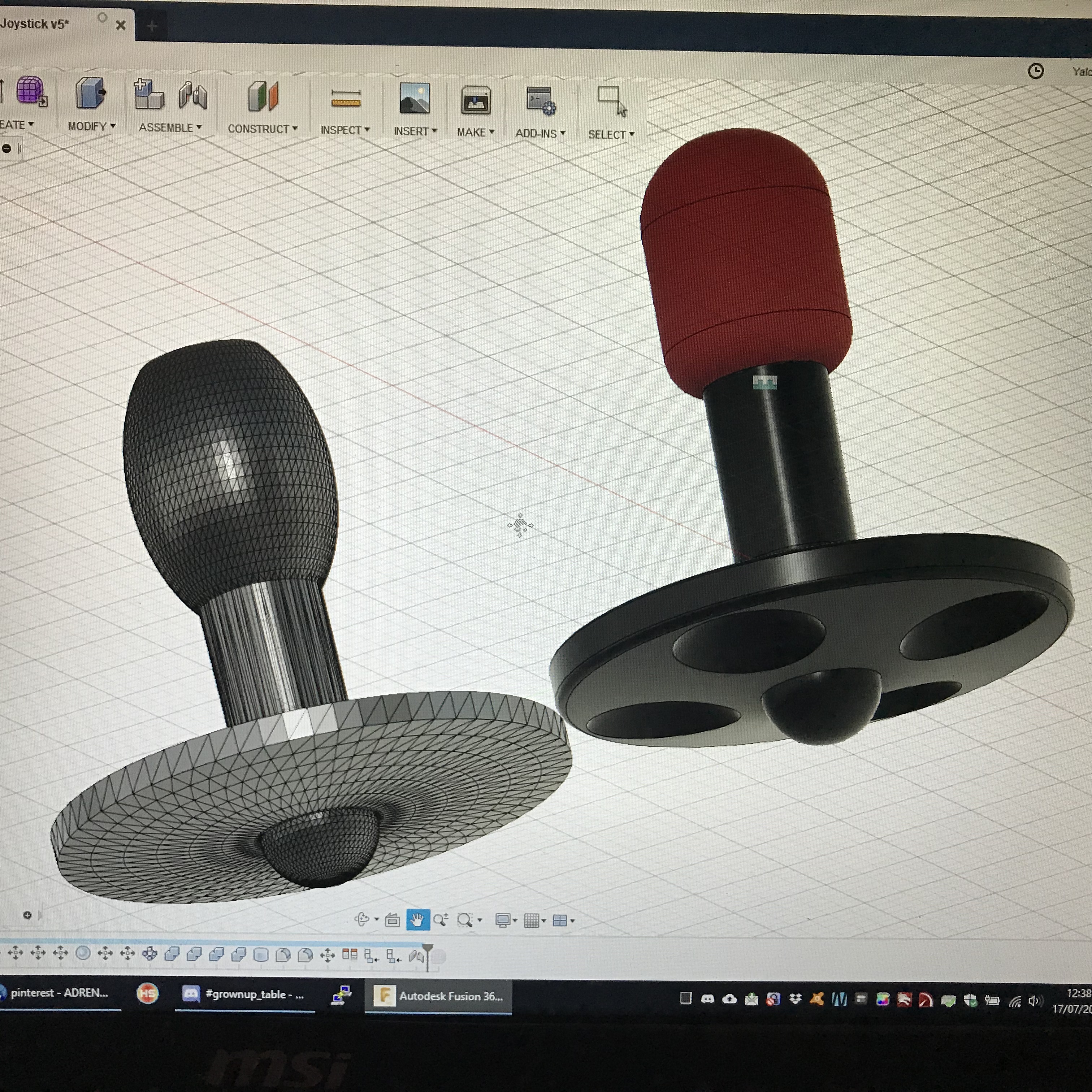

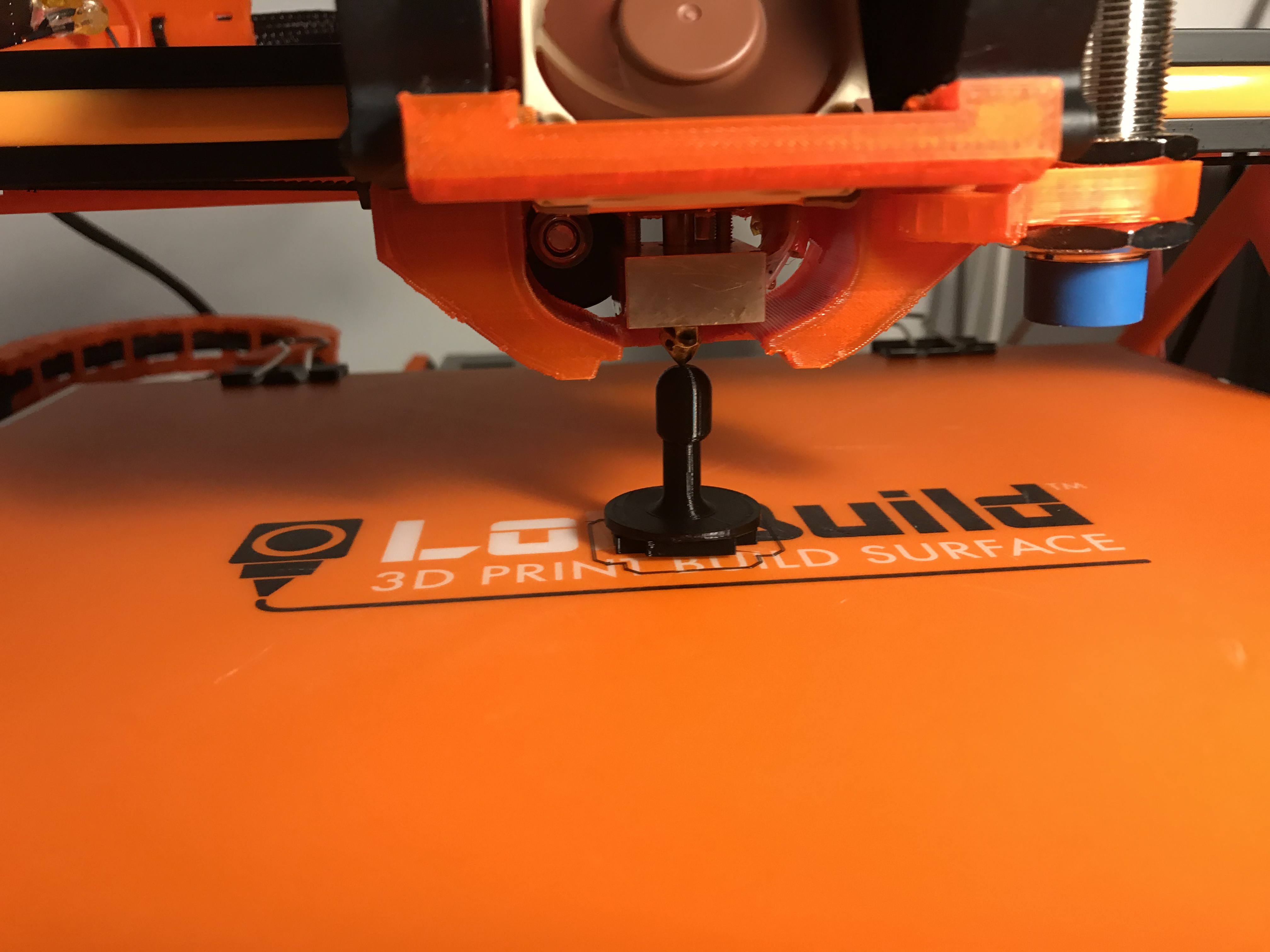

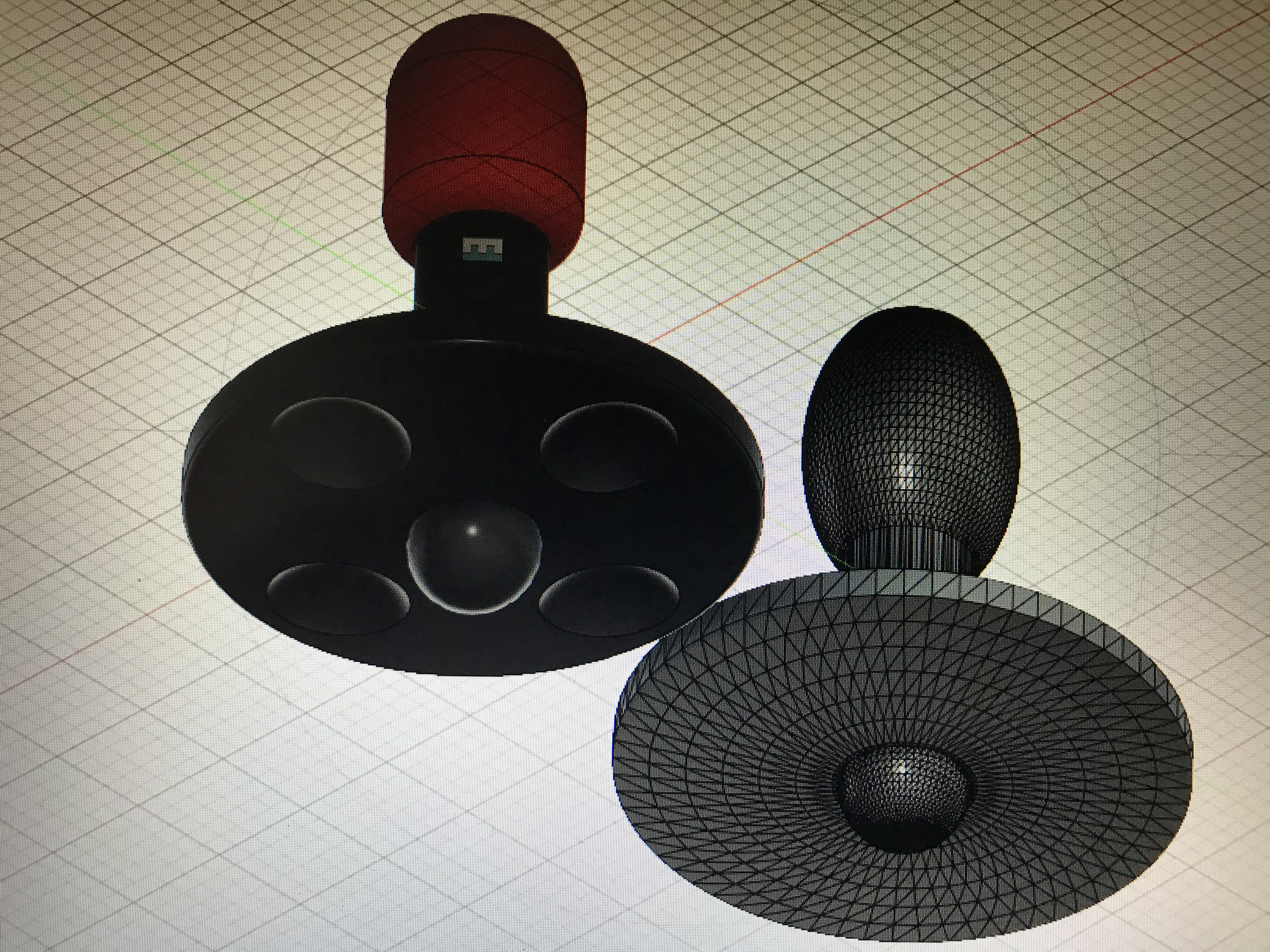

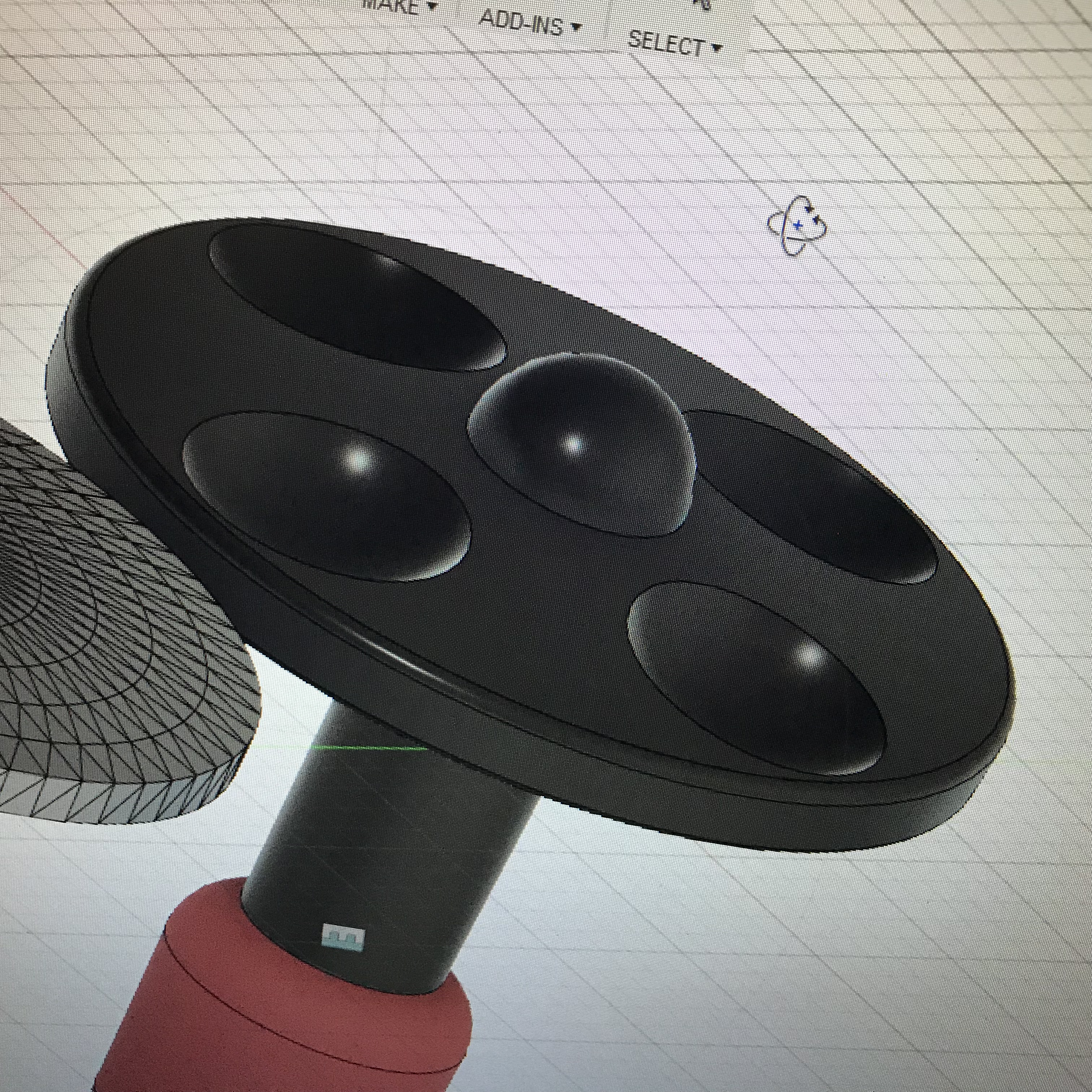

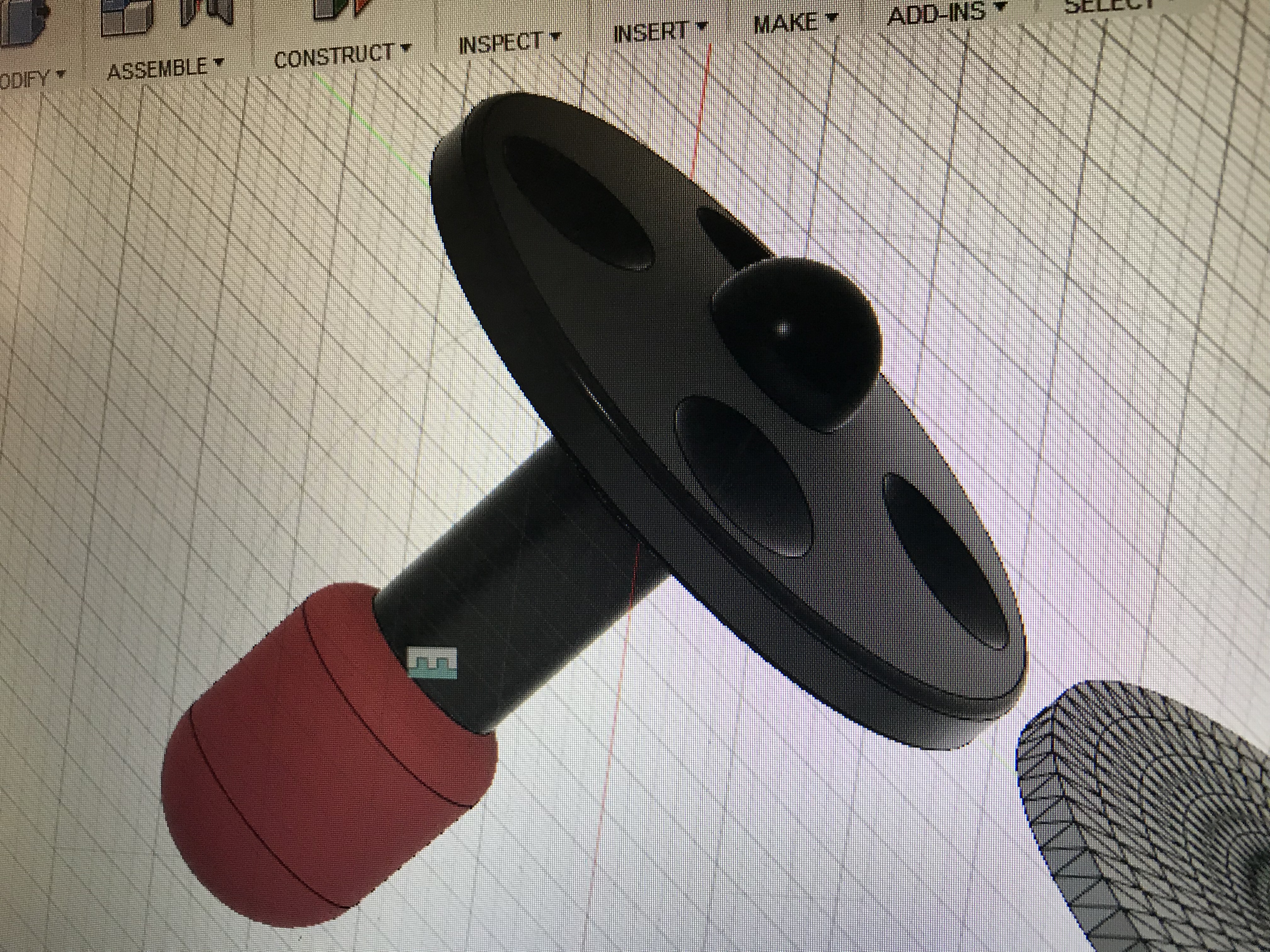

So first i’ve started by redesigning the joystick to give it a more sturdy look, and also be more responsive.

The dual colored joystick is the updated version.

After some testings, the result is just incredible. You can see it on action on Willbakespi’s video on instagram

https://www.instagram.com/p/BlZsTdMFYX9 ... h4cl9e6e6h
