WII U RASPBERRY PI 3 FINISHED

[Marty33]

@banjokazooie, i receive my screen today.

On your last reaction with my (poor) layout, i follow a tip : use flat Battery 2S 7.4V same for Smartphone.

But, i have exactly the same place of your creation, i search and impossible to find place.

For me, your BATTERY 2x PANASONIC is the best shape.

I want to use your 2S solution.

What's your tips ? Big thanks

[umrotzer]

So befor i make an own thread i asked here first.

After i talked to two guys from here privat, watched many videos and also read o´many stuff, i decided to asked again here and maybe someone has an idea, solution, tip.

The main parts aso are clear my only problem is to find a good, solid solution to charge and play at same time.

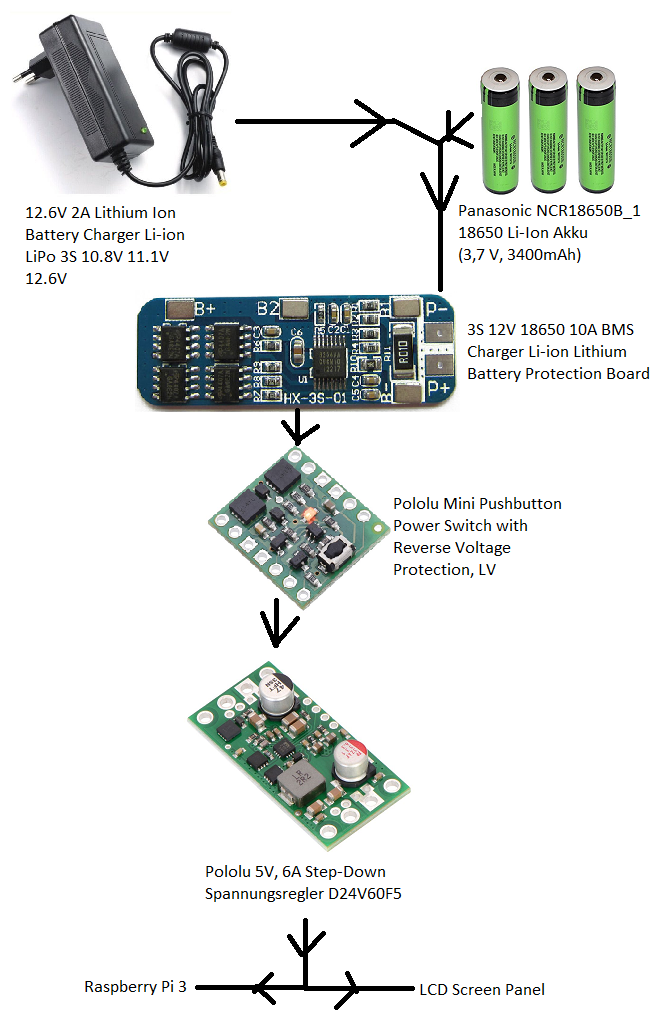

Here is the solution:


This will work because i can charge and play directly without the use of another charging board. the only problem is that the charging only with that bms is not so stable. So someone an idea?

[banjokazooie]

@banjokazooie, i receive my screen today.

On your last reaction with my (poor) layout, i follow a tip : use flat Battery 2S 7.4V same for Smartphone.

But, i have exactly the same place of your creation, i search and impossible to find place.

For me, your BATTERY 2x PANASONIC is the best shape.

I want to use your 2S solution.

What's your tips ? Big thanks

I have used 2 of these but with a different lcd only 2mm thick and driver board -> so much more space inside
https://www.aliexpress.com/item/1pcs-lo ... 0.0.Iuwl1n

[LordDarkScream]

Do you have a drawing of the base plate where you mounted the boards? Also where did you get the materials?

[reke]

Do you have a drawing of the base plate where you mounted the boards? Also where did you get the materials?

the drawing no, but somes materials in aliexpress

i think this is the board

https://es.aliexpress.com/item/50PIN-5- ... Title=true

and lcd
https://es.aliexpress.com/item/Free-shi ... Title=true

maybe in ebay, its the two for a some cheap cost, but idont know

and

fpc adapters

https://es.aliexpress.com/item/2pcs-lot ... Title=true

the other materials, teensy, hdmi cable, etc in aliexpress or ebay

[Marty33]

I think LordDarkScream speak for the orange board....

Same like this : https://goo.gl/VMu98Y

[banjokazooie]

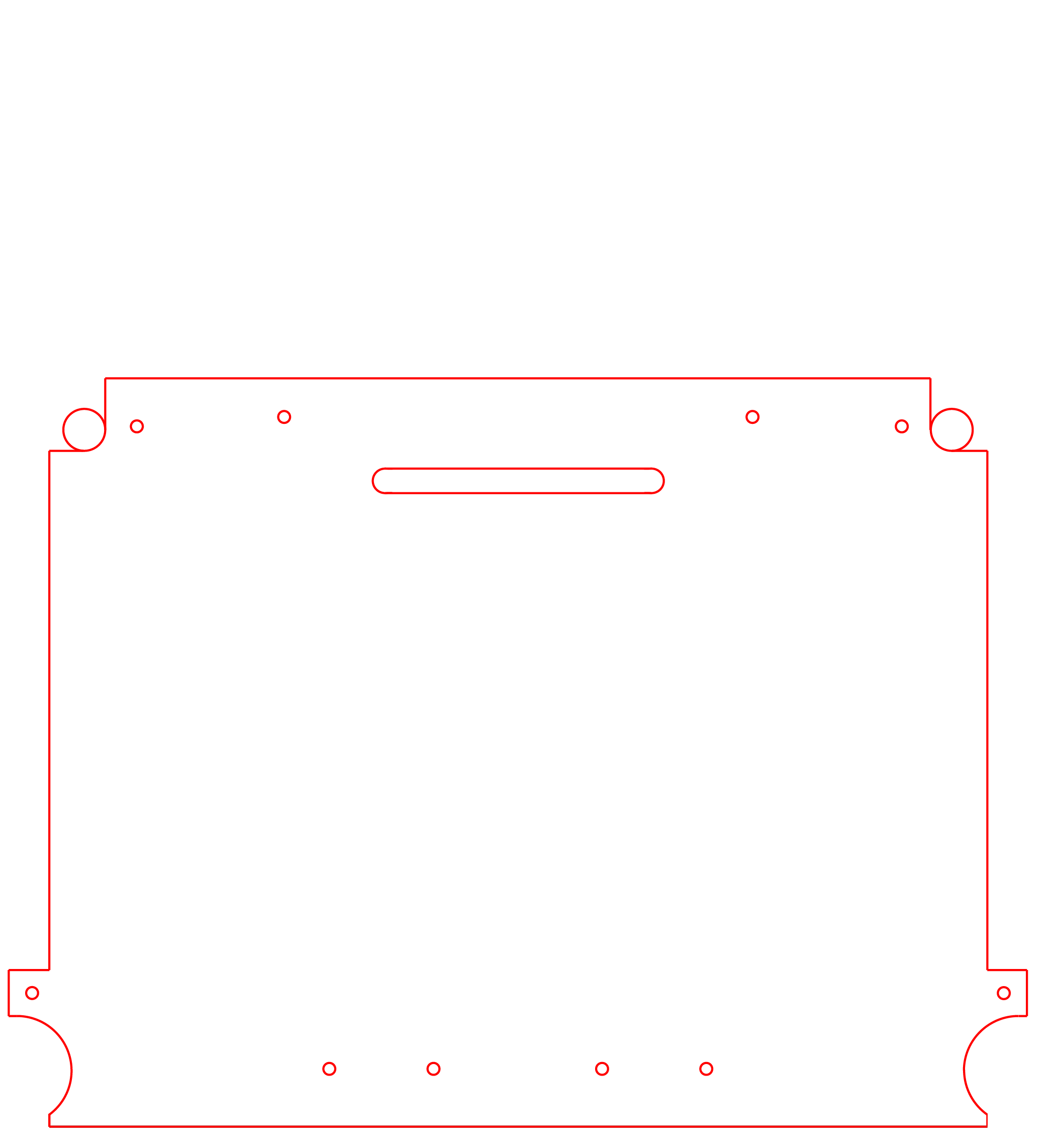

Here is the PCB mounting plate

[Marty33]

There is no risk with the screen under ?

overheated or other ?

[banjokazooie]

There is no risk with the screen under ?

overheated or other ?

No it sits flush on top with copper side down which kind of acts as a heatsink. The screen is quite sturdy with really strong metal frame so it is not bending.

[LordDarkScream]

Here is the PCB mounting plate

Thank You
