Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by tronicgr » Wed Apr 26, 2017 5:53 pm

Hi all,

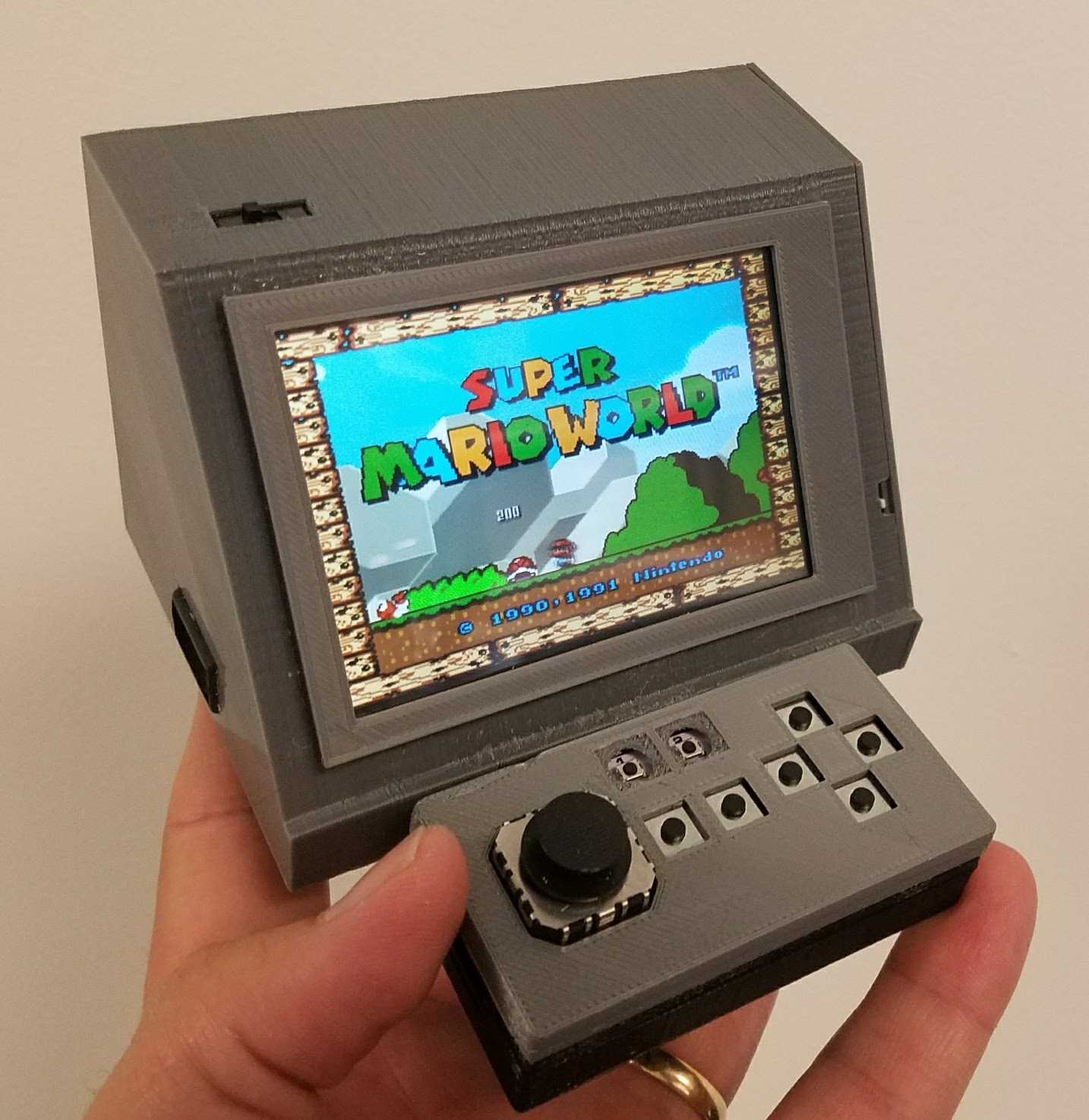

I just wanted to show you my latest creation.

I didn't had the time to create yet a big bar top arcade so as soon I got my hands on the Adafruit Joy Bonnet, I decided I would make a mini version that also is docking station for the Raspberry. This means I can disconnect it from the little screen and connect the raspberry with the Joy Bonnet on a large TV with normal HDMI cable and a power supply.

Demo video: https://www.youtube.com/watch?v=R-IWIv_ZS6s

For details on the material I used for this build visit my thingy here: http://www.thingiverse.com/thing:2265210


Thanks
Thanos

User avatar
ShadowFax
Posts: 33
Joined: Tue Aug 30, 2016 6:56 pm
Has thanked: 25 times
Been thanked: 6 times

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by ShadowFax » Thu Apr 27, 2017 7:06 pm

Oh that is one unique build! Love it!
How is that powered? Is that battery powered?

User avatar
tronicgr
Posts: 138
Joined: Tue Jun 07, 2016 4:26 pm
Has thanked: 94 times
Been thanked: 66 times
Contact:

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by tronicgr » Thu Apr 27, 2017 8:51 pm

ShadowFax wrote:
Thu Apr 27, 2017 7:06 pm
Oh that is one unique build! Love it!
How is that powered? Is that battery powered?
Thank you!

The screen case contains a 4400mA battery pack. Enough to play for several hours.

Did you see the thingverse link? I have complete parts list there.

It was also featured on Adafruit's blog:
https://blog.adafruit.com/2017/04/27/ad ... dprinting/

Thanos

WillBakesPi
Posts: 17
Joined: Mon Apr 24, 2017 10:30 am
Has thanked: 32 times
Been thanked: 21 times
Contact:

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by WillBakesPi » Wed May 10, 2017 10:06 pm

This was a fun small build for beginners. :D


Thanks for sharing Thanos!

User avatar
tronicgr
Posts: 138
Joined: Tue Jun 07, 2016 4:26 pm
Has thanked: 94 times
Been thanked: 66 times
Contact:

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by tronicgr » Thu May 11, 2017 4:52 am

ElfUp wrote:
Wed May 10, 2017 10:06 pm
This was a fun small build for beginners. :D


Thanks for sharing Thanos!
Cool! It looks good in transparent! Gets light up by the Leds inside!

Where is the usb port output on the side? It seems you covered it.
I placed it there as i use the little monitor for other raspberry pi zeros some times to set them up so i can plug keyboard or external hub.

Thanks
Thanos

WillBakesPi
Posts: 17
Joined: Mon Apr 24, 2017 10:30 am
Has thanked: 32 times
Been thanked: 21 times
Contact:

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by WillBakesPi » Thu May 11, 2017 10:50 am

I moved the USB to the opposite side. It's only accessible if you open it.


During the build the GERI power module ended up cracking the LCD screen while fitting it on the side panel. So I used a PowerBoost 1000, which helped with cable management.

I might do another build, just wish I had a 3d printer. I'd like to mount the tiny speakers better or maybe add one big speaker.

If you decide redesign the case let me know. Maybe have the screen vertical for shooters? 8-)

Cheers!

User avatar
tronicgr
Posts: 138
Joined: Tue Jun 07, 2016 4:26 pm
Has thanked: 94 times
Been thanked: 66 times
Contact:

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by tronicgr » Sat May 13, 2017 7:14 am

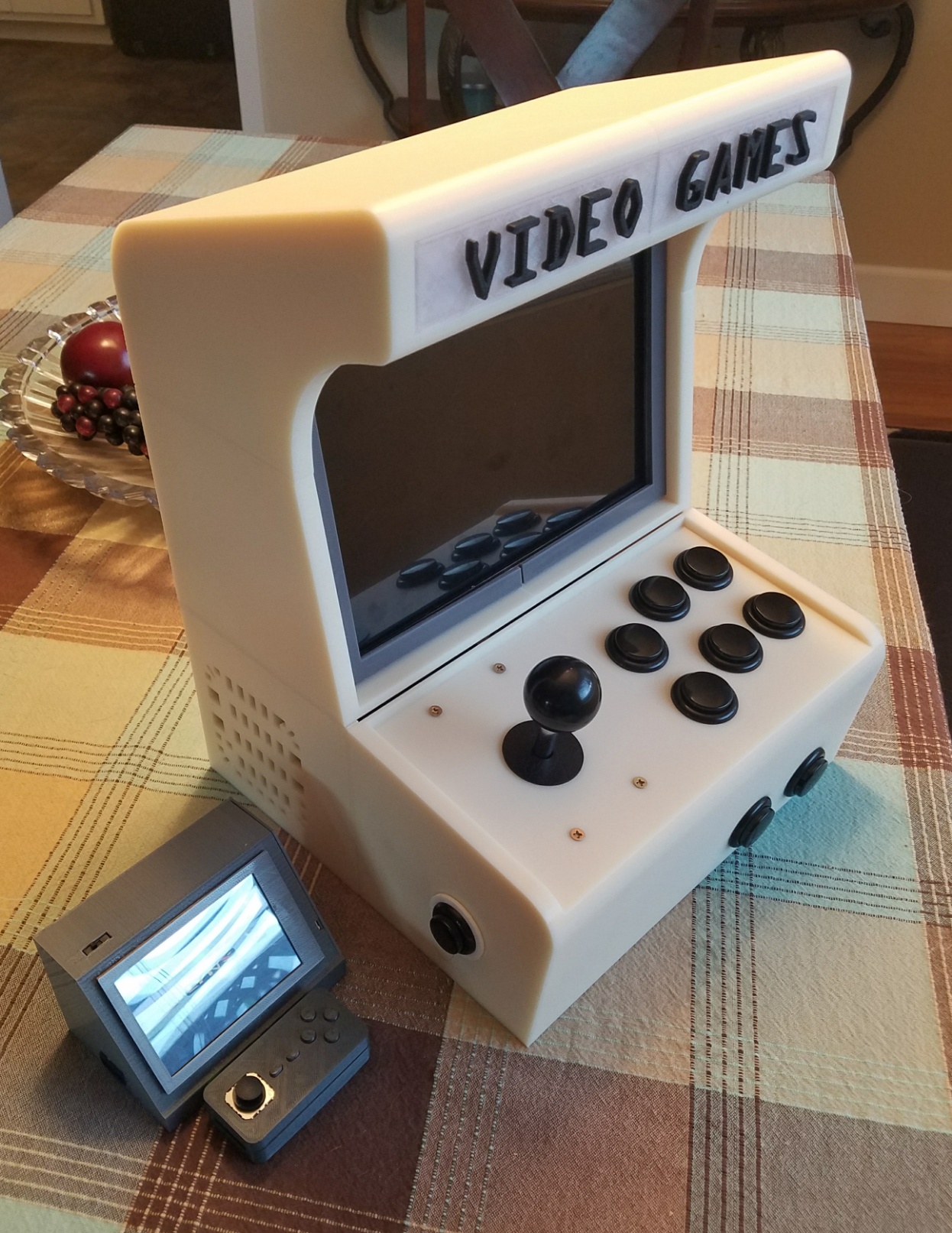

Finished my other bartop arcade yesterday...
http://www.thingiverse.com/make:337486

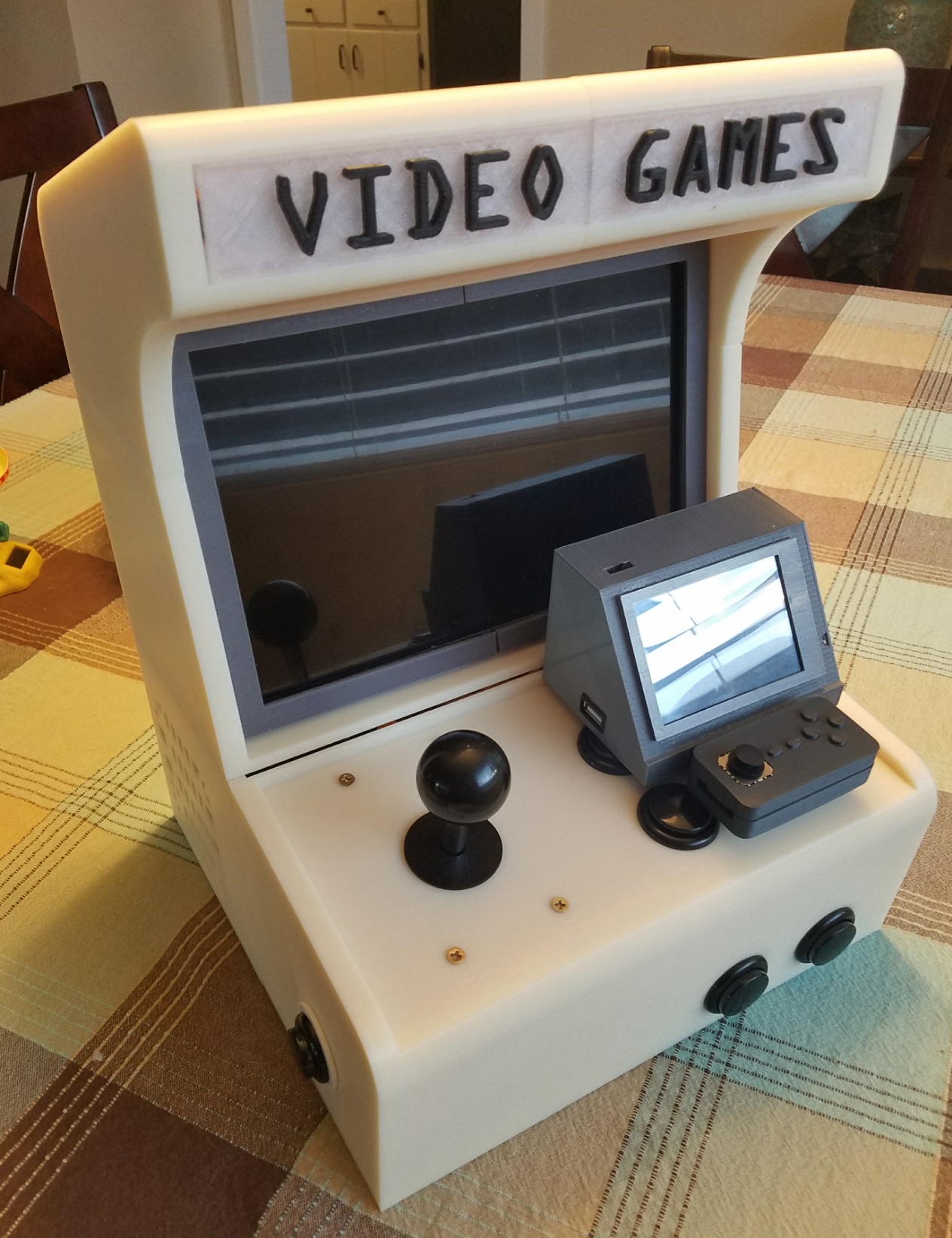

Big difference in size! :lol: :lol:

User avatar
Kyran
Posts: 37
Joined: Mon Apr 24, 2017 10:58 am
Has thanked: 16 times
Been thanked: 4 times

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by Kyran » Sat May 20, 2017 2:26 pm

Dude! I want to make one now haha
The Pi Guy #retromod_customs

User avatar
rodocop
Posts: 1599
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 577 times
Been thanked: 572 times

Re: Mini Bar top arcade using Raspberry Pi Zero and Joy Bonnet

Post by rodocop » Wed May 24, 2017 3:46 pm

tronicgr wrote:
Sat May 13, 2017 7:14 am
Finished my other bartop arcade yesterday...
http://www.thingiverse.com/make:337486
Very awesome cabinets, i've always wanted to build an arcade cabinet.
