Custom raspberry pi gaming handheld

Post by doro44 » Thu Apr 26, 2018 2:33 pm

Hi guys,

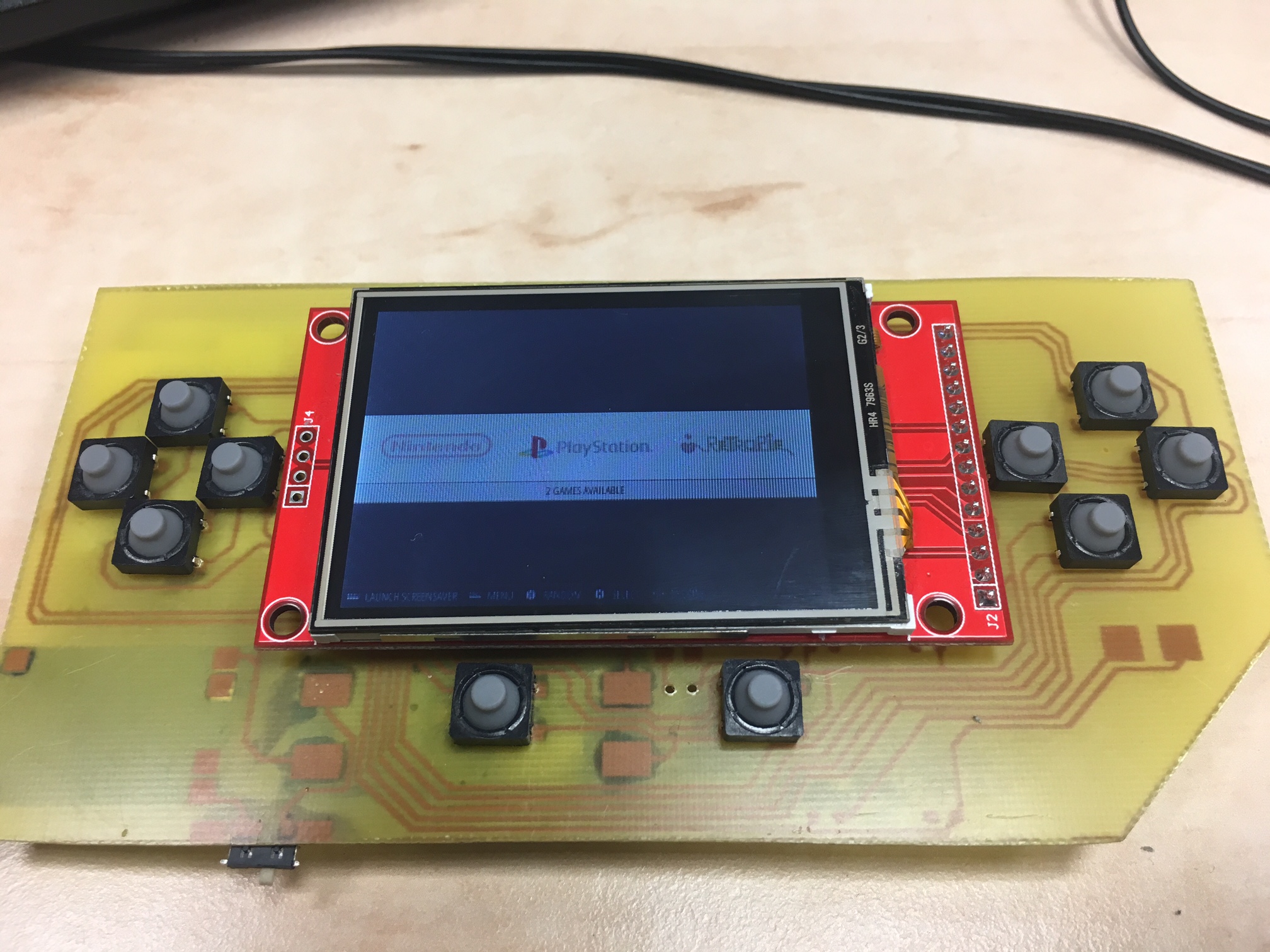

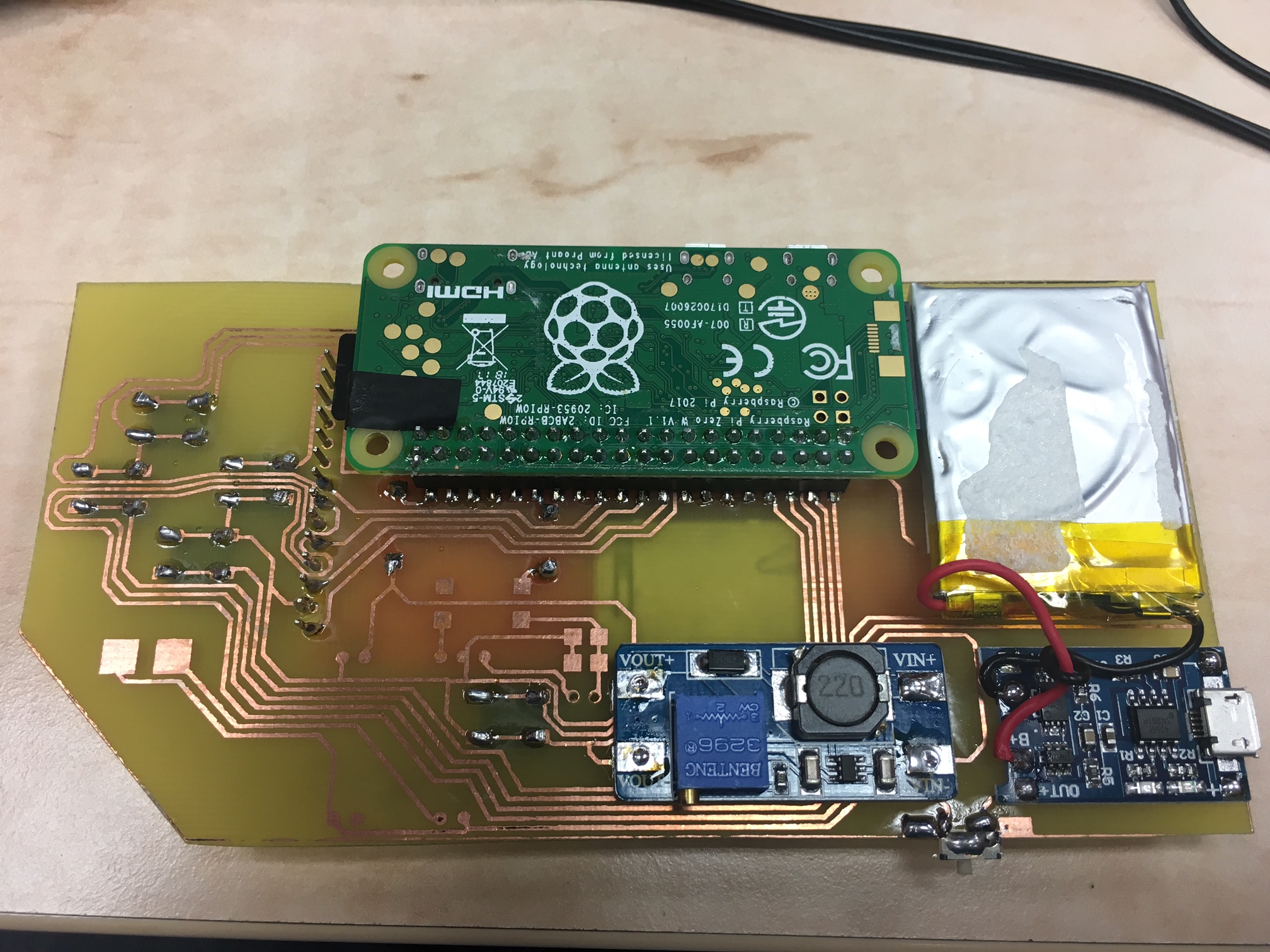

just wanted to show off my take on the RPI zero gaming. I have designed my own single sided PCB for for the handheld. I have etched using the toner transfer method. After couple of tries I finaly got good looking PCB that can be easily fitted with all necessary components. I did use charging and step up modules from aliexpress, they are great and cheap.

If someone would be interested I can share more details and PCB
Top
Spectre
Posts: 4
Joined: Sun Apr 08, 2018 8:04 pm
Has thanked: 1 time
Been thanked: 2 times

Re: Custom raspberry pi gaming handheld

Post by Spectre » Thu Apr 26, 2018 4:19 pm

Nice work! :)
Top
User avatar
ArKade
Posts: 19
Joined: Wed Feb 21, 2018 5:36 pm
Has thanked: 17 times
Been thanked: 3 times

Re: Custom raspberry pi gaming handheld

Post by ArKade » Fri May 25, 2018 7:02 pm

How do I get one? :D Great job! Just wondering, what software did you use to design it?
Top
doro44
Posts: 27
Joined: Mon Aug 21, 2017 11:55 am
Has thanked: 2 times
Been thanked: 6 times

Re: Custom raspberry pi gaming handheld

Post by doro44 » Tue Jun 05, 2018 4:47 am

ArKade wrote: ↑
Fri May 25, 2018 7:02 pm
 How do I get one? :D Great job! Just wondering, what software did you use to design it?
hi there, I did use the online easyeda ;)
Then I used the toner transfer method to etch the pcb... very simple process
Top
