PiCade mod
Ok so this new hobby/obsession with modding for me all traces back to February of this year. My daughter and I were hitting the local thrift stores, second-hand shops and pawn shops when I found this at a nearby Goodwill:
I have always loved gaming and emulation and even have a full sized MAME cab I won from a Mt. Dew promotion a few years ago (now that I'm thinking about it it's been nearly 10 years ago - yikes!)
So anyway I figured maybe I could do something with it and maybe make a "mini me" for the full size arcade. So for $8.88 I brought the iCade home, did some googling and discovered all the modding people had done (and more importantly learned about the Raspberry Pi!)
So I started the modding:
First I disassembled it and swapped the bluetooth board for a usb controller board. I also swapped the stock buttons and stick with sanwa buttons and a sanwa stick (and a mirror balltop - niiiiiice lol)
Then I added a front usb port and two buttons (start and select probably, also will probably be changing these to both white)
Then came the screen. I did a LOT of looking for this one until I found exactly what I wanted - I wanted it to be as close to a perfect fit as I could get, 4:3, 800X600 and have an HDMI hookup to make it easier. I finally found a CCTV security monitor that fit the bill from china
It fit pretty well but after I dremeled out grooves on each side it fits perfect!
Next came the speakers. I've kinda Frankensteined these. I took a pair of entirely usb onn cube speakers I got from walmart years ago and ripped them apart. Inside there was this great control board with a volume control rocker switch which will be perfect for external volume control. Next I ripped speakers out of another usb powered, but 3.5mm audio plug (and EXTREMELY noisy hum when plugged in), pair of speakers I had and ripped them out. Wired it all up and with a few tweaks in Retropie it worked!
So I mounted this in a board and after I clean it up a bit more it will be my speaker panel!
And this is kinda where I am at now. Waiting for a few parts to continue and deciding what direction I will take for what is left to do (plus getting sidetracked with a PiNES project and Gameboy Zero - thanks a lot wermy lol)
I have also removed the iCade stuff from the sides and front and painted the sides black. I have some idea of how I am going to decorate the outside - I have a few large and small decals like this on the way I will probably incorporate into the cab artwork:
I also got this one from an Aussie
I plan on putting this between the start/select buttons and the usb port in the front and hopefully if there is room add a power switch.
I have a mausberry shutdown switch and an led power button that is tiny so it should fit and not cover up any of the important parts of the decal
So that's where I'm at now, I hope you like and if you have anything to share (like ideas and such) please let me know! I love input and feedback and if you have an idea that is better than what I can come up with I will use it and greatly appreciate the help!!
JL
I have always loved gaming and emulation and even have a full sized MAME cab I won from a Mt. Dew promotion a few years ago (now that I'm thinking about it it's been nearly 10 years ago - yikes!)
So anyway I figured maybe I could do something with it and maybe make a "mini me" for the full size arcade. So for $8.88 I brought the iCade home, did some googling and discovered all the modding people had done (and more importantly learned about the Raspberry Pi!)
So I started the modding:
First I disassembled it and swapped the bluetooth board for a usb controller board. I also swapped the stock buttons and stick with sanwa buttons and a sanwa stick (and a mirror balltop - niiiiiice lol)
Then I added a front usb port and two buttons (start and select probably, also will probably be changing these to both white)
Then came the screen. I did a LOT of looking for this one until I found exactly what I wanted - I wanted it to be as close to a perfect fit as I could get, 4:3, 800X600 and have an HDMI hookup to make it easier. I finally found a CCTV security monitor that fit the bill from china
It fit pretty well but after I dremeled out grooves on each side it fits perfect!
Next came the speakers. I've kinda Frankensteined these. I took a pair of entirely usb onn cube speakers I got from walmart years ago and ripped them apart. Inside there was this great control board with a volume control rocker switch which will be perfect for external volume control. Next I ripped speakers out of another usb powered, but 3.5mm audio plug (and EXTREMELY noisy hum when plugged in), pair of speakers I had and ripped them out. Wired it all up and with a few tweaks in Retropie it worked!
So I mounted this in a board and after I clean it up a bit more it will be my speaker panel!
And this is kinda where I am at now. Waiting for a few parts to continue and deciding what direction I will take for what is left to do (plus getting sidetracked with a PiNES project and Gameboy Zero - thanks a lot wermy lol)
I have also removed the iCade stuff from the sides and front and painted the sides black. I have some idea of how I am going to decorate the outside - I have a few large and small decals like this on the way I will probably incorporate into the cab artwork:
I also got this one from an Aussie
I plan on putting this between the start/select buttons and the usb port in the front and hopefully if there is room add a power switch.
I have a mausberry shutdown switch and an led power button that is tiny so it should fit and not cover up any of the important parts of the decal
So that's where I'm at now, I hope you like and if you have anything to share (like ideas and such) please let me know! I love input and feedback and if you have an idea that is better than what I can come up with I will use it and greatly appreciate the help!!
JL
Last edited by jlane52641 on Mon May 16, 2016 1:25 am, edited 8 times in total.
- jlane52641
- Posts: 53
- Joined: Fri May 06, 2016 4:00 am
- Location: Southeast Iowa
- Has thanked: 18 times
- Been thanked: 5 times
- crispy_tofu
- Posts: 340
- Joined: Thu May 05, 2016 1:51 am
- Location: Australia
- Been thanked: 5 times
- jlane52641
- Posts: 53
- Joined: Fri May 06, 2016 4:00 am
- Location: Southeast Iowa
- Has thanked: 18 times
- Been thanked: 5 times
Re: PiCade mod
Thanks tofu!crispy_tofu wrote:Just wanted to say that this looks really fantastic so far!
Means a lot coming from you and I appreciate the kind words!
- Rod2D2
- Posts: 131
- Joined: Thu May 05, 2016 5:08 am
- Location: USA
- Has thanked: 80 times
- Been thanked: 17 times
Re: PiCade mod
jlane52641 wrote:Thanks tofu!crispy_tofu wrote:Just wanted to say that this looks really fantastic so far!
Means a lot coming from you and I appreciate the kind words!
Looks great so far.
What screen did you end up using? Do you have a link where you purchased?
- Kilren
- Posts: 574
- Joined: Wed May 11, 2016 4:40 pm
- Location: Washington, USA
- Has thanked: 35 times
- Been thanked: 84 times
Re: PiCade mod
I am liking a lot of your cosmetic choices. I'm really interested in the finished product. I've really really been contemplating a bartop arcade after I finish the GBZ with the RPi3. Definitely subscribing to this to keep a close eye on it.jlane52641 wrote:[spoiler="Project"]Ok so this new hobby/obsession with modding for me all traces back to February of this year. My daughter and I were hitting the local thrift stores, second-hand shops and pawn shops when I found this at a nearby Goodwill:
I have always loved gaming and emulation and even have a full sized MAME cab I won from a Mt. Dew promotion a few years ago (now that I'm thinking about it it's been nearly 10 years ago - yikes!)
So anyway I figured maybe I could do something with it and maybe make a "mini me" for the full size arcade. So for $8.88 I brought the iCade home, did some googling and discovered all the modding people had done (and more importantly learned about the Raspberry Pi!)
So I started the modding:
First I disassembled it and swapped the bluetooth board for a usb controller board. I also swapped the stock buttons and stick with sanwa buttons and a sanwa stick (and a mirror balltop - niiiiiice lol)
Then I added a front usb port and two buttons (start and select probably, also will probably be changing these to both white)
Then came the screen. I did a LOT of looking for this one until I found exactly what I wanted - I wanted it to be as close to a perfect fit as I could get, 4:3, 800X600 and have an HDMI hookup to make it easier. I finally found a CCTV security monitor that fit the bill from china
It fit pretty well but after I dremeled out grooves on each side it fits perfect!
Next came the speakers. I've kinda Frankensteined these. I took a pair of entirely usb onn cube speakers I got from walmart years ago and ripped them apart. Inside there was this great control board with a volume control rocker switch which will be perfect for external volume control. Next I ripped speakers out of another usb powered, but 3.5mm audio plug (and EXTREMELY noisy hum when plugged in), pair of speakers I had and ripped them out. Wired it all up and with a few tweaks in Retropie it worked!
So I mounted this in a board and after I clean it up a bit more it will be my speaker panel!
And this is kinda where I am at now. Waiting for a few parts to continue and deciding what direction I will take for what is left to do (plus getting sidetracked with a PiNES project and Gameboy Zero - thanks a lot wermy lol)
I have also removed the iCade stuff from the sides and front and painted the sides black. I have some idea of how I am going to decorate the outside - I have a few large and small decals like this on the way I will probably incorporate into the cab artwork:
I also got this one from an Aussie
I plan on putting this between the start/select buttons and the usb port in the front and hopefully if there is room add a power switch.
I have a mausberry shutdown switch and an led power button that is tiny so it should fit and not cover up any of the important parts of the decal
So that's where I'm at now, I hope you like and if you have anything to share (like ideas and such) please let me know! I love input and feedback and if you have an idea that is better than what I can come up with I will use it and greatly appreciate the help!!
JL[/spoiler]
One thought: Have you thought of a new full-size personal vinyl for the side(s)? I realize you're getting those RPi stickers, but going a bit bigger would look both cleaner and more professional.
- jlane52641
- Posts: 53
- Joined: Fri May 06, 2016 4:00 am
- Location: Southeast Iowa
- Has thanked: 18 times
- Been thanked: 5 times
Re: PiCade mod
Sure do. After a LOT of searching and patience I found this:Rod2D2 wrote:Looks great so far. What screen did you end up using? Do you have a link where you purchased?
http://www.ebay.com/itm/121905075476?_t ... EBIDX%3AIT
A little on the pricey side but worth it, has/had everything I was looking for and fits great - plus I opted for the US based, which is a little more expensive.
I have thought about it and have been in contact with a few vendors - although I honestly don't mind a kind of homemade look. It is kind of "homemade" after all but I think if a person takes their time the results can be surprising and quite good. I'm really wanting it to be one-of-a-kind and if I F it up I can always strip it down and try again lolKilren wrote:I am liking a lot of your cosmetic choices. I'm really interested in the finished product. I've really really been contemplating a bartop arcade after I finish the GBZ with the RPi3. Definitely subscribing to this to keep a close eye on it.
One thought: Have you thought of a new full-size personal vinyl for the side(s)? I realize you're getting those RPi stickers, but going a bit bigger would look both cleaner and more professional.
- Rod2D2
- Posts: 131
- Joined: Thu May 05, 2016 5:08 am
- Location: USA
- Has thanked: 80 times
- Been thanked: 17 times
Re: PiCade mod
jlane52641 wrote:Sure do. After a LOT of searching and patience I found this:Rod2D2 wrote:Looks great so far. What screen did you end up using? Do you have a link where you purchased?
http://www.ebay.com/itm/121905075476?_t ... EBIDX%3AIT
A little on the pricey side but worth it, has/had everything I was looking for and fits great - plus I opted for the US based, which is a little more expensive.
I have thought about it and have been in contact with a few vendors - although I honestly don't mind a kind of homemade look. It is kind of "homemade" after all but I think if a person takes their time the results can be surprising and quite good. I'm really wanting it to be one-of-a-kind and if I F it up I can always strip it down and try again lolKilren wrote:I am liking a lot of your cosmetic choices. I'm really interested in the finished product. I've really really been contemplating a bartop arcade after I finish the GBZ with the RPi3. Definitely subscribing to this to keep a close eye on it.
One thought: Have you thought of a new full-size personal vinyl for the side(s)? I realize you're getting those RPi stickers, but going a bit bigger would look both cleaner and more professional.
Thanks. Did you end up removing it from the housing/frame? Were you able to keep the controls for contrast and brightness?
Really interested in seeing how it turns out.
- jlane52641
- Posts: 53
- Joined: Fri May 06, 2016 4:00 am
- Location: Southeast Iowa
- Has thanked: 18 times
- Been thanked: 5 times
Re: PiCade mod

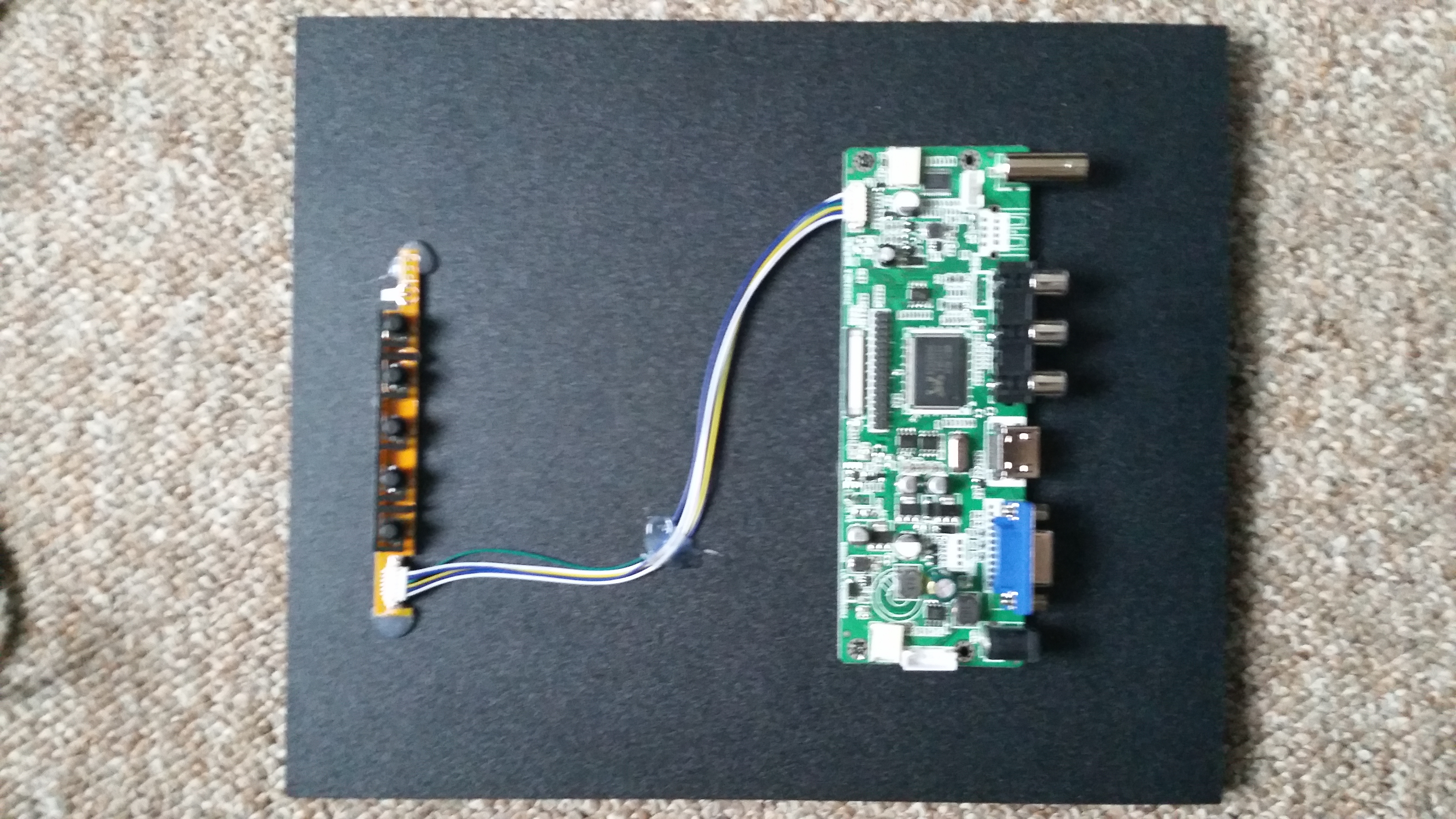

Yep removed it from the housing, able to keep driver board and daughter board behind the screenRod2D2 wrote: Thanks. Did you end up removing it from the housing/frame? Were you able to keep the controls for contrast and brightness?
Really interested in seeing how it turns out.
- dirtybeagles
- Posts: 386
- Joined: Thu May 05, 2016 6:04 am
- Has thanked: 34 times
- Been thanked: 64 times
Re: PiCade mod
Anyway you could post a link to the screen you purchased. I think one of the hardest issues with this project is finding the right size screen.
