HOW TO: Original GB Jack + Speaker setup

[fdeluxe]

Can't test it, but you could try this:

Is this the original DMG audio jack on the diagramm? I'm a little confused because the labels are different.

[Fleder]

Is this the original DMG audio jack on the diagramm? I'm a little confused because the labels are different.

Yes, i made this a while ago for a user on this forum.
But the labels are really self explanatory:
LI - Left In
LO - Left Out
RI - Right In
RO - Right Out

[fdeluxe]

Yes, i made this a while ago for a user on this forum.
But the labels are really self explanatory:
LI - Left In
LO - Left Out
RI - Right In
RO - Right Out

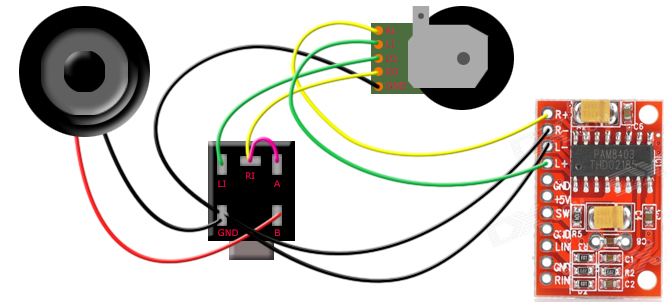

Okay here is what I did for working stereo headphone jack and a working original Gameboy volume wheel:

[strike]Your diagram is faulty[/strike]. There are no RO and LO Pins. The pins on the right hand side (A and B) are a switch: No headphone connected: Both Pins are connected. Headphone connected: Connection between pins are cut.


[Fleder]

Your diagram is faulty. There are no RO and LO Pins.

There are, you just have a different version of the audio jack with a different pinout, as there are at least 2 around in the original gameboy.
And those are Left and Right out, as this is where you will have output if no headphones are plugged in. As simple as that.

[fdeluxe]

Your diagram is faulty. There are no RO and LO Pins.

There are, you just have a different version of the audio jack with a different pinout, as there are at least 2 around in the original gameboy.
And those are Left and Right out, as this is where you will have output if no headphones are plugged in. As simple as that.

Okay, sorry didnt know that.
