So I bought this nespi case:
https://www.amazon.com/dp/B075R4D7F6/re ... BAb5NY5XAC
The only thing I don't like about it is the fact it powers the pi threw the GPIO pins and it bypasses the overload protection circuit.

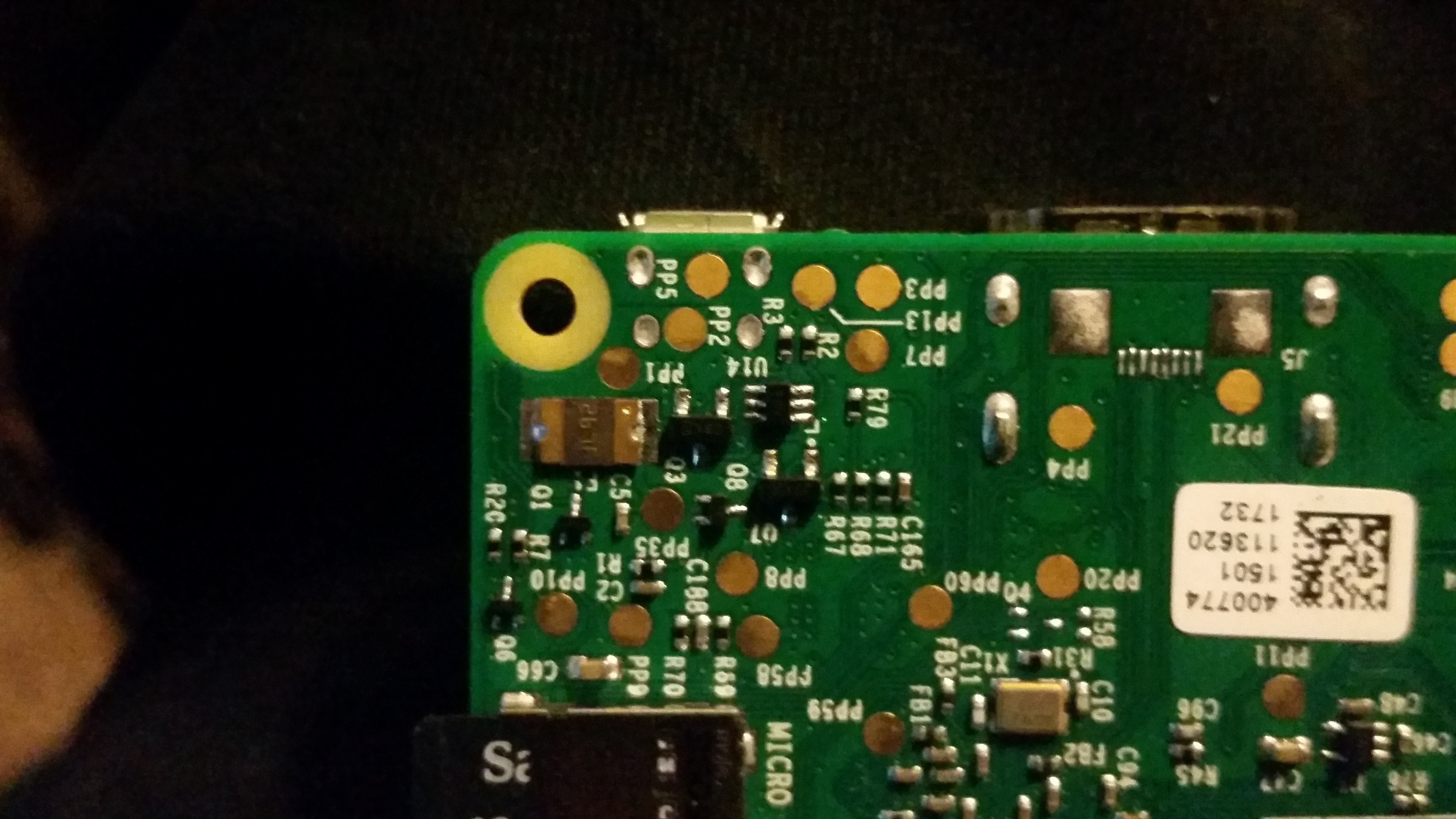

I got to looking and the micro usb power port and on the bottom side I noticed it had solder pads (pictured)
Am I able to solder my ground and +5v line to 2 of these and power the pi threw the protected circuit?
Pads under pi 3 power plug
- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Pads under pi 3 power plug
Yes those are the right pads for protected 5v and gnd.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
-
- Posts: 34
- Joined: Tue Jan 16, 2018 4:26 pm
- Has thanked: 9 times
- Been thanked: 6 times
Re: Pads under pi 3 power plug
yes you can I am currently doing that now with my project that i am building. Feel free to take a look
https://sudomod.com/forum/viewtopic.php?f=13&t=5042
https://sudomod.com/forum/viewtopic.php?f=13&t=5042
Here is my little RP3 build still working on a name
