Pi Zero W Question

[AgentJames]

I haven't been able to find a wiring diagram for the Gameboy Cartridge reader to the pi zero w. Does anyone have a wiring diagram or has wired one to a pi zero w?

[dryja123]

Correct me if I'm wrong but it should be the same as a non W Pi Zero

[AgentJames]

Correct me if I'm wrong but it should be the same as a non W Pi Zero

I didn't see a P8 or P3 on the board

[dryja123]

I didn't see a P8 or P3 on the board

The pads aren't labeled on the W but they're the same as V1.3

[AgentJames]

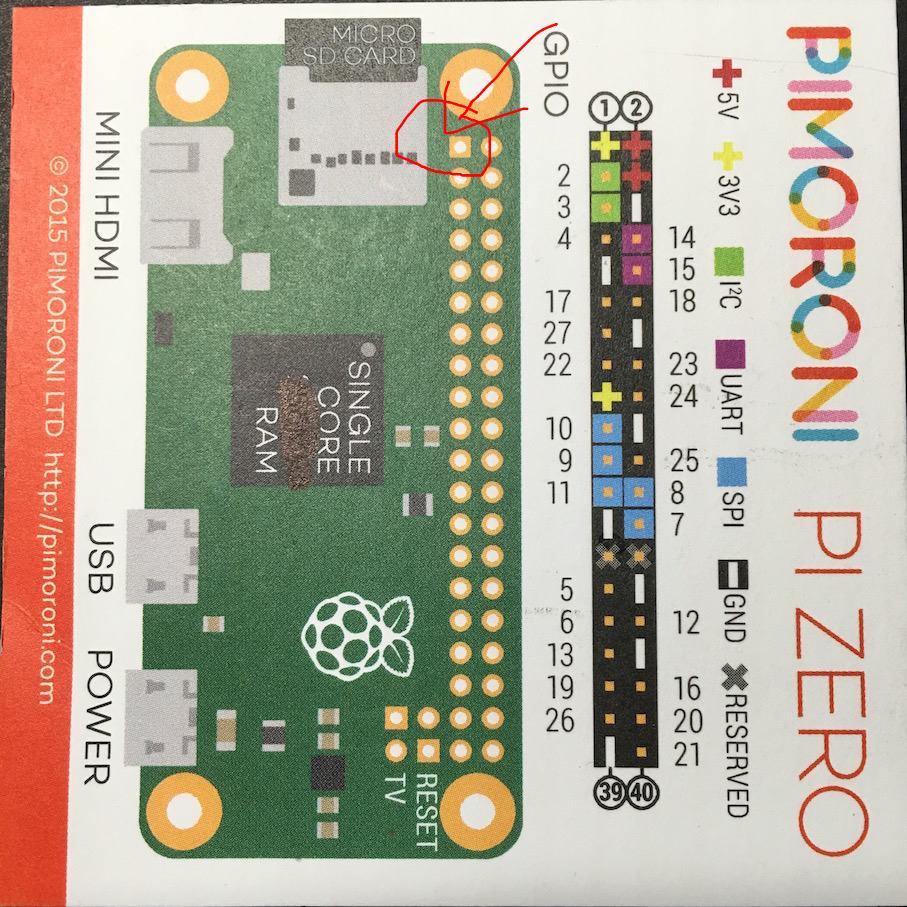

I attached a diagram I was following and circled what's not on my board

[AgentJames]

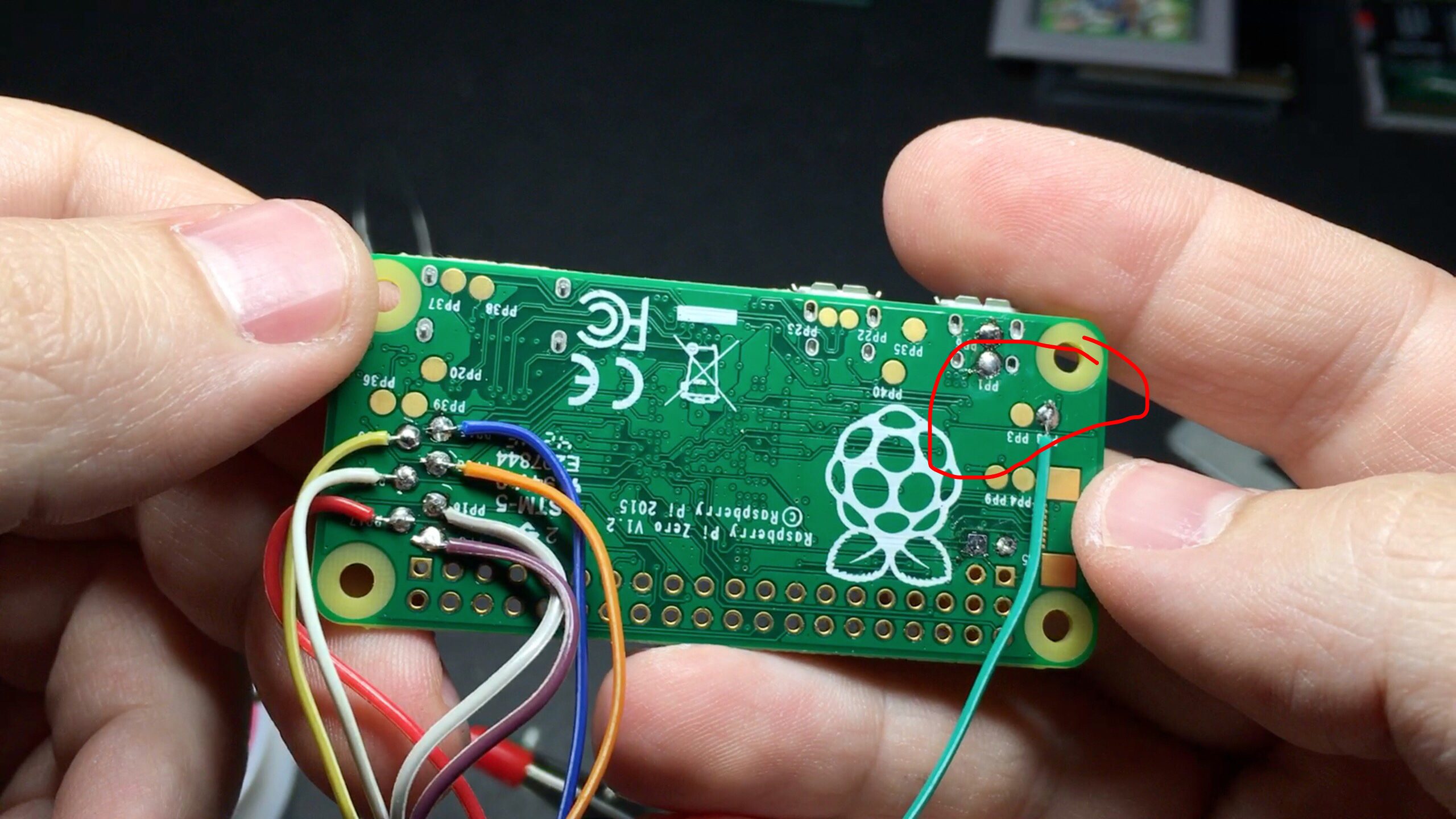

Since PP8 is a 3.3v could I route green to a 3.3v on the board in the picture below I circled? Or will that not work?

[dryja123]

Sorry, I missed that test pad and you're correct it is 3.3v. Wiring it to that GPIO port will work fine.

[AgentJames]

Sorry, I missed that test pad and you're correct it is 3.3v. Wiring it to that GPIO port will work fine.

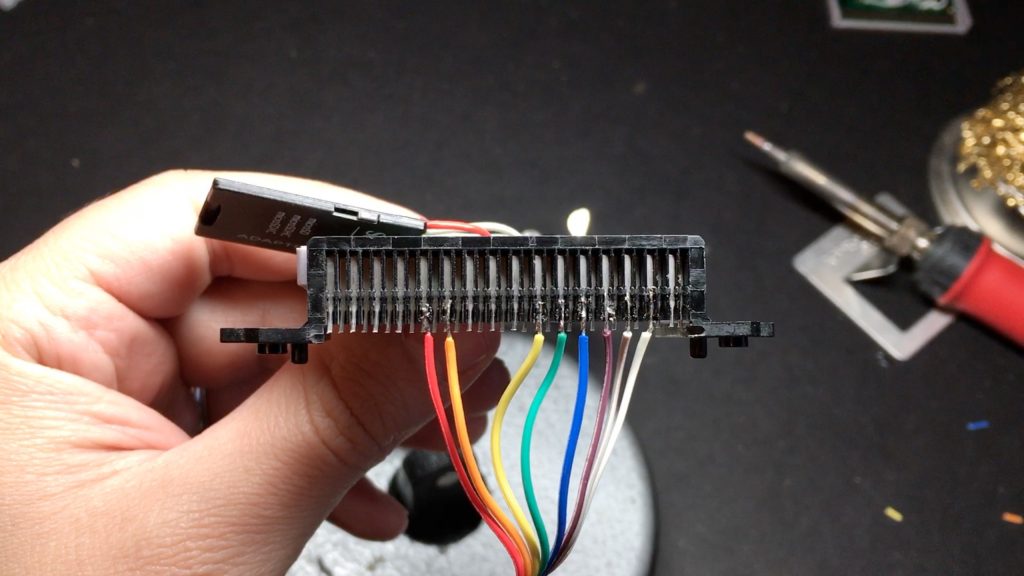

The next question is would the wiring be the same with the oem cartridge slot reader with built in micro sd card cartridge not the modified one to use a ad card?

[AgentJames]

This wiring I mean rather or will it have to be wired differently?

[AgentJames]

Wiring would be the same for this? No?
