SNES Buttons

Discussion about other hardware (including other Pi-like boards)
segueyer
Posts: 2
Joined: Thu Jun 30, 2016 12:49 am

SNES Buttons

Post by segueyer » Thu Jun 30, 2016 1:29 am

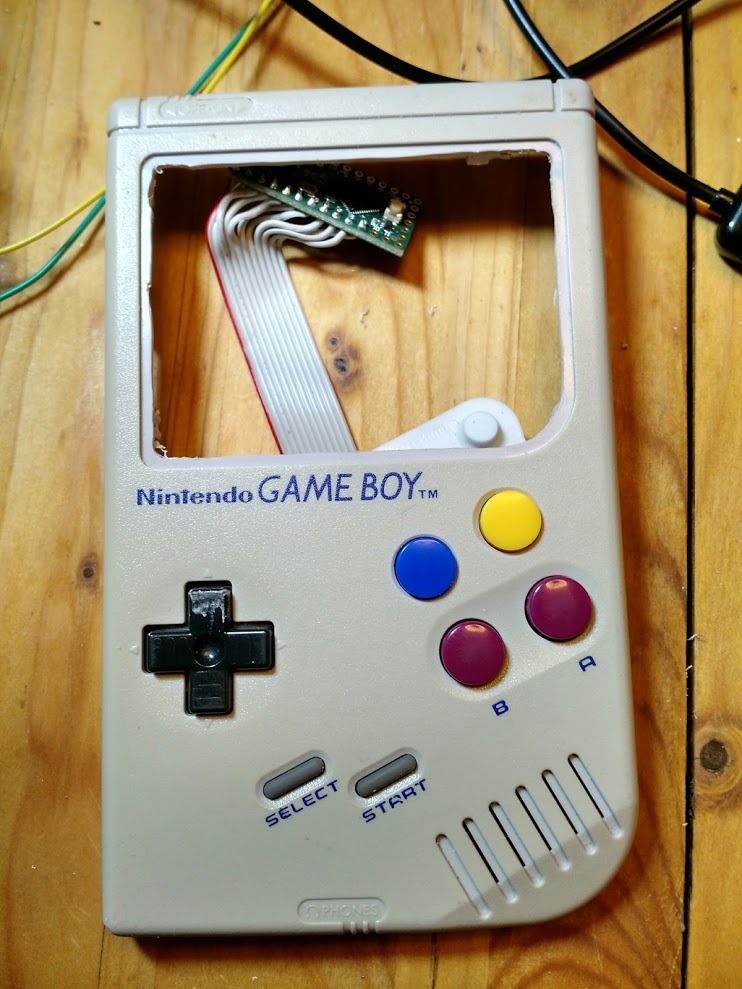

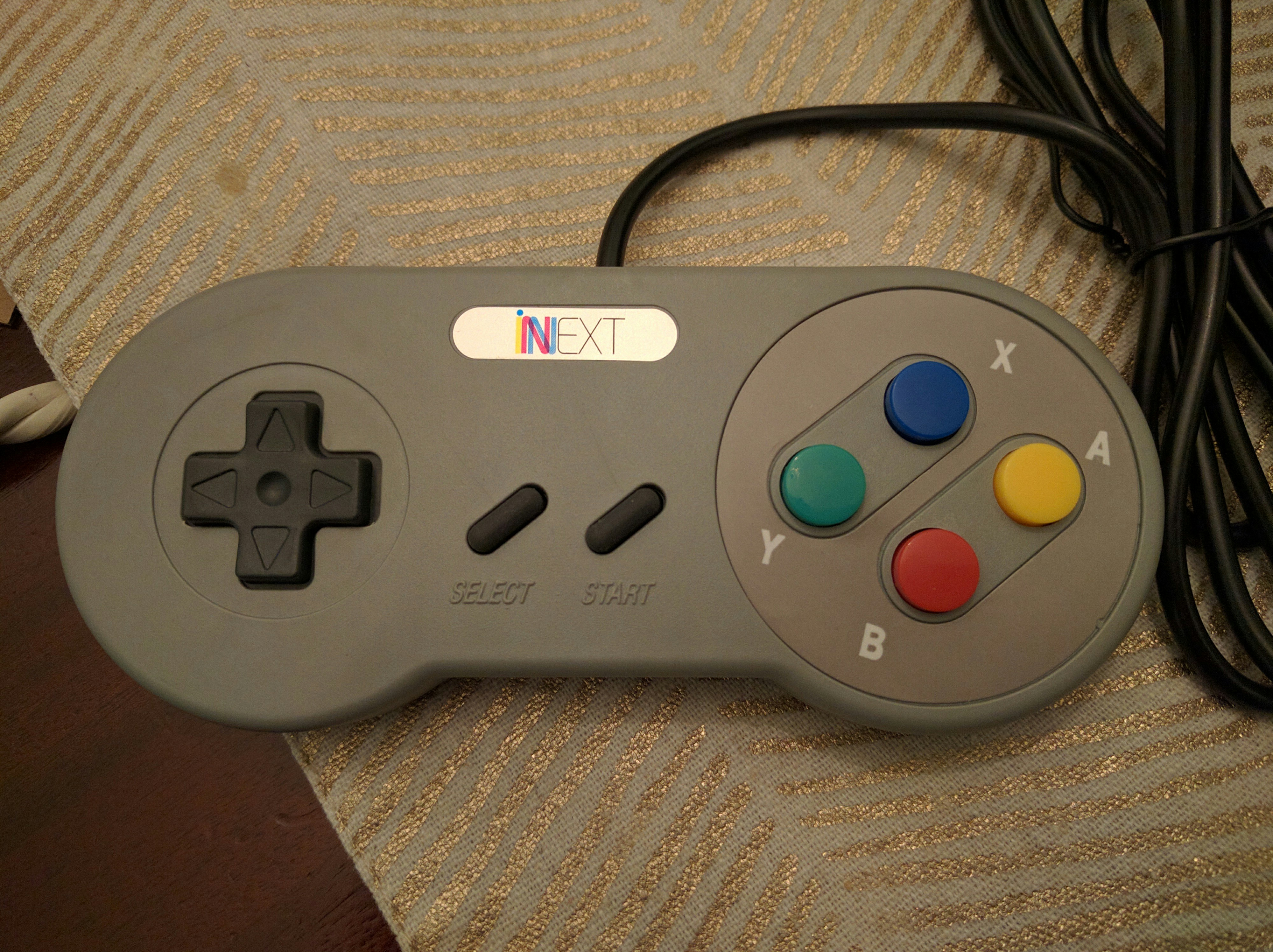

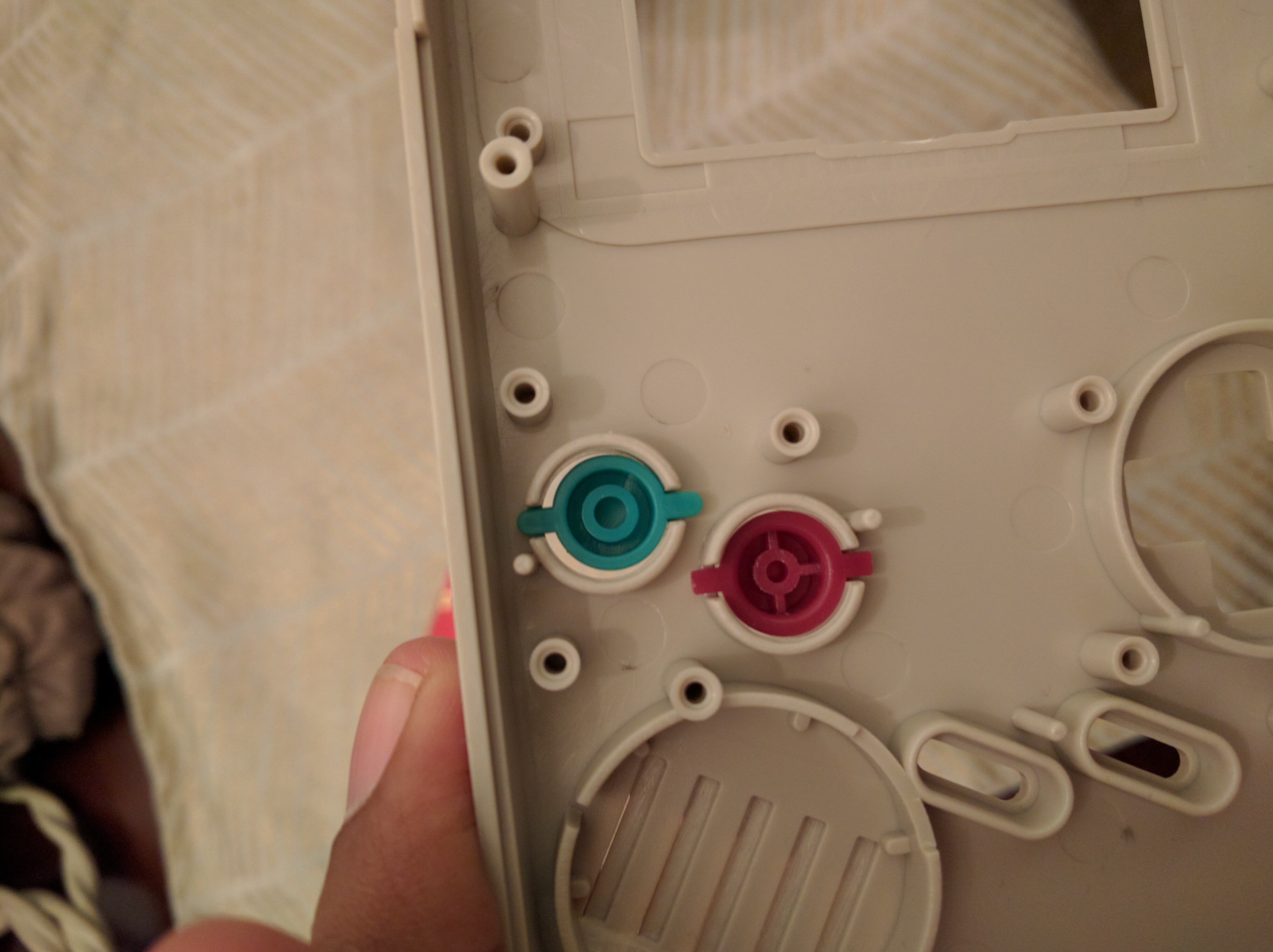

I got this SNES controller on Amazon hoping to use the buttons on my build. As you can see the buttons are very small compared to the DMG buttons. Should I just order another controller? Or is this the normal size for SNES buttons? I'm considering this controller Link reviews say that the size and color is very close to original. However if anyone that has built a gameboy zero with famicon buttons can let me know how close the size is to the DMG buttons I would really apreciate it.

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: SNES Buttons

Post by Kilren » Thu Jun 30, 2016 2:04 am

segueyer wrote:I got this SNES controller on Amazon hoping to use the buttons on my build. As you can see the buttons are very small compared to the DMG buttons. Should I just order another controller? Or is this the normal size for SNES buttons? I'm considering this controller Link reviews say that the size and color is very close to original. However if anyone that has built a gameboy zero with famicon buttons can let me know how close the size is to the DMG buttons I would really apreciate it.



I think you're dealing with a quality problem. I purchased this one: Snes controller

Had no problem with button diameter. Did have to epoxy a plastic chip to make it the right depth though for my x/y. It's where the creative juices will flow

User avatar
Tamasco
Posts: 67
Joined: Tue Jun 21, 2016 2:37 pm
Location: Spain
Has thanked: 34 times
Been thanked: 10 times

Re: SNES Buttons

Post by Tamasco » Thu Jun 30, 2016 2:06 am

I bought this one on eBay some weeks ago.

http://www.ebay.es/itm/Super-Controller ... SwKIpWEntc

As far as I can remember, the buttons are exactly the same as the original ones. I can show you a picture when I get home from work this afternoon.

User avatar
alien0matic
Posts: 102
Joined: Wed Jun 08, 2016 7:20 am
Has thanked: 15 times
Been thanked: 23 times

Re: SNES Buttons

Post by alien0matic » Thu Jun 30, 2016 2:56 am

I bought the cheap SNES controller from Gearbest. The buttons ARE smaller. The original ones from the DMG are 10.6mm and the ones from the Gearbest controller are 10.4mm. So I could use a 10.5mm drill (which I had) for the new holes instead of the recommended 10.8mm (who has that anyway?) for the original buttons.
You can barely see that they are smaller, but they definitely feel different when pressed.

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: SNES Buttons

Post by Kilren » Thu Jun 30, 2016 2:58 am

alien0matic wrote:I bought the cheap SNES controller from Gearbest. The buttons ARE smaller. The original ones from the DMG are 10.6mm and the ones from the Gearbest controller are 10.4mm. So I could use a 10.5mm drill (which I had) for the new holes instead of the recommended 10.8mm
I'll measure the Buffalo snes controller in the morning as well so it's specific instead of from my memory. :D

User avatar
Robots86
Posts: 268
Joined: Thu May 05, 2016 1:18 am
Location: Birmingham, UK
Has thanked: 39 times
Been thanked: 28 times

Re: SNES Buttons

Post by Robots86 » Thu Jun 30, 2016 3:13 am

My understanding is nes and gb dmg buttons are the same size and the snes is slightly smaller

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: SNES Buttons

Post by Kilren » Thu Jun 30, 2016 12:12 pm

Kilren wrote:
alien0matic wrote:I bought the cheap SNES controller from Gearbest. The buttons ARE smaller. The original ones from the DMG are 10.6mm and the ones from the Gearbest controller are 10.4mm. So I could use a 10.5mm drill (which I had) for the new holes instead of the recommended 10.8mm
I'll measure the Buffalo snes controller in the morning as well so it's specific instead of from my memory. :D
The buffalos measured 9.95mm and the GB buttons were 10.05mm No enough difference to make a difference.

User avatar
Tamasco
Posts: 67
Joined: Tue Jun 21, 2016 2:37 pm
Location: Spain
Has thanked: 34 times
Been thanked: 10 times

Re: SNES Buttons

Post by Tamasco » Thu Jun 30, 2016 12:56 pm

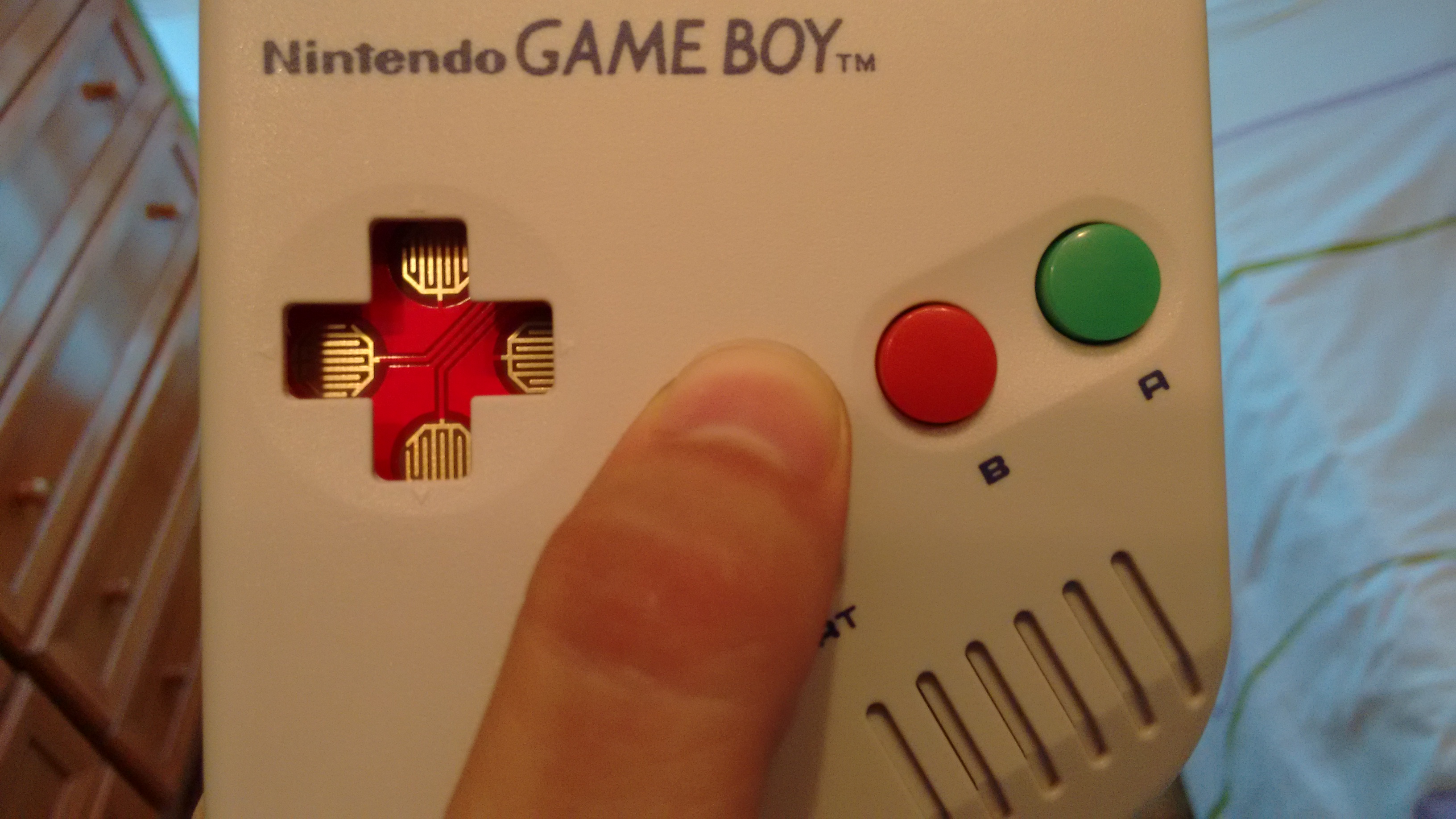

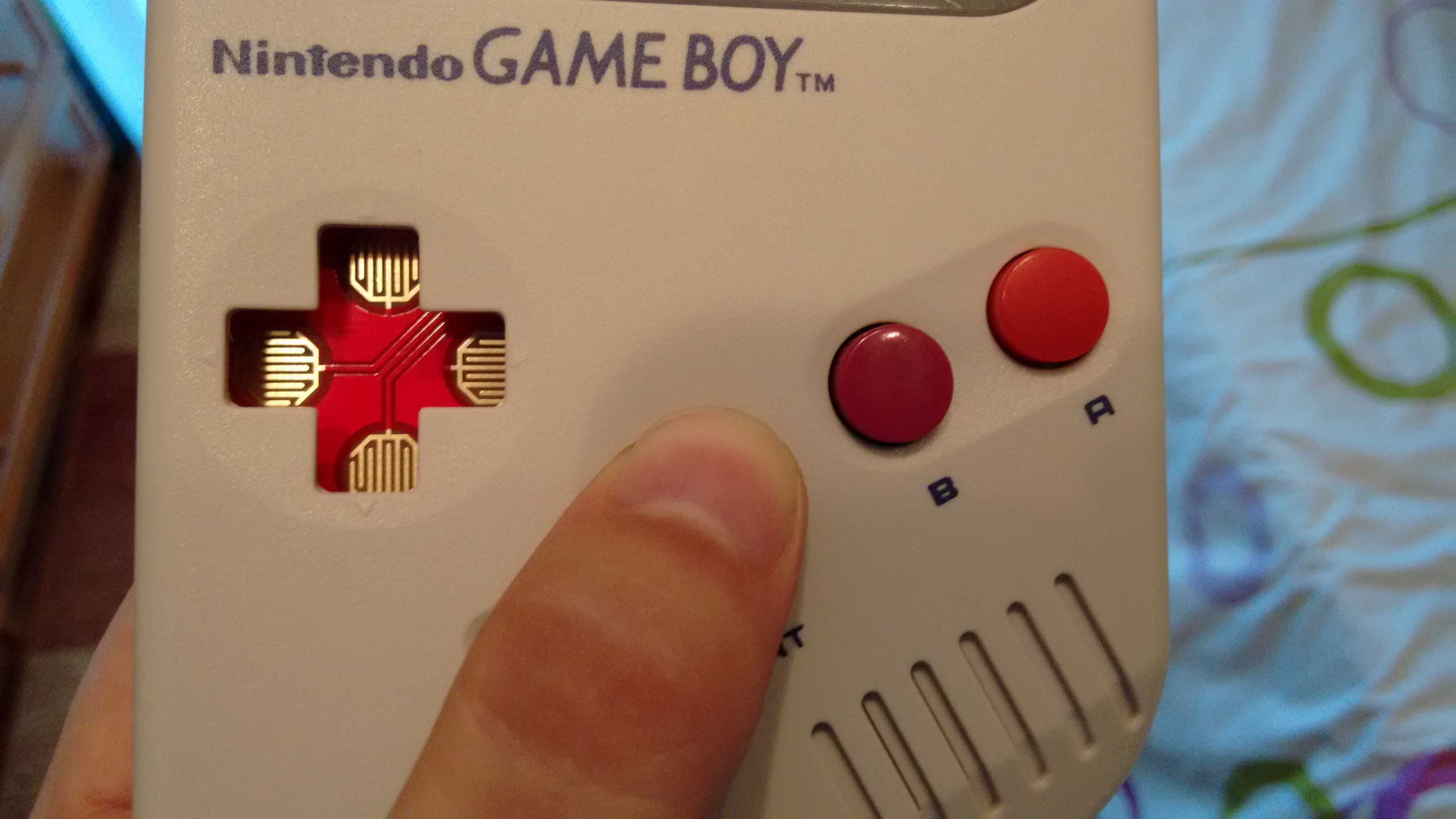

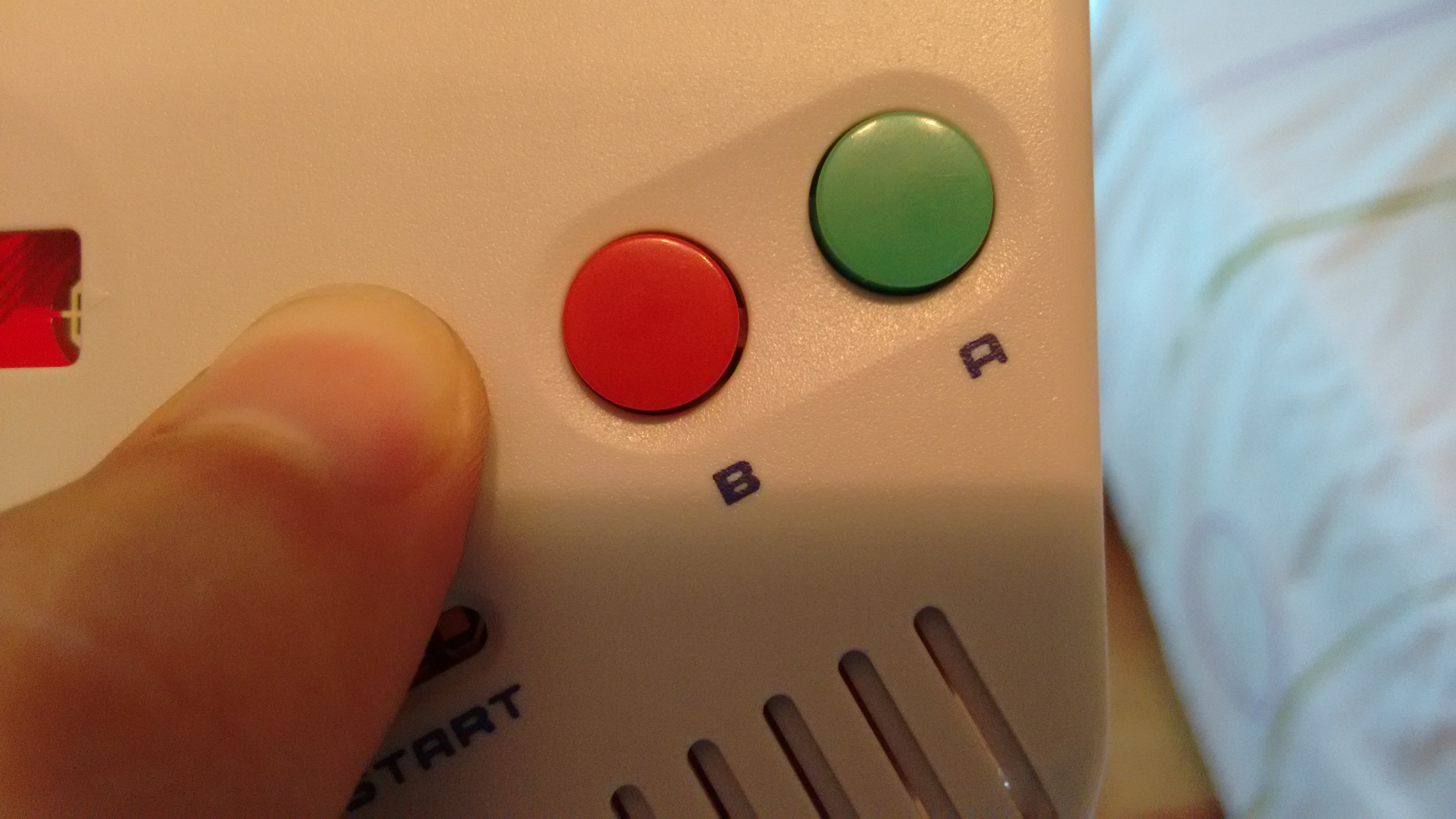

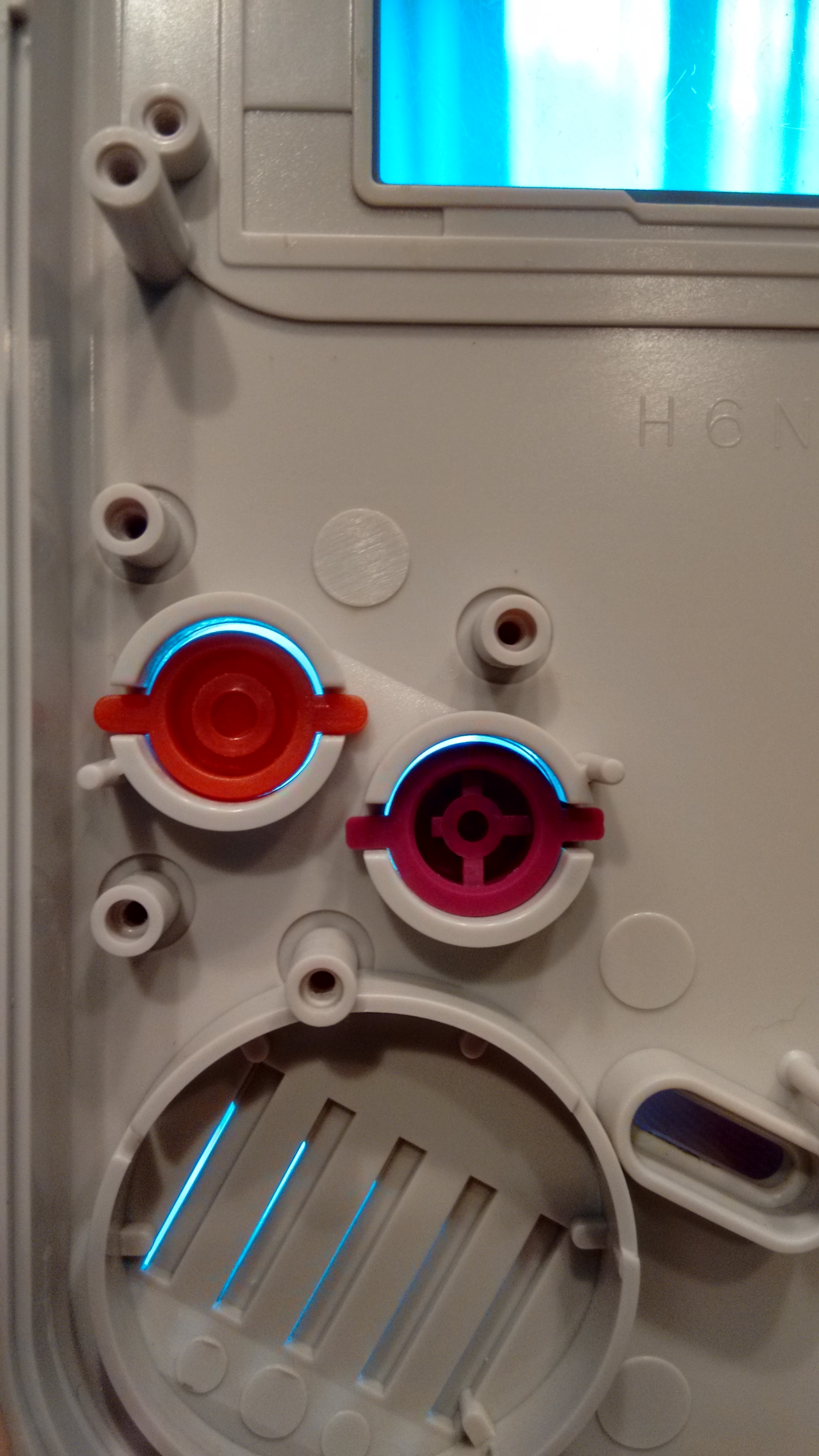

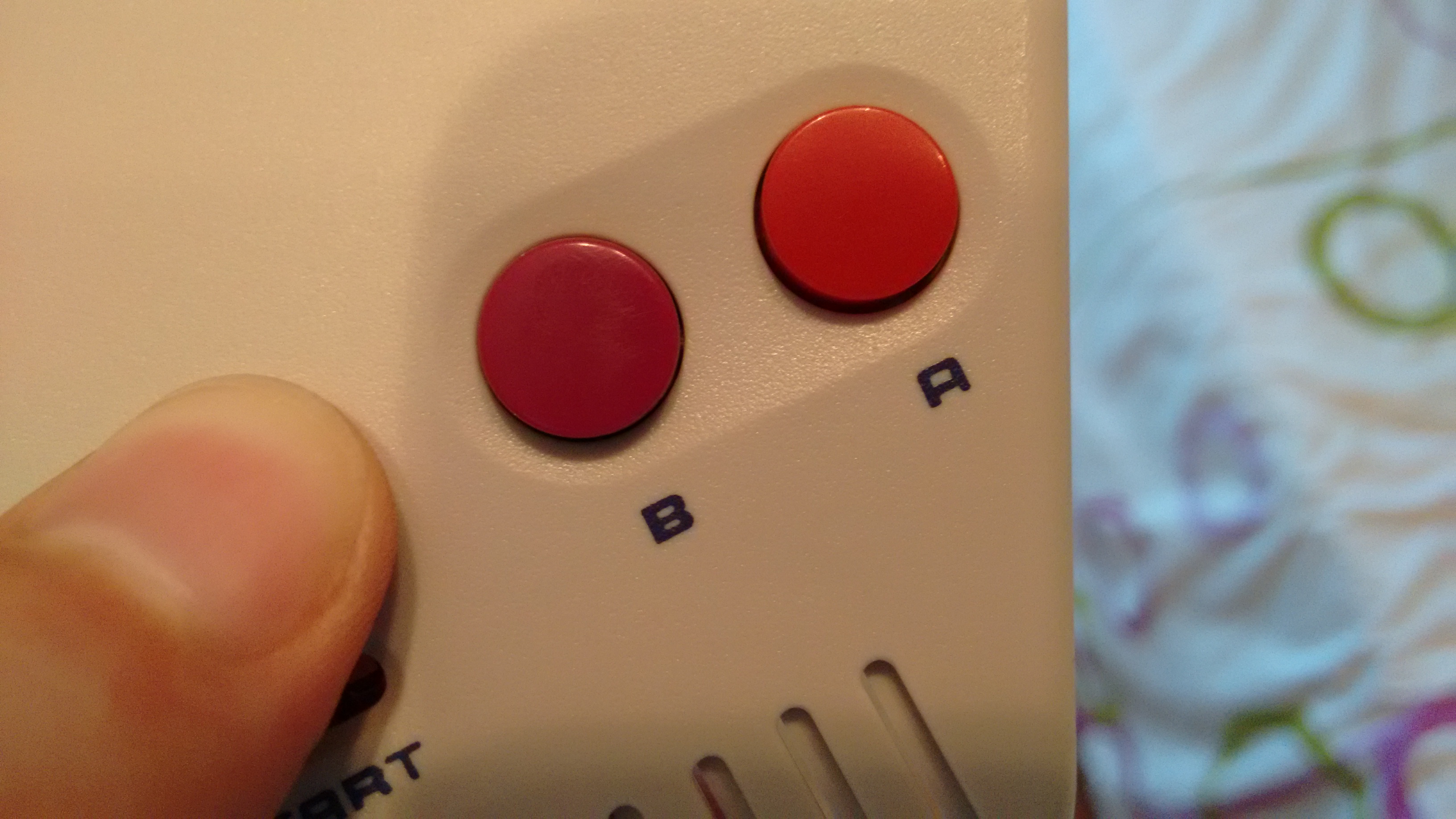

I just looked into my buttons. The SNES ones I linked before, they might be a little, but very little smaller than the original ones. The difference I think is almost inapreciable. The also feel good with the PCB.

Judge for you selfs.
Attachments

segueyer
Posts: 2
Joined: Thu Jun 30, 2016 12:49 am

Re: SNES Buttons

Post by segueyer » Thu Jun 30, 2016 2:25 pm

:D This community is awesome thank you for all of the replies. I think I'll return this one and reorder one of the suggestions.

User avatar
alien0matic
Posts: 102
Joined: Wed Jun 08, 2016 7:20 am
Has thanked: 15 times
Been thanked: 23 times

Re: SNES Buttons

Post by alien0matic » Fri Jul 01, 2016 12:48 am

Kilren wrote:
Kilren wrote:
The buffalos measured 9.95mm and the GB buttons were 10.05mm No enough difference to make a difference.
I could have sworn that the GB buttons were 10.5. I'll measure again! :D
