My MintyPi Build Log + Parts List

[ProfessorZ]

Does anyone have a diagram on how the speaker is wired up to the pi please?

[dryja123]

Does anyone have a diagram on how the speaker is wired up to the pi please?

The speaker isn't wired to the Pi, the sound card is: http://www.sudomod.com/forum/viewtopic.php?f=34&t=3297

[ProfessorZ]

That’s what I meant

[abrugsch]

Just the screen parts will be fine. I can test against my minty pi

[abrugsch]

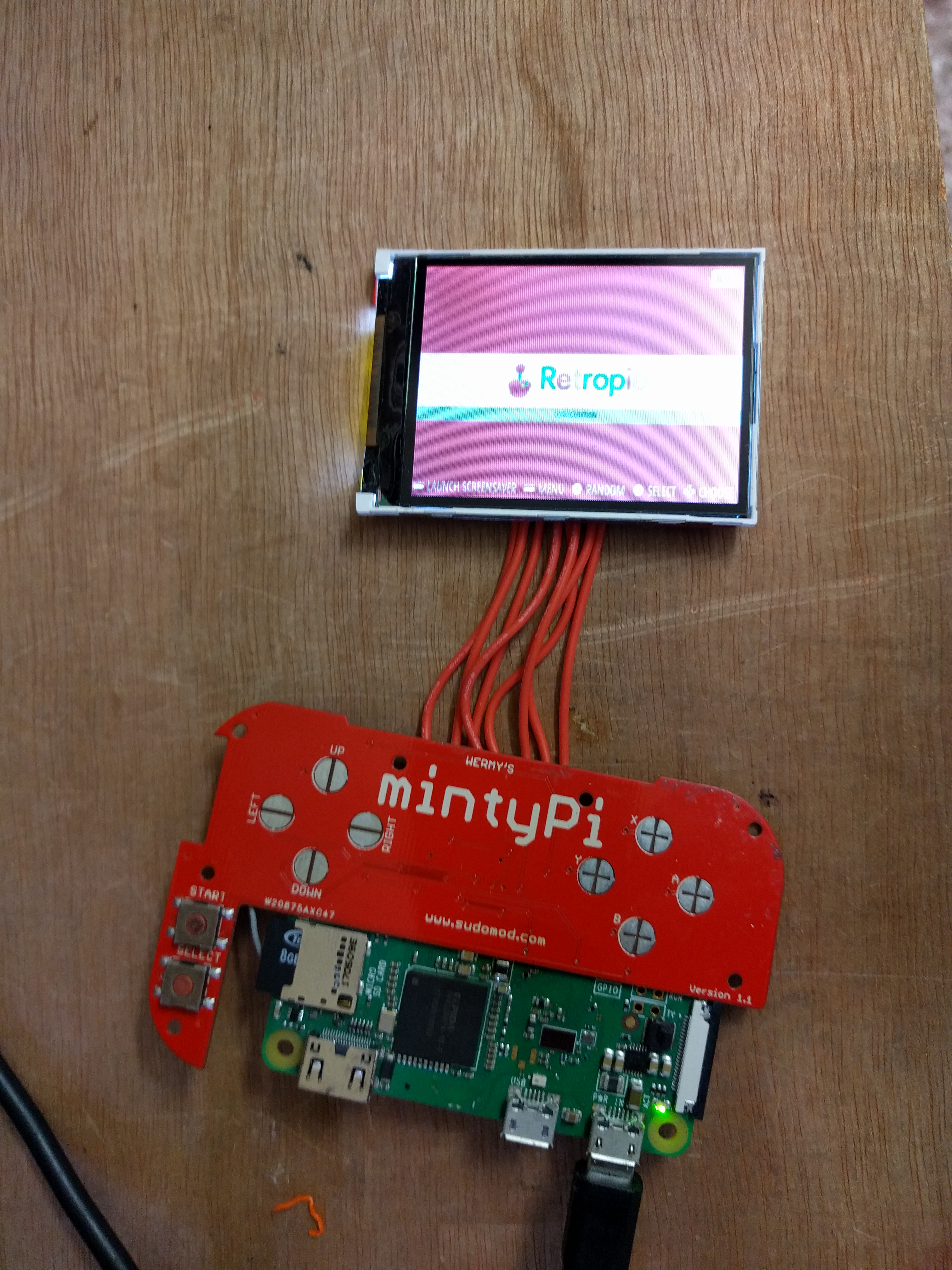

So after a lot of troubleshooting i got to the bottom of the problems. There were both bridges under the gpio and open connections. Then to top it off the sck and sdi wires were crossed between the pcb's...


[Majeye]

This build isn't finished yet?

Also.. Abrugsch.. I know what that is in your signature. hehe.

[abrugsch]

agh! don't start Majeye getting this sorted on the only night I have to do projects and stuff has been a real nightmare. but yes, it's now ready for him to finish once I send it back to the dear professor (though he still hasn't acknowledged that he's seen it yet... )

[ProfessorZ]

Oh my god!!! Thanks so so much man! I really appreciate it. Can’t wait to get finished!!! Thanks so much again.

[ProfessorZ]

Okey Dokey! So after the wonderful miracle performed by none other than Dr. Abrugsch himself, I have the pi and was able to get a new 32gb micro SD card for £15 a 16 was £14 so it was a no brainier! I have the sound card and the battery wired up and it works like a dream! Just want to get all the firmware sorted and get the final bits done, then hopefully I will be able to get a 3D printer for Christmas and get it finished!!!

[abrugsch]

Dr. Brugsch was my grandfather... (and great-grandfather but that's another story)
