I was able to put 1800mah battery + mintypi black vinyl edition

Post by KaozLira » Tue Aug 15, 2017 4:32 pm

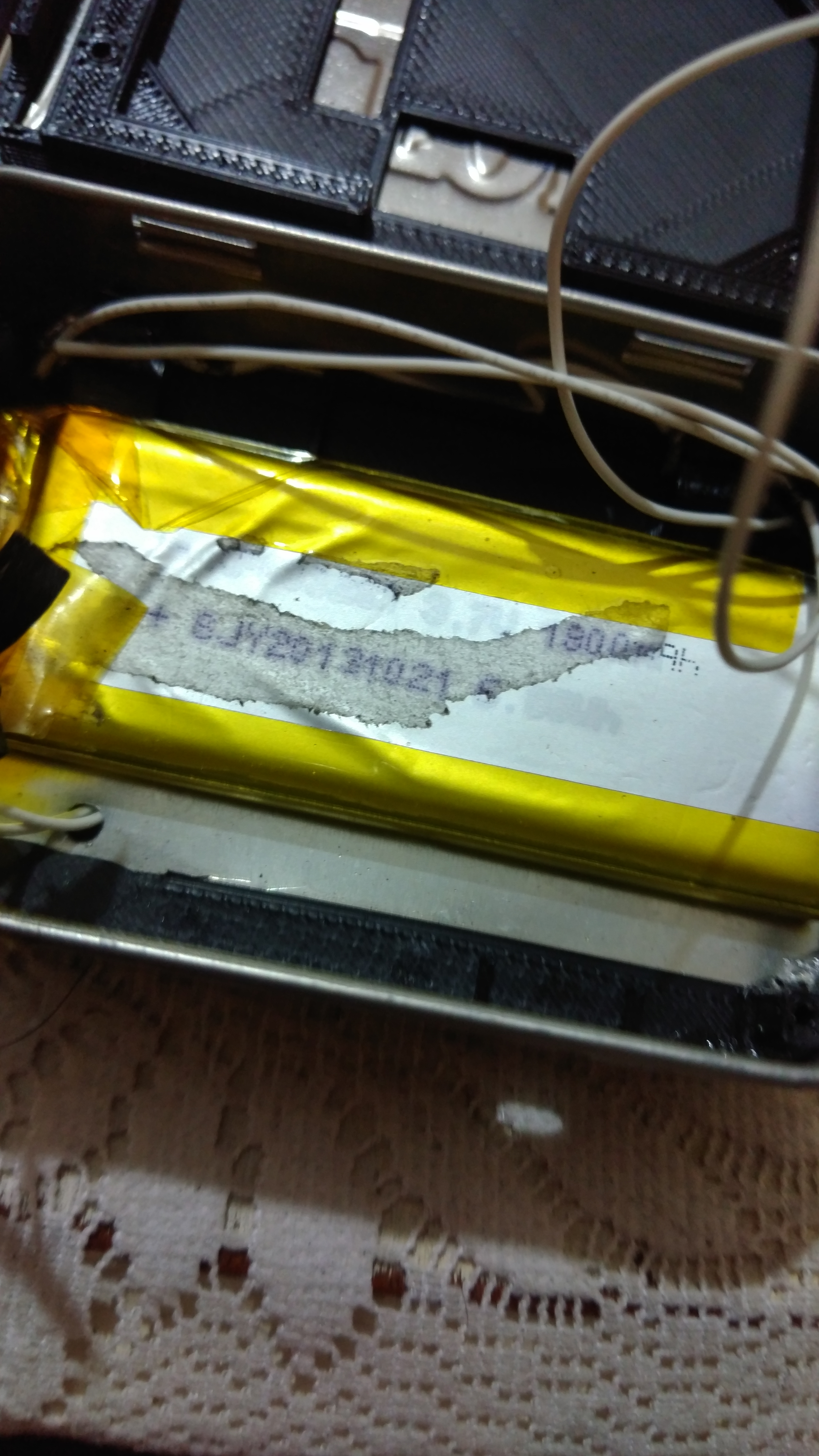

Hi guys, i just want to share this little mod that i made to be able to put a 1800mah battery, i made this because it was the only battery that i have :lol: . Also i put a copper heatsink just to prevent overheat. :)

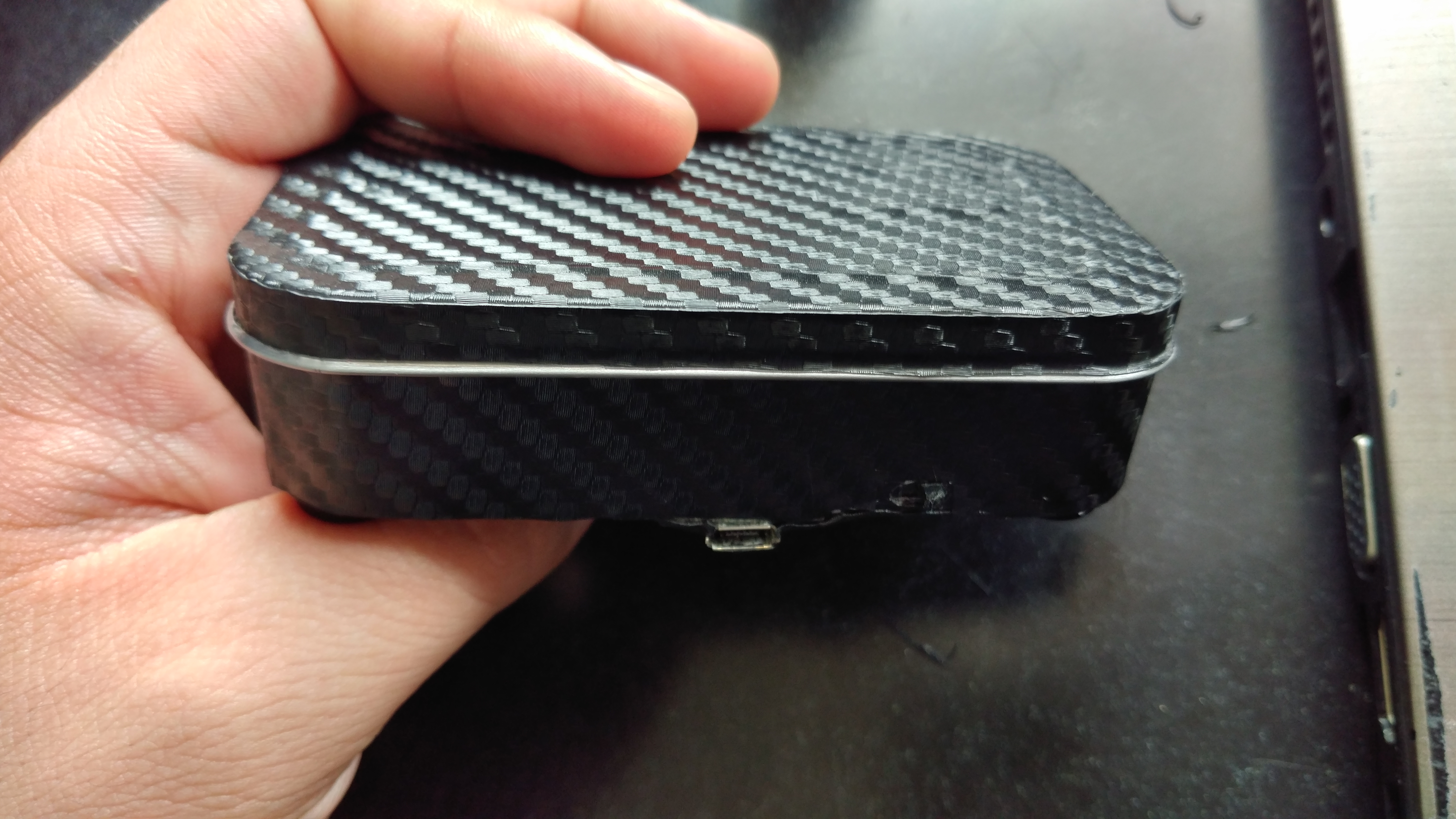

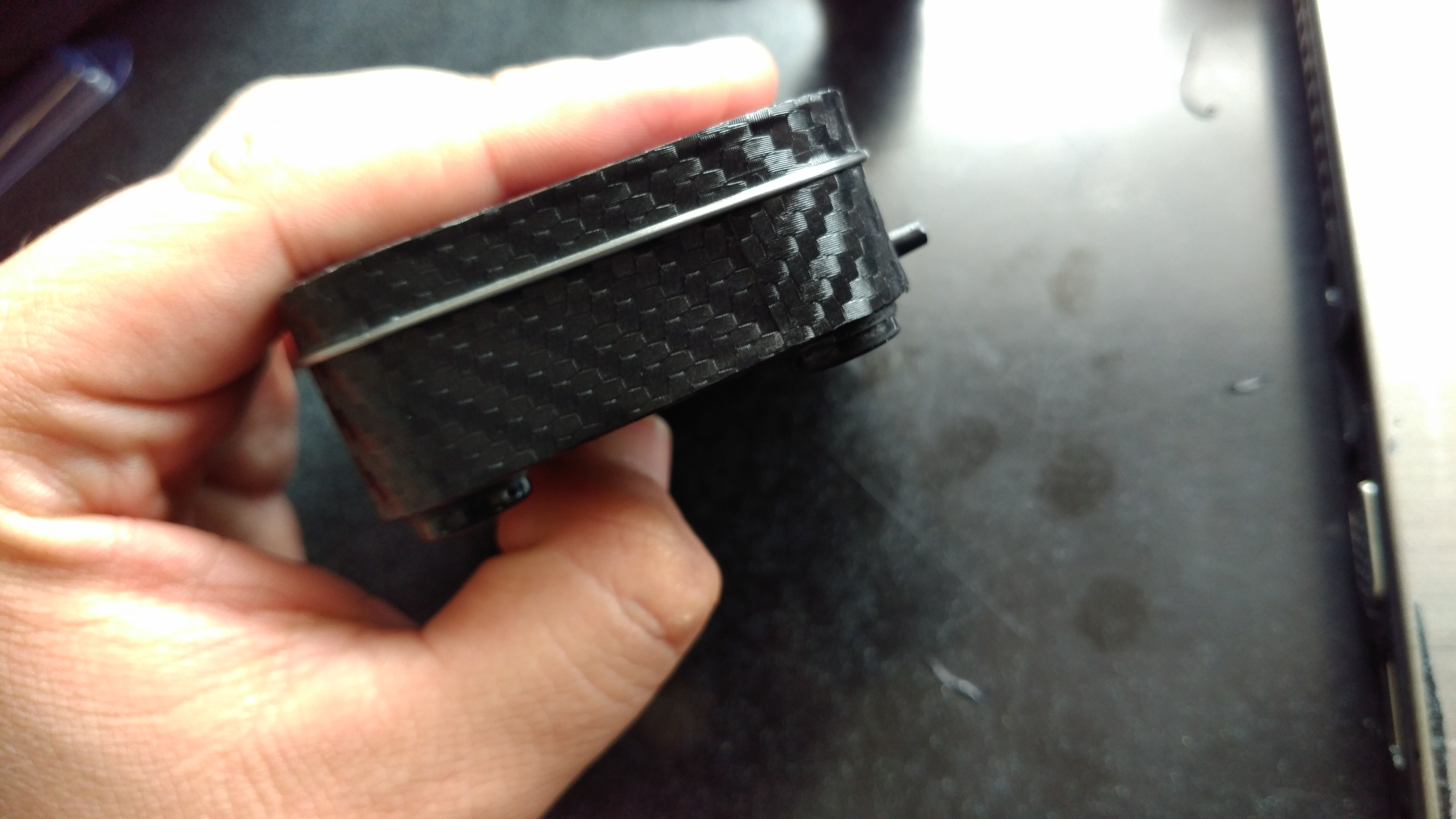

Plus this weekend tried to put some black vinyl to my can and the result was this, what do you thing?. :)
Attachments
Last edited by KaozLira on Mon Sep 04, 2017 10:25 am, edited 1 time in total.
Top
User avatar
NarxElectronics
Posts: 24
Joined: Sat Aug 12, 2017 9:11 pm
Has thanked: 17 times
Been thanked: 23 times

Re: I was able to put 1800mah battery

Post by NarxElectronics » Tue Aug 15, 2017 4:37 pm

Nice build :D

Is the 1800mah battery the same size as the 1200mah battery wermy used in the build?
Top
User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: I was able to put 1800mah battery

Post by Helder » Tue Aug 15, 2017 5:13 pm

Doesn't look like it since he has the lipo charger on the outside of the tin.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.

Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Top
User avatar
NarxElectronics
Posts: 24
Joined: Sat Aug 12, 2017 9:11 pm
Has thanked: 17 times
Been thanked: 23 times

Re: I was able to put 1800mah battery

Post by NarxElectronics » Tue Aug 15, 2017 5:20 pm

Helder wrote: ↑
Tue Aug 15, 2017 5:13 pm
 Doesn't look like it since he has the lipo charger on the outside of the tin.
Didn't notice that
Top
User avatar
Lphillimore
Posts: 993
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 796 times
Been thanked: 527 times

Re: I was able to put 1800mah battery

Post by Lphillimore » Tue Aug 15, 2017 11:45 pm

Fair play for trying new things out! Nice to see some variation.

Personally, 3 hours + game time with the 1200mAh is fine for me and I prefer the lipo charger inside the case.

What did you use to surround the lipo charger? Nice idea on the foot raisers to give it clearance.
Top
KaozLira
Posts: 3
Joined: Fri Jun 02, 2017 3:43 pm
Been thanked: 3 times

Re: I was able to put 1800mah battery

Post by KaozLira » Wed Aug 16, 2017 8:01 am

Thanks guys, its like more battery at the cost of take out the lipo charger, it was a hard decision but at the end for me it dosen't look bad. To surround the lipo charger i had to use a piece of the base since the battery is more larger it was necesary to cut the base a little more to make it fit.
