Dashtag's MintyPi Build

Show off your completed mintyPi, or post your build logs here!
dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Dashtag's MintyPi Build

Post by dashtag » Thu Aug 31, 2017 1:24 pm

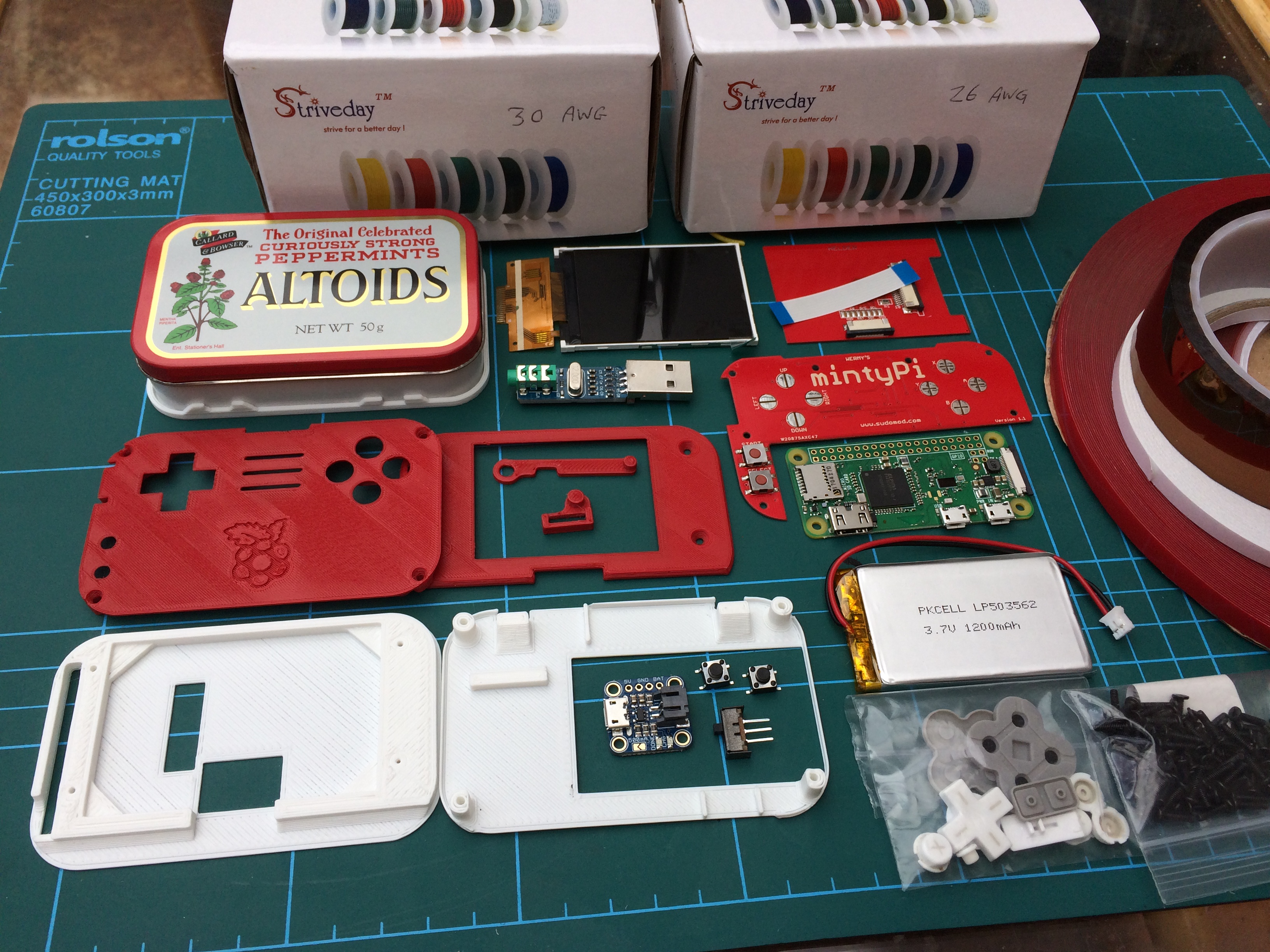

I'm almost ready to start my build, so thought I'd post a pic of the components. I'm just waiting on one component, but can start without it.
10 points for the first person who can see which component is missing (micro SD is not in pic, but I have it) :D

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Thu Aug 31, 2017 1:29 pm

Actually, one quick and probably stupid question, but when testing that the Zero & sound card works, can I use a 2.5A power supply from a Pi3. I assume it will only draw the power it needs and not fry it!! Lol

User avatar
HoolyHoo
Posts: 766
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 206 times
Been thanked: 741 times

Re: Dashtag's MintyPi Build

Post by HoolyHoo » Thu Aug 31, 2017 1:32 pm

Speaker?
And battery monitoring board and switch if you go that route.

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Thu Aug 31, 2017 1:45 pm

HoolyHoo wrote:
Thu Aug 31, 2017 1:32 pm
Speaker?
10 points! I think they're on the proverbial slow boat from China! :D
HoolyHoo wrote:
Thu Aug 31, 2017 1:32 pm
And battery monitoring board and switch if you go that route.
Yes, I've ordered one from Helder, and it's on its way :)

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Fri Sep 01, 2017 2:55 pm

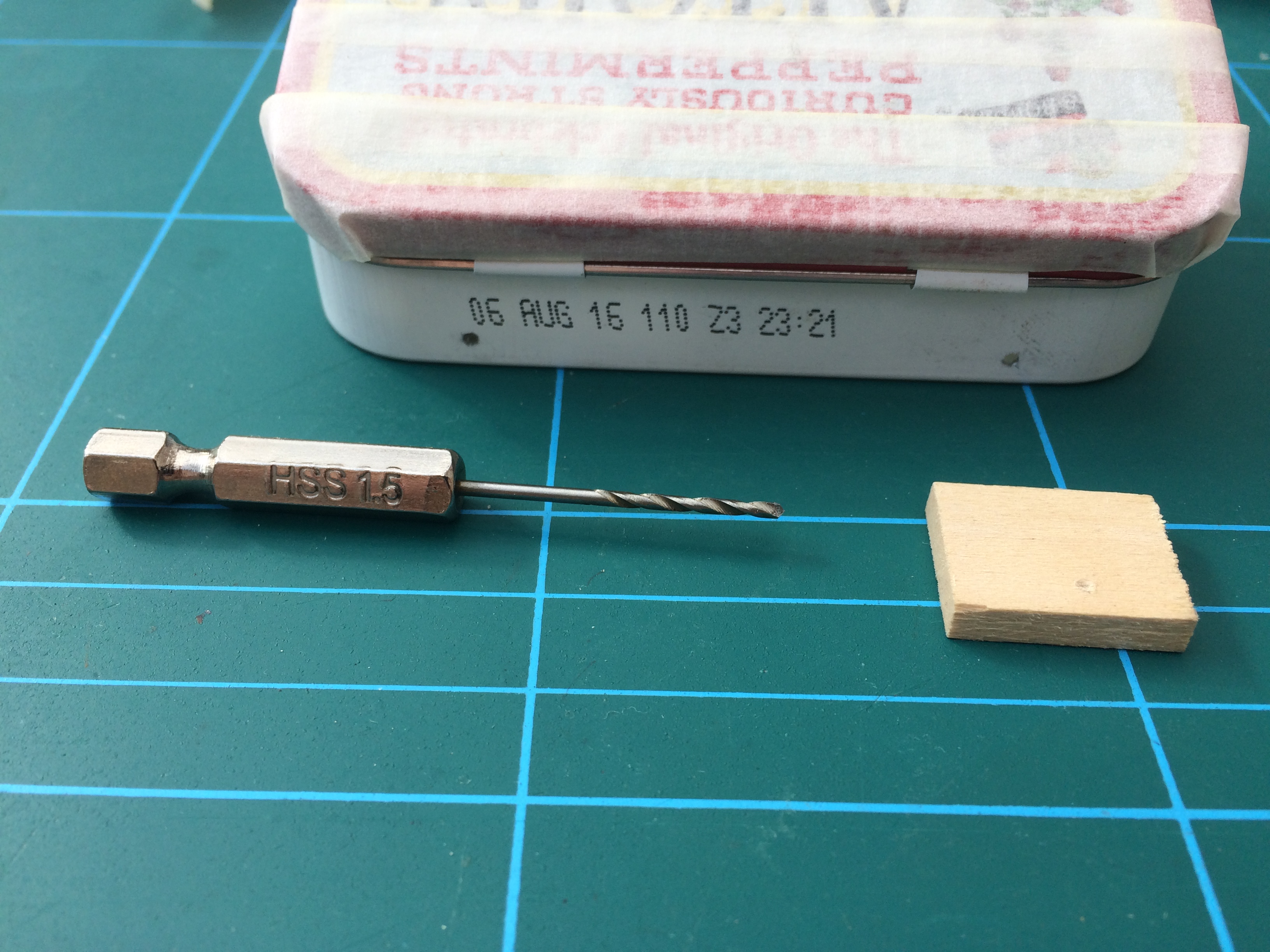

In creating all the holes in the tin, I decided to use a small off cut of wood pressed against the inside so the tin didn't deform. I then manually used 1.5mm, 2mm & 3mm drill bits, and a round file for the button switch holes and flat ones for the others.
SpoilerShow

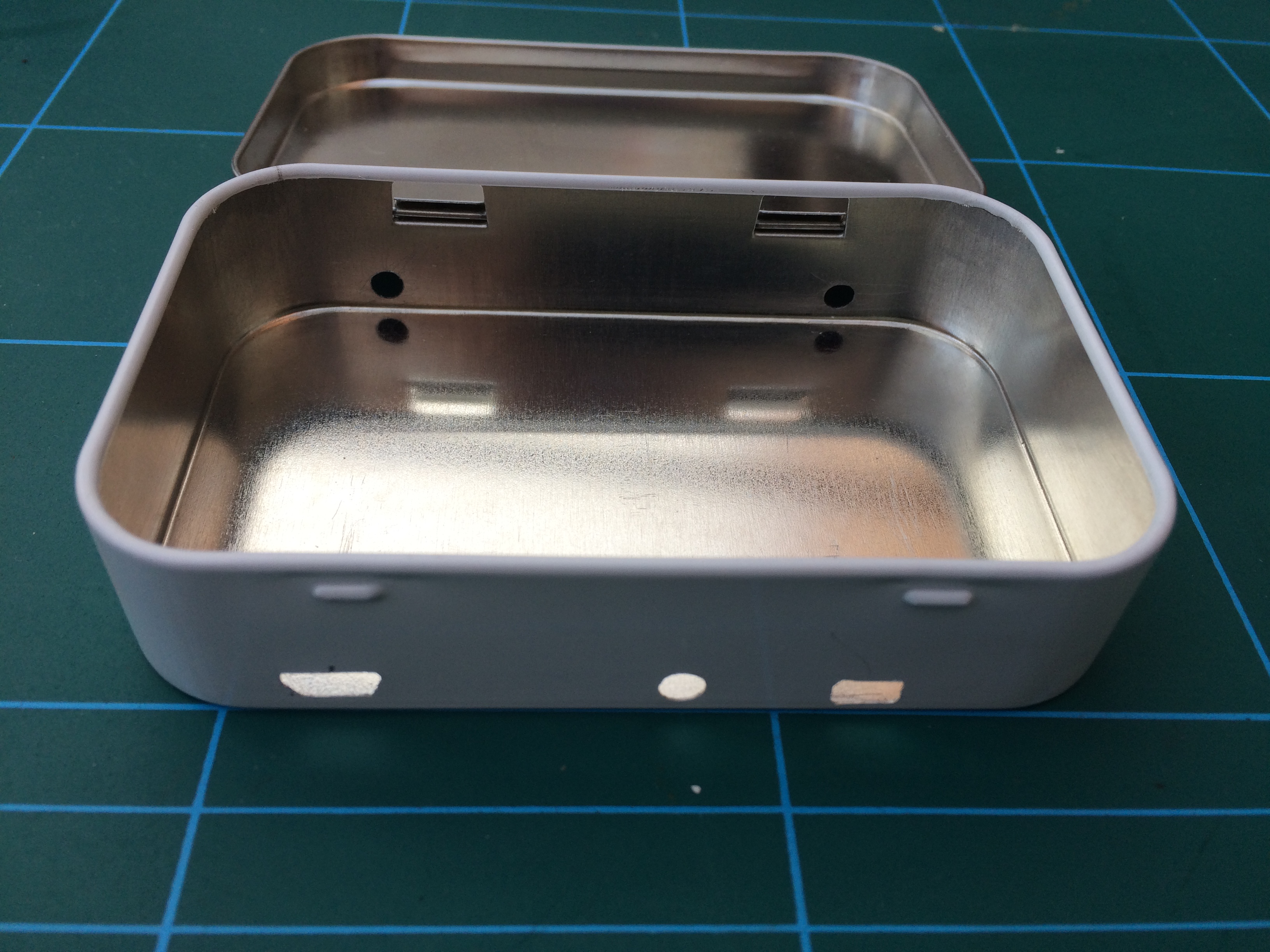

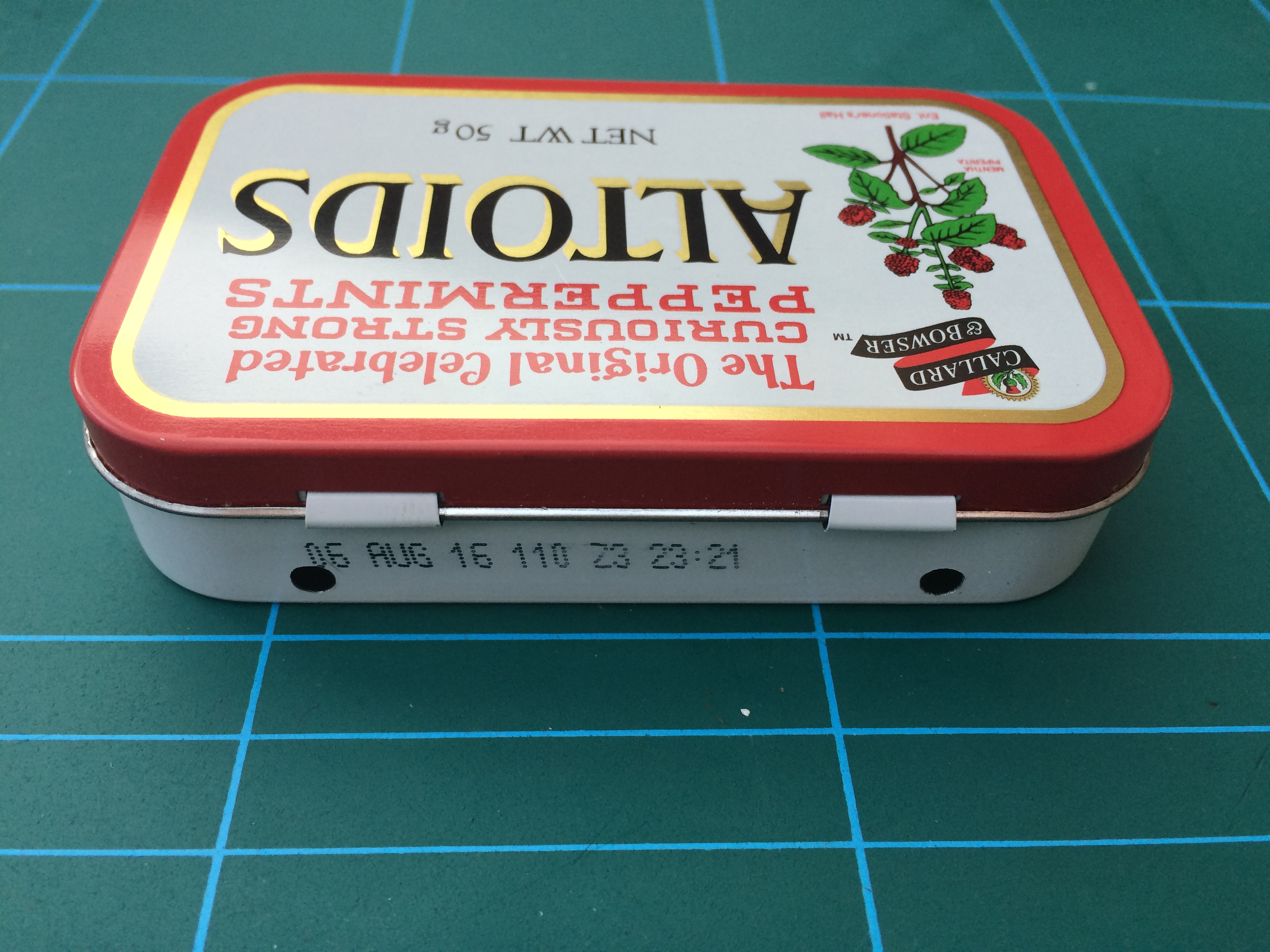

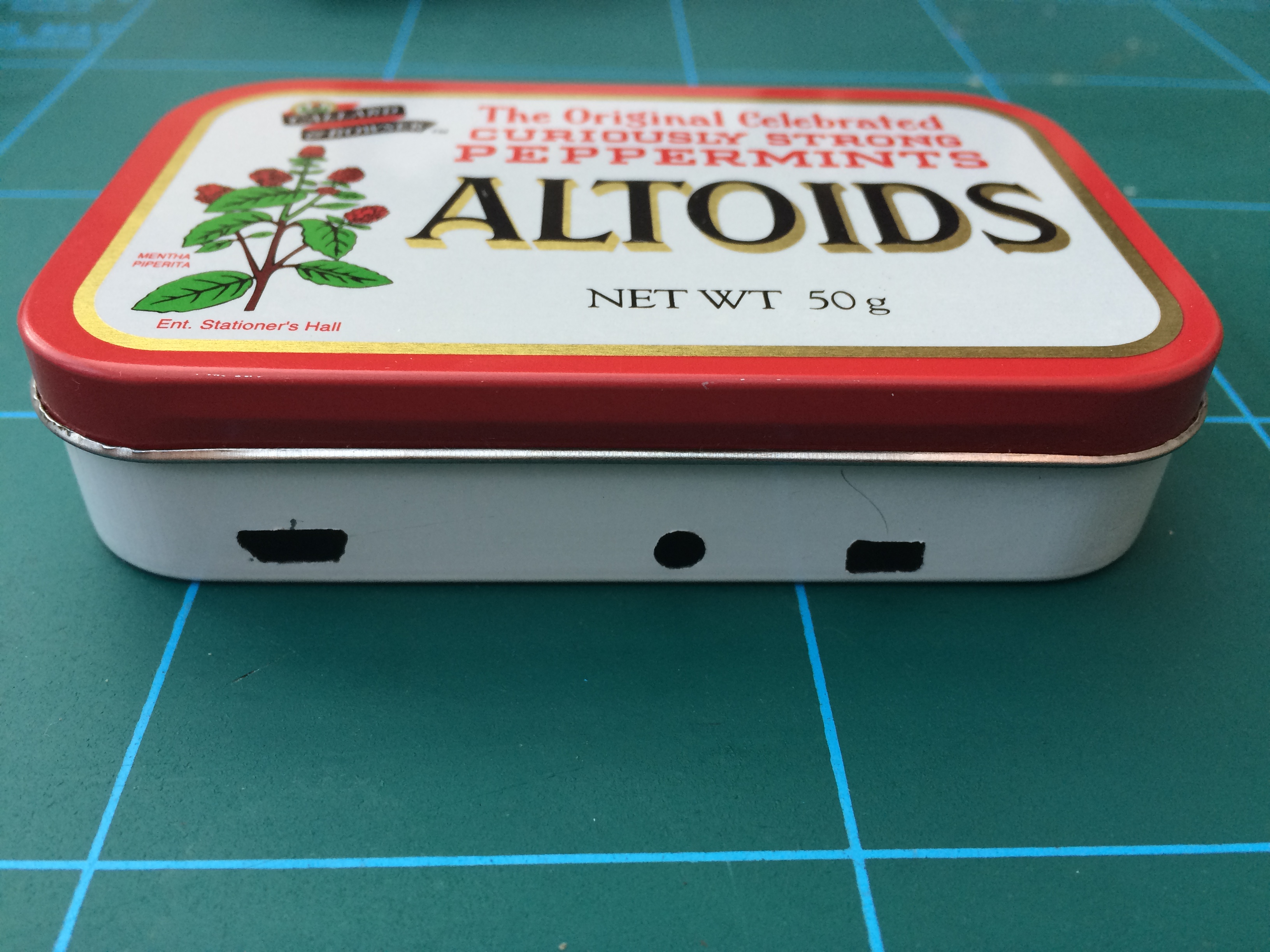

The results:-
SpoilerShow
SpoilerShow
SpoilerShow
I got the inevitable scratches on the white sides, but I think I'm going to spray just the sides white which will also cover the best before date.

User avatar
dryja123
Posts: 1076
Joined: Tue May 09, 2017 5:34 pm
Location: Central NJ
Has thanked: 239 times
Been thanked: 553 times

Re: Dashtag's MintyPi Build

Post by dryja123 » Fri Sep 01, 2017 4:16 pm

looks good!

I used the same Irwin unibit that wermy used on his GBZ button holes to make perfect holes for my tact buttons. Just had to spin them by hand.

I like where you put your safe shutdown button. Let me know what button you use to get it to close properly. When I put the L and R button in the front in that position I wasn't able to get it to close because of the Pi making contact.

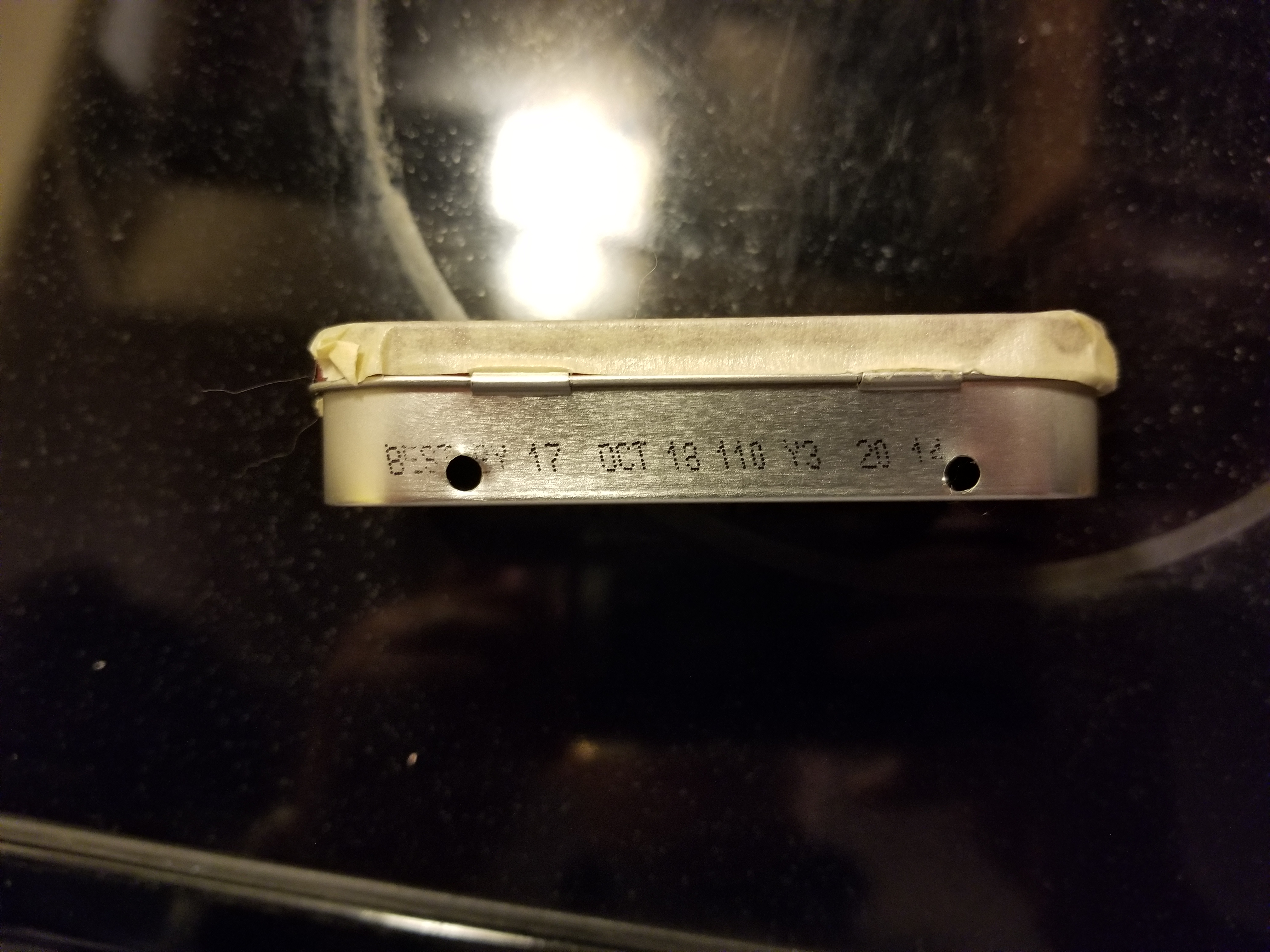

Here's how my button holes came out using the unibit:
SpoilerShow

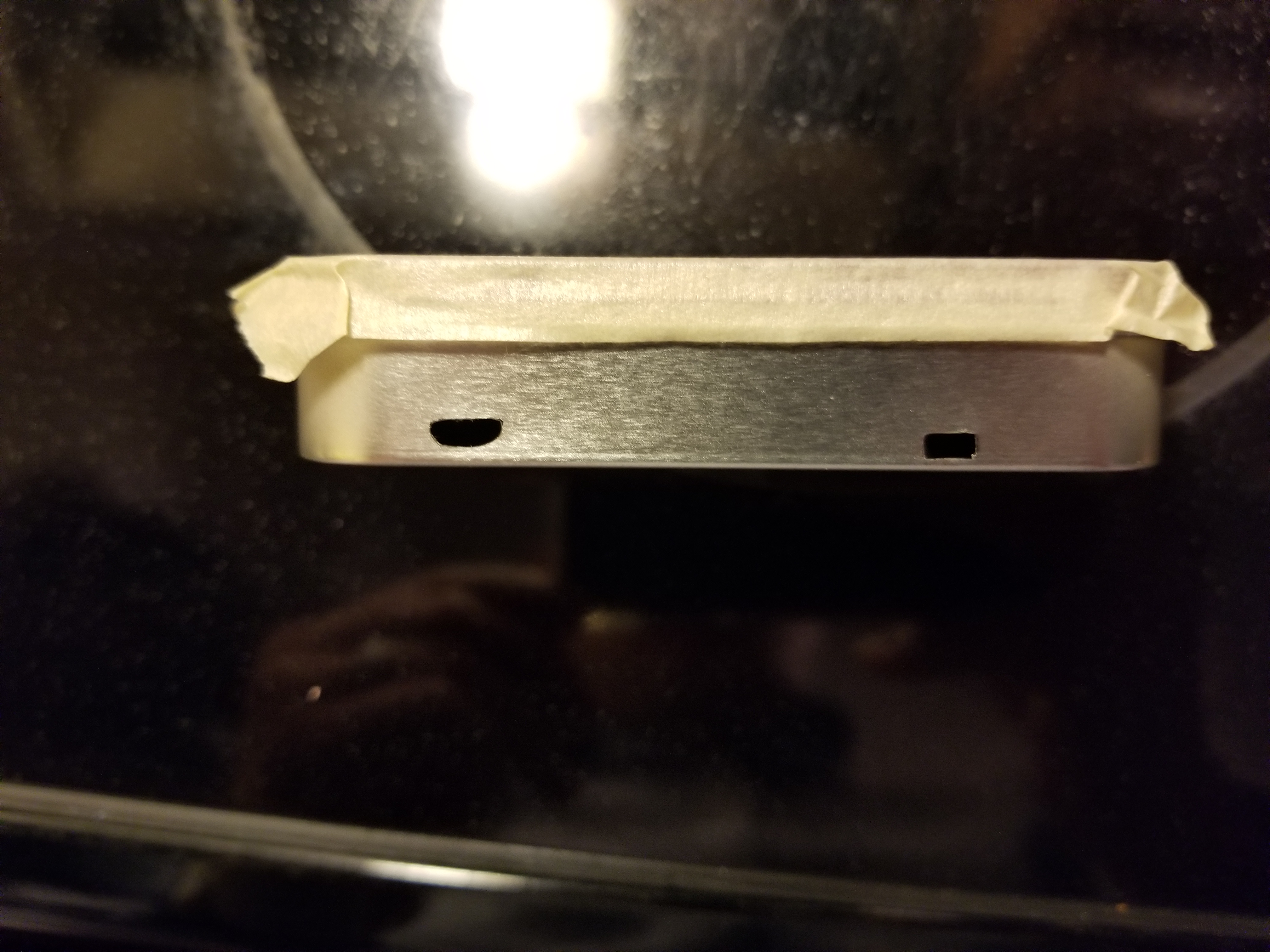

Bonus front cut, not done by unibit but done by dremel with a very fine diamond grinding bit:
SpoilerShow

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Fri Sep 01, 2017 4:52 pm

Yeh, yours look really great.
My fingers did ache like hell at the end! 😂

I'm hoping to use the same button as the L & R ones. I didn't even think if it would catch the
Pi. Time will tell! 😂

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Tue Sep 05, 2017 11:50 am

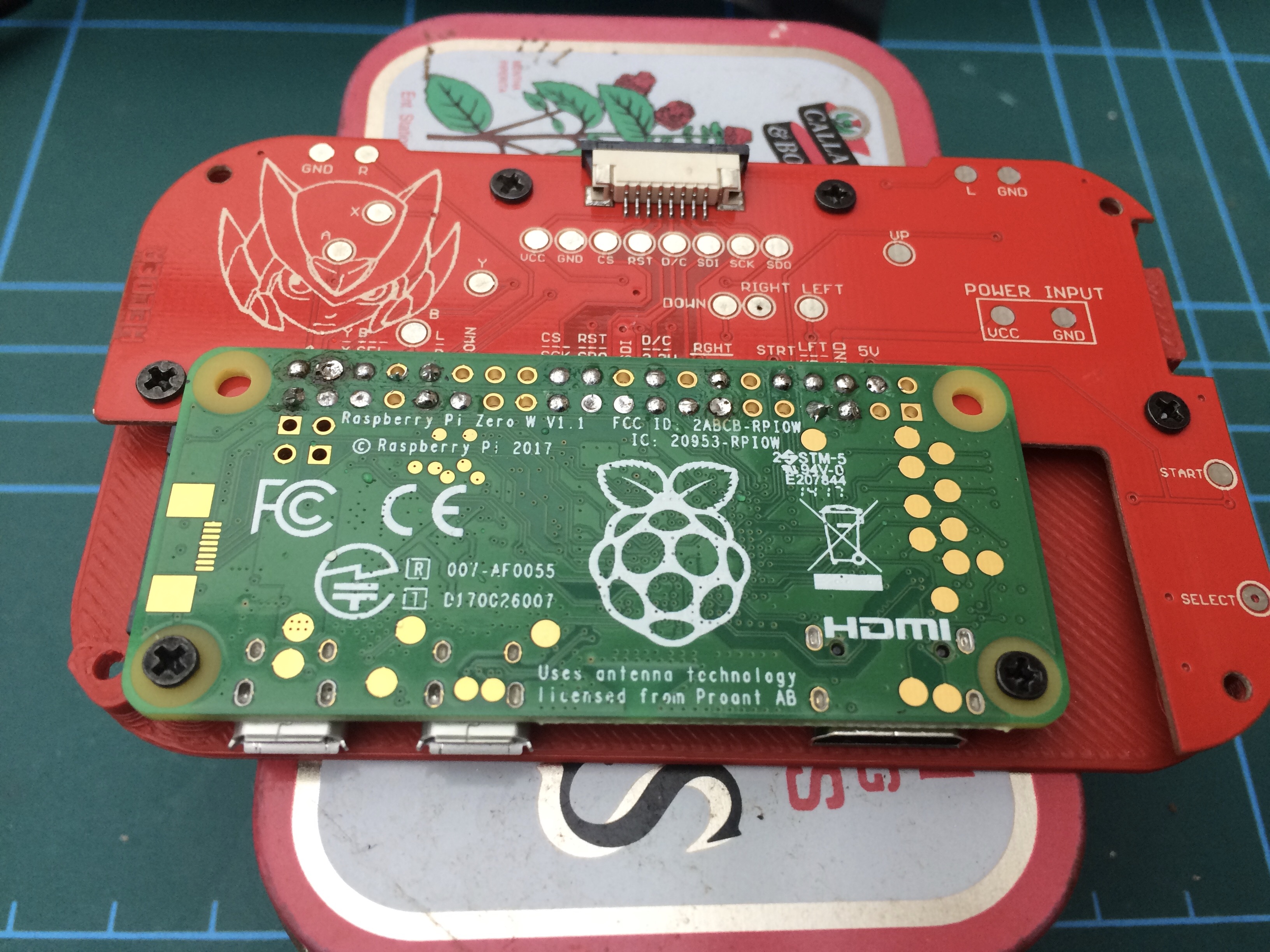

Soldering of Pi Zero to MintyPi Button PCB very nearly complete.
SpoilerShow
The only one that's causing me problems is the Y pad. I've tried pushing the soldering iron in at least 20 times, and still no joy. Any ideas before I solder some wire between the pads?

The only issue I had was with which holes to solder. A tip is to take a photo of the pcb board first, as when you've clamped it all up, you can't see the square outlines around the pads. I had problems with the A, Right, & GND pads until I realised I was soldering the wrong holes! I wasn't even on the same column for the Right pad! :D

I assumed the position of the text related to which pad, i.e. that the A was on the same row as the X & SEL.

At least my second build will be easier :)

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Dashtag's MintyPi Build

Post by Helder » Tue Sep 05, 2017 3:00 pm

Strip some wire and stick it in the GPIO hole, it will push the solder down and make contact then trim the wire to be flush with the pi.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

dashtag
Posts: 23
Joined: Fri Aug 04, 2017 10:34 am
Has thanked: 15 times
Been thanked: 3 times

Re: Dashtag's MintyPi Build

Post by dashtag » Tue Sep 05, 2017 3:49 pm

Helder wrote:
Tue Sep 05, 2017 3:00 pm
Strip some wire and stick it in the GPIO hole, it will push the solder down and make contact then trim the wire to be flush with the pi.
Aha! I'll give that a go, thanks

Post Reply
