Metal hinge arm

Post by Caver01 » Mon May 27, 2019 5:52 pm

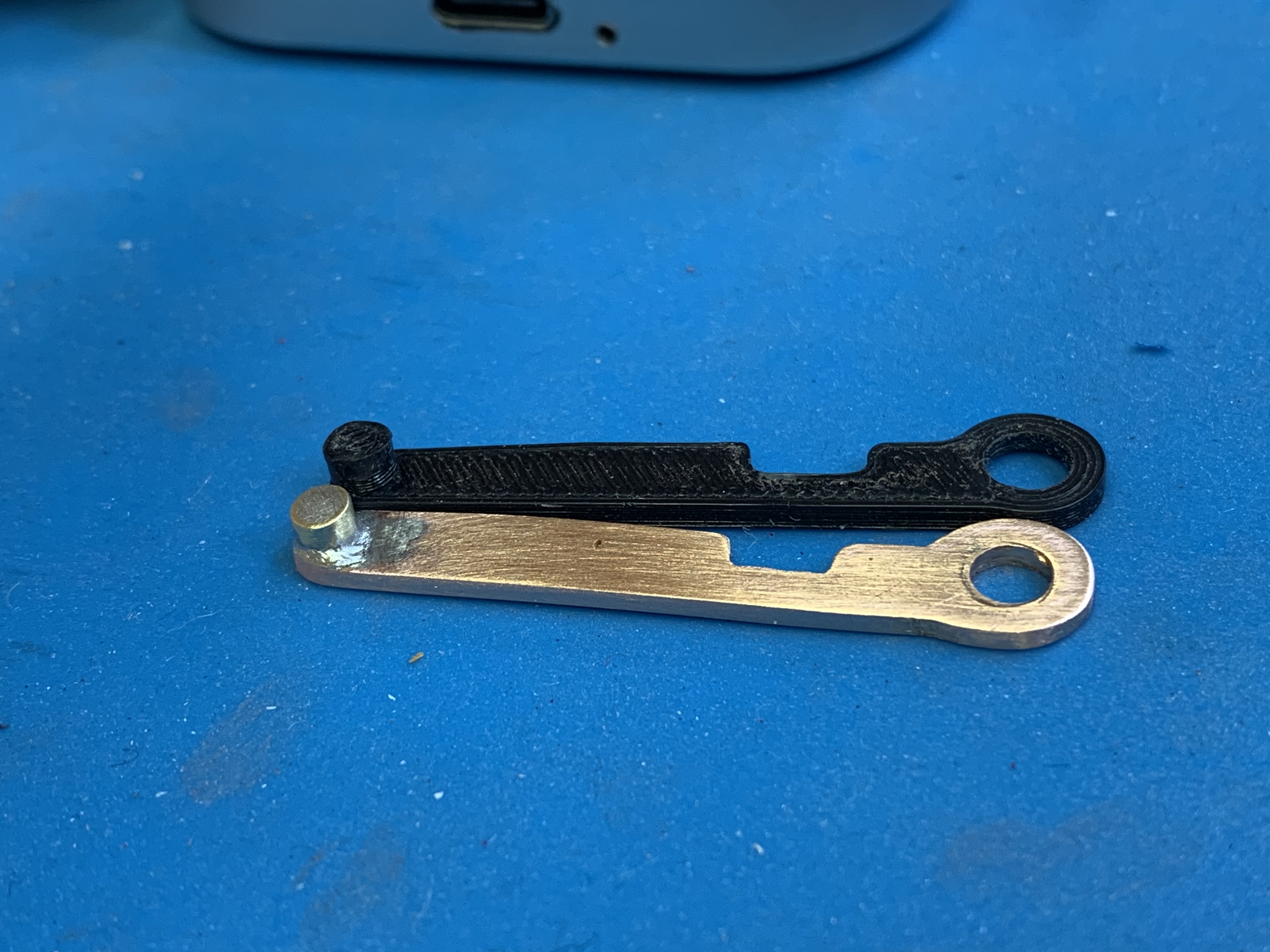

Well, I bent my hinge arm trying to close a new build. The printed back plate for the screen never smoothed out. So, in addition to ordering a new hinge arm I decided to try making a metal replacement. This is a work in progress.

It is totally hand made with two sheets of copper laminated together with solder and a brass tube soldered on the end. Everything has been carefully shaped with files.
Attachments

User avatar
wermy
Site Admin
Posts: 1341
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 612 times
Been thanked: 1318 times
Contact:

Re: Metal hinge arm

Post by wermy » Mon May 27, 2019 7:01 pm

Awesome. 😁I'm gonna move this to the mintyPi area.

Caver01
Posts: 20
Joined: Fri May 24, 2019 12:27 am
Has thanked: 4 times
Been thanked: 6 times

Re: Metal hinge arm

Post by Caver01 » Mon May 27, 2019 7:44 pm

Whoops. I got exited and posted in the wrong spot.

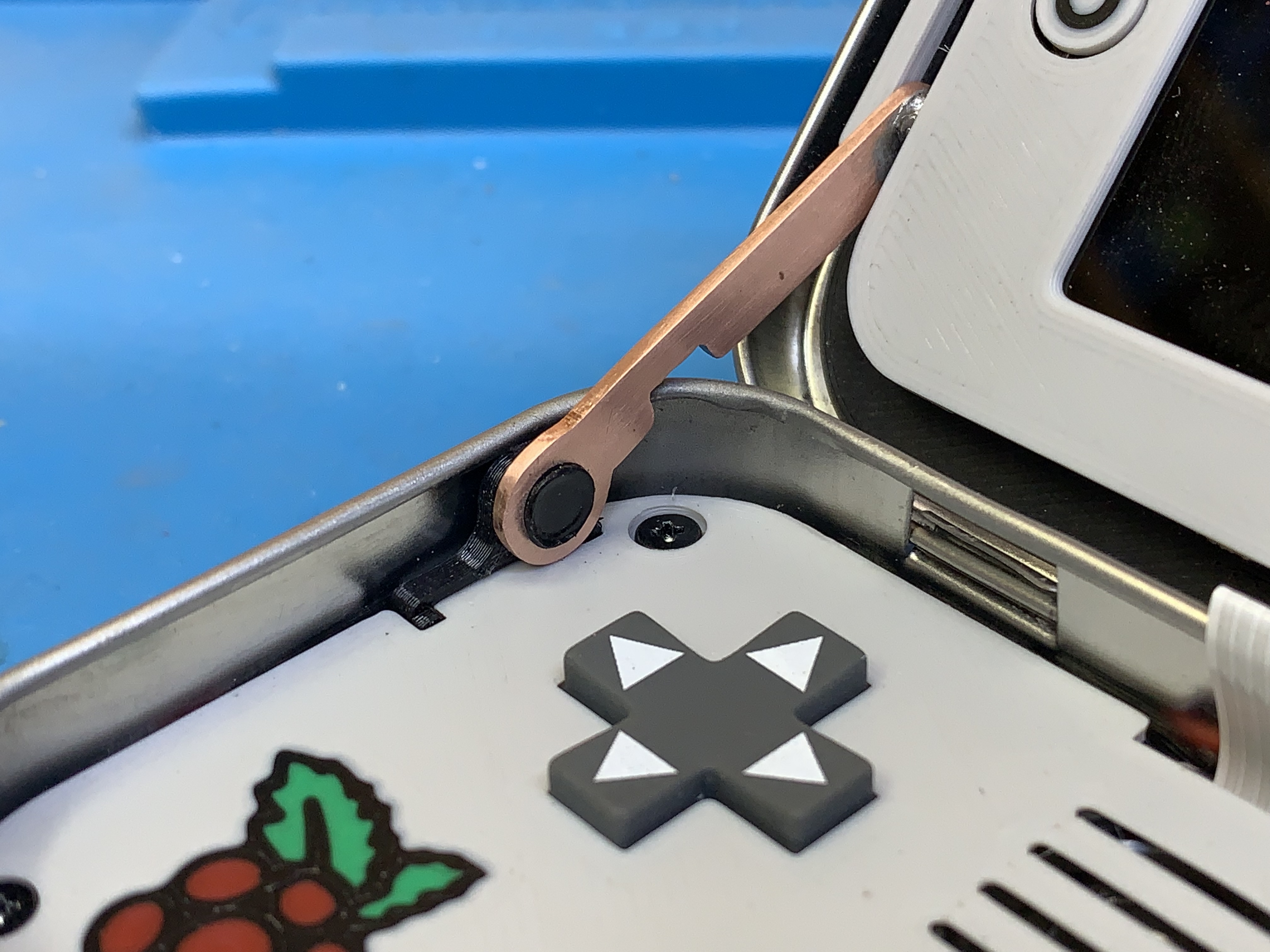

Here is an updated completed image. Works great!
I beveled inner edge of the pivot hole with a countersink bit, then I slipped the arm over the existing capture/pivot part, heated up a flat steel lag bolt with a torch and pressed that against the plastic post. This gave it a melted “head” to capture the copper arm like a rivet. Now it won’t slip off.

User avatar
MintyJam
Posts: 48
Joined: Wed Nov 07, 2018 5:34 am
Has thanked: 267 times
Been thanked: 23 times

Re: Metal hinge arm

Post by MintyJam » Tue May 28, 2019 12:49 am

Lookin' good!!! 8-) 8-) 8-)
Small icon-sized "logos" you can use in textShow
mintyPi logo: Image = https://i.imgur.com/SiBgwZY.png
GB CM3 logo:Image= https://i.imgur.com/vDu1oBY.png
PS: Use it as pictures!Show

Code: Select all

[img]https://i.imgur.com/SiBgwZY.png[/img] (mintyPi)
[img]https://i.imgur.com/vDu1oBY.png[/img] (GB CM3)
Image Image
Smart and Creative

User avatar
The Cheese Biscuit
Posts: 36
Joined: Wed Aug 15, 2018 4:44 pm
Has thanked: 23 times
Been thanked: 25 times

Re: Metal hinge arm

Post by The Cheese Biscuit » Tue May 28, 2019 4:54 pm

"I'm not actually a biscuit."

Marvy3013
Posts: 2
Joined: Fri Feb 02, 2018 11:17 am
Has thanked: 1 time
Been thanked: 1 time

Re: Metal hinge arm

Post by Marvy3013 » Fri May 31, 2019 5:42 pm

That is really nice.

Caver01
Posts: 20
Joined: Fri May 24, 2019 12:27 am
Has thanked: 4 times
Been thanked: 6 times

Re: Metal hinge arm

Post by Caver01 » Sun Jun 02, 2019 12:21 pm

Thanks. Honestly, it was not that hard to do if you have the materials. It looks like a solid piece of copper, but that is a thickness I don’t have lying around. With two thin plates soldered together it gain a lot of strength from the solder. Just take your time filing and use the existing arm as a reference as you go. I suppose a thick gauge wire would have worked too. It could be bent into a loop at pivot point and hammering flat would also work-harden the metal.
