Broken pins on pcb

Post by Danuk » Fri Jul 21, 2017 3:49 pm

Hi guys,

I'm very much a novice at building anything (did some electronics at school) but saw this build and had to have a go. Anyway, long story short I have managed to snap the raspberry pic away from the pcb. It mostly looks fine but there are a few broken connections and broken pins (see pics).

If the board is salvageable it would be great to know what the best thing to do is. If it is completely broke would it be possible to order a new board by itself?

Thanks in advance, Dan
Top
User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Broken pins on pcb

Post by Helder » Fri Jul 21, 2017 3:52 pm

I can't offer you any advice if we don't see pictures and how the hell did you rip the pi off the board? you mush have put some considerable force to pry it apart.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.

Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Top
Danuk
Posts: 3
Joined: Fri Jul 21, 2017 3:20 pm

Re: Broken pins on pcb

Post by Danuk » Fri Jul 21, 2017 4:11 pm

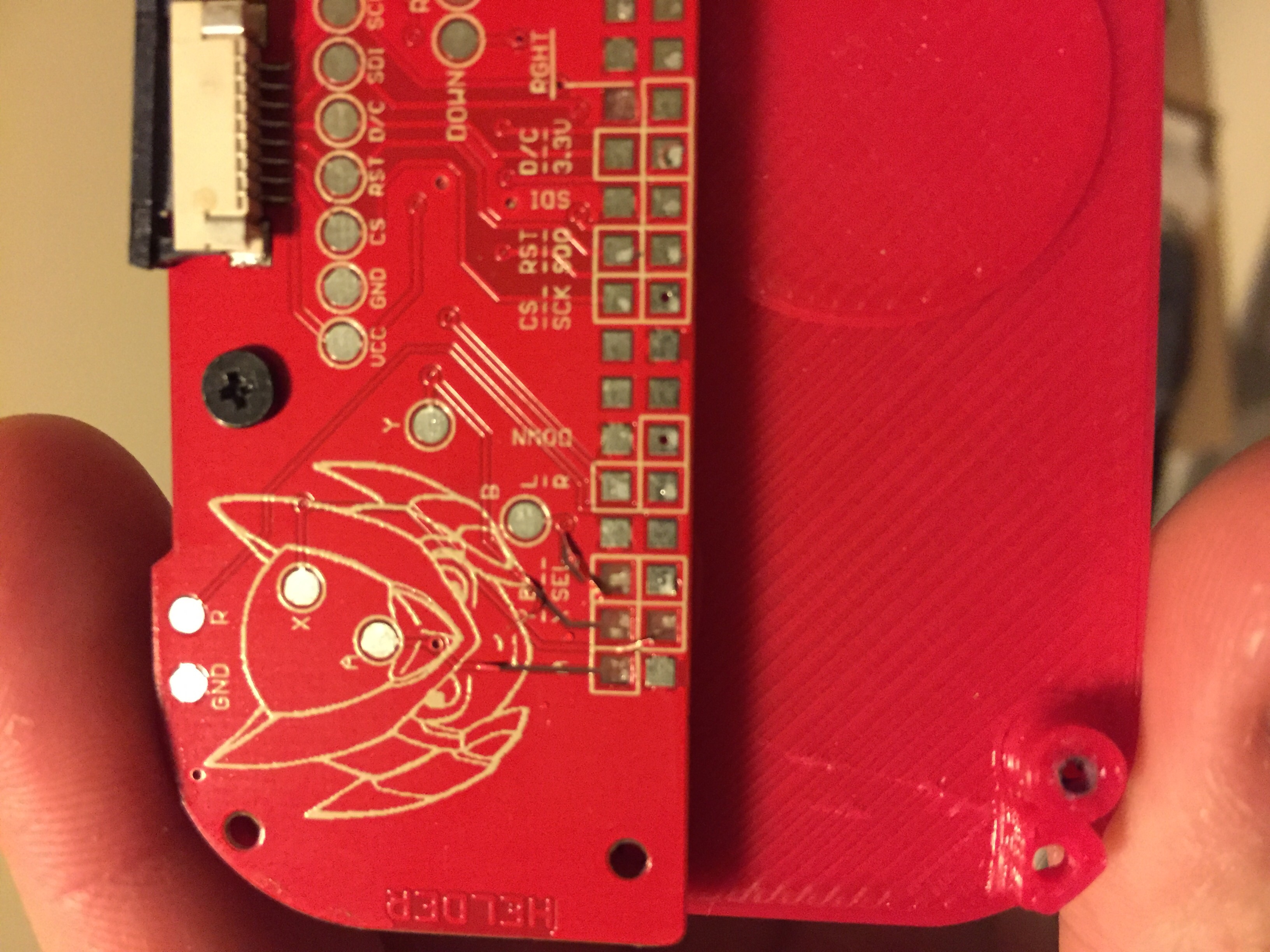

Sorry I think I've got the pics on now.

So I started soldering and messed it up a bit so I decided to take the board off and start over, made a bad decision to loosen the solder and put to much pressure on the board - as I said a novice!
Attachments
Top
User avatar
wermy
Site Admin
Posts: 1346
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 620 times
Been thanked: 1322 times
Contact:
Contact wermy

Re: Broken pins on pcb

Post by wermy » Fri Jul 21, 2017 4:46 pm

Danuk wrote: ↑
Fri Jul 21, 2017 4:11 pm
 Sorry I think I've got the pics on now.

So I started soldering and messed it up a bit so I decided to take the board off and start over, made a bad decision to loosen the solder and put to much pressure on the board - as I said a novice!
Oof. Sorry, that sucks. Thankfully you should be able to use the test pads that correspond with the pads you ripped off to solder them directly to the GPIO pinholes on the pi. Just use some very thin wire.
Top
Danuk
Posts: 3
Joined: Fri Jul 21, 2017 3:20 pm

Re: Broken pins on pcb

Post by Danuk » Fri Jul 21, 2017 4:49 pm

Fantastic! I'll give it a go.

Thanks for the help, really appreciate it :)
