pi problems
-
- Posts: 26
- Joined: Wed Aug 09, 2017 5:00 am
- Has thanked: 5 times
- NarxElectronics
- Posts: 24
- Joined: Sat Aug 12, 2017 9:11 pm
- Has thanked: 17 times
- Been thanked: 23 times
Re: pi problems
The VCC under the ribbon connector is for testing 3.3V, and the VCC next to GND on the right of the board is for testing 5V.
My first mintyPi build: viewtopic.php?f=32&t=3767
My second mintyPi build: http://www.sudomod.com/forum/viewtopic.php?f=32&t=4203
My second mintyPi build: http://www.sudomod.com/forum/viewtopic.php?f=32&t=4203
- Lphillimore
- Posts: 993
- Joined: Sat Jan 07, 2017 7:03 pm
- Location: Perth, WA
- Has thanked: 796 times
- Been thanked: 527 times
Re: pi problems
As above! Dont even try to connect them
What issues are you having??
What issues are you having??
mintyPi Giveaway [CLOSED]:
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
-
- Posts: 26
- Joined: Wed Aug 09, 2017 5:00 am
- Has thanked: 5 times
- Helder
- Trailblazer
- Posts: 2985
- Joined: Thu May 05, 2016 8:33 am
- Location: Rogers, AR
- Has thanked: 1459 times
- Been thanked: 3114 times
Re: pi problems
Post pictures.
Chat with me and other members On Discord
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
-
- Posts: 26
- Joined: Wed Aug 09, 2017 5:00 am
- Has thanked: 5 times
- rodocop
- Posts: 1723
- Joined: Mon Aug 22, 2016 3:14 pm
- Location: Saskatchewan
- Has thanked: 606 times
- Been thanked: 608 times
Re: pi problems

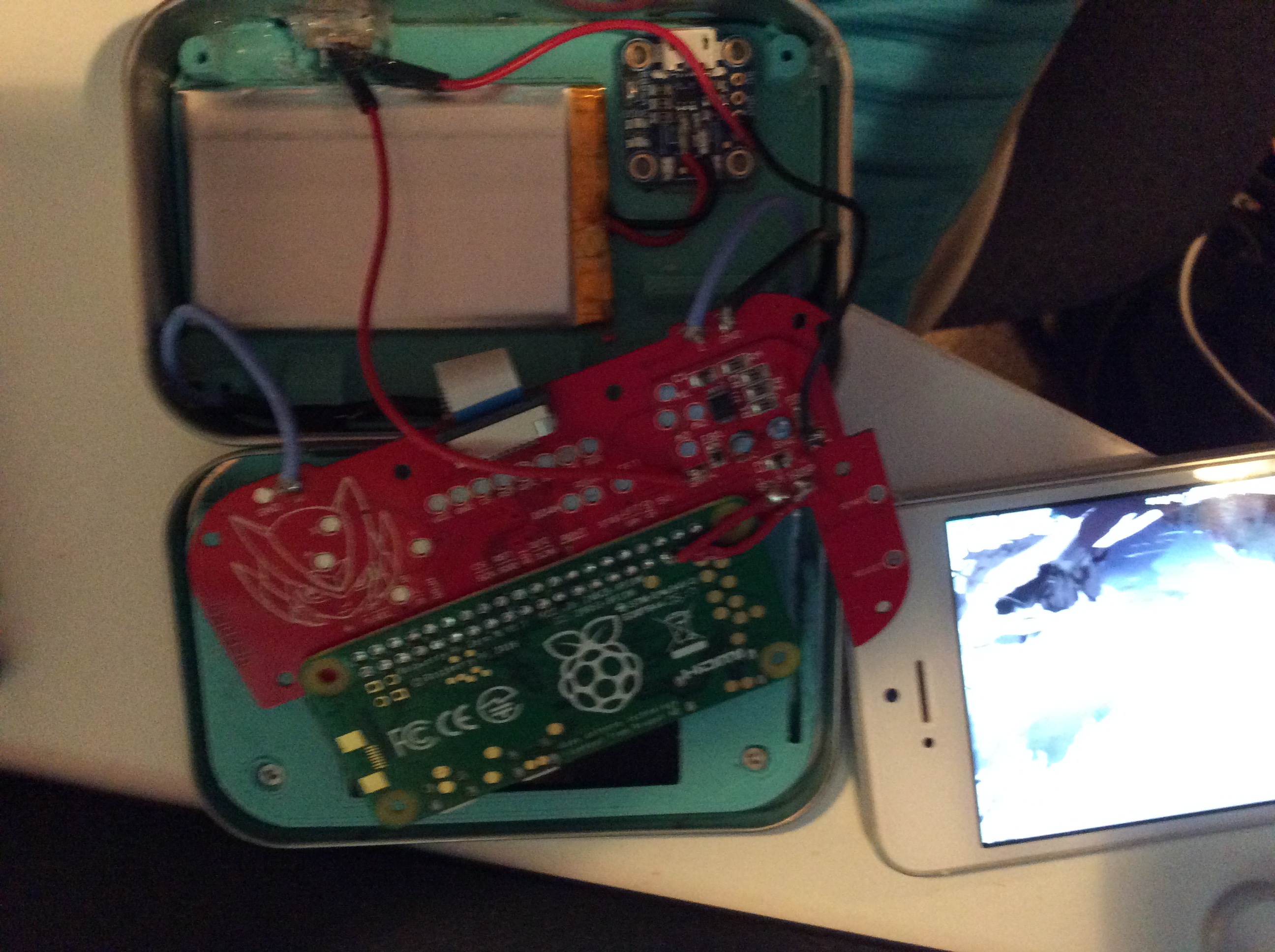

Hard to tell from the picture. Have you tested continuity between the GPIO pins and the corresponding test pads, I would start there. Likely an issue with bad continuity between the GND, 3.3v VCC and/or 5v VCC pads.
Does the pi actually power on? But the screen doesn't? Did the screen work before at some point? You could also check the screen ribbons connector connections. make sure things are seated properly.
Does the pi actually power on? But the screen doesn't? Did the screen work before at some point? You could also check the screen ribbons connector connections. make sure things are seated properly.
_____________________________________________________
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
- dryja123
- Posts: 1076
- Joined: Tue May 09, 2017 5:34 pm
- Location: Central NJ
- Has thanked: 239 times
- Been thanked: 553 times
Re: pi problems
I'm not seeing an SD card installed. Could be because the photo is blurry.
Guide for troubleshooting mintyPi power problems: http://www.sudomod.com/forum/viewtopic.php?f=34&t=4115
My mintyPi builds: http://www.sudomod.com/forum/viewtopic.php?f=32&t=3985
My mintyPi builds: http://www.sudomod.com/forum/viewtopic.php?f=32&t=3985
- rodocop
- Posts: 1723
- Joined: Mon Aug 22, 2016 3:14 pm
- Location: Saskatchewan
- Has thanked: 606 times
- Been thanked: 608 times
Re: pi problems
Definitely need an SD card with the proper image. And yeah, looks like there is not one inserted in the pic.
_____________________________________________________
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
-
- Posts: 26
- Joined: Wed Aug 09, 2017 5:00 am
- Has thanked: 5 times
