Battery monitor not showing

[toomanylegos]

I cannot get the battery monitor to work. My mintypi has the v2 button pcb (the blue one with the battery monitor circuit built in) and the v4 mintypi image.
Things I’ve already tried:

1.Toggle the monitor on/off using mode + A (duh)

2.Reflow solder on the gpio pins

Edit: I’m using the TP4056 charger and the Adafruit 1200 mAh battery

[rodocop]

Maybe burn a new image? That's what I would try first. Do you have any pics of the wiring?

Everything else works as it should?

[dryja123]

Please post a picture so we can see if you soldered the proper gpio, wermy didn't call out the proper gpio in his latest video.

Edit: I'm a dumbass, I was talking about the mode button above, not battery monitor

[wormwoody]

I also have this problem!

[toomanylegos]

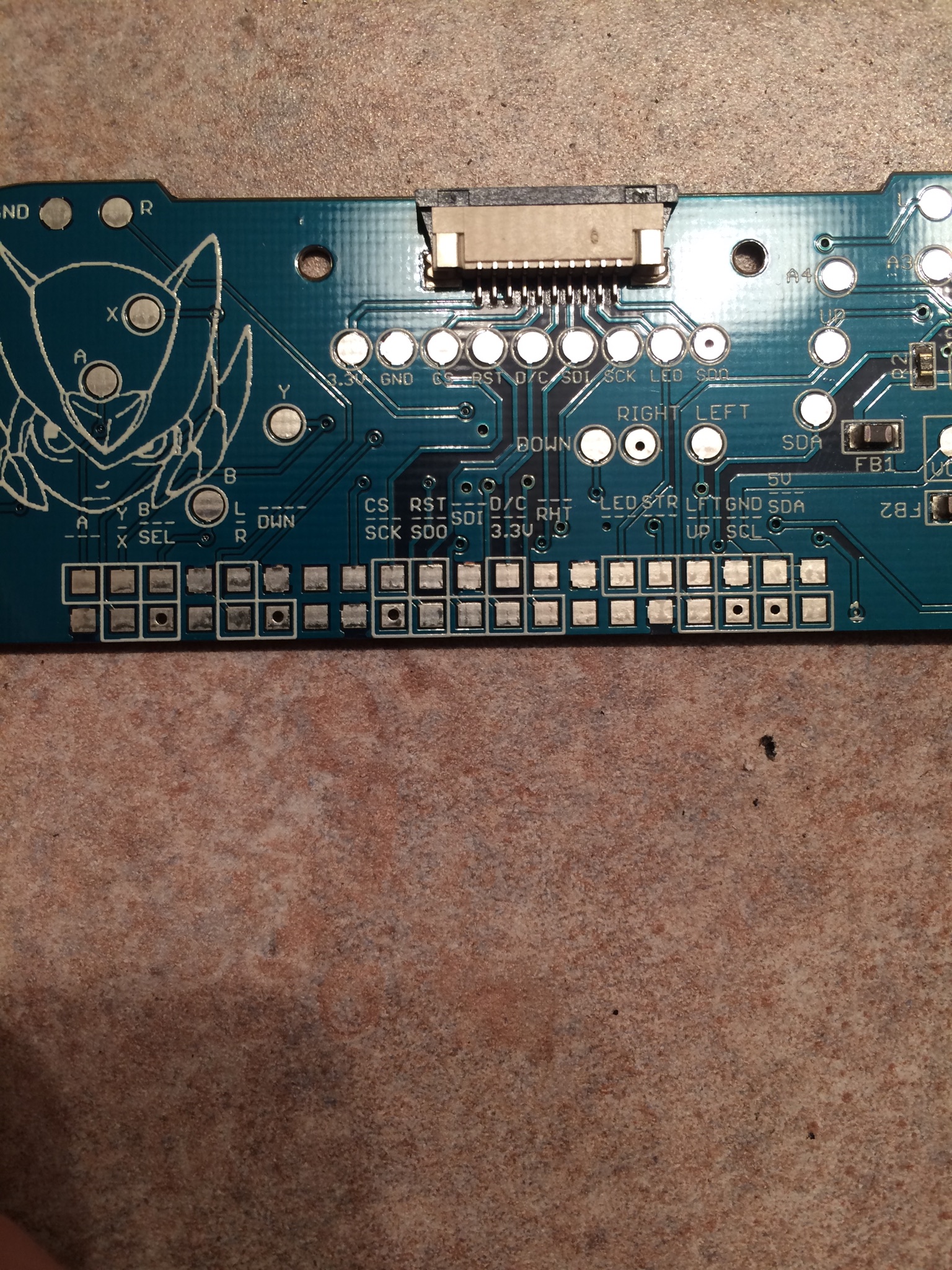

Here’s a pic I got:

SpoilerShow


Everything checks out with my multimeter’s continuity tester.

I forget to take a pic of my mode gpio but it’s the one to the left of the CS pin

[toomanylegos]


Just found this on my phone... I think I was supposed to solder the pin on the bottom row all the way to the right. I’ll try that and post results
Update: it did nothing

[salami738]

Why are you sure, that this is a hardware issue? Did you check the script, which Displays the overlay? This evening I will check the sources to point you to the right folder.

[Helder]

Also check continuity for the SDA and SCL to GND and possibly VCC since it's close by, you might have a short.
