Led Screen not working

Post by Yeebtz » Fri Jul 20, 2018 5:01 pm

I've connected raspberry pi to the mintypi control board and everything reads as connected, but when plugged into the screen and a power source the screen does not turn on or run the system. When I checked to make sure that the ribbon cable connected it properly I discovered that when any of the other pads are connected to the led pad, the screen turns on. I'm not sure what to do about this.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2237
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1161 times
Been thanked: 2799 times

Re: Led Screen not working

Post by Helder » Sat Jul 21, 2018 10:41 am

I don't quite understand what you're saying and maybe some pictures of the wiring will help us understand better.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

Yeebtz
Posts: 6
Joined: Fri Jul 20, 2018 4:48 pm

Re: Led Screen not working

Post by Yeebtz » Sat Jul 21, 2018 11:01 am

I included some photos below.

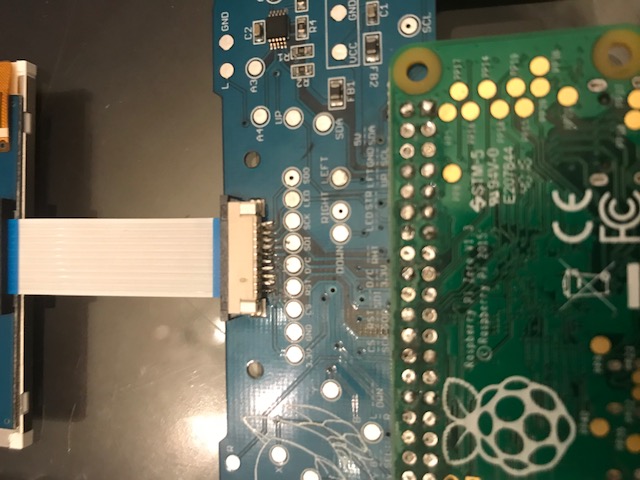

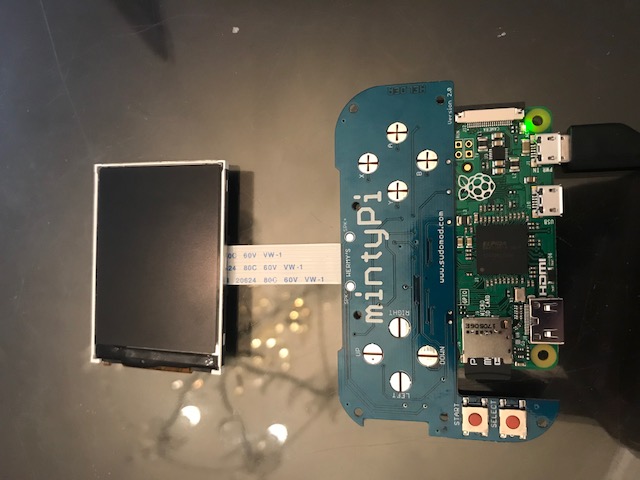

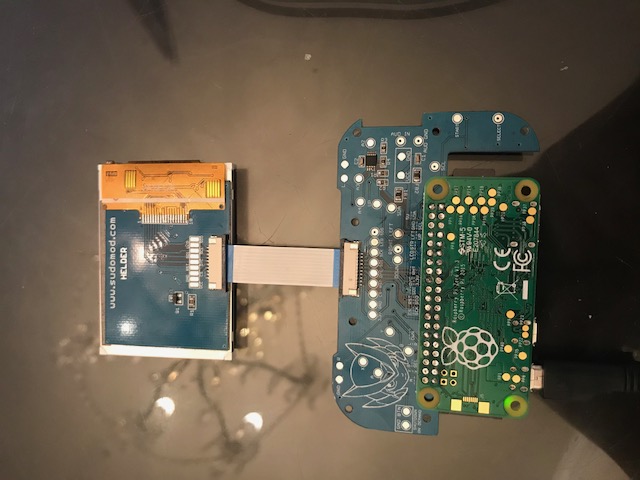

The first two photos are of the mintypi connected to power, but as you can see the screen is not working.

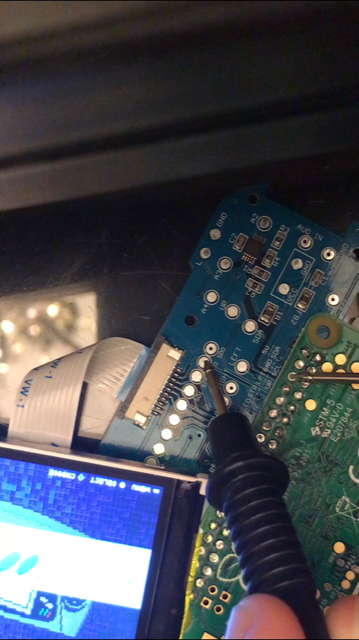

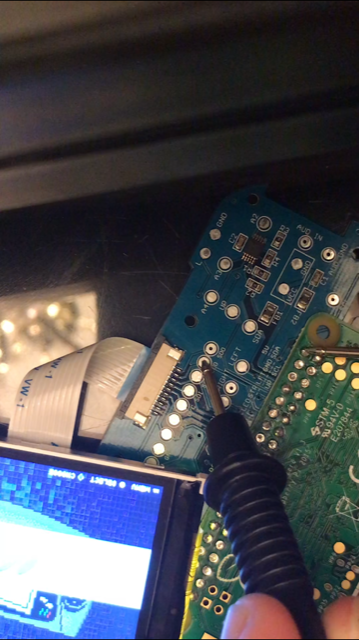

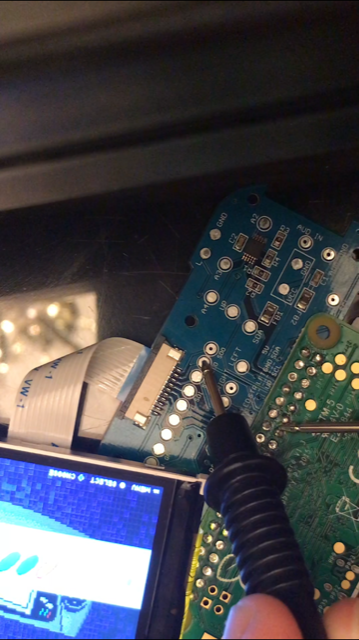

The next three are photos of what happens when I test the connections, as you can see when the LED pad is connected to any other pad the screen turns on.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2237
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1161 times
Been thanked: 2799 times

Re: Led Screen not working

Post by Helder » Sat Jul 21, 2018 11:22 am

Oh just add some more solder to the pins on the back of the lcd board and the main pcb.



just reflow those pins there labeled in the image, you can do continuity tests too using the points on the picture as well to be sure it's all having proper continuity.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

Yeebtz
Posts: 6
Joined: Fri Jul 20, 2018 4:48 pm

Re: Led Screen not working

Post by Yeebtz » Sat Jul 21, 2018 11:44 am

Great I’ll try that!!! Thanks!!!

Yeebtz
Posts: 6
Joined: Fri Jul 20, 2018 4:48 pm

Re: Led Screen not working

Post by Yeebtz » Sat Jul 21, 2018 12:38 pm

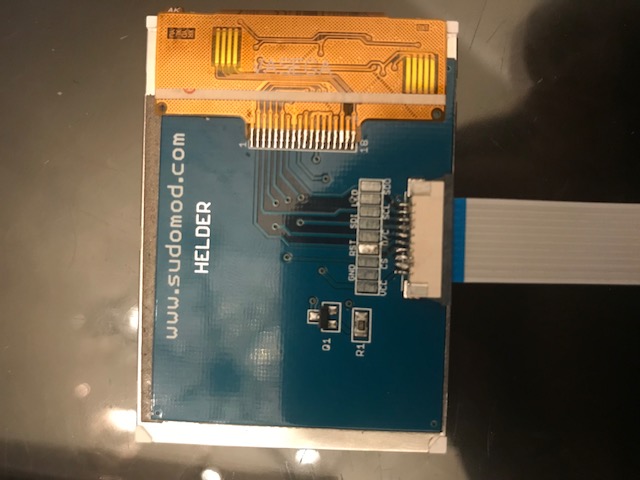

I added solder to the pins like you said to, but the screen is still not working. I included photos in case it did it wrong.
Attachments

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2237
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1161 times
Been thanked: 2799 times

Re: Led Screen not working

Post by Helder » Sat Jul 21, 2018 3:04 pm

Check continuity from the Pi GPIO pins to the LCD board pins, there must be something off.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

Yeebtz
Posts: 6
Joined: Fri Jul 20, 2018 4:48 pm

Re: Led Screen not working

Post by Yeebtz » Sat Jul 21, 2018 7:55 pm

I checked the continuity using the pads, and again touching the actual pins and it all said it had a connection.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2237
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1161 times
Been thanked: 2799 times

Re: Led Screen not working

Post by Helder » Sat Jul 21, 2018 8:41 pm

When the system is running try squeezing the gpio area where the LED GPIO is, if it's a bad connection there squeezing it will make a good connection momentarily while it's squeezed and point you in the right area to look at. Also check that 3.3v is soldered on properly (the GPIO) it might have a bad joint.
