BW 3.5" screen unclear (Uk version)

Post by arunBarnard » Fri Oct 28, 2016 9:52 am

Hi guys,

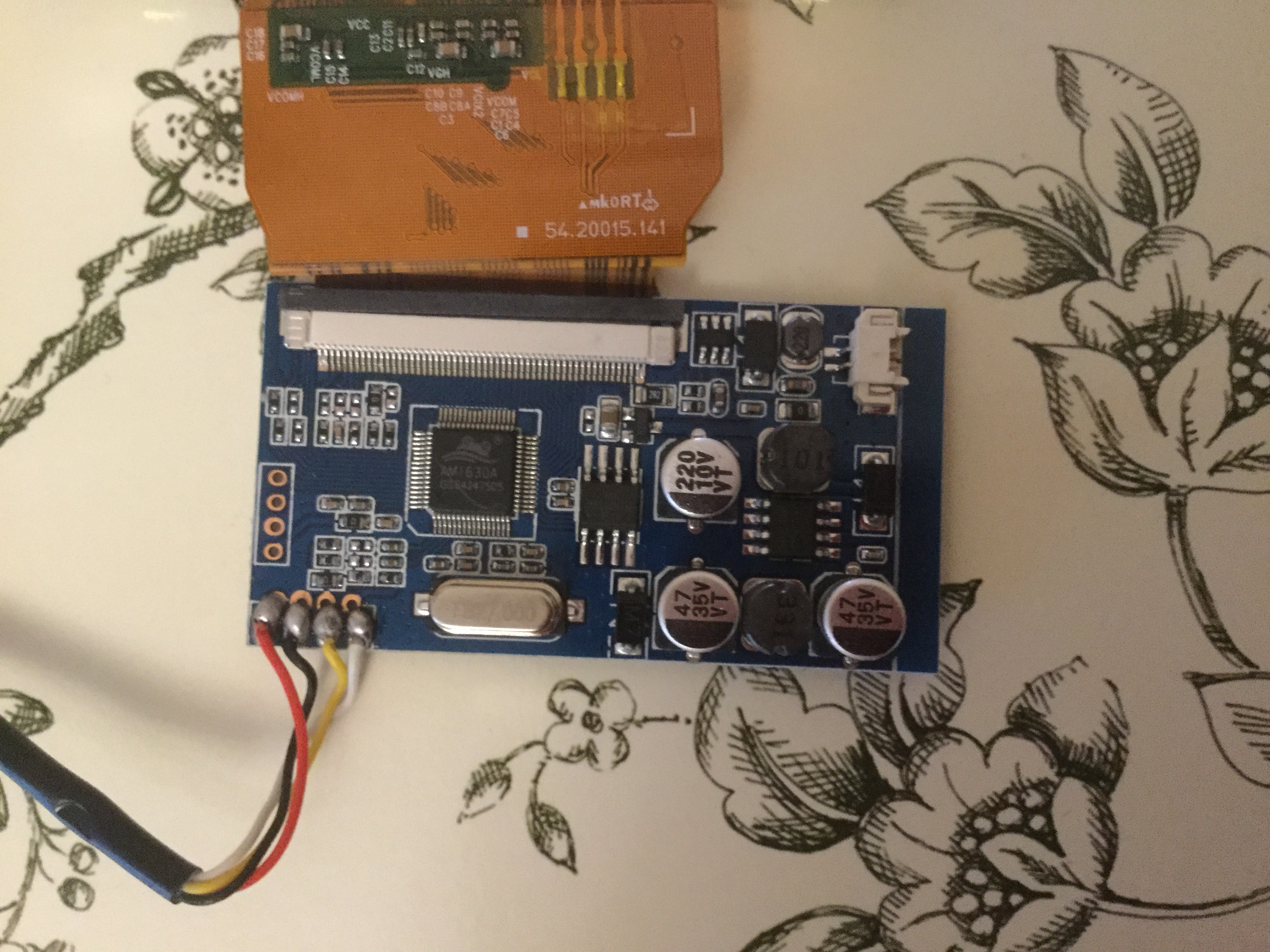

I have just bought the BW 3.5" screen from Amazon Uk and I have it running off 5 volts. I have connected 1 TV on the Pi pin to the av1 in.

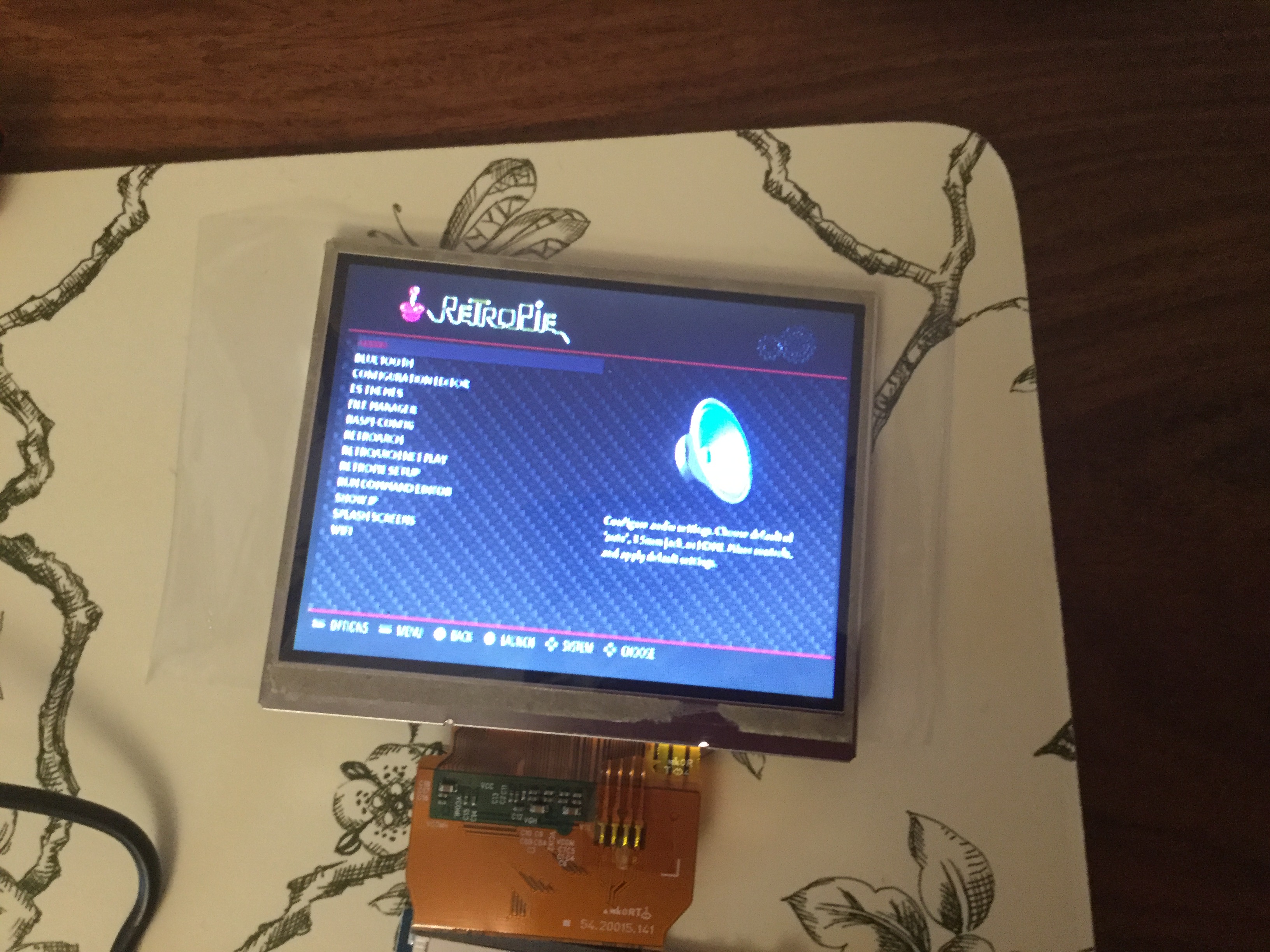

The photo attached isn't out of focus, that is how blurry the screen is. Also I get some flicker.

How to I make the screen clear and not flicker?
Top
Rolen47
Posts: 42
Joined: Sat Aug 13, 2016 8:41 pm
Has thanked: 2 times
Been thanked: 24 times

Re: BW 3.5" screen unclear (Uk version)

Post by Rolen47 » Fri Oct 28, 2016 10:39 am

Need to bypass the CHMC regulator with the 5v mod.
Top
Lpoolm
Posts: 392
Joined: Thu Jun 09, 2016 4:17 am
Location: uk
Has thanked: 76 times
Been thanked: 51 times

Re: BW 3.5" screen unclear (Uk version)

Post by Lpoolm » Fri Oct 28, 2016 5:15 pm

There are aloooot of threads about screen quality, to be honest even with changing font sizes etc I'm still not happy with the quality.
Changing the themes can help a little but it's not going to look pixel perfect!
I don't have links to the other threads sorry but just do a quick search on screen quality/fuzziness/blurry and you should find a few tips but as I said it doesn't get that much better! :(
Check out my modding and repair channel of retro and modern consoles:
https://www.youtube.com/channel/UCFz7yW ... GtQ/videos
Top
KaiKona808
Posts: 51
Joined: Sat Aug 06, 2016 6:30 am
Has thanked: 20 times
Been thanked: 14 times

Re: BW 3.5" screen unclear (Uk version)

Post by KaiKona808 » Fri Oct 28, 2016 8:36 pm

As Rolen47 stated you need to do the bypass mod. I have that screen and though it runs off 5v it runs clearer if you do the mod he linked.
Top
Justblair
Posts: 21
Joined: Wed Oct 05, 2016 7:48 am
Location: Glasgow, Scotland
Has thanked: 3 times
Been thanked: 5 times
Contact:
Contact Justblair

Re: BW 3.5" screen unclear (Uk version)

Post by Justblair » Sat Oct 29, 2016 11:14 am


Slightly different way to bypass from the wiki... A smidgen neater IMHO
Top
Brandonmel
Posts: 153
Joined: Wed Jan 18, 2017 1:08 pm
Has thanked: 13 times
Been thanked: 8 times

Re: BW 3.5" screen unclear (Uk version)

Post by Brandonmel » Tue Feb 21, 2017 7:43 pm

Hey how's it going ? I've run into the tame problems and I also have the same board as you do for your screen please dm if you found your solotuion thanks man !!
Top
Brandonmel
Posts: 153
Joined: Wed Jan 18, 2017 1:08 pm
Has thanked: 13 times
Been thanked: 8 times

Re: BW 3.5" screen unclear (Uk version)

Post by Brandonmel » Tue Feb 21, 2017 7:43 pm

Hey how's it going ? I've run into the tame problems and I also have the same board as you do for your screen please dm if you found your solotuion thanks man !!
Top
jermzz
Posts: 253
Joined: Sat Jun 18, 2016 7:40 pm
Has thanked: 43 times
Been thanked: 89 times

Re: BW 3.5" screen unclear (Uk version)

Post by jermzz » Wed Feb 22, 2017 12:35 am

240p just sux all around.
Top
Valadone
Posts: 53
Joined: Tue Feb 07, 2017 12:39 pm
Has thanked: 8 times
Been thanked: 5 times

Re: BW 3.5" screen unclear (Uk version)

Post by Valadone » Wed Feb 22, 2017 12:59 pm

I have the same screen, i wiring the 5V on a chip like on the variant 7 solution but we can't read anything on the screen i found...

I have another one, with a glassy screen and it's a bit better.
Top
