Hey all

so i got all my parts pew pew

and opened up my LCD screen to find out its a BW V10 i think?

wiki doesnt really help much ( as im a noob)

Please if someone could help me out , i think this is how it goes? but if its wrong let me know rather not wait another 4weeks for a new screen :O

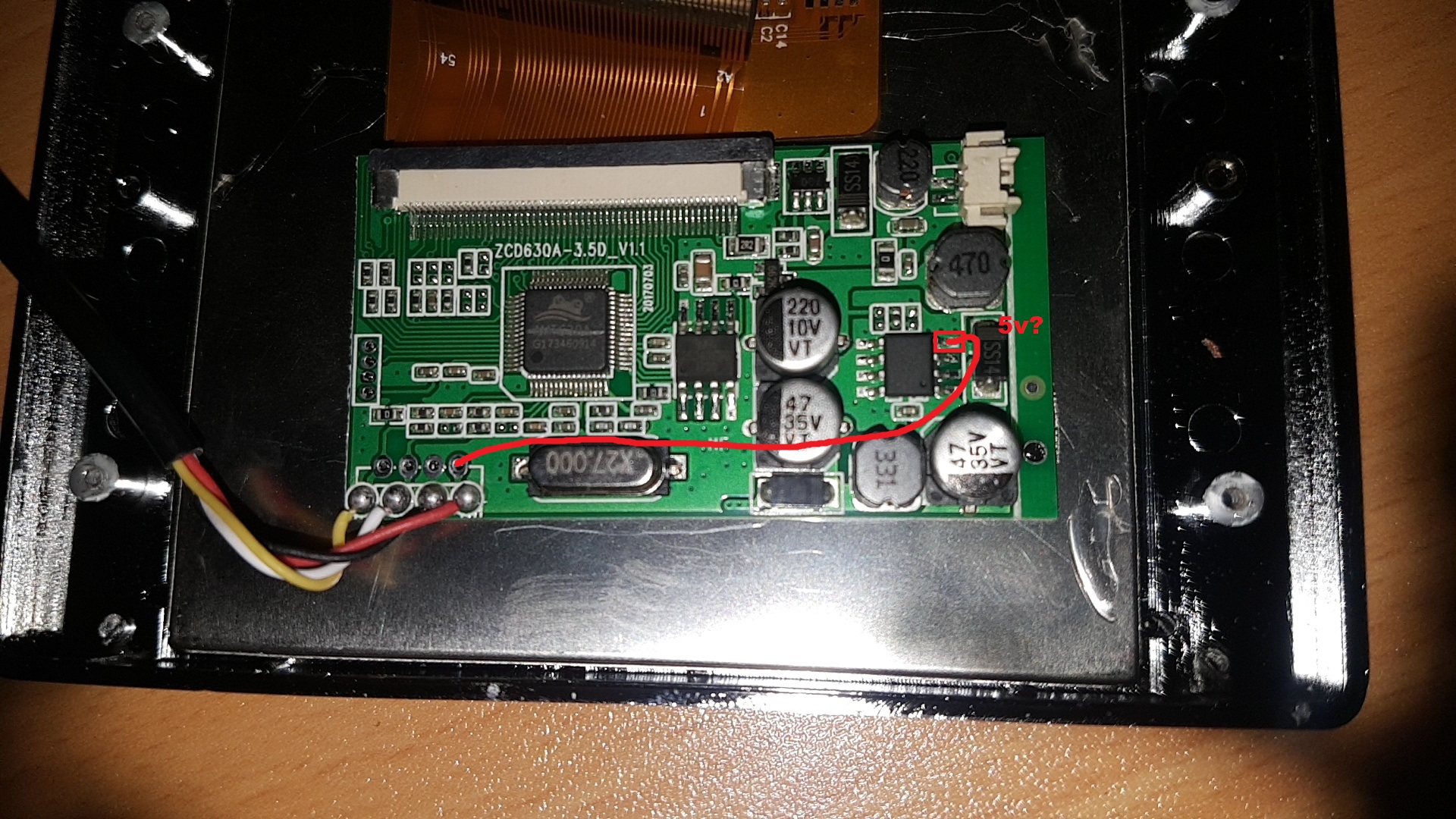

do i need to unsolder the 5v pin and lift it up? and then run a wire from it to 5v pin (like in my pic)

thanks! can not wait to have my GBZ finished xD

[gbhabby]

Connect this chip 1,2pin together and then wire to 5v.

[djarden]

Connect this chip 1,2pin together and then wire to 5v.

> 1-■-2 <--To 5v
3-■-4
5-■-6
7-■-8

Do the pins count like that?
And do they still need to be touching the board?
(Sorry very new to this)

Thanks

[iPuRe_SharKz]

Hi !

i would know if you're display turn on with this solder please, i don't understand why mine don't ... Thanks !

http://image.noelshack.com/fichiers/201 ... 2fc04.jpeg
http://image.noelshack.com/fichiers/201 ... 85648.jpeg
