Screen help for 5v

[Fleder]

(how do you hide an image in a spoiler?)

(spoiler="Spoiler Name")(img)http://www.url.net/image.png(/img)(/spoiler)
With [] instead of ()

[Mischief]

(how do you hide an image in a spoiler?)

(spoiler="Spoiler Name")(img)http://www.url.net/image.png(/img)(/spoiler)
With [] instead of ()

Thanks

[401Gaming]

Mine turned up today and I did the 5V mod and tested I get the fuzzy image the same as yours but I did open up the centre part of the loom and found that the black wire is a common ground for all 3 plugs.

[spoiler="image"][/spoiler]

I am planning on removing the IC [mention]Fleder[/mention] mentioned in the above post and will test it and see how that works.

Let me know how that works. If it makes the display look better I may do it too

[Mischief]

Let me know how that works. If it makes the display look better I may do it too

I removed the IC and the screen is no longer fuzzy was meant to post the day after I posted that here but my PC blew up had to wait for the new one to turn up then I just plain forgot

[zpnq]

Let me know how that works. If it makes the display look better I may do it too

I removed the IC and the screen is no longer fuzzy was meant to post the day after I posted that here but my PC blew up had to wait for the new one to turn up then I just plain forgot

How did you wire it up?

Would you mind posting a picture?

I tried to work it out myself but had no luck.

[Mischief]

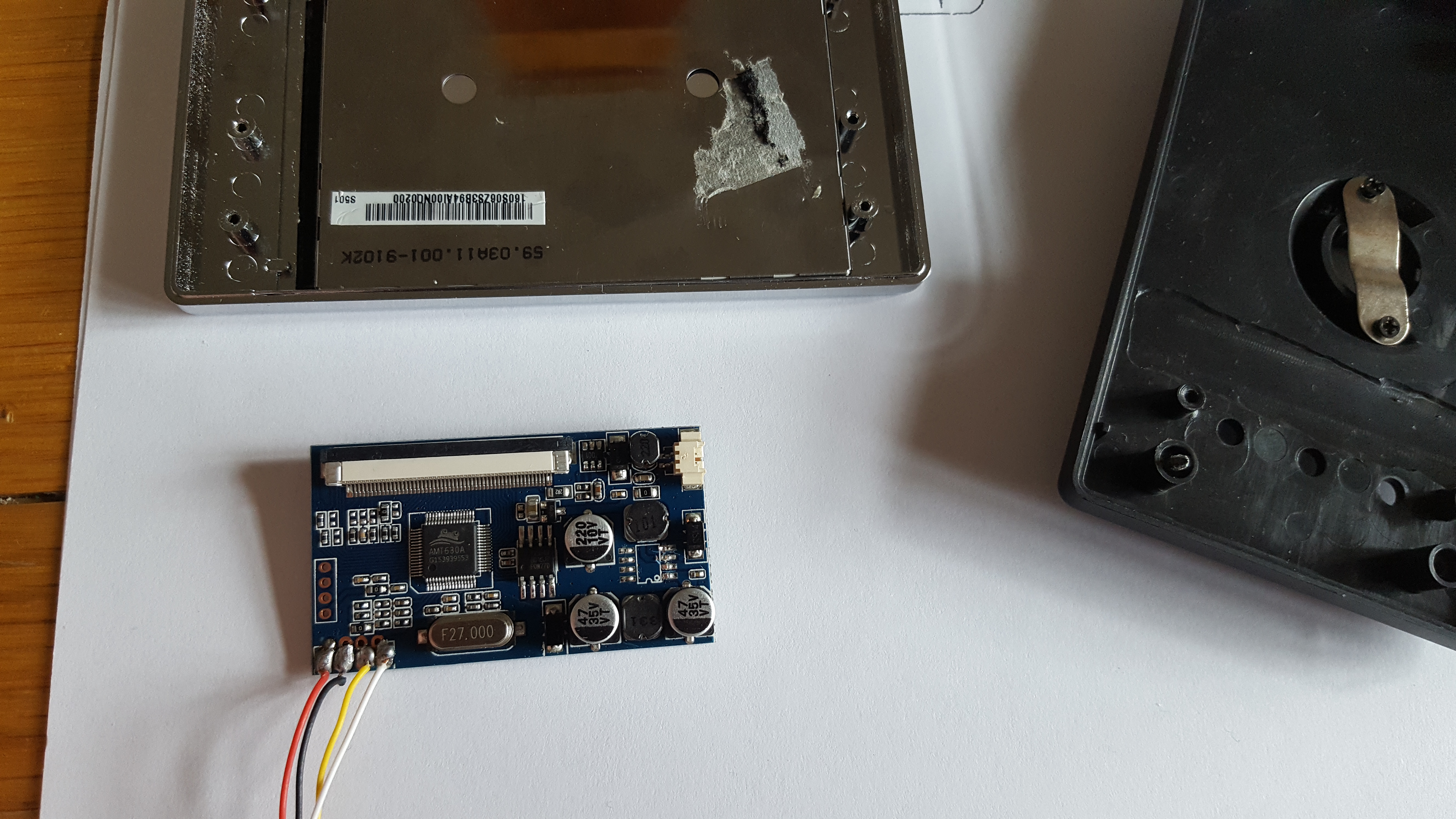

How did you wire it up?

Would you mind posting a picture?

I tried to work it out myself but had no luck.

[spoiler="image"]



[/spoiler]


Screen looks a little off in the pic but that's just my phone camera it looks much better in person.

[zpnq]

How did you wire it up?

Would you mind posting a picture?

I tried to work it out myself but had no luck.

Screen looks a little off in the pic but that's just my phone camera it looks much better in person.

Oh wow, pretty simple, and you didn't even use the white. Nice job.

Little tip I just found with this screen. Be careful with the placement of the extra two button holes. The bezel is quite large at the bottom, when I went to mount the screen the bezel went into the button hole space. I had to extend the screen hole in the case at the top to compensate.

[Mischief]

Cheers for the tip, the above wiring is the way I did it following wermy's and similar guides may not be the right way but it worked for me.

[Psy128]

Remove the regulator ic completely it works a lot better. My screen used to just flicker a lot good tip is used a really sharp knife and cut the legs on it sometimes itso tricky to desolder it
