Full VGA resolution (640x480) 3.5" display, composite in

[username 123]

Any one tried a HDMI to VGA adapter with this screen for a better looking picture?

[Ganreizu]

Any one tried a HDMI to VGA adapter with this screen for a better looking picture?

Wouldn't get the HDMI port to play on TVs though. :[

[jeffy1021]

I finally got around to testing my ebay WankedaStore screen and it works.

Did you need to adjust any of the config.text settings to get a better picture? It still seems a little blurry and the image is not to the edge of the screen which I assume is overscan settings.

Also, did you have to desolder the terminals to get the controller board to fit in the case?

[Ganreizu]

Did you need to adjust any of the config.text settings to get a better picture? It still seems a little blurry and the image is not to the edge of the screen which I assume is overscan settings.

Also, did you have to desolder the terminals to get the controller board to fit in the case?

Nothing i did seemed to improve picture quality on the retropie menu. Just set overscan and you're good.

Yes you need to desolder all the terminals to get it to fit into the case. Make sure you use the button board to flip the screen upside down before you desolder it. That way you'll have a hassle free HDMI connection.

[dirtybeagles]

Hey Cannikin. I noticed in your screen picture that the left side of your screen black board is a little to wide. I have the same issue because one side of the VGA screen is a little longer than the other side.

Looks like I adjusted it enough. I guess I was not using high enough numbers so I did not notice. Sense our screens are upside down, this was my configuration:

Code: Select all

overscan_left=-0
overscan_right=25
overscan_top=0
overscan_bottom=25

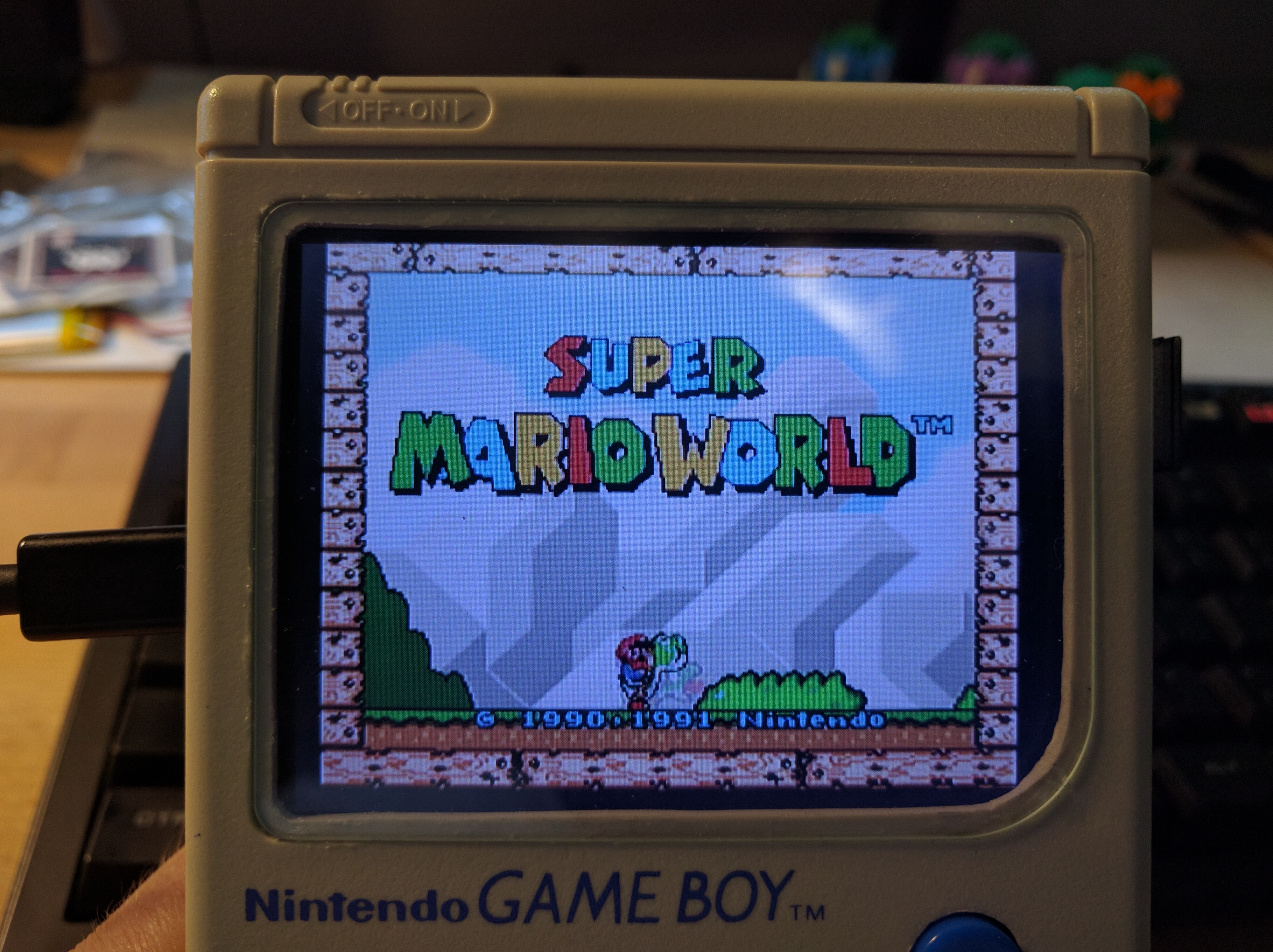

[spoiler="Result"]


[/spoiler]

[username 123]

Because it's a composite video signal, you will never get a great picture and I'm sure there is some EMI stuff going on.

[sabrettep]

I'm waiting on my ebay VGA screen. Can't wait to get it

[sabrettep]

Step Two - Screen is in.jpeg (615.98 KiB) Viewed 12239 times

The screen is in I will solder it tonight!

[Daniel_N]

Which one is it? do you have a link?

[sabrettep]

Which one is it? do you have a link?

http://www.ebay.nl/itm/182101827933?_tr ... EBIDX%3AIT
Just send them an offer, I paid €67 shipped and I got it in two weeks (to the Netherlands)
