How to wire LED's to Banggood Power Boost ? ? ?

RetroGamingNow · Post by **RetroGamingNow** » Mon Oct 24, 2016 11:18 am

Okay, so I am using the banggood powerboost and I want to add the LED's so that they are visible. My question is how do you wire them exactly? Mounting the LED's = no problem, however which LED's get wired to where on the banggood board? It looks like there are 3 open spots but no documentation that I can find indicating which spot is for what purpose. ANy advice would be great.

The goal is to stash the power supply internally and run wires to 3 leds mounted somewhere on the shell to indicate, charging, fully charged and power on.

Thanks in advance!

arunBarnard · Post by **arunBarnard** » Mon Oct 24, 2016 11:29 am

Please could you post a link to the product page of where you got it from?

RetroGamingNow · Post by **RetroGamingNow** » Mon Oct 24, 2016 11:40 am

arunBarnard wrote:Please could you post a link to the product page of where you got it from?

http://sudomod.com/wiki/index.php?title ... 34273a.jpg

rodocop · Post by **rodocop** » Mon Oct 24, 2016 11:42 am

This is the banggood powerboost:

http://www.banggood.com/37V-Liion-Batte ... mds=search

I was actually looking at mine last night and was wondering about LED's too, since the stock LED is teeny and not easy to see. I would also appreciate to learn any info on this.

BadBert · Post by **BadBert** » Tue Oct 25, 2016 7:46 am

is it not possible to solder off the original leds, and extend them with some wires?

my gbz is completed, but i miss the feedback of the powerboost (if it is turned on, charging, full, etc)

RetroGamingNow · Post by **RetroGamingNow** » Tue Oct 25, 2016 12:28 pm

BadBert wrote:is it not possible to solder off the original leds, and extend them with some wires?

my gbz is completed, but i miss the feedback of the powerboost (if it is turned on, charging, full, etc)

not sure - they are so small its tough but there are open spots which appear to be for LEDs but i am not sure about what one is what etc..

Psy128 · Post by **Psy128** » Tue Oct 25, 2016 12:57 pm

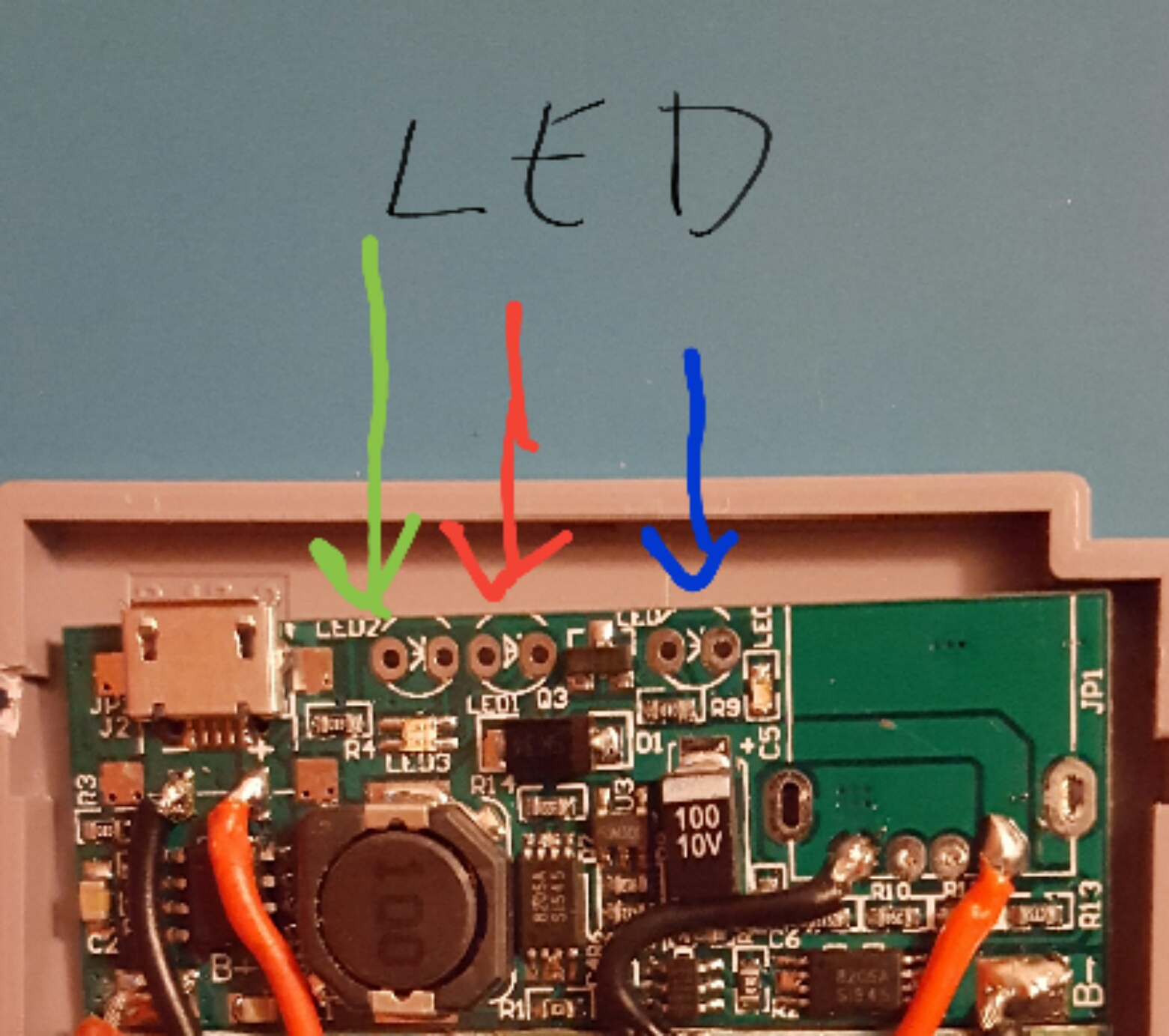

From my old notes this is the order the led row go's.
Red led charging
Green led charged
Blue led load in usb

BadBert · Post by **BadBert** » Wed Oct 26, 2016 12:25 am

cool! thanks!

it won't be to hard to solder some leds to that...

now to get my hands on some small leds

rodocop · Post by **rodocop** » Wed Nov 02, 2016 2:55 pm

So would you just wire the LED's directly to the board? Or do you need to have any resistors etc...I don't know much about wiring LED's.

Psy128 · Post by **Psy128** » Wed Nov 02, 2016 6:11 pm

I would put a resister on before the led saves it burning out in the long run
