Hi Folks,
I ordered stuff for my GBZ project and I received the first parts, now I have a few questions which were not answered anywhere on this forum (atleast I have not found anything concerning my questions though I looked, dumb me).
I started desoldering the Gameboy Speaker from a broken GameBoy. That was quite easy, but I wonder what temperature is the right to solder and desolder parts. I am very afraid to break stuff and my soldering tool can go up to 500 degrees celsius. What is the perfect temperature for soldering and desoldering?
Is it possible that i broke the speaker because I used too much heat?
I went with like 300 degrees. Good/ Bad?
I also used 300 degrees for soldering, followed some online youtube guides went amazingly easy (I randomly soldered and desoldered cables to broken hardware to get a hang of it).
I have not found a good crimp tool for very thin cables. How do you guys cut cables?
Thanks in advance.
best regards, Toni
Newbie questions concerning soldering and cables.
- fernandinho1337
- Posts: 37
- Joined: Sat Nov 12, 2016 2:07 pm
- Location: Germany
- Has thanked: 13 times
- Been thanked: 5 times
Re: Newbie questions concerning soldering and cables.
hey, i think 300 degrees should be fine, i typically solder at a little higher temp because i am impatient haha
im not really an expert though, i think it depends on the solder you use. i use the lead based stuff
im not really an expert though, i think it depends on the solder you use. i use the lead based stuff
- Helder
- Trailblazer
- Posts: 2985
- Joined: Thu May 05, 2016 8:33 am
- Location: Rogers, AR
- Has thanked: 1459 times
- Been thanked: 3114 times
Re: Newbie questions concerning soldering and cables.
Depending on the Soldering Station I stay between 280-300, anything higher can damage traces and vias if you keep the heat on there too long. I've seen some bad solder jobs with my boards where people burned off an entire pad more than likely bad soldering iron and excessive heat and no soldering skills but the heat can be bad if held in one spot for too long.
Chat with me and other members On Discord
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Re: Newbie questions concerning soldering and cables.
Celsius 300 ° ?
Deadpool: No XP? What a ripoff!
- Helder
- Trailblazer
- Posts: 2985
- Joined: Thu May 05, 2016 8:33 am
- Location: Rogers, AR
- Has thanked: 1459 times
- Been thanked: 3114 times
Re: Newbie questions concerning soldering and cables.
Yes as most units are in Celsius to begin with and take a look at the 898d+ hot air rework station for something decent and affordable.Ra9e wrote:Celsius 300 ° ?
Chat with me and other members On Discord
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Re: Newbie questions concerning soldering and cables.
One question

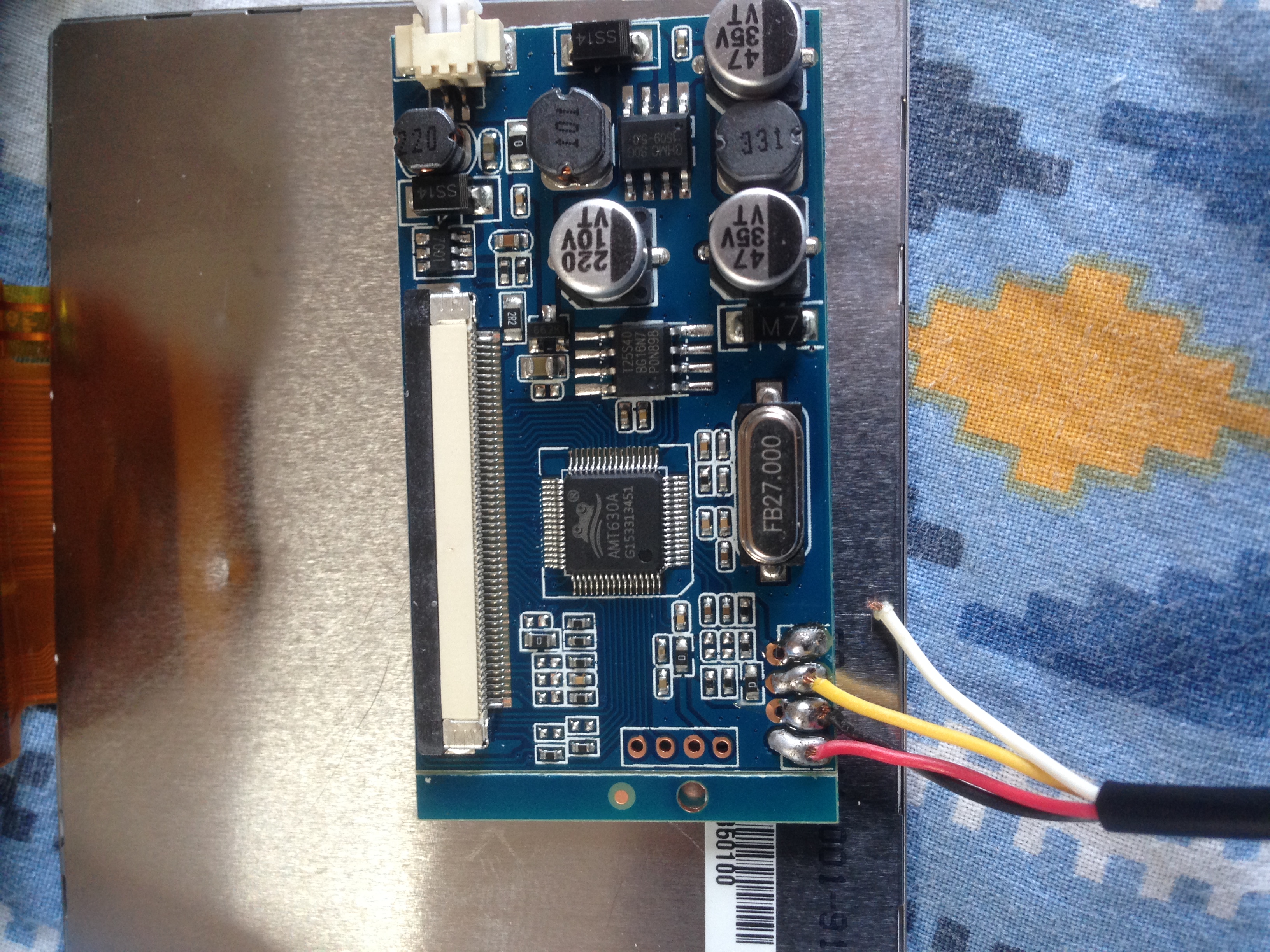

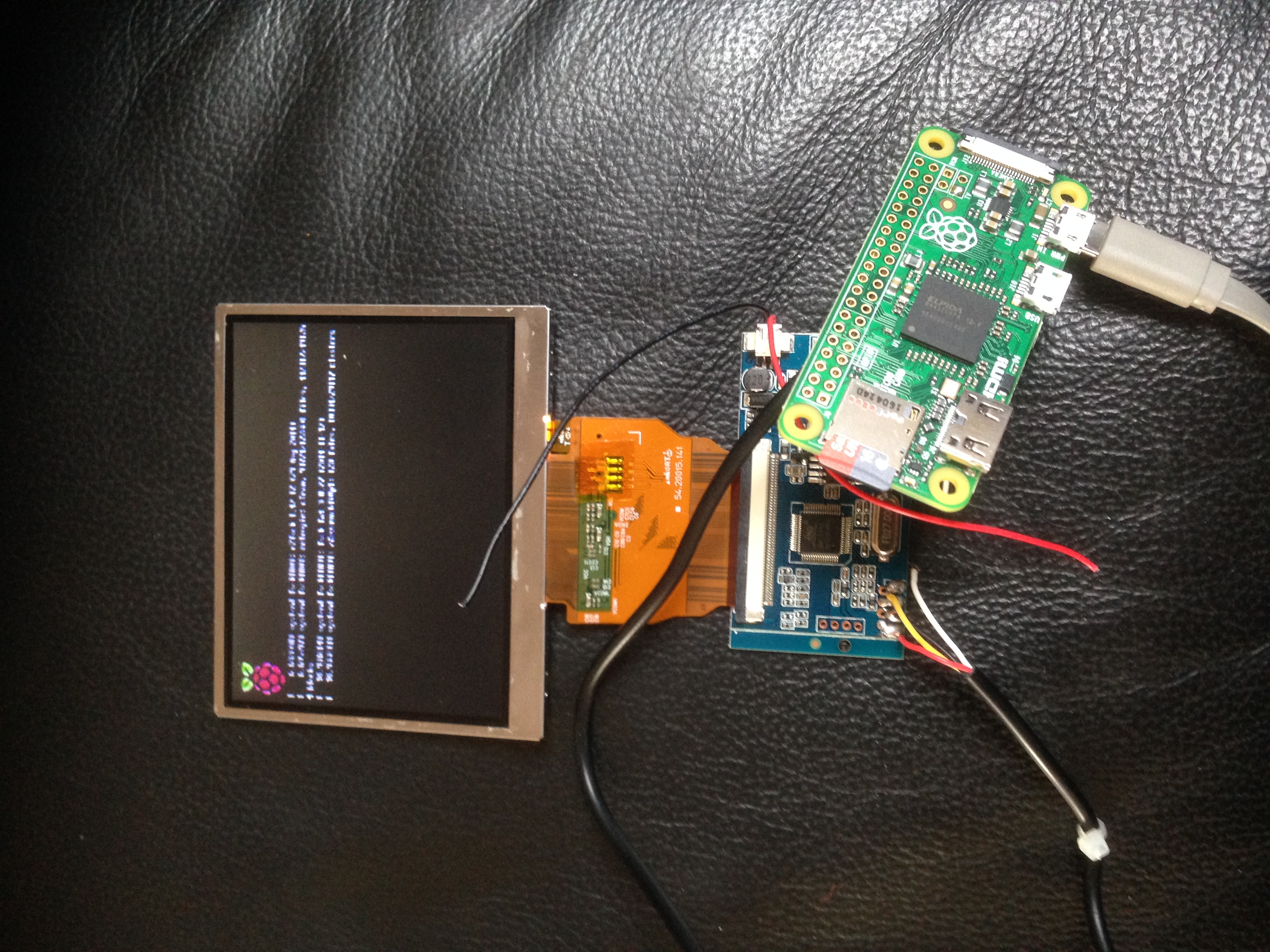

The display works on Network and Pi Zero.
the question is can i put it in without changes ? for bettery using ?
The display works on Network and Pi Zero.
the question is can i put it in without changes ? for bettery using ?
- Attachments
-
- IMG_2146.JPG (2.47 MiB) Viewed 7667 times
-
- IMG_2145.JPG (2.73 MiB) Viewed 7667 times
Deadpool: No XP? What a ripoff!
- Fleder
- Posts: 849
- Joined: Thu May 05, 2016 9:04 am
- Location: Germany
- Has thanked: 183 times
- Been thanked: 258 times
Re: Newbie questions concerning soldering and cables.
Just try it out. Hook it up to 5volts and see if it turns on.Ra9e wrote:the question is can i put it in without changes ? for bettery using ?
