Screen help for 5v

Post by 401Gaming » Thu Jun 16, 2016 3:26 am

So I just picked up this screen off of eBay and need help wiring it up for 5v. Has anyone else used this screen? What needs to be done

User avatar
Fleder
Posts: 849
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 183 times
Been thanked: 258 times

Re: Screen help for 5v

Post by Fleder » Thu Jun 16, 2016 3:53 am

A better picture of the board would be helpful.

I can't tell for sure but is looks like this one:
http://sudomod.com/wiki/index.php?title ... te_Display
We have a wiki, where you can read about those things.

To be sure you would have to post a better picture of the display board.

401Gaming
Posts: 20
Joined: Mon May 23, 2016 3:50 am
Has thanked: 2 times

Re: Screen help for 5v

Post by 401Gaming » Thu Jun 16, 2016 5:21 am

Fleder wrote:A better picture of the board would be helpful.

I can't tell for sure but is looks like this one:
http://sudomod.com/wiki/index.php?title ... te_Display
We have a wiki, where you can read about those things.

To be sure you would have to post a better picture of the display board.
It is slightly different than that one. I checked the wiki first to be sure. I'll snap a picture of mine when I get home for work today and post it so you guys can get a better look

401Gaming
Posts: 20
Joined: Mon May 23, 2016 3:50 am
Has thanked: 2 times

Re: Screen help for 5v

Post by 401Gaming » Thu Jun 16, 2016 4:18 pm

Fleder wrote:A better picture of the board would be helpful.

I can't tell for sure but is looks like this one:
http://sudomod.com/wiki/index.php?title ... te_Display
We have a wiki, where you can read about those things.

To be sure you would have to post a better picture of the display board.

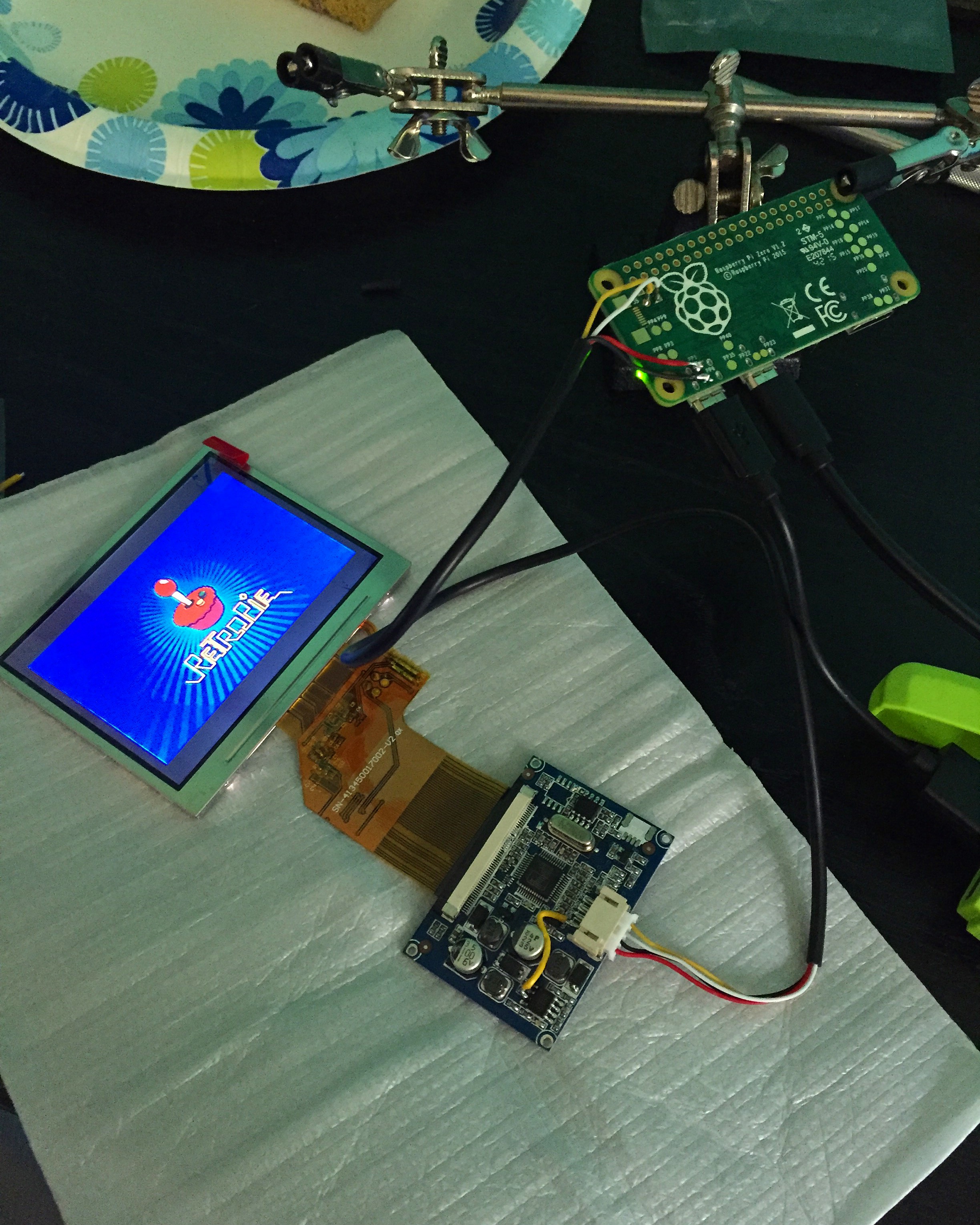

Ok so I got home and tinkered with it a little and got it running off 5v. But there seems to be some noise in the display and some words are tough to make out. Is this error on my part? Or just the screen itself

Robvp
Posts: 81
Joined: Mon May 09, 2016 10:53 am
Has thanked: 1 time
Been thanked: 2 times

Re: Screen help for 5v

Post by Robvp » Thu Jun 16, 2016 11:06 pm

I think the "noise" is normal, the screen res is 320x240, mine looks similar

User avatar
Fleder
Posts: 849
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 183 times
Been thanked: 258 times

Re: Screen help for 5v

Post by Fleder » Fri Jun 17, 2016 1:08 am

The noise could be a side effect of the 5v.
Either it really needs more or you have to desolder a IC to make it better. But yes, it could also be the display.

If you want to tinker a bit more, desolder the IC you just soldered the wire onto.
But be careful, so you might be able to reattach it, if it does not work.
This COULD get rid of the "noise".

The bad resolution, well, it's 320x240 px. No surprise the words are not that easy to read.

zpnq
Posts: 4
Joined: Fri Jun 17, 2016 7:07 am
Has thanked: 2 times
Been thanked: 1 time

Re: Screen help for 5v

Post by zpnq » Sat Jun 18, 2016 2:44 am

Hello,

What makes you suggest removing the IC it is connected to?

I have this monitor and may try what you suggest with a little more explanation.

Regards.

User avatar
FreddySalted
Posts: 26
Joined: Sat Jun 18, 2016 2:09 pm
Location: West Country, UK
Has thanked: 3 times
Been thanked: 15 times

Re: Screen help for 5v

Post by FreddySalted » Sat Jun 18, 2016 2:22 pm

401Gaming wrote: Ok so I got home and tinkered with it a little and got it running off 5v. But there seems to be some noise in the display and some words are tough to make out. Is this error on my part? Or just the screen itself

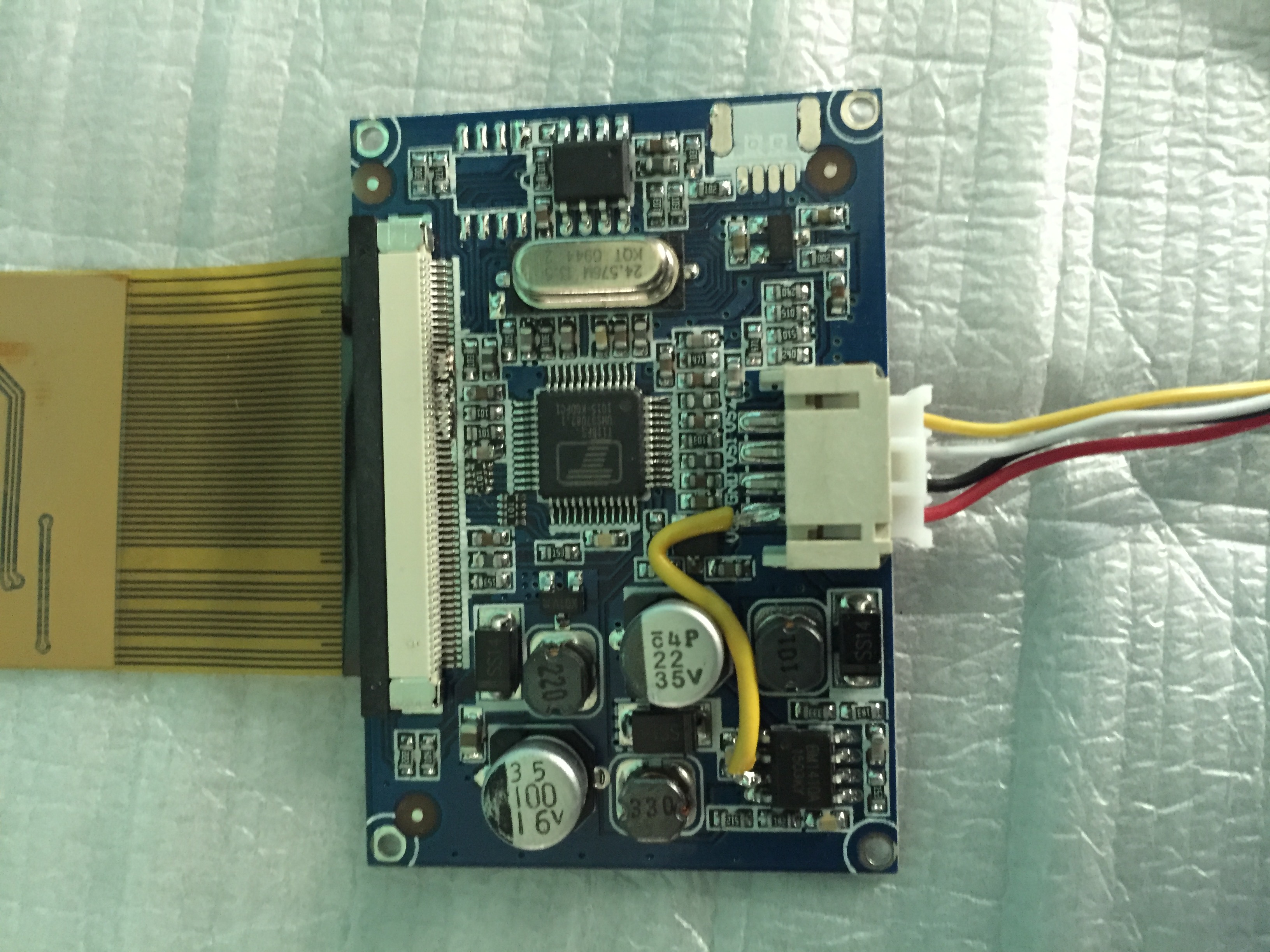

I've got the same screen, Try cutting the Yellow wire, it looks like you've doubled up the video input and wired the second one (Yellow) directly to ground. If that doesn't work try swapping the yellow wire to the white wires location on the RPi

The white PCB connector shares a common ground between all the plugs and i'm guessing that the white and yellow jacks are for 2 separate video signals

User avatar
Mischief
Posts: 225
Joined: Sat May 21, 2016 7:50 am
Location: Wolverhampton, UK
Has thanked: 29 times
Been thanked: 69 times

Re: Screen help for 5v

Post by Mischief » Sun Jun 19, 2016 7:44 am

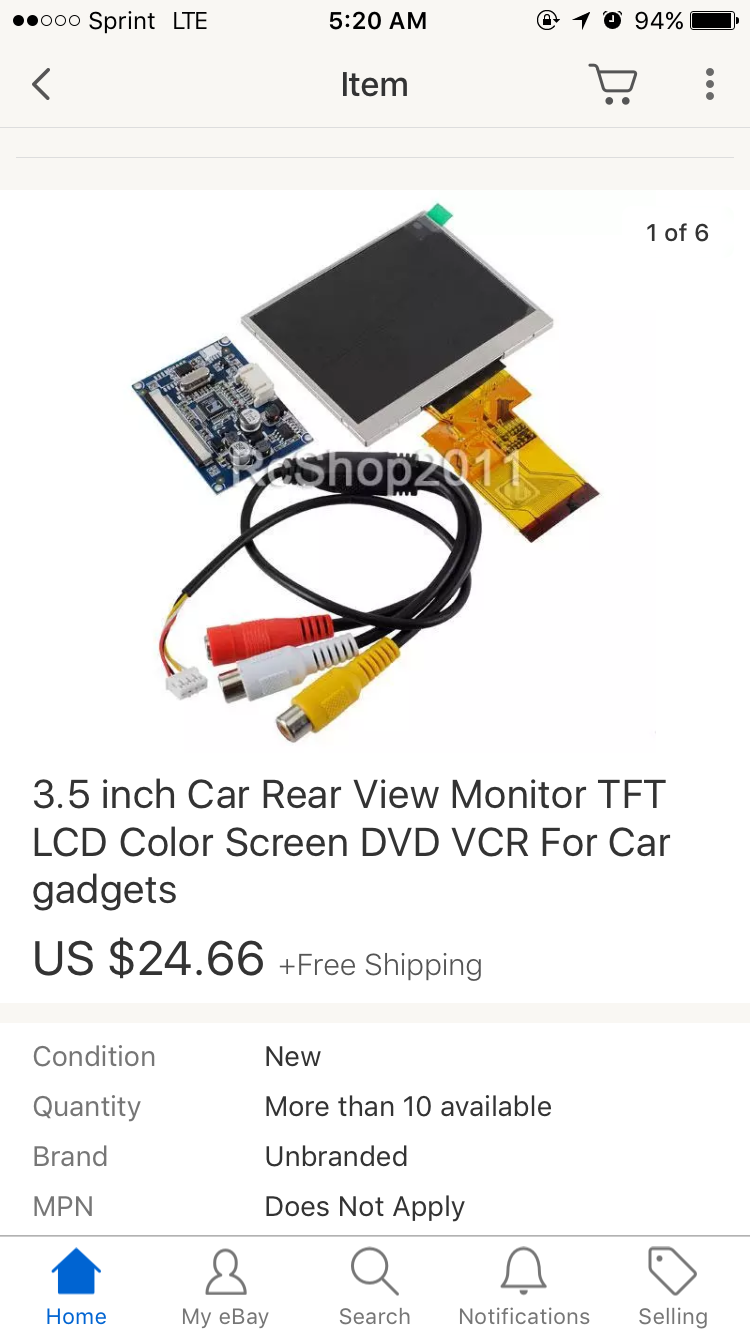

I have purchased the same one http://r.ebay.com/3K0mtn I assumed the white and yellow wires were separate inputs so the ground of the video signal had to be put on the ground (black) wire?

I may be completely wrong but at least I now know it needs modding for 5V :D

User avatar
Mischief
Posts: 225
Joined: Sat May 21, 2016 7:50 am
Location: Wolverhampton, UK
Has thanked: 29 times
Been thanked: 69 times

Re: Screen help for 5v

Post by Mischief » Mon Jun 20, 2016 5:37 am

Mine turned up today and I did the 5V mod and tested I get the fuzzy image the same as yours but I did open up the centre part of the loom and found that the black wire is a common ground for all 3 plugs.

[spoiler="image"]Image[/spoiler]

I am planning on removing the IC [mention]Fleder[/mention] mentioned in the above post and will test it and see how that works.
