anyone ever try installing backbuttons in the battery door?

General GBZ-related chat goes here. Share ideas, tips and tricks, or ask questions that don't fit into the hardware/software help forums.
Post Reply
rumblepen
Posts: 21
Joined: Sat Dec 22, 2018 10:38 am
Has thanked: 4 times
Been thanked: 3 times

anyone ever try installing backbuttons in the battery door?

Post by rumblepen » Thu Mar 21, 2019 4:04 am

the middle of the battery door is the only comfortable place for backbuttons for me. I'm thinking some low profile silicon buttons, if anyone has any good candidates please let me know.

User avatar
VeteranGamer
Posts: 1714
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 501 times
Been thanked: 888 times

Re: anyone ever try installing backbuttons in the battery door?

Post by VeteranGamer » Thu Mar 21, 2019 4:26 am

rumblepen wrote:
Thu Mar 21, 2019 4:04 am
the middle of the battery door is the only comfortable place for backbuttons for me. I'm thinking some low profile silicon buttons, if anyone has any good candidates please let me know.
there have been a lot of different styles to the back buttons....

if you look through or search the Show-off section (there is a search function as well)

you'll see what other members have done....
(there are several)





.

rumblepen
Posts: 21
Joined: Sat Dec 22, 2018 10:38 am
Has thanked: 4 times
Been thanked: 3 times

Re: anyone ever try installing backbuttons in the battery door?

Post by rumblepen » Thu Mar 21, 2019 5:05 am

all I found there are these weird concave battery doors with buttons that leave no room for a battery in the compartment.

I'm gonna try to affix a gb pocket or advance start/select button to the door and still fit a dextech battery in there. I just hope the buttons will make contact with that easy_buttons pcb from kitsch bent

User avatar
DieselDummy
Posts: 193
Joined: Tue Oct 24, 2017 12:20 pm
Location: Florida, USA
Has thanked: 79 times
Been thanked: 91 times

Re: anyone ever try installing backbuttons in the battery door?

Post by DieselDummy » Thu Mar 21, 2019 6:09 am

I have. Currently trying to find time to get everything in order to make it available to the public....and with more options. Check the link in my signature if you'd like to see, perhaps even for some ideas.

rumblepen
Posts: 21
Joined: Sat Dec 22, 2018 10:38 am
Has thanked: 4 times
Been thanked: 3 times

Re: anyone ever try installing backbuttons in the battery door?

Post by rumblepen » Thu Mar 21, 2019 9:16 am

thanks, but what I have in mind is a bit different. I'm gonna try to affix one of these https://store.kitsch-bent.com/product/easy_buttons with some teeny tiny plastic screw posts and use a gba start/select or maybe seperate a regular gameboy start/select and orient them horizontally. I need to get the battery and everything else together to see if it'll work.

User avatar
DieselDummy
Posts: 193
Joined: Tue Oct 24, 2017 12:20 pm
Location: Florida, USA
Has thanked: 79 times
Been thanked: 91 times

Re: anyone ever try installing backbuttons in the battery door?

Post by DieselDummy » Thu Mar 21, 2019 11:05 am

Good luck and let us know how it goes, maybe you will inspire some more people

rumblepen
Posts: 21
Joined: Sat Dec 22, 2018 10:38 am
Has thanked: 4 times
Been thanked: 3 times

Re: anyone ever try installing backbuttons in the battery door?

Post by rumblepen » Sat Mar 23, 2019 12:42 pm

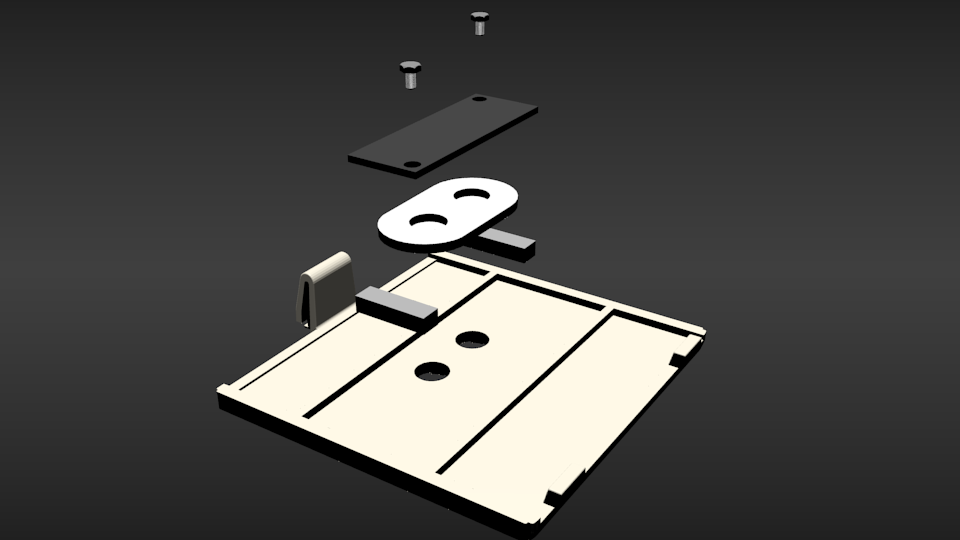

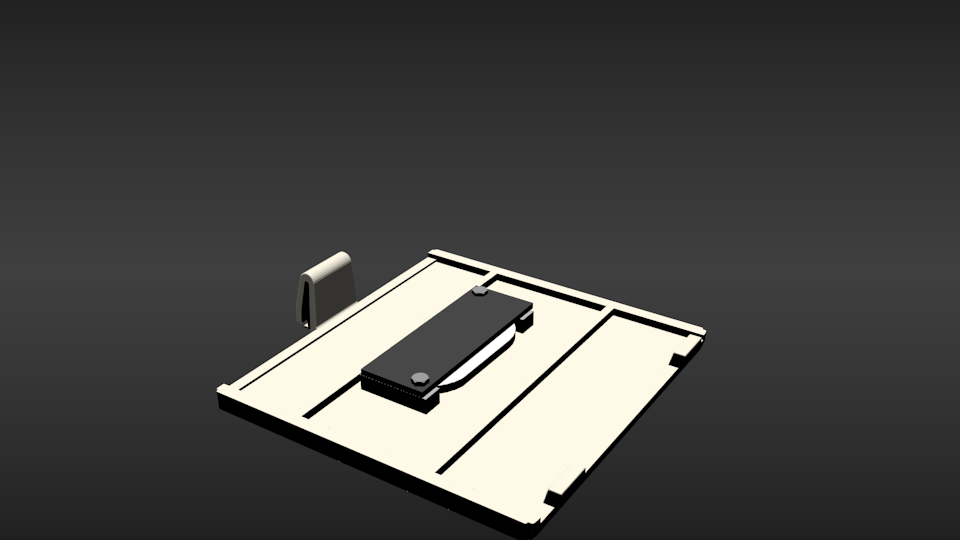

okay here's my plan. use the a/b button membrane as the backbuttons and mount the button board ontop using some plastic spacers which will be epoxied to the battery cover. don't have the board yet so I don't have all the dimensions needed for the spacers, but they need to be 3mm deep to clear the membrane.

the board is 1mm, the membrane 3mm, so any battery that would fit without removing the battery compartment ribs should fit with this rigging provided you shave off the compartment ribs.


User avatar
Helder
Trailblazer
Trailblazer
Posts: 2812
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1421 times
Been thanked: 3082 times

Re: anyone ever try installing backbuttons in the battery door?

Post by Helder » Sun Mar 24, 2019 6:55 am

You could have some thinner boards made quite easily and use kitsch-bent's A/B Silicone buttons to make things even thinner.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

rumblepen
Posts: 21
Joined: Sat Dec 22, 2018 10:38 am
Has thanked: 4 times
Been thanked: 3 times

Re: anyone ever try installing backbuttons in the battery door?

Post by rumblepen » Sun Mar 24, 2019 9:08 am

using silicon buttons was the original idea, but then I positioned a membrane to test out placement and I liked the smaller nubs better.
