wiring prototype board to powerboost
-
- Posts: 12
- Joined: Mon Jun 13, 2016 12:42 pm
- Has thanked: 2 times
wiring prototype board to powerboost

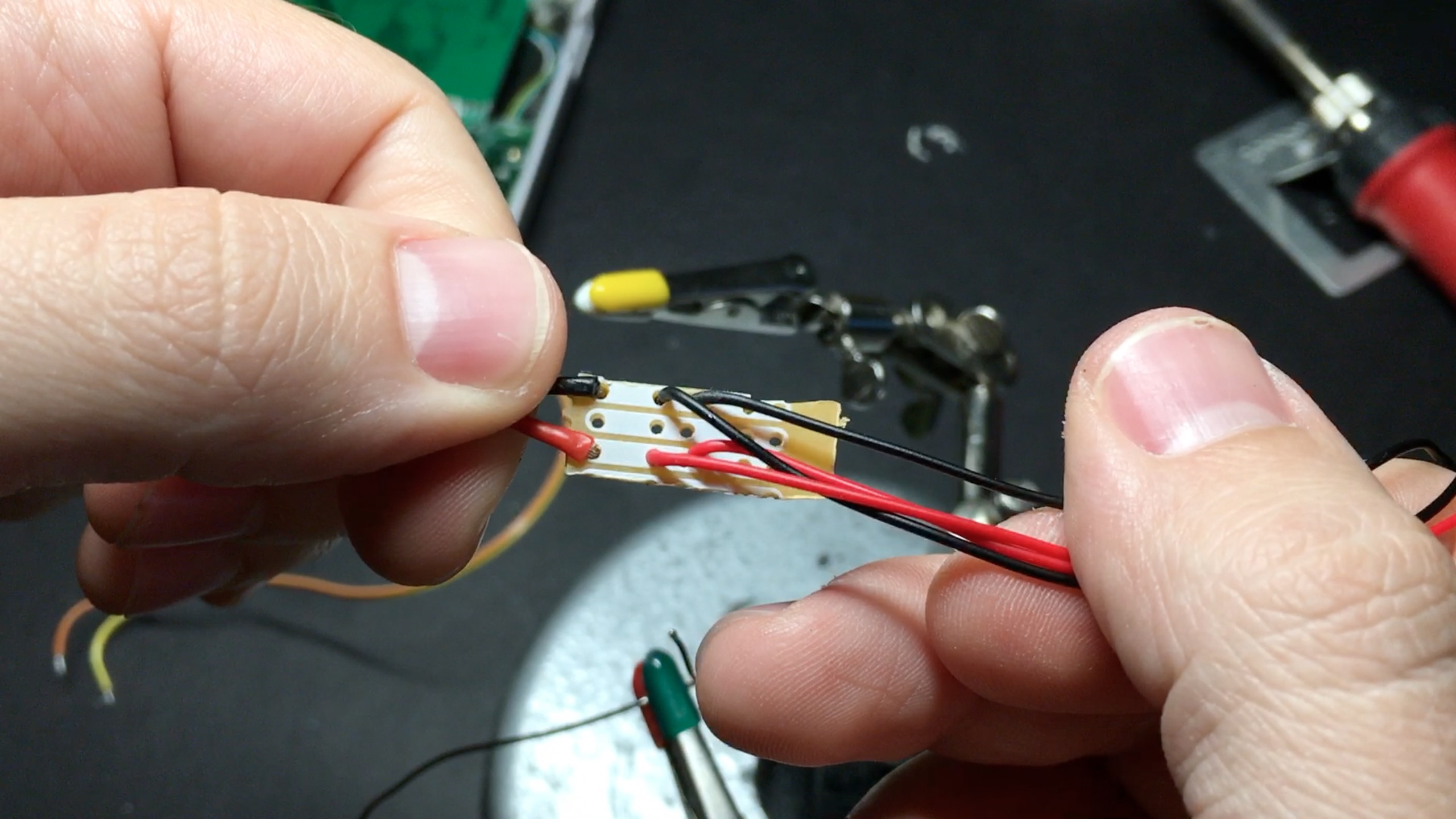

I'm following wermys guide on how to wire everything up and I don't know where to wire the prototype board to the power boost so that I can get power to the screen and raspberry pi and anything else? I've included a image of the board I'm talking about. Any help would be greatly appreciated.
Thanks
Thanks
- Oxodao
- Posts: 131
- Joined: Wed Jun 01, 2016 11:35 am
- Location: 127.0.0.1
- Has thanked: 4 times
- Been thanked: 30 times
- Contact:
Re: wiring prototype board to powerboost
This board goes to the upper part of the case. Take your longest wires and solder them to GND and to the usb plug on the pb1kc
The shortest are meant to distribute the power among the upper part, for the pi, the screen, the amp, the controller and if needed the hub
The shortest are meant to distribute the power among the upper part, for the pi, the screen, the amp, the controller and if needed the hub
Arduino sketch for the gamepad (Teensy replacement): http://github.com/oxodao/GBZGamepad
-
- Posts: 12
- Joined: Mon Jun 13, 2016 12:42 pm
- Has thanked: 2 times
Re: wiring prototype board to powerboost
Thank you for the reply. So if I am understanding correctly, I'm going to wire the two longest wires to the same USB and Gnd that the micro usb charging port is soldered to?
- Oxodao
- Posts: 131
- Joined: Wed Jun 01, 2016 11:35 am
- Location: 127.0.0.1
- Has thanked: 4 times
- Been thanked: 30 times
- Contact:
Re: wiring prototype board to powerboost
No the other one, if you use this one the battery will be useless. If you have the Powerboost from adafruit.com (or a reseller) it is where was put the usb port, the one in which you are supposed to plug your device if you use it as a powerbank
Arduino sketch for the gamepad (Teensy replacement): http://github.com/oxodao/GBZGamepad
-
- Posts: 12
- Joined: Mon Jun 13, 2016 12:42 pm
- Has thanked: 2 times
-
- Posts: 7
- Joined: Tue Jul 12, 2016 11:21 pm
- Has thanked: 12 times
- gargoyle67
- Posts: 73
- Joined: Fri Jun 17, 2016 3:13 pm
- Has thanked: 48 times
- Been thanked: 16 times
Re: wiring prototype board to powerboost
http://www.ebay.co.uk/itm/291193969819? ... EBIDX%3AITkrombopulos michael wrote:where can i get that specific board online? cant find it.
- Oxodao
- Posts: 131
- Joined: Wed Jun 01, 2016 11:35 am
- Location: 127.0.0.1
- Has thanked: 4 times
- Been thanked: 30 times
- Contact:
Re: wiring prototype board to powerboost
Theses are much cheaper and works also, that's what I use. You only need to wire the line yourself
http://www.ebay.co.uk/itm/10Pcs-DIY-Pro ... SwNSxVVtu0
http://www.ebay.co.uk/itm/10Pcs-DIY-Pro ... SwNSxVVtu0
Arduino sketch for the gamepad (Teensy replacement): http://github.com/oxodao/GBZGamepad
Re: wiring prototype board to powerboost
Oxodao wrote:Theses are much cheaper and works also, that's what I use. You only need to wire the line yourself
http://www.ebay.co.uk/itm/10Pcs-DIY-Pro ... SwNSxVVtu0
How would you wire the line?
