Kyles first project

Show off your completed Game Boy Zero, or post your build logs here!
kylepiboy
Posts: 27
Joined: Tue Oct 04, 2016 3:15 pm
Has thanked: 1 time

Re: Kyles first project

Post by kylepiboy » Sun Oct 23, 2016 7:50 am

Okay awesome. I'll have to figure mine out cause it's not working for mine. Also having some problems with my power boost. It keeps flickering on and off.

kylepiboy
Posts: 27
Joined: Tue Oct 04, 2016 3:15 pm
Has thanked: 1 time

Re: Kyles first project

Post by kylepiboy » Wed Oct 26, 2016 4:08 pm

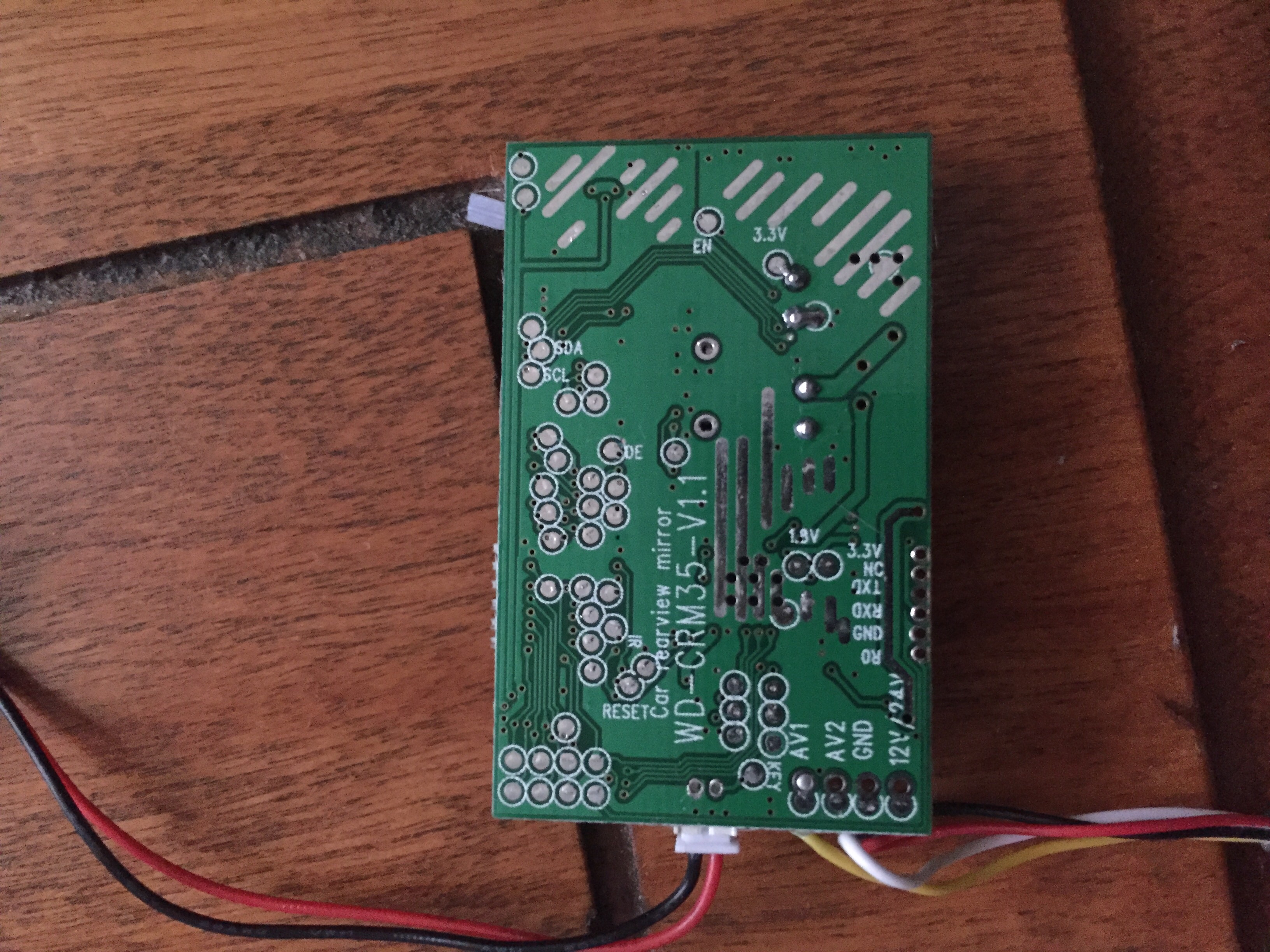

So I found out that I accidentally shorted out and fried my screen circuit board. I just got a new one and it has a different board is it haha. The wiki doesn't have my board in it either. I'm still looking for how to wire it but if anyone has any information let me know

kylepiboy
Posts: 27
Joined: Tue Oct 04, 2016 3:15 pm
Has thanked: 1 time

Re: Kyles first project

Post by kylepiboy » Wed Oct 26, 2016 4:09 pm


User avatar
sotasystems
Posts: 160
Joined: Sun Oct 09, 2016 4:56 am
Location: Germany, 127.0.0.1
Has thanked: 95 times
Been thanked: 93 times
Contact:

Re: Kyles first project

Post by sotasystems » Wed Oct 26, 2016 6:20 pm

kylepiboy wrote:So I found out that I accidentally shorted out and fried my screen circuit board. I just got a new one and it has a different board is it haha. The wiki doesn't have my board in it either. I'm still looking for how to wire it but if anyone has any information let me know image.jpgimage.jpg
[mention]Bendra[/mention] seems to use exactly the same board you do. Check it out here:

http://www.sudomod.com/forum/viewtopic. ... &start=260

He says no modifications have to be made, it should work out of the box. Remember to only hook up AV1 (yellow) to your Pi's composite output! Completely leave out/desolder the white wire. It is NOT GND. If for some reason it still does not work, please tell us what the two 8-pin chips say on them and which is which.
Ladies and gentlemen, I would like to inform you that I am currently moving very far away, and therefore I am very busy.

UPDATE: I am still alive! My ISP is setting up my internet on the 19th of January at my new place, explaining my offline-ness.

If you write me a PM, I will very likely take some time to respond.

Also, my 2nd build will soon go on, so if you've been following it, please stay tuned! :)

Many thanks for your understanding!

kylepiboy
Posts: 27
Joined: Tue Oct 04, 2016 3:15 pm
Has thanked: 1 time

Re: Kyles first project

Post by kylepiboy » Thu Oct 27, 2016 3:06 pm

sotasystems wrote:
kylepiboy wrote:So I found out that I accidentally shorted out and fried my screen circuit board. I just got a new one and it has a different board is it haha. The wiki doesn't have my board in it either. I'm still looking for how to wire it but if anyone has any information let me know image.jpgimage.jpg
[mention]Bendra[/mention] seems to use exactly the same board you do. Check it out here:

http://www.sudomod.com/forum/viewtopic. ... &start=260

He says no modifications have to be made, it should work out of the box. Remember to only hook up AV1 (yellow) to your Pi's composite output! Completely leave out/desolder the white wire. It is NOT GND. If for some reason it still does not work, please tell us what the two 8-pin chips say on them and which is which.
Ok mine doesn't work on 5v out of the box :( but I have the chip numbers.. The one on the bottom by the compositors is A5269 BM57AK the other one by the wires is 25040ATIG 1619

User avatar
sotasystems
Posts: 160
Joined: Sun Oct 09, 2016 4:56 am
Location: Germany, 127.0.0.1
Has thanked: 95 times
Been thanked: 93 times
Contact:

Re: Kyles first project

Post by sotasystems » Thu Oct 27, 2016 3:21 pm

kylepiboy wrote:
sotasystems wrote:
kylepiboy wrote:So I found out that I accidentally shorted out and fried my screen circuit board. I just got a new one and it has a different board is it haha. The wiki doesn't have my board in it either. I'm still looking for how to wire it but if anyone has any information let me know image.jpgimage.jpg
[mention]Bendra[/mention] seems to use exactly the same board you do. Check it out here:

http://www.sudomod.com/forum/viewtopic. ... &start=260

He says no modifications have to be made, it should work out of the box. Remember to only hook up AV1 (yellow) to your Pi's composite output! Completely leave out/desolder the white wire. It is NOT GND. If for some reason it still does not work, please tell us what the two 8-pin chips say on them and which is which.
Ok mine doesn't work on 5v out of the box :( but I have the chip numbers.. The one on the bottom by the compositors is A5269 BM57AK the other one by the wires is 25040ATIG 1619
Okay. Can you test it with 12V first and confirm it works at all? If it does work on 12V and not on 5, you have to solder a wire to the areas I marked here:


That should make it work
