hi, i'm french (sorry for my poor english) and i'm building a gameboy with a pi3.
in this project, i doesn't want hot glue, if i'll do maintenance, screws are better!
this project is in progress, the lcd was dead..... but there is many parts i have to make in 3d print.
to be continued!
ChampX first build piboy pi3
ChampX first build piboy pi3
- Attachments
-

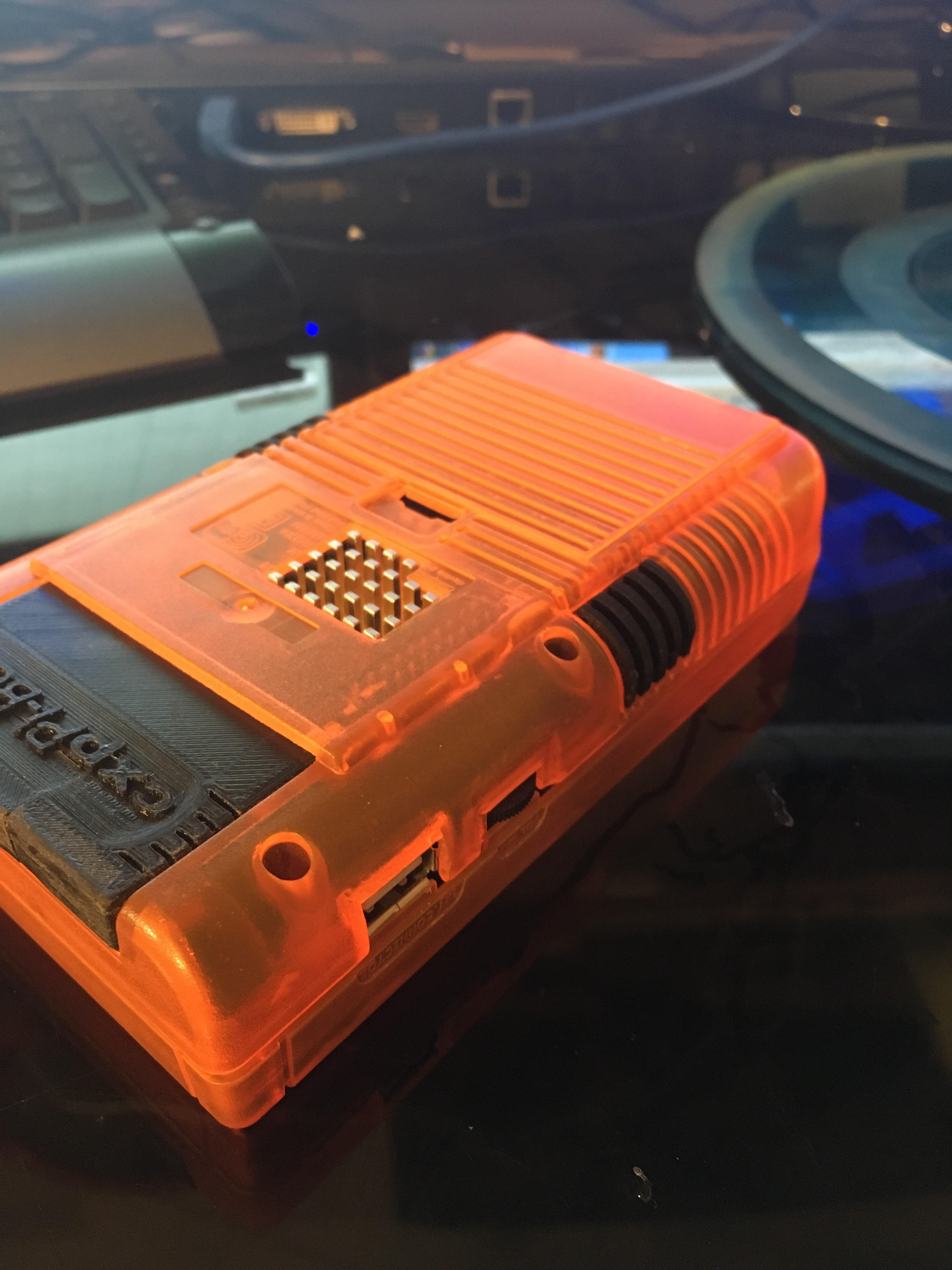

- the L and R bottom buttons and the cpu's heatsink
- pi6.jpg (1.01 MiB) Viewed 8187 times
-
- the L and R bottom buttons
- pi2.jpg (1.22 MiB) Viewed 8187 times
-
- and the roms usb "card"
- pi7.jpg (1.27 MiB) Viewed 8187 times
-
- the raspberry pi "cartridge "
- pi8.jpg (1.38 MiB) Viewed 8187 times
-

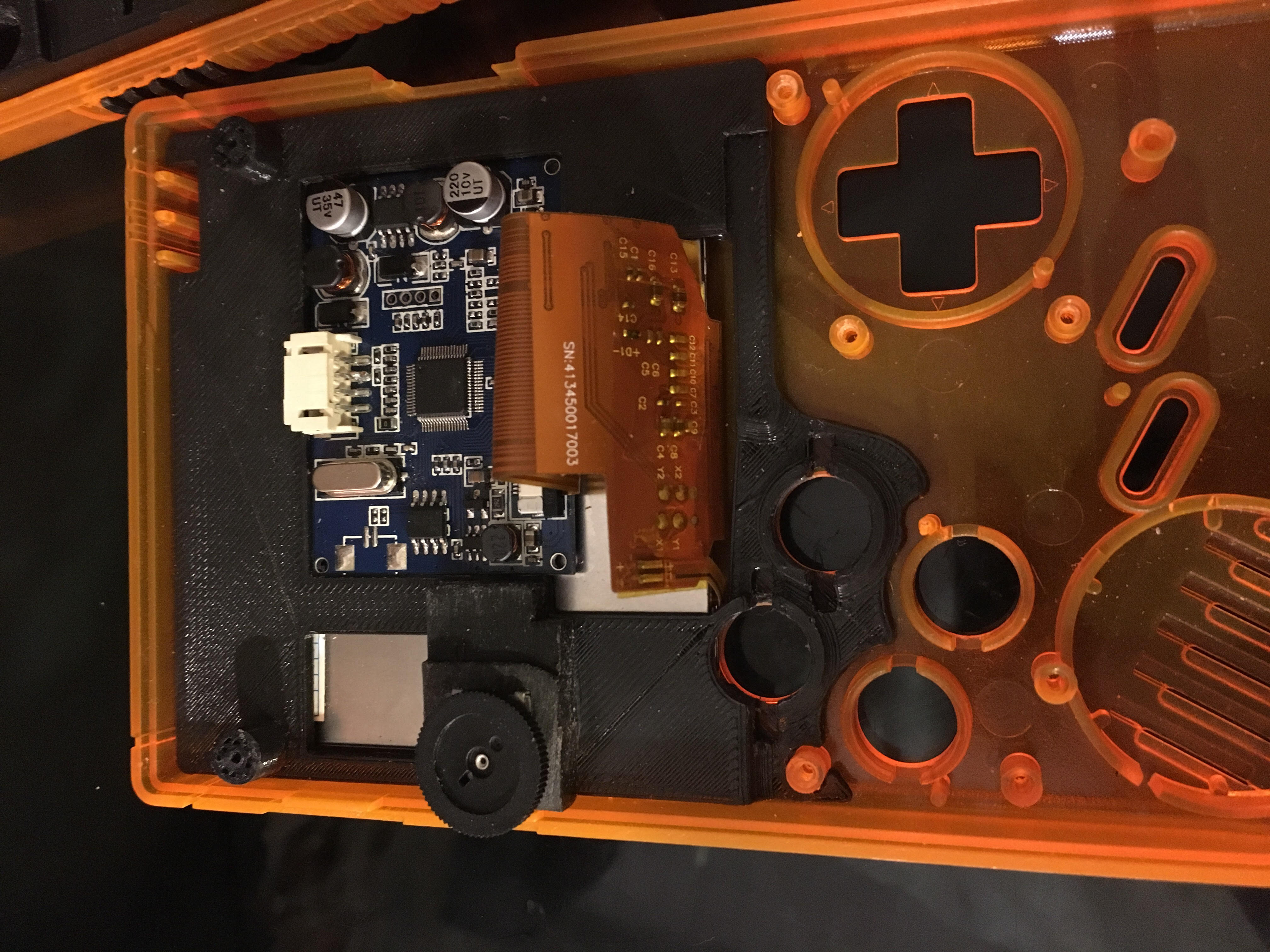

- screen attachment with volume control and x y buttons casing
- pi11.jpg (1.51 MiB) Viewed 8187 times
-

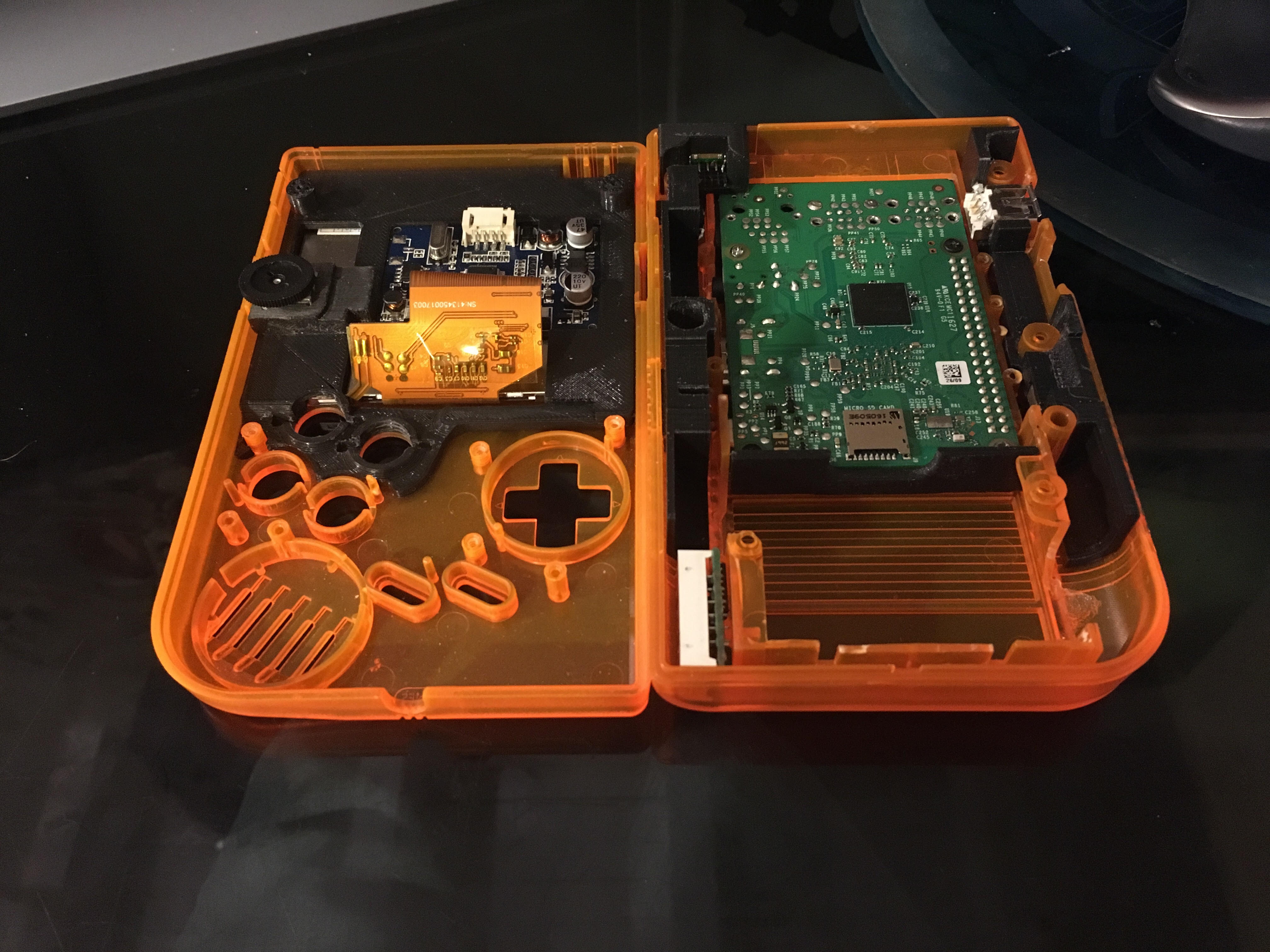

- actually inside
- pi10.jpg (1.39 MiB) Viewed 8187 times
-
Sushi
- Posts: 99
- Joined: Sat Jul 23, 2016 8:17 am
- Location: East USA
- Has thanked: 4 times
- Been thanked: 34 times
Re: ChampX first build piboy pi3
Bon travail! Basé sur que je vois, je pari que ce projet se révélera être super propre! Partagerez-vous (vous? tu? le francais n'est pas ma première langue) les fichiers pour les parties imprimées? J'adore que vous avez fait avec les boutons à l'arrière.
Google translate: Good work! Based on what I see, I bet that this project will prove to be super clean! Will you share (do you? T? French is not my first language) files for printed parts? I love that you did with the buttons on the back.
Google translate: Good work! Based on what I see, I bet that this project will prove to be super clean! Will you share (do you? T? French is not my first language) files for printed parts? I love that you did with the buttons on the back.
-
bigteddy82
- Posts: 5
- Joined: Sat Mar 17, 2018 3:07 am
- Has thanked: 3 times
Re: ChampX first build piboy pi3
wow. very cool idea for L/R buttons !!
can you show me more detail for those buttons?
can you show me more detail for those buttons?
-
Billy Blaze
- Posts: 78
- Joined: Tue Sep 06, 2016 1:27 pm
- Location: Gnosticus IV
- Has thanked: 68 times
- Been thanked: 33 times
- Contact:
Re: ChampX first build piboy pi3
I'm very much interested as well!bigteddy82 wrote: ↑Wed Apr 04, 2018 8:35 amwow. very cool idea for L/R buttons !!
can you show me more detail for those buttons?
Hacks & Homebrews: new games for good old consoles: sudomod.com/forum/viewtopic.php?f=5&t=3188
Configure Input for DOSBox: github.com/kiteretro/Circuit-Sword/wiki/Configure-Input-for-DOSBox
Configure Input for PICO-8: github.com/kiteretro/Circuit-Sword/wiki/Configure-input-for-PICO-8
Configure Input for DOSBox: github.com/kiteretro/Circuit-Sword/wiki/Configure-Input-for-DOSBox
Configure Input for PICO-8: github.com/kiteretro/Circuit-Sword/wiki/Configure-input-for-PICO-8
Re: ChampX first build piboy pi3
hello, I’m happy because my build is soon over!
as for the sharing of stl, I agree but they are modeling adapted to my parts.
I work a lot with recycling parts.
the stl are also tailor-made for cable runs.
if you really wanted, I would share the most relevant ones.
otherwise, the build has progressed well, I only miss the screen and lipo to finish.
I did the audio part:
the square speaker was for testing, the one in place comes from a gameboy.

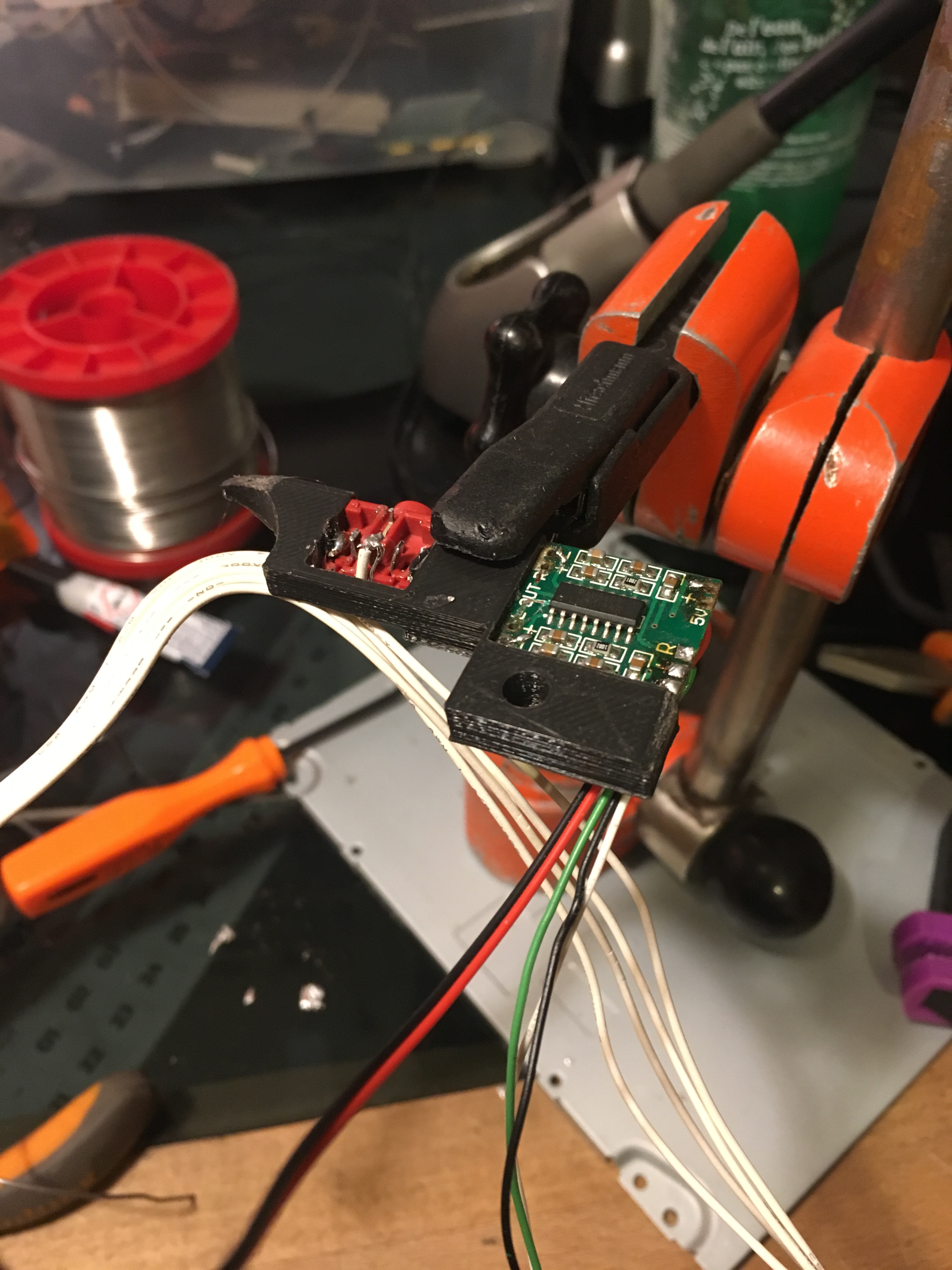

2x3w ebay amp (there was mistake because i was using this board for another project) ,
pc sound card jack connector,

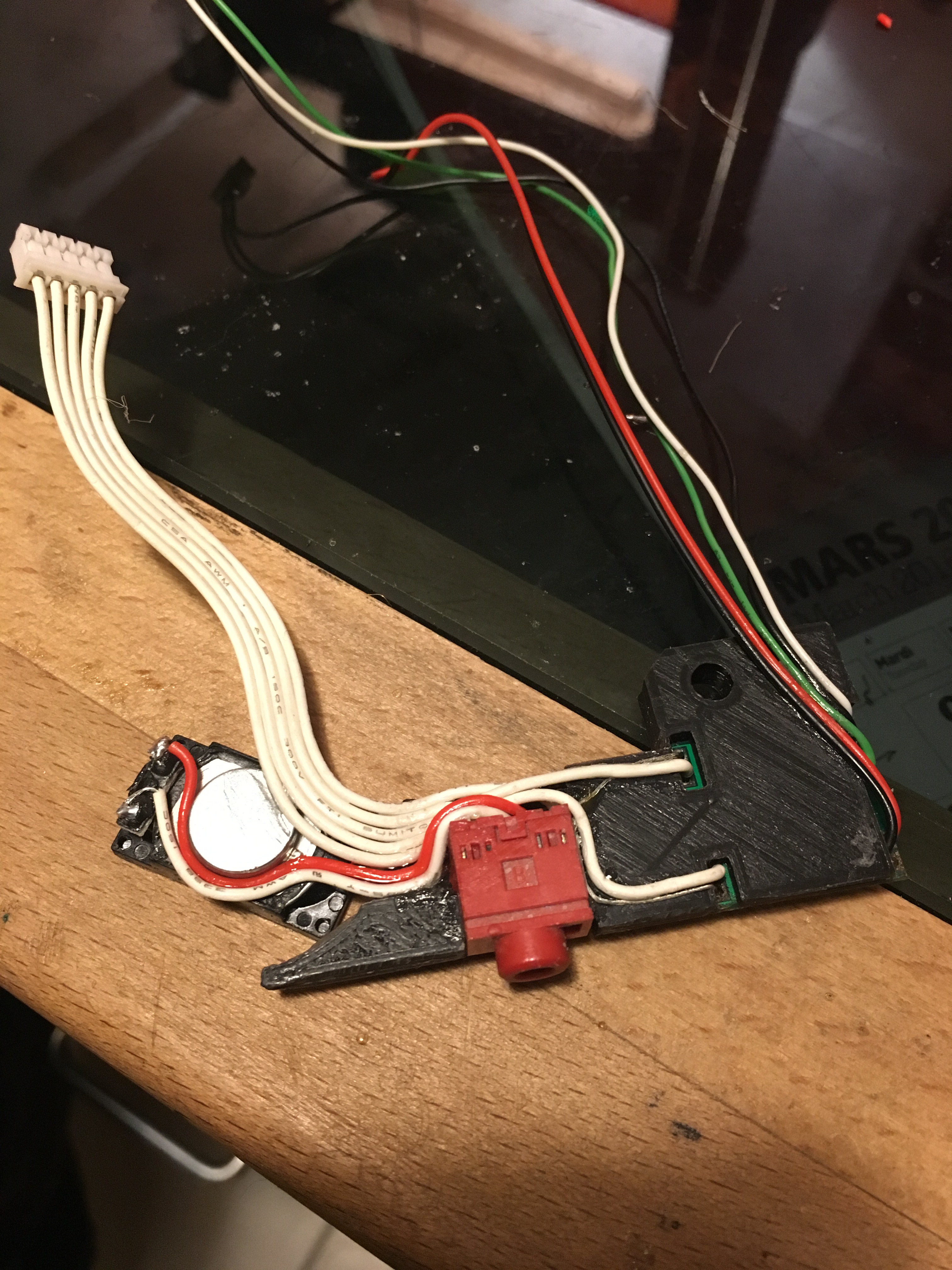

3d printed support,
cable glued to make rigid ribbon.
the volume button is fixed on bezel
all parts are dismountable.
for all the project i was using fax connector
the set is perfect for maintenance and the interior is clean!
as for the sharing of stl, I agree but they are modeling adapted to my parts.
I work a lot with recycling parts.
the stl are also tailor-made for cable runs.
if you really wanted, I would share the most relevant ones.
otherwise, the build has progressed well, I only miss the screen and lipo to finish.
I did the audio part:
the square speaker was for testing, the one in place comes from a gameboy.
2x3w ebay amp (there was mistake because i was using this board for another project) ,
pc sound card jack connector,
3d printed support,
cable glued to make rigid ribbon.
the volume button is fixed on bezel
all parts are dismountable.
for all the project i was using fax connector
the set is perfect for maintenance and the interior is clean!

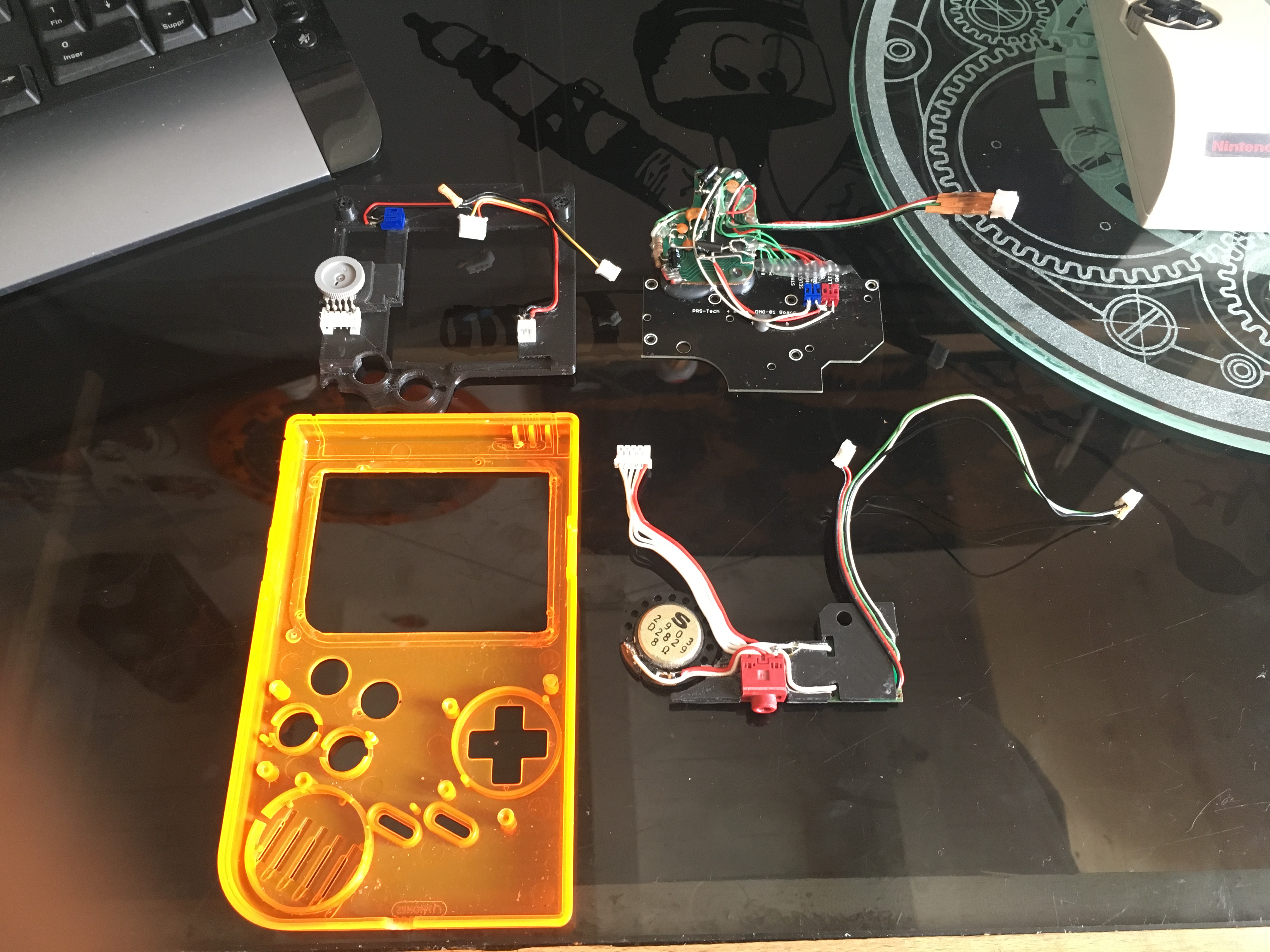

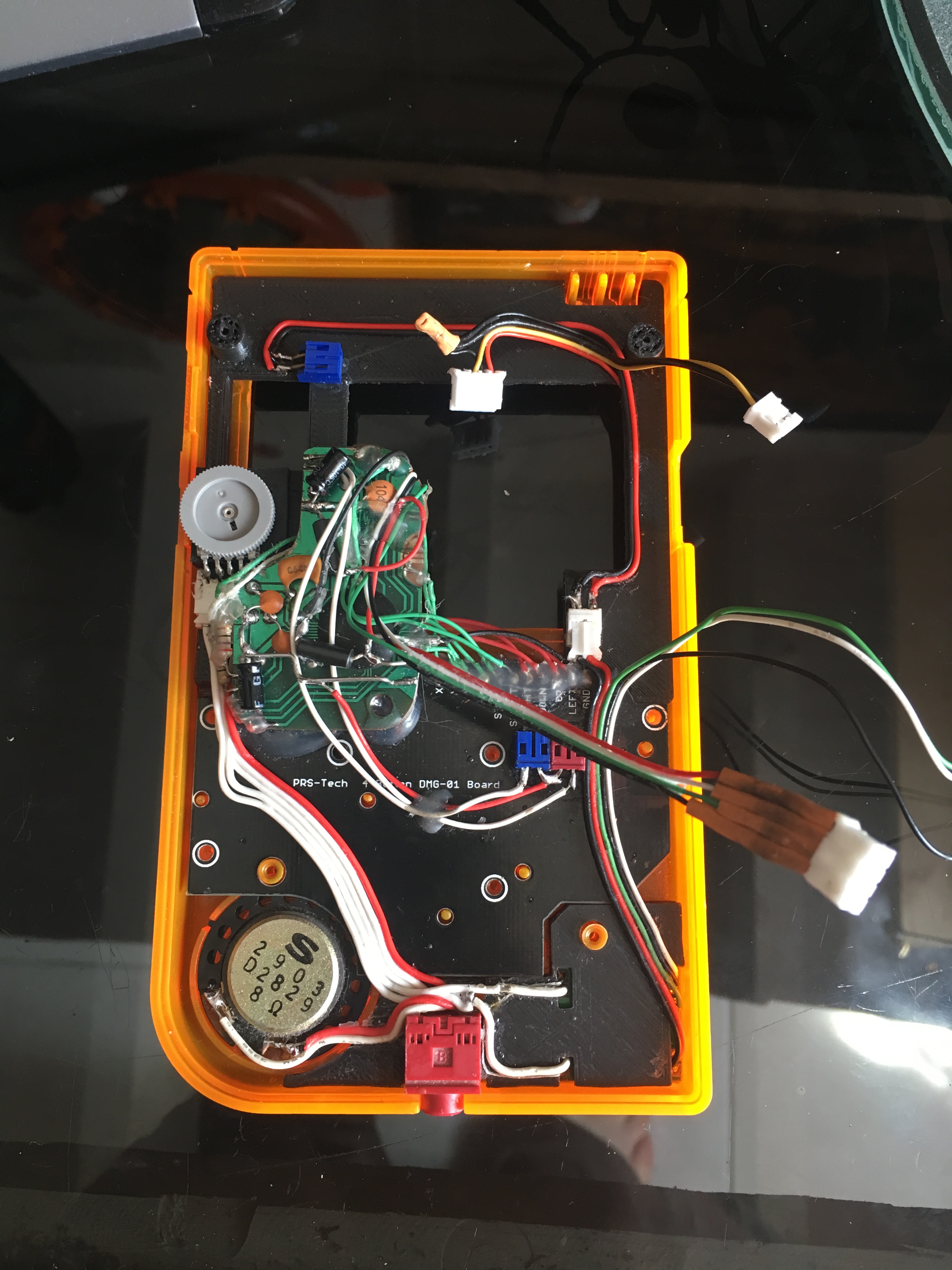

- IMG_0879.JPG (1.78 MiB) Viewed 7787 times
- IMG_0884.JPG (1.99 MiB) Viewed 7787 times
- IMG_0885.JPG (2.09 MiB) Viewed 7787 times
- IMG_0886.JPG (2.04 MiB) Viewed 7787 times
- IMG_0893.JPG (1.99 MiB) Viewed 7787 times
Re: ChampX first build piboy pi3
i love the lights of pi/booster board/voltmeter!
as i'm noobs in pi programs, i use olds methods to check the lipo! !
(photo was during charging tests)
as i'm noobs in pi programs, i use olds methods to check the lipo! !
(photo was during charging tests)
- IMG_0896.JPG (2.21 MiB) Viewed 7785 times
- IMG_0897.JPG (1.95 MiB) Viewed 7785 times
- IMG_0905.JPG (1.56 MiB) Viewed 7785 times
Re: ChampX first build piboy pi3
at the beginning, i wanted 18650 battery and i cut the dmg battery.....but li-po's are better!
i made a parts to fill the hole!
it allow the jack connector dimensions
i made a parts to fill the hole!
it allow the jack connector dimensions
- IMG_0912.JPG (1.86 MiB) Viewed 7782 times
Re: ChampX first build piboy pi3
here is near the final.
this is the final color's button configuration.
the lens is a test with cd case..... it's poor quality!
(i have order a gorilla glass on ebay)
this is the final color's button configuration.
the lens is a test with cd case..... it's poor quality!
(i have order a gorilla glass on ebay)
- IMG_0917.JPG (1.87 MiB) Viewed 7781 times
- IMG_0919.JPG (2.28 MiB) Viewed 7781 times
- IMG_0920-FullSizeRender.jpg (1.73 MiB) Viewed 7781 times
-
Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: ChampX first build piboy pi3
Very impressive, I just love your original approach of building.
Good to see that there are builders who get of off the beaten track, keep up the good work
Btw i love the L and R buttons, very original.
Good to see that there are builders who get of off the beaten track, keep up the good work
Btw i love the L and R buttons, very original.
