@pedem@k31's GBZ

[@pedem@k31]

Hello all,

first, i'm sorry for my english, i'm a french engineer under the sunshine of Toulouse
my pictures are not the best i can, next i will use a better APN

i'm starting my mod, and i want to share with you my progress.

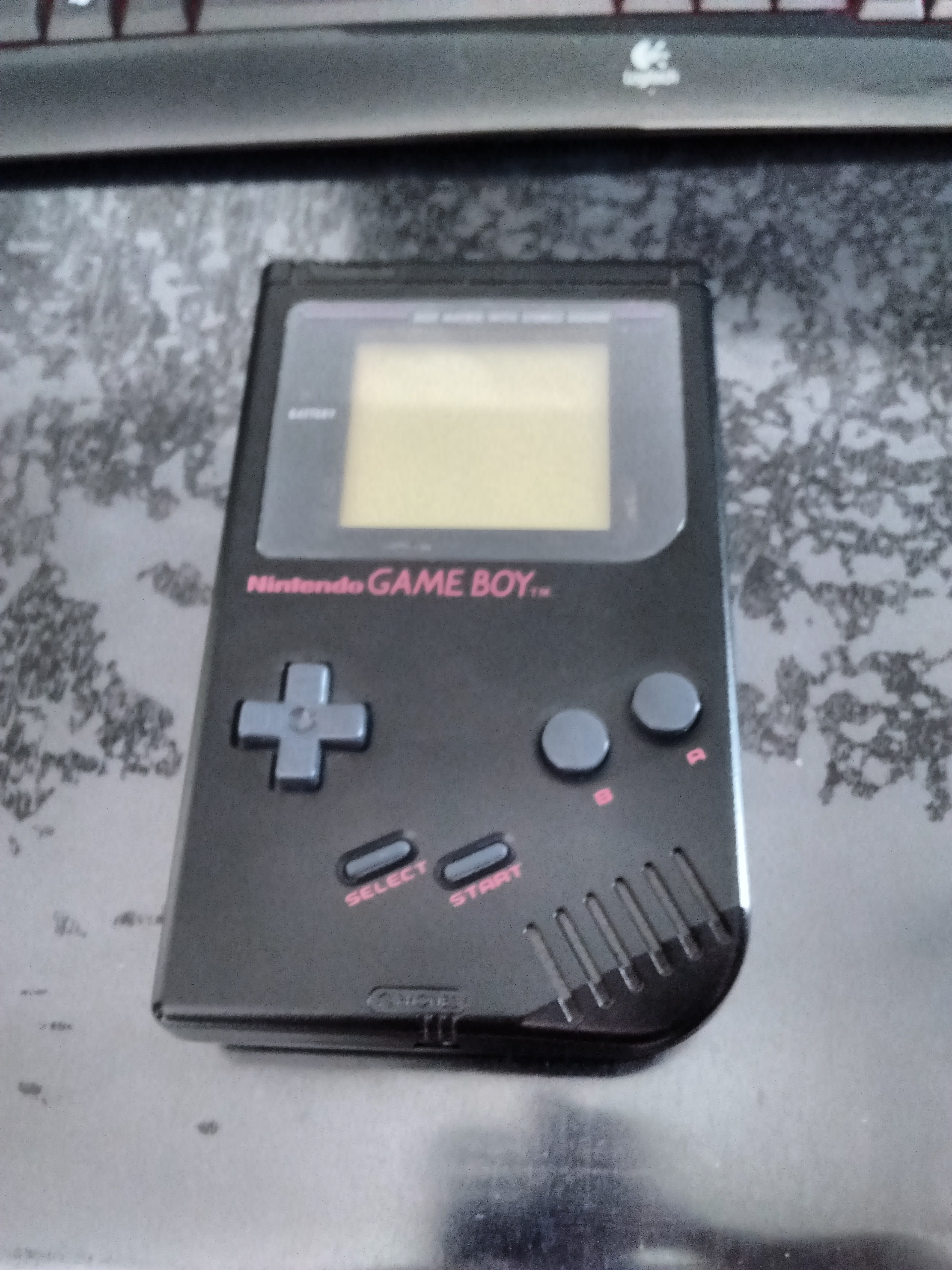

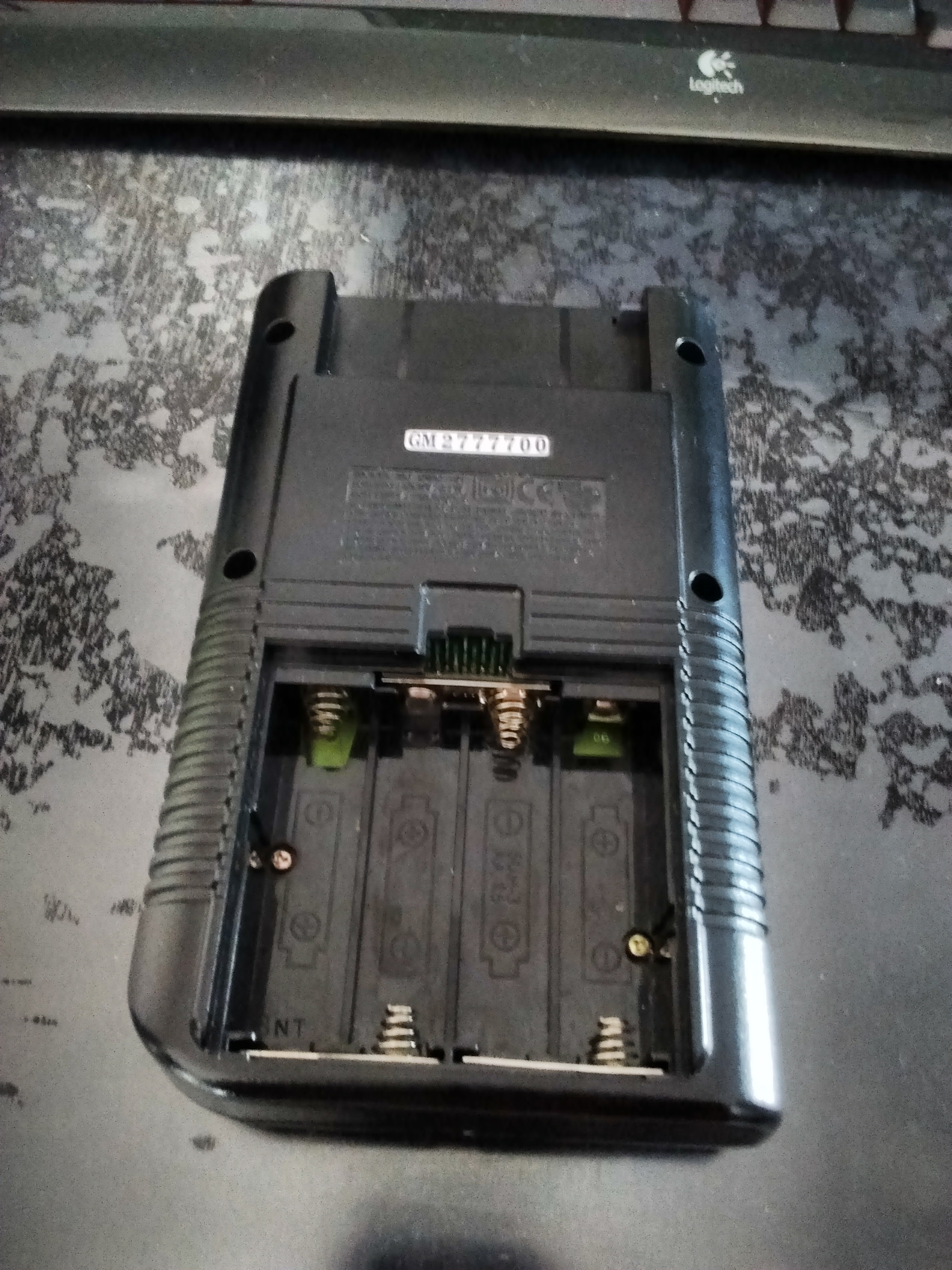

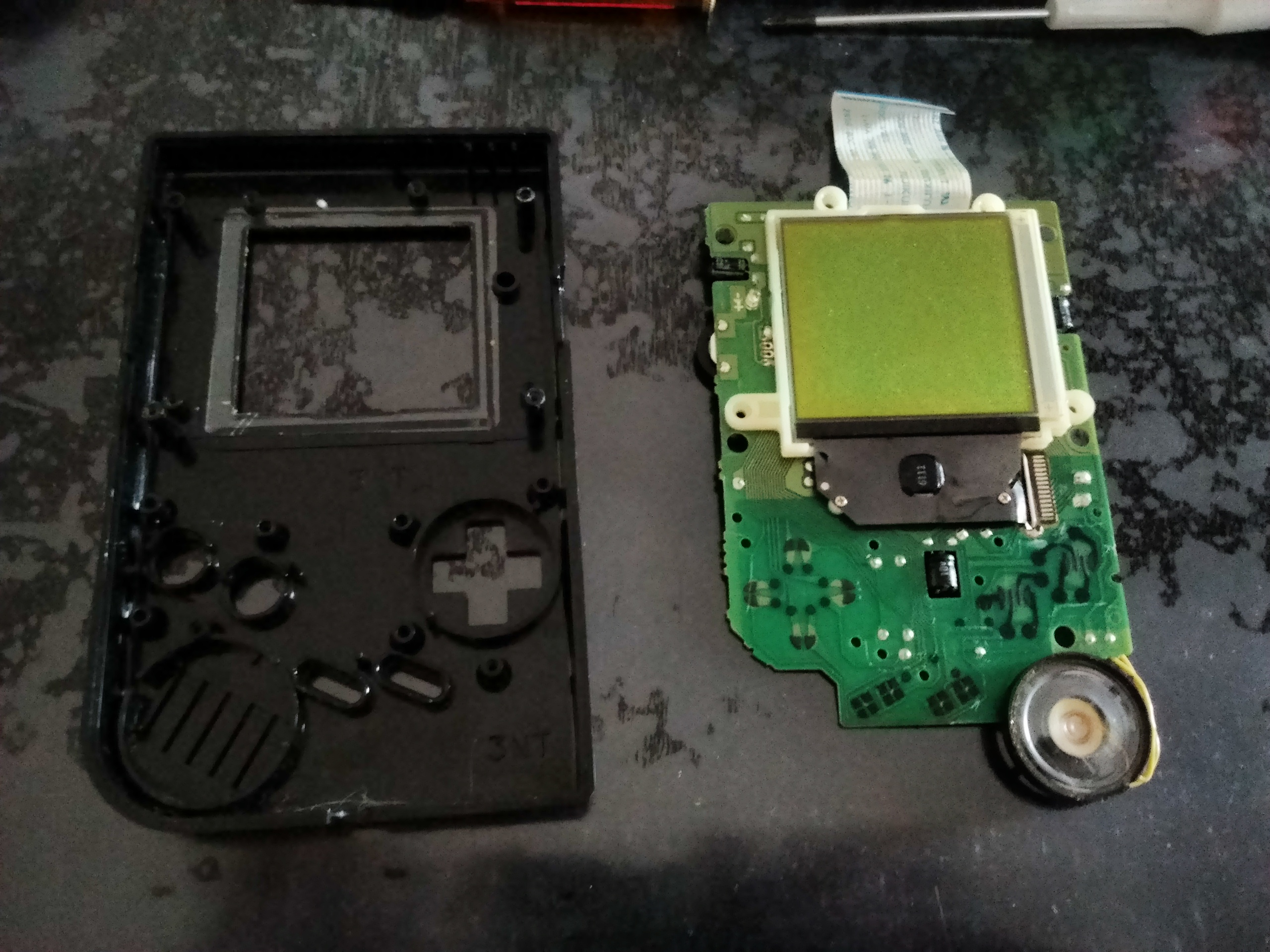

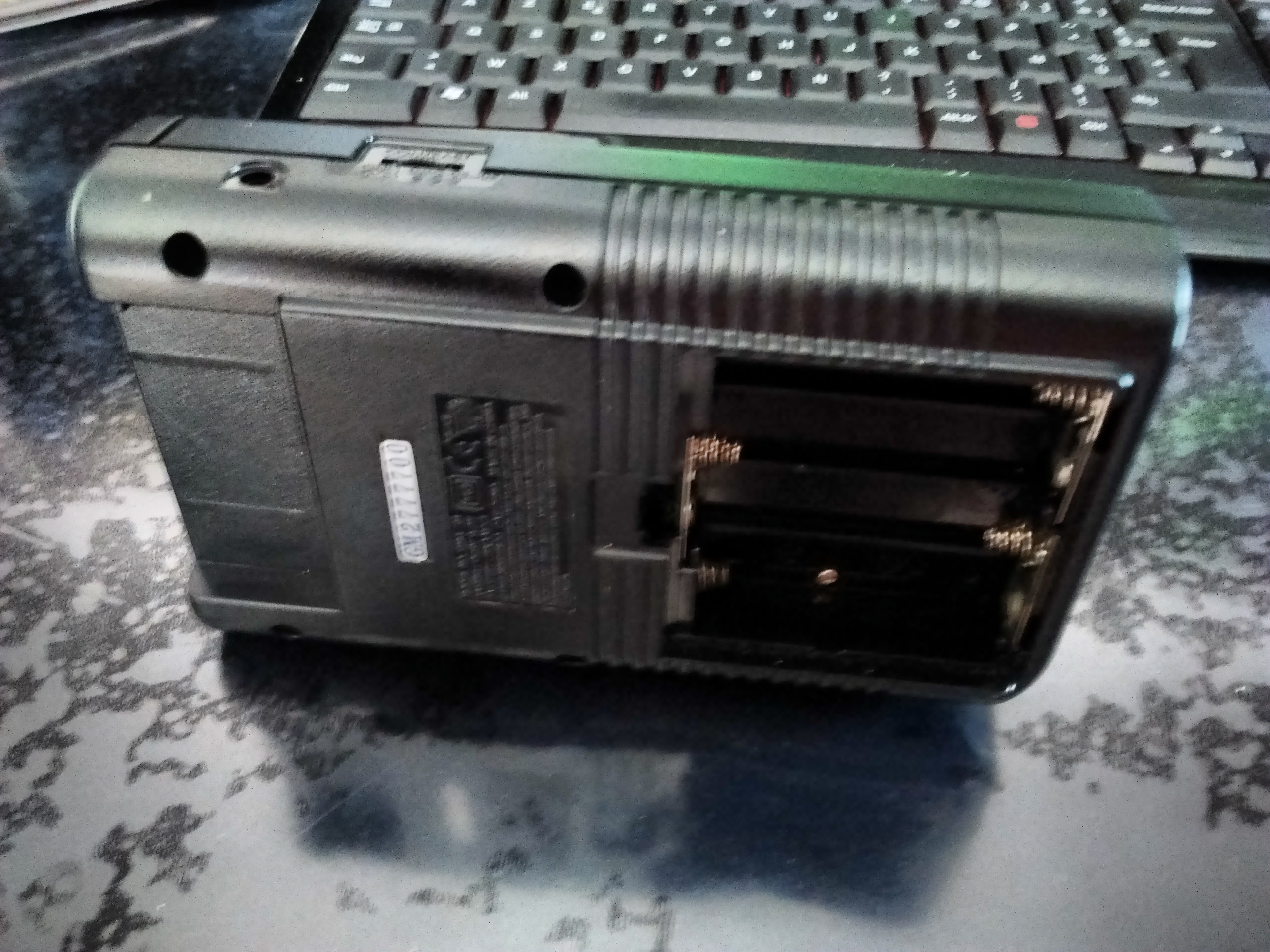

first the case and the disassembly the battery and the first cartridge mod...











this is for the moment,

[GnobarEl]

Nice idea for the SD card
Keep sharing your work!

[Rod2D2]

Nice job. What didn't you use for the cartridge mod?

[@pedem@k31]

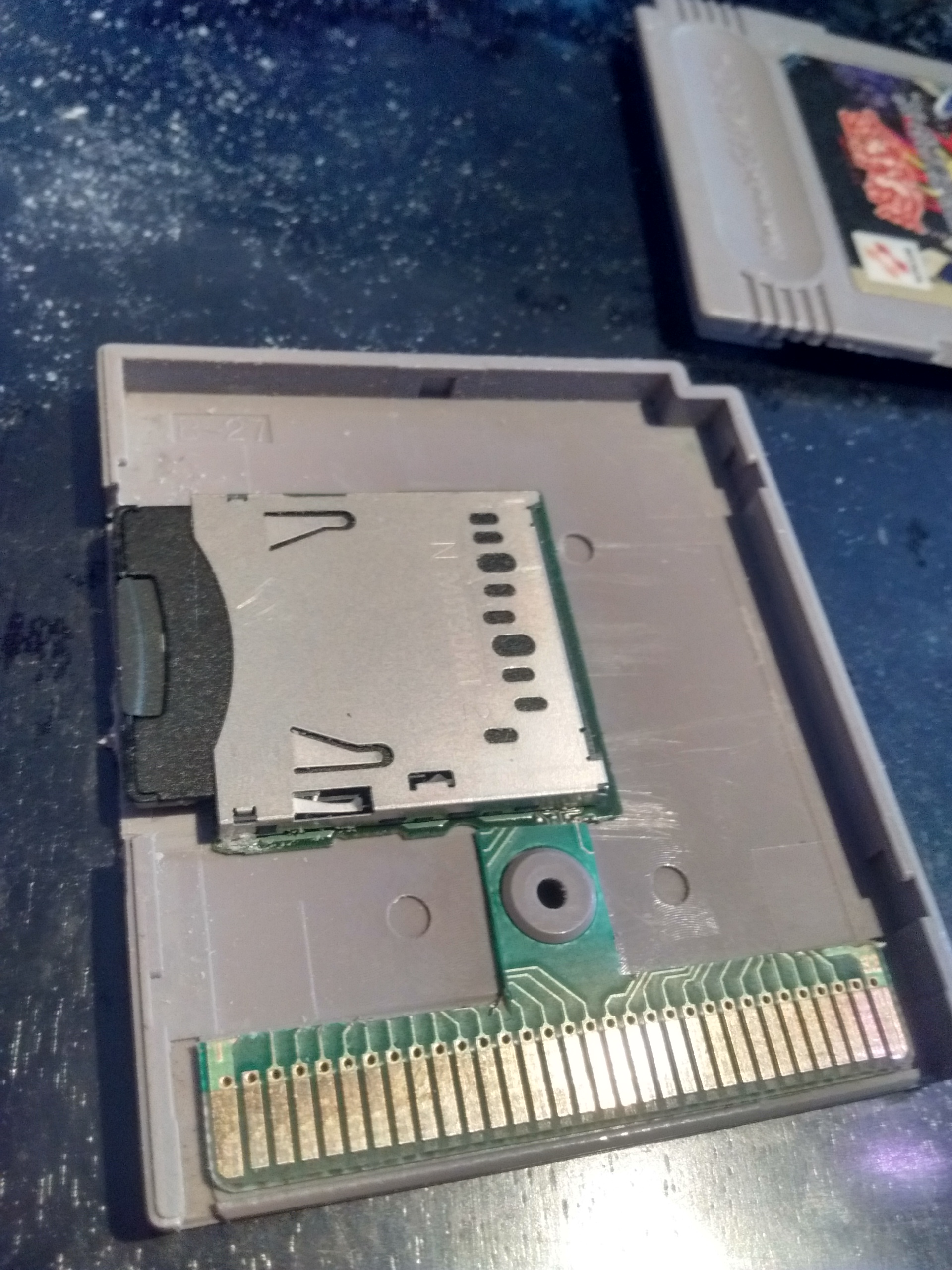

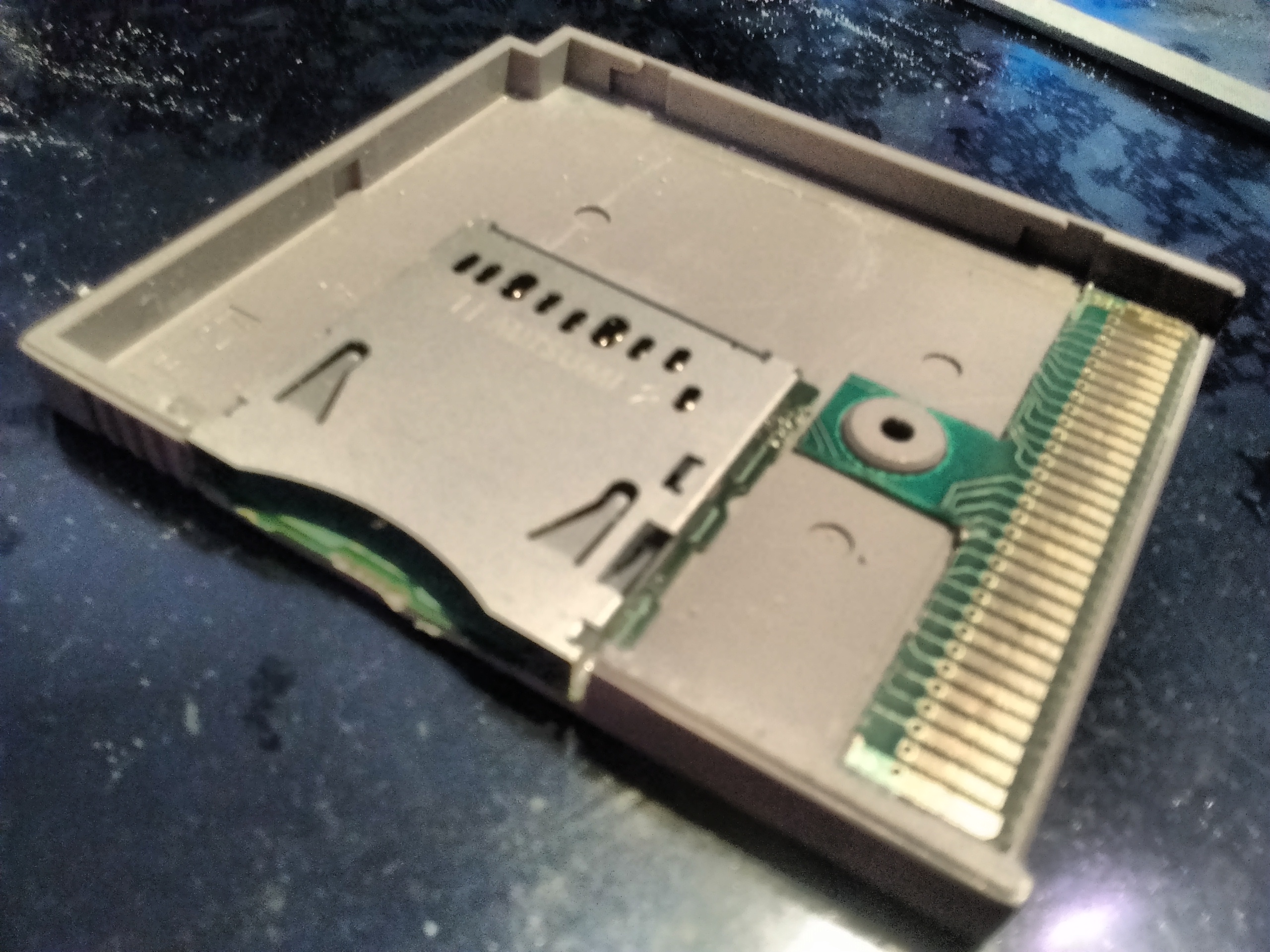

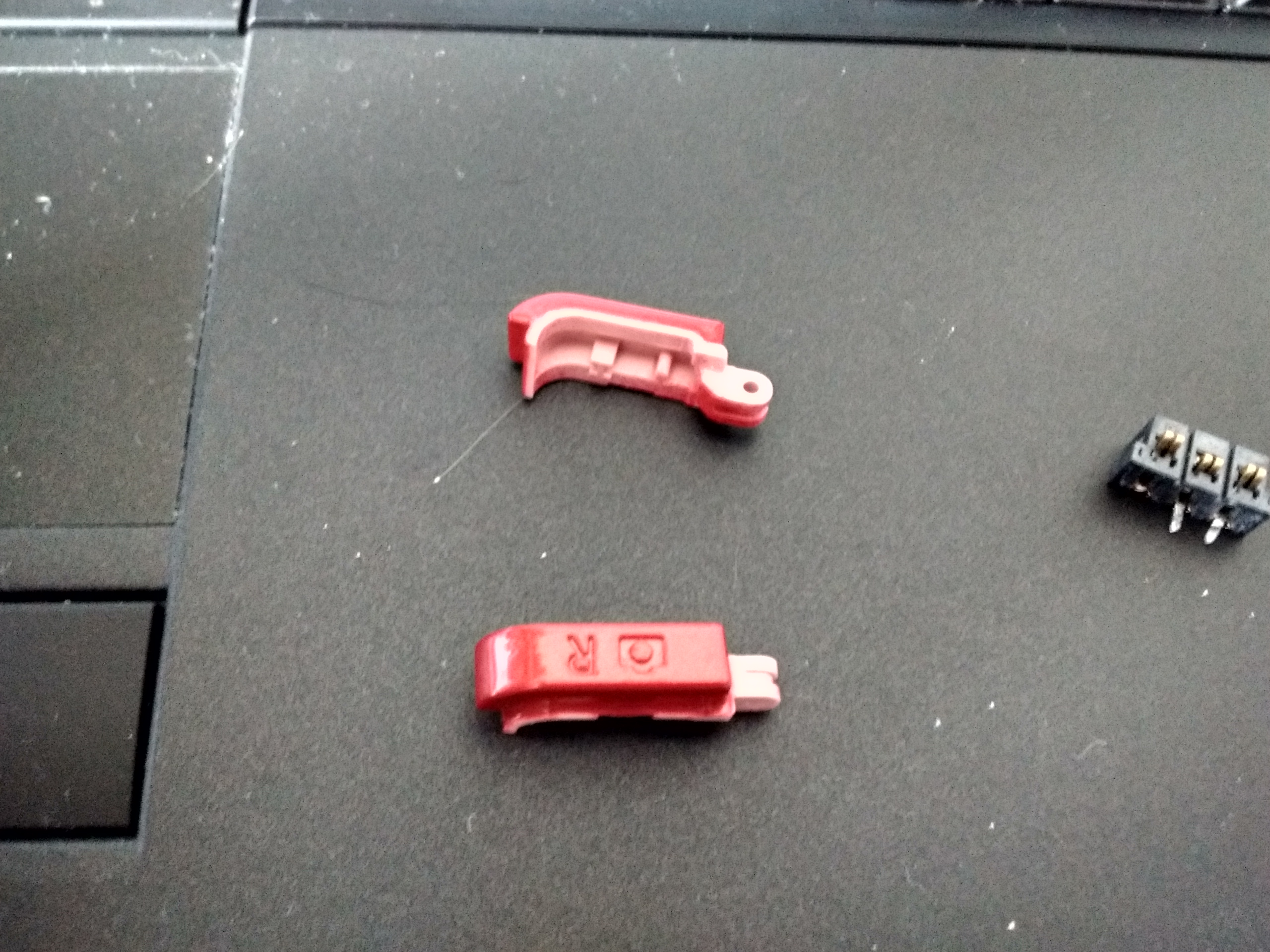

hello, for the cartridge case mod, i use the SD slot fron an old Nintendo 3DS , i think using L/R button from the same old 3Ds.

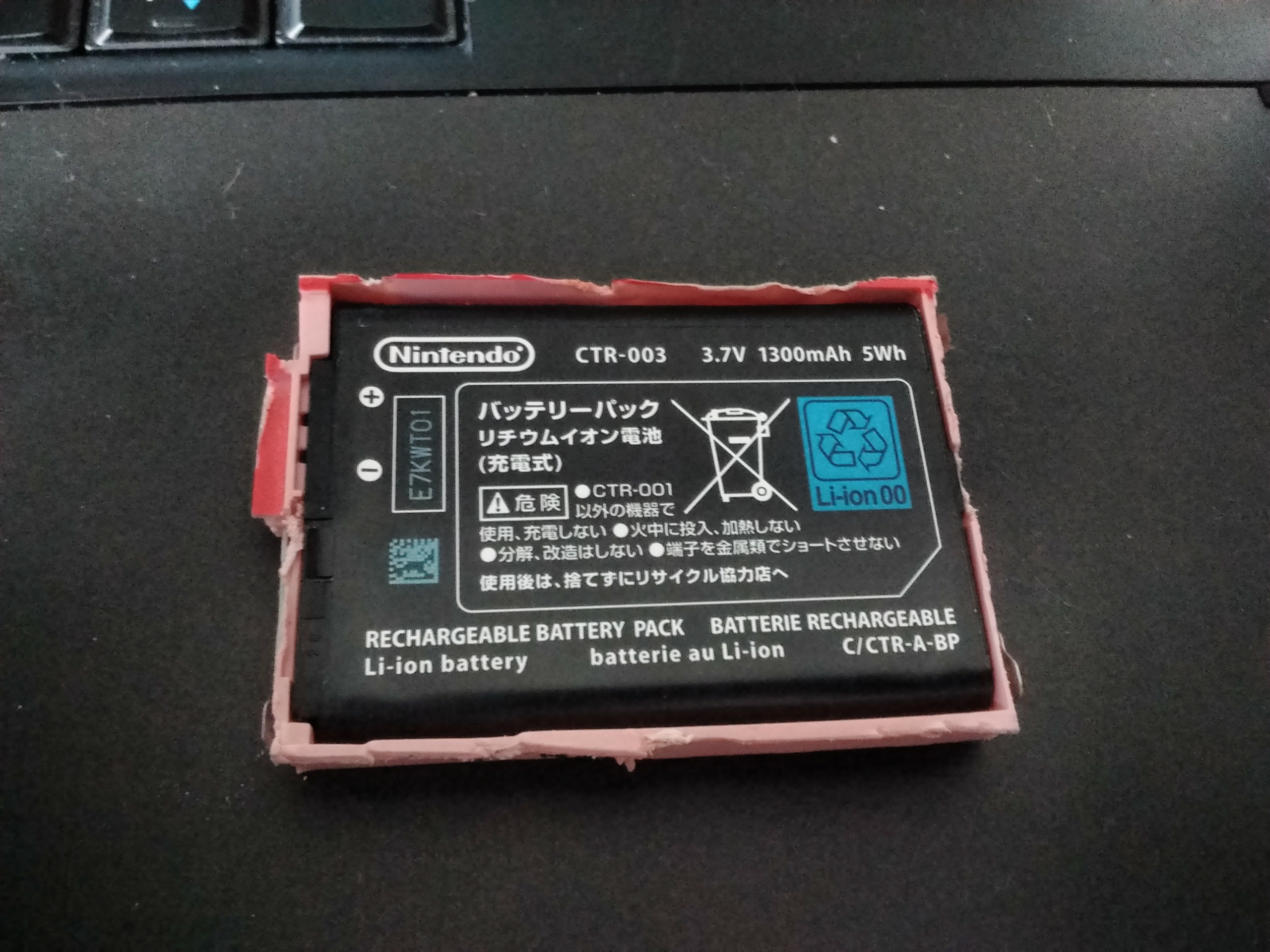

on the picture you can see, the button taht i think use. i think using also the battery, i have desolder the pin connector from the Original PCB and i prepare to use it.
