I finally received most of my ordered parts and now getting started.
First of all I want to express my thanks to the users that helped me very much:
[mention="wermy"]wermy[/mention] for setting up this awesome forum and tutorials,
[mention="Fleder"]Fleder[/mention] for gathering those screen-hacking tutorial (couldn't have done it without it),
[mention="chiz"]chiz[/mention] for the awesome shoulder-buttons build idea,
[mention="dominator"]dominator[/mention] for making and selling that button PCB.
First I salvaged my old DMG from the attic. The battery cover is missing, thats a bummer.

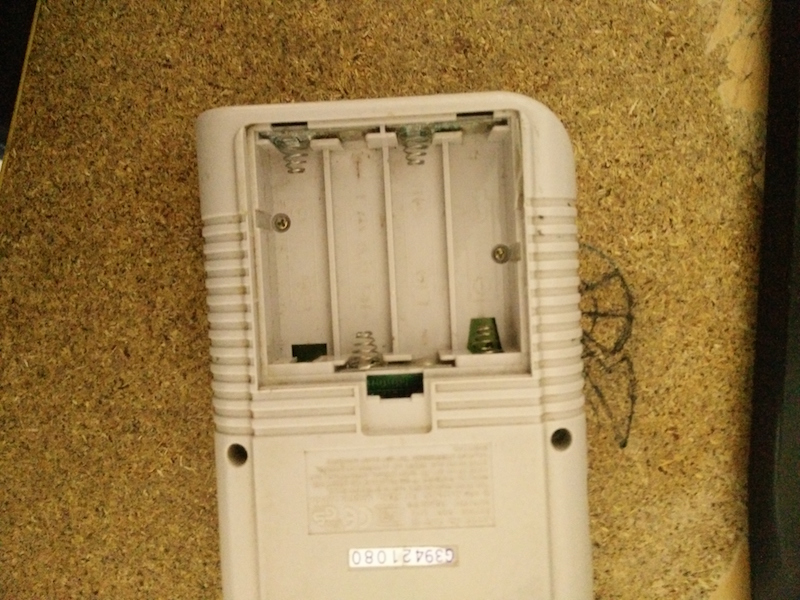

[spoiler="Gameboy DMG without battery cover plate"]
- DSC_0221.JPG (290.17 KiB) Viewed 4015 times
I ordered an other broken DMG from ebay, but I wont need that cover plate until the very end so I could as well get started.
Next I tested my screen (had to hack it first to 5V though) and the raspberry pi zero.

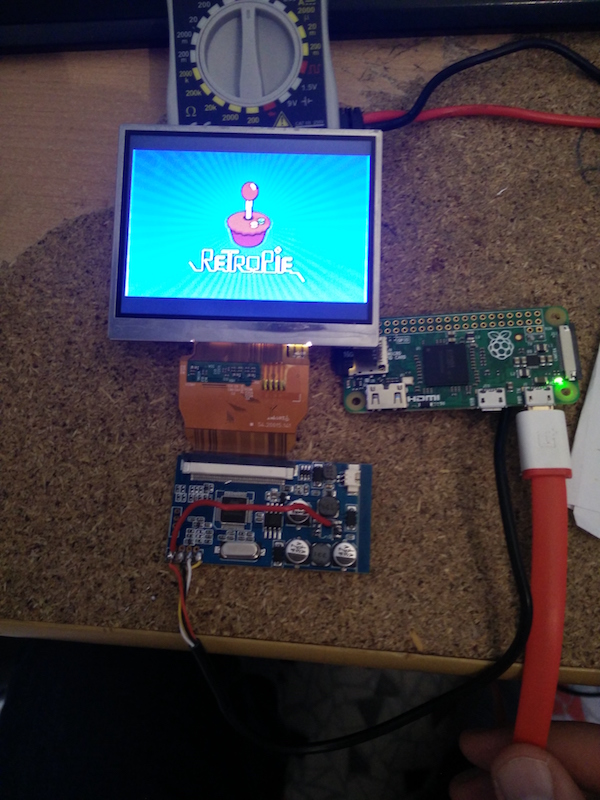

[spoiler="Test setup raspberry pi zero with monitor"]
- DSC_0132.JPG (262.16 KiB) Viewed 4015 times
Now I drilled and filed the x and y holes, added the button brackets and testmounted the buttons.
They turned out quite fine, the button feedback feels very satisfying

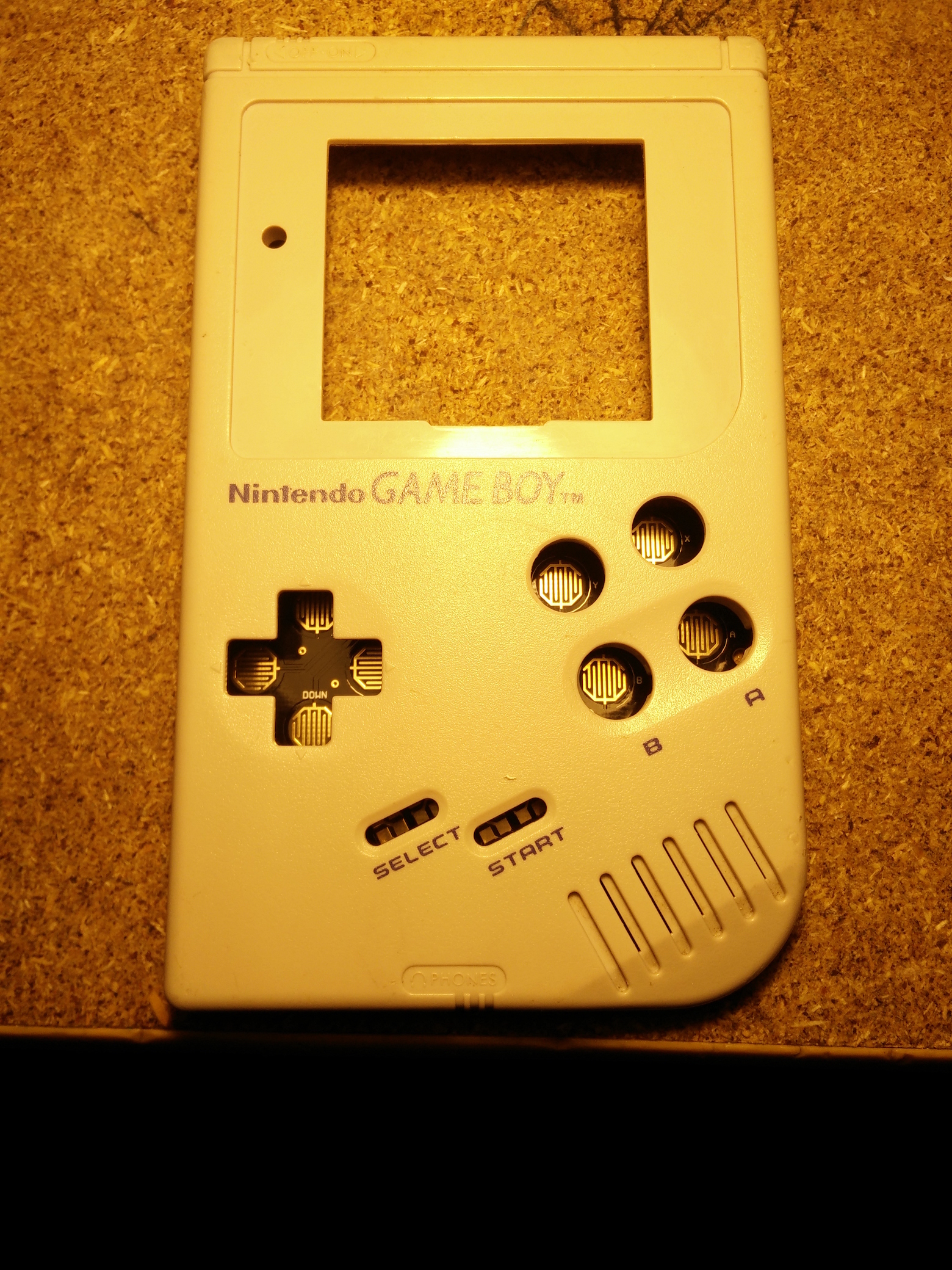

[spoiler="Drilled x,y holes and button testmounting"]
- DSC_0222.JPG (1.74 MiB) Viewed 4015 times
- DSC_0223.JPG (1.07 MiB) Viewed 4015 times
- DSC_0224.JPG (1.23 MiB) Viewed 4015 times
- DSC_0225.JPG (1.18 MiB) Viewed 4015 times
- DSC_0226.JPG (1.25 MiB) Viewed 4015 times
Then I shaped out the display hole to fit the 3.5 screen. I left a 1-2mm rack for the screen protector.

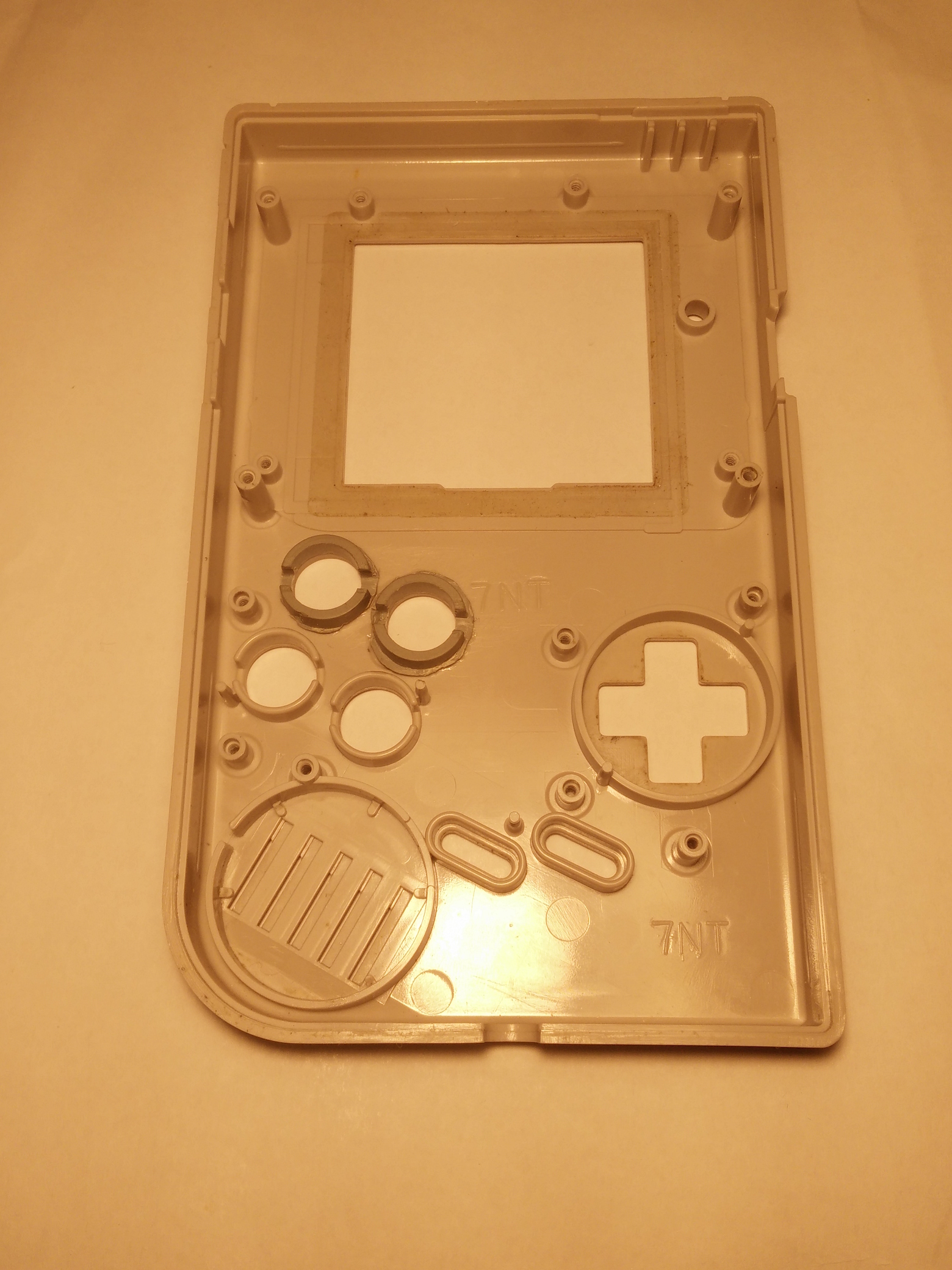

[spoiler="Shaped out display front"]
- DSC_0227.JPG (1.4 MiB) Viewed 4015 times
Thats all I could achieved at day one. This is my first modding-project so I'm working really slowly trying not to mess anything up.
But its actually a lot of fun. Hopefully I will soon find some time to continue.
I will definitely keep this thread updated.
