Fleder · Post by **Fleder** » Thu Jun 02, 2016 2:02 pm

MaKro wrote:Sorry as far as I knew I thought the screen had more issues than power. I thought it was broken.

This may as well be the case, but he did not check properly. Maybe everything is fine and just his power supply lacks enough v.
Or he just got something mixed up. We will see.

MaKro · Post by **MaKro** » Thu Jun 02, 2016 2:23 pm

I think you may have burnt out your 12v step up. I've used them a couple of times and they seem to be extremely delicate. Also check for any bridges.

dirtybeagles · Post by **dirtybeagles** » Thu Jun 02, 2016 4:32 pm

The screen worked on 5v but it was not ideal. You could tell the voltage was off. That is why I got the step up.

dirtybeagles · Post by **dirtybeagles** » Thu Jun 02, 2016 7:57 pm

I ditched the NiceShopping screen from amazon if anyone is curious and picked up one of the screens that can me modded. I have to pretty much start from the beginning. Lesson learned..

MaKro · Post by **MaKro** » Fri Jun 03, 2016 12:12 am

dirtybeagles wrote:I ditched the NiceShopping screen from amazon if anyone is curious and picked up one of the screens that can me modded. I have to pretty much start from the beginning. Lesson learned..

Which screen?

dirtybeagles · Post by **dirtybeagles** » Fri Jun 03, 2016 6:50 am

MaKro wrote:Which screen?

http://www.amazon.com/BW-3-5-Inch-Monit ... detailpage

I am going to use this one: http://www.amazon.com/BW-3-5-Inch-Monit ... detailpage which seems to work on 5v from the guild from this post: http://www.sudomod.com/forum/viewtopic.php?f=8&t=15 if you remove the IC.

dirtybeagles · Post by **dirtybeagles** » Fri Jun 03, 2016 11:08 pm

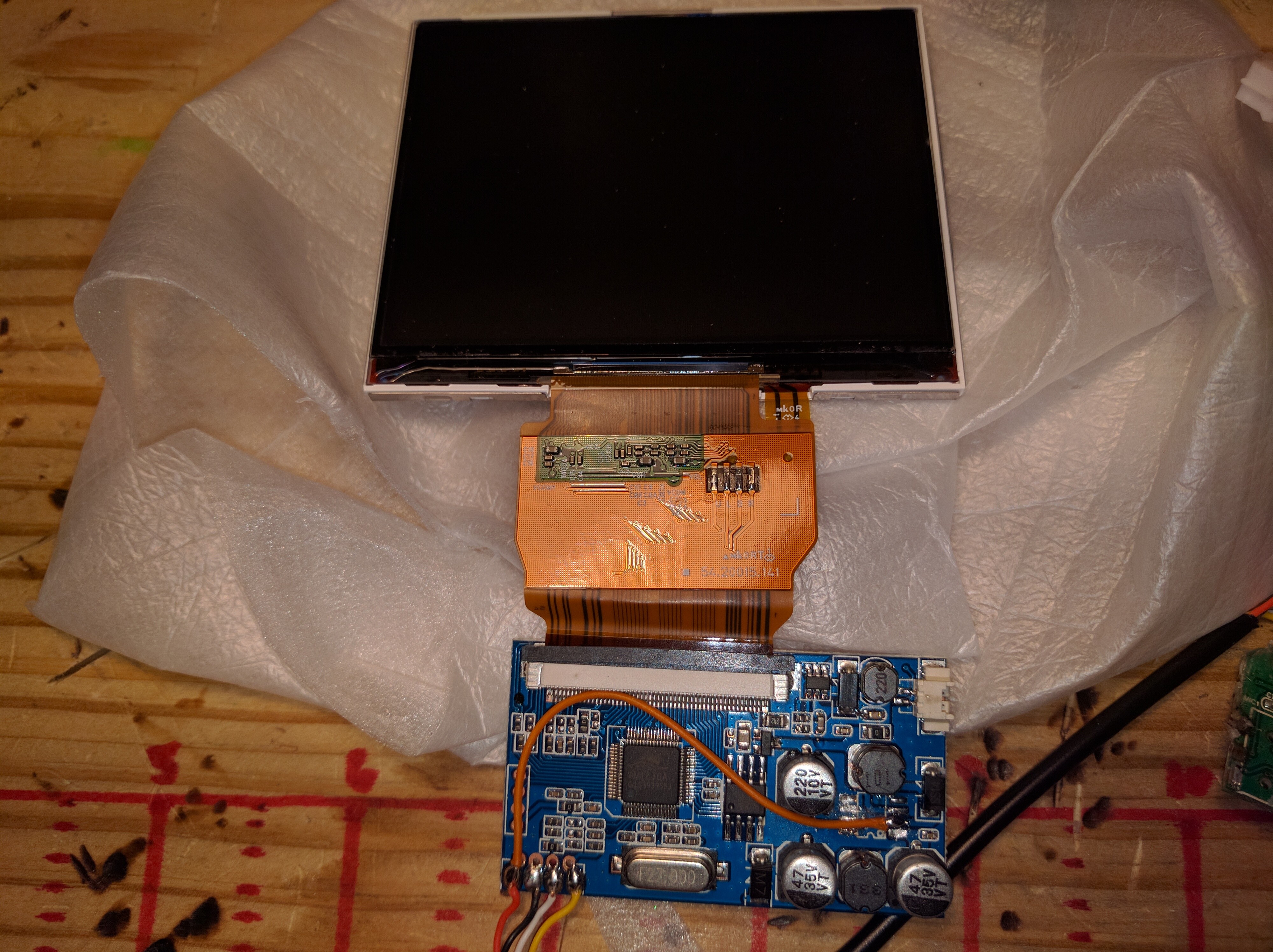

Well, it looks like I cannot catch a break here. I got the ePathChina screen and removed the IC and soldered the jumper and tested it with 5v and received nothing from the screen. Connected to the pi just to make sure and no video comes through.

: 47.jpg (2.36 MiB) Viewed 7139 times

MaKro · Post by **MaKro** » Fri Jun 03, 2016 11:12 pm

dirtybeagles wrote:Well, it looks like I cannot catch a break here. I got the ePathChina screen and removed the IC and soldered the jumper and tested it with 5v and received nothing from the screen. Connected to the pi just to make sure and no video comes through.


try swapping lcds

dirtybeagles · Post by **dirtybeagles** » Fri Jun 03, 2016 11:22 pm

MaKro wrote:try swapping lcds

No difference.

MaKro · Post by **MaKro** » Fri Jun 03, 2016 11:27 pm

dirtybeagles wrote:
MaKro wrote:try swapping lcds
No difference.

Did you test it with 12v before you modded it?
