I started my project a while month ago.
Parts:
- Original GB DMG ~ 10 $
- The worst 3.5" lcd http://www.ebay.com/itm/401045423669?_t ... EBIDX%3AIT 15 $
- Actually I tried the raspi hat http://www.ebay.com/itm/371572343530?_t ... EBIDX%3AIT. That doesn't fit 15 $
- mini 6x6x15 mm tactile switches 10 pcs 1$
- 10pcs 6x6x10 mm Momentary Tactile Switches 1$
- PAM8403 Audio Stereo Amplifier PAM8403 Audio Stereo Amplifier Board Vo ... dule 2*3W
2*3W 1 $
- SNES controller (not used) 2 $
- 5V-Micro-USB-1A-18650-Lithium-Battery-Charging-Board-Charger-Module-New-HC 1$
- 2PCS MCP23017 (not used yet, probably on a second one, when I'll have the time to etch my own pcb) 2$
- USB2.0 HUB 271976339679 probably you shouldn't waste your money on this 1 $
- Color jumper wires (too thick not used) http://www.ebay.com/itm/221480820368?_t ... EBIDX%3AIT 2 $
- 3.7V step up DC 5V 3 $
- 3.7V Li-ion Battery Mini USB To USB A Power Supply Module 5V 1A (probably I'll use this as it is a two in one sollution ) 4 $
- Li-ion battery salvaged from a broken tablet
- Retrobright rip off from hair dye and oxi-pro

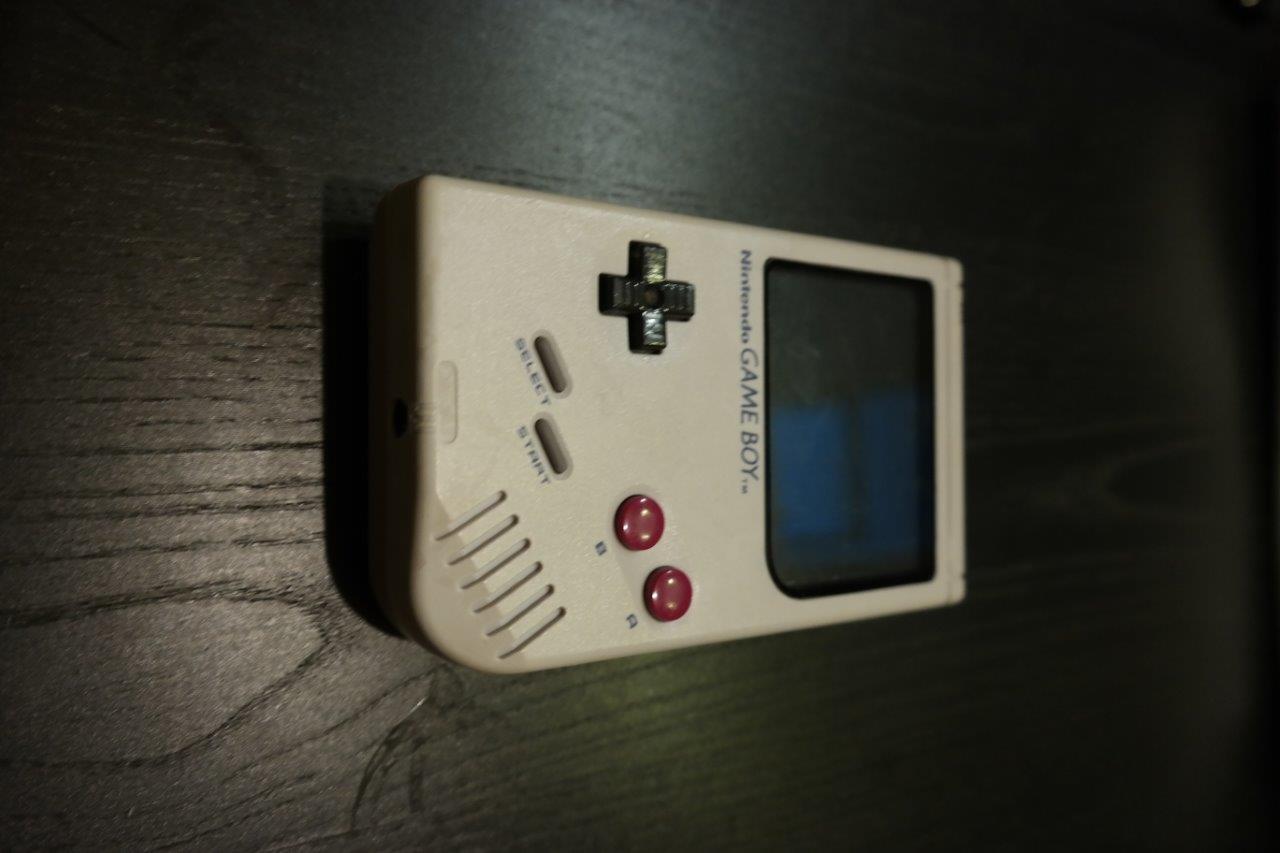

[spoiler="Pictures"]
[/spoiler]
zeppikes GBZ project
- zeppike
- Posts: 31
- Joined: Tue Aug 09, 2016 11:14 pm
- Location: Hungary
- Has thanked: 11 times
- Been thanked: 9 times
Re: zeppikes GBZ project

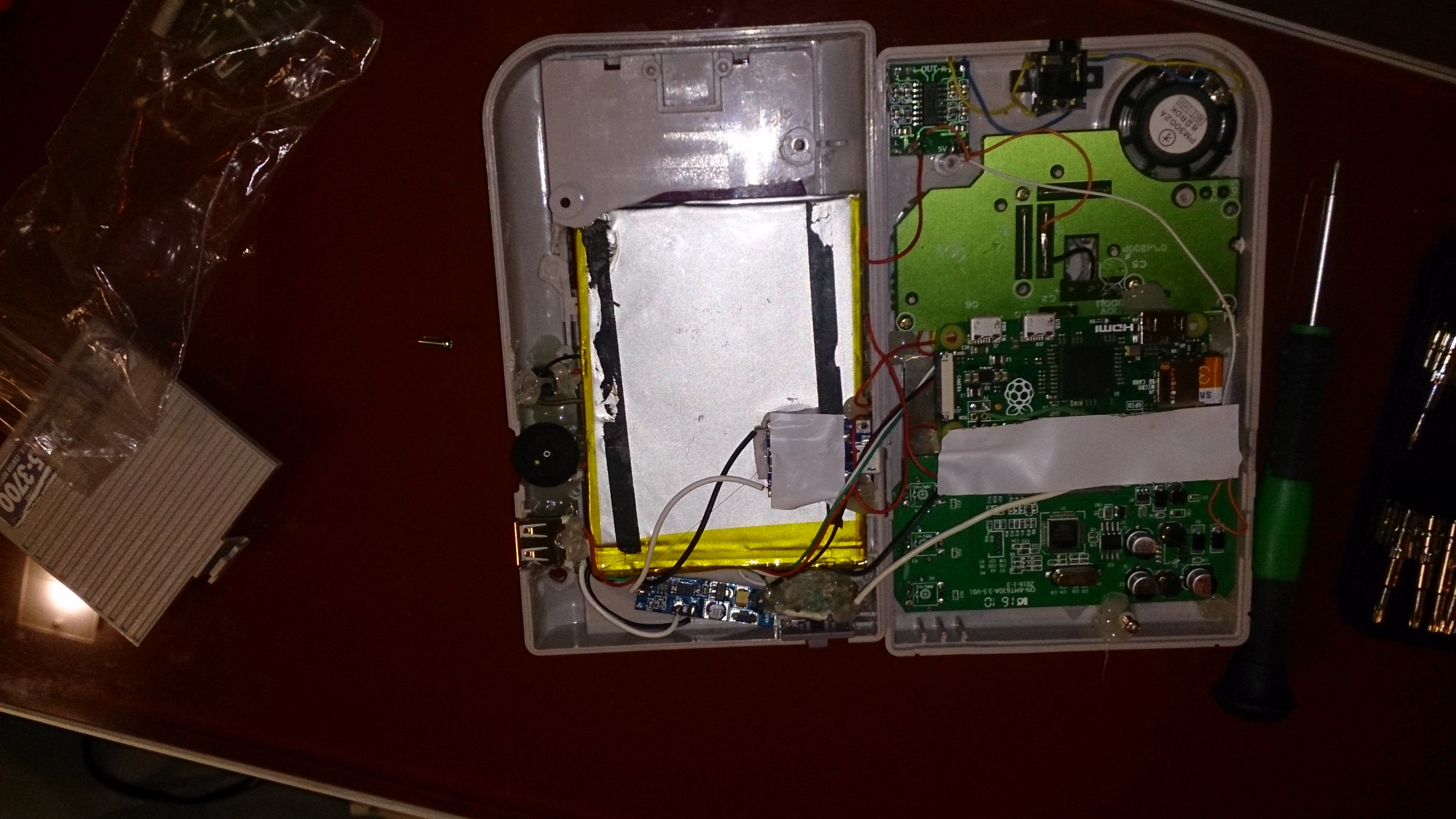

Update on the build!
Most of the parts arrived, so I managed to somewhat finish the project, I have a working unit, with some issues to solve.
Issues
Most of the parts arrived, so I managed to somewhat finish the project, I have a working unit, with some issues to solve.
Issues
- Case is somewhat ugly, thanks to the lack of skill with the dremmel tool
- Power switch is flaky, thanks to lack of desoldering skills. Also it works te other way around, because the other rail in the switch is damaged.
- right shoulder button doesn't work.
- the amp hums quite loud, also there should be a low pass filter included as well, to filter 20kHz+ frequencies.
- Low battery simple led indicator
- Better cartridge decal
- map keys properly to avoid strange 2 deep emulation problems
- hdmi out (though I am not a big fan)
- zeppike
- Posts: 31
- Joined: Tue Aug 09, 2016 11:14 pm
- Location: Hungary
- Has thanked: 11 times
- Been thanked: 9 times
Re: zeppikes GBZ project
I couldn't figure out the shoulder button issue. So I moved the witch to an other GPIO pin.
I managed to find the appropriate keys mapped, so now I can use PICO8 on this.
I managed to find the appropriate keys mapped, so now I can use PICO8 on this.
- zeppike
- Posts: 31
- Joined: Tue Aug 09, 2016 11:14 pm
- Location: Hungary
- Has thanked: 11 times
- Been thanked: 9 times
Re: zeppikes GBZ project
When closing the case, I made some serious mistake. I fitted the raspberry pi way too tight, and it seems I shorted out one of the data pins on the usb. After tearing the whole socket out, the problem persists, so I think I may have somehow squashed that connection into the internal ground plane...
There is really no cure for that, except for changing the pi. This will be the third in this project so, even with that inexpensive (In Hungary where I live, it is actually much more expensive, from pimoroni it is 8 GPB with shipping. If you buy it here from a shop it is double the price plus shipping) small computer it is a bit over the top.
I am not quite sure what to do, probably will just leave it there and start a whole new one, probably with a GBP...
Until then, here is a youtube video showing it working. https://www.youtube.com/watch?v=87eqQqf8PfA
There is really no cure for that, except for changing the pi. This will be the third in this project so, even with that inexpensive (In Hungary where I live, it is actually much more expensive, from pimoroni it is 8 GPB with shipping. If you buy it here from a shop it is double the price plus shipping) small computer it is a bit over the top.
I am not quite sure what to do, probably will just leave it there and start a whole new one, probably with a GBP...
Until then, here is a youtube video showing it working. https://www.youtube.com/watch?v=87eqQqf8PfA
