GBZ Work in progress FInished!!!!

[Goldfish]

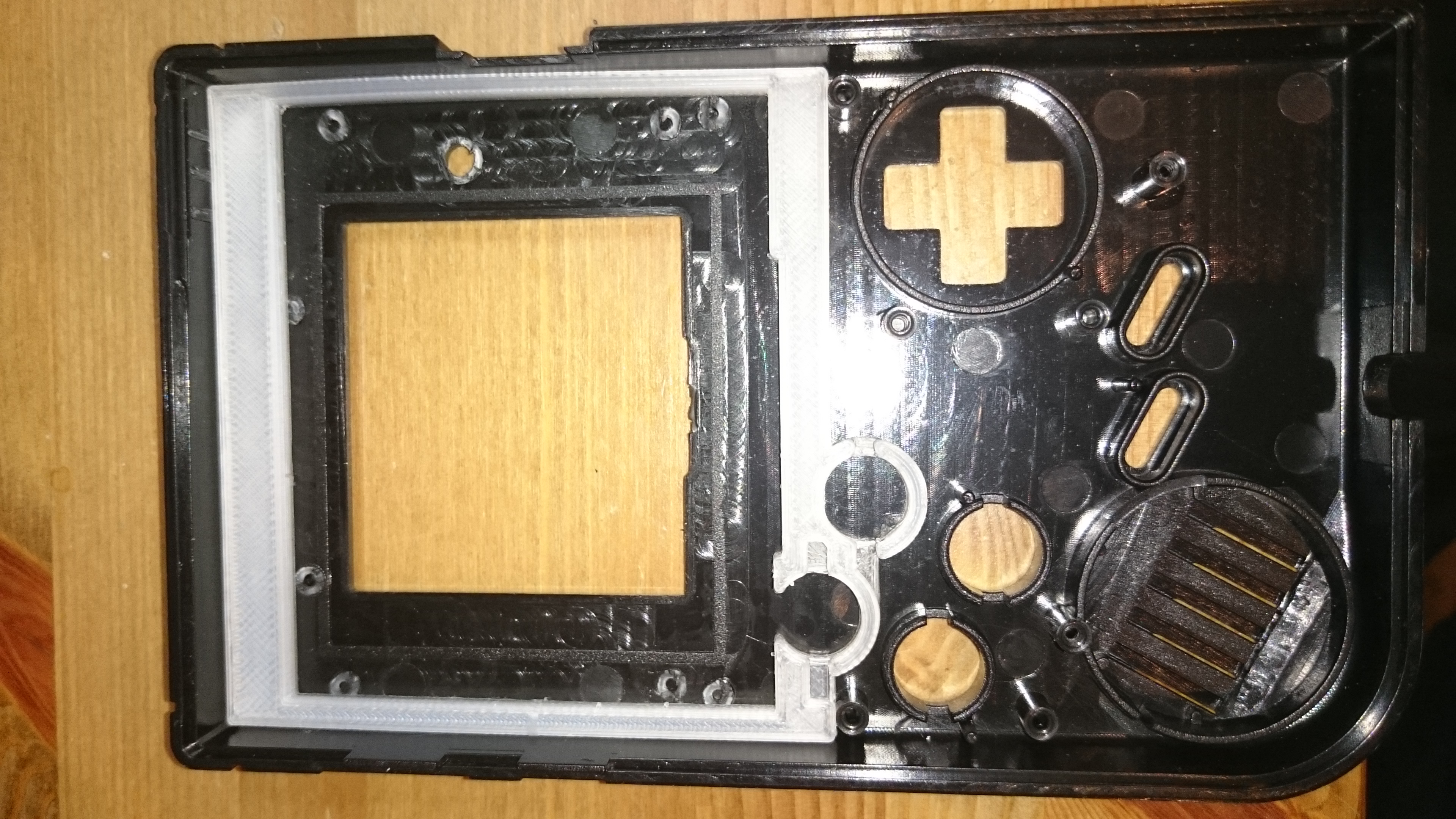

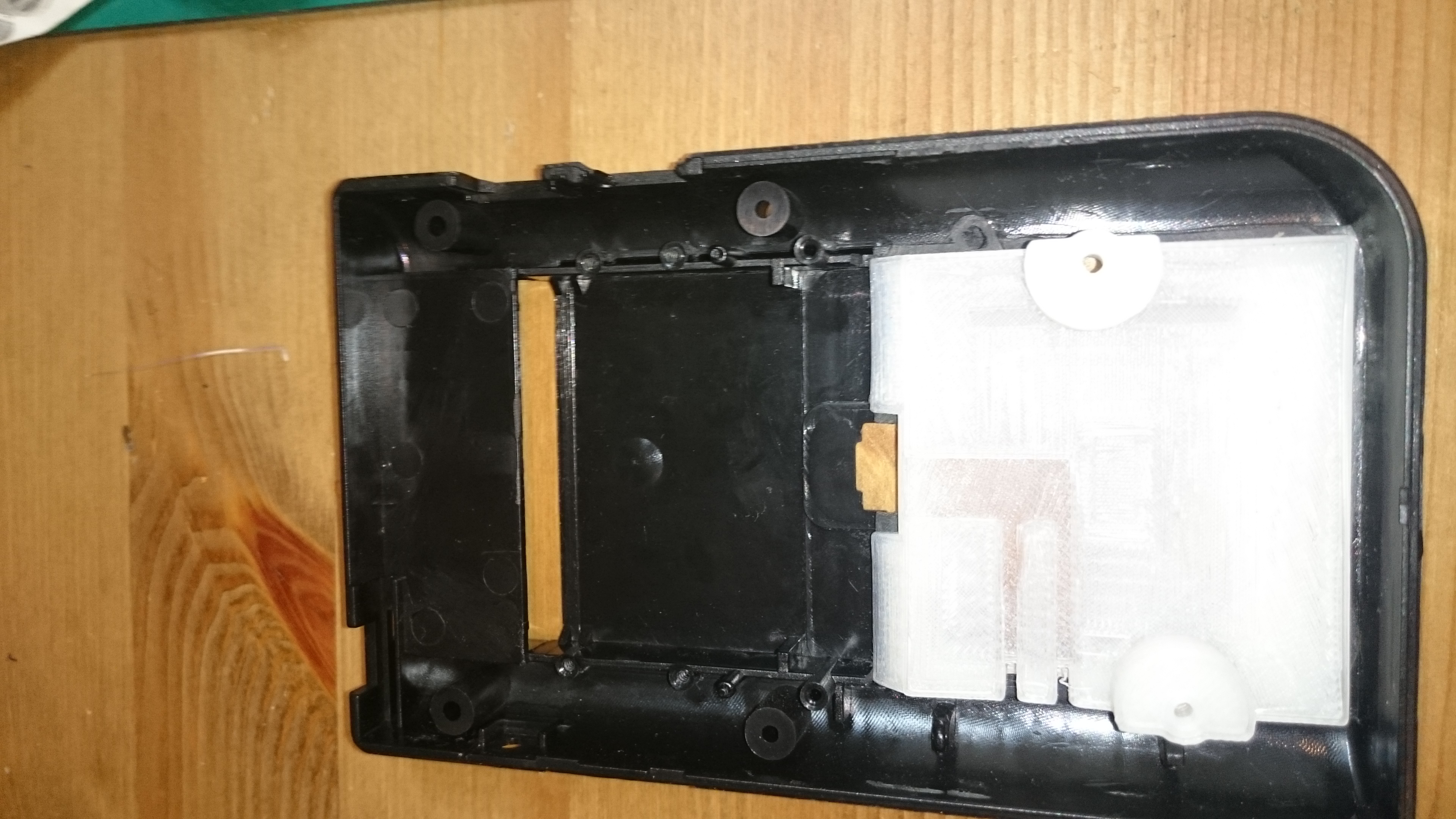

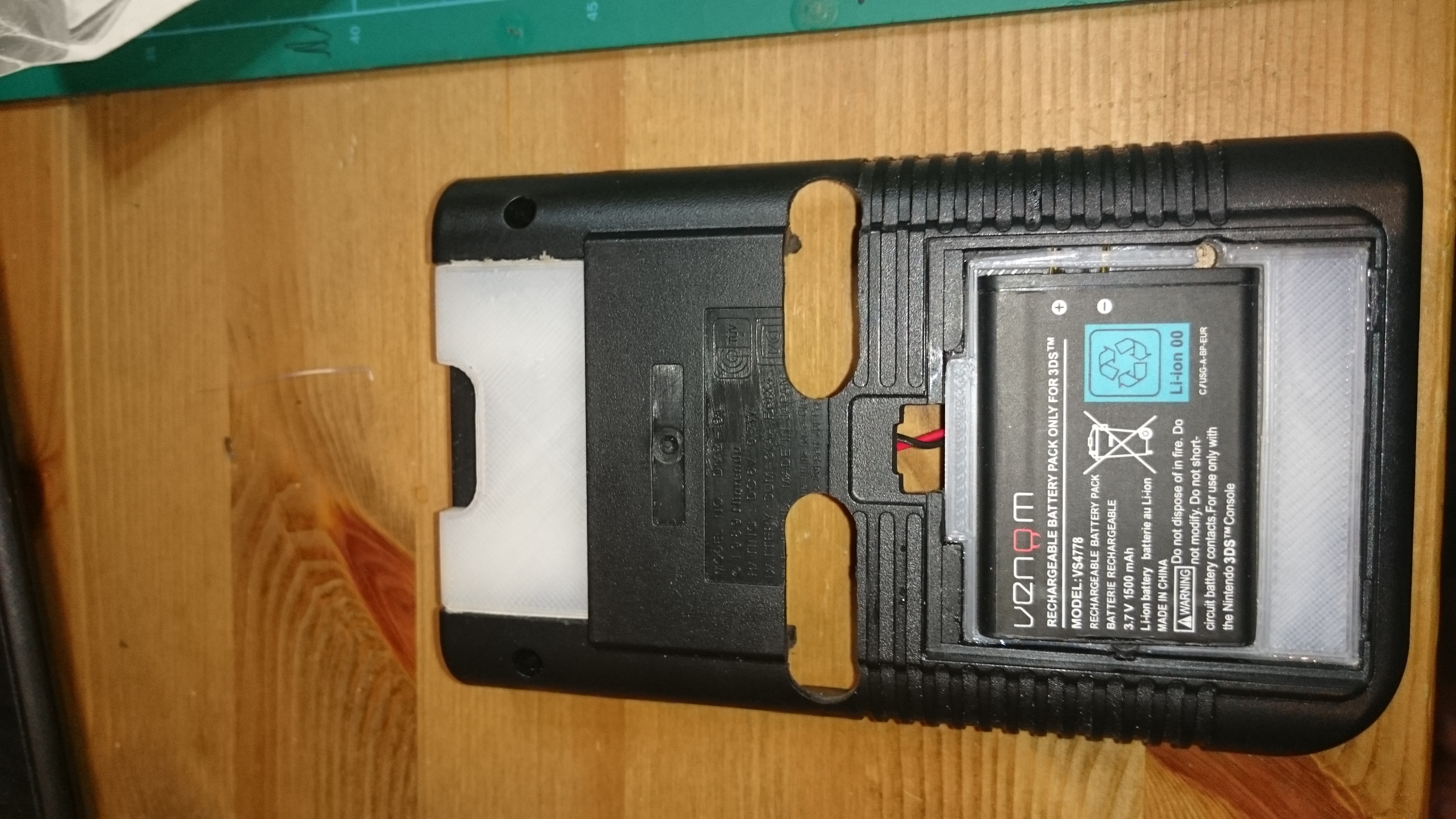

been working on this for a couple of weeks and thought it was about time i posted a couple of pics.
Just like to say no Gameboy was harmed in this project
Am going to add some 3d printed shoulder buttons but the ones i have made so far do not feel good.

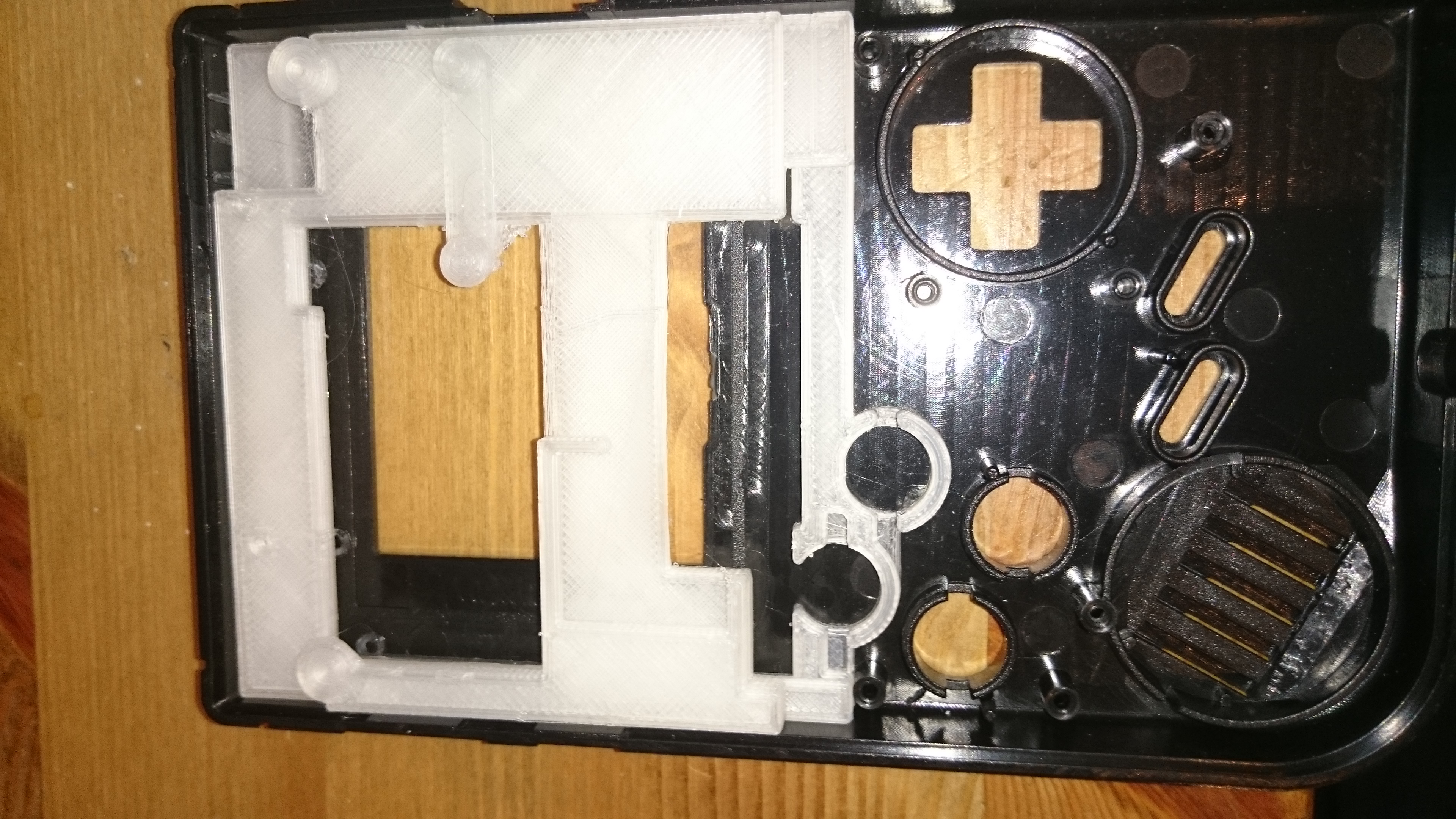

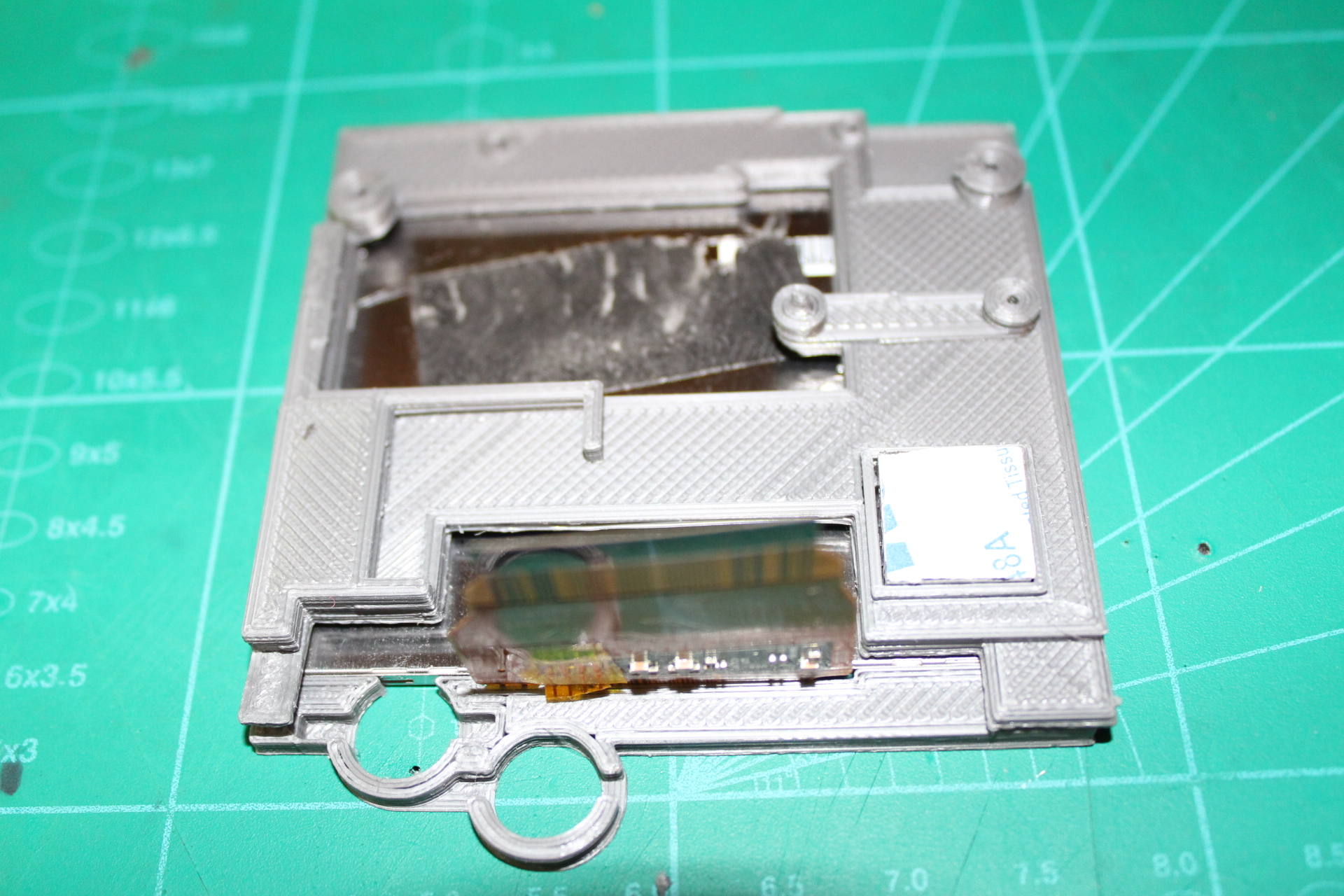

Just updated my screen frame and pizero bracket to incorporate a heat sink


.
The back of the heat sink will be in contact with the metal frame of the screen not sure that this will help or hinder with heat dissipation.

Ok finished working on number 2

[Ninjameep]

Very Nice o:

[tronicgr]

Looks awesome!

Can you share the 3d print parts?

Thanks
Thanos

[alien0matic]

Wow, those 3D printed holders are really cool. Way cleaner then my hot-glue mayhem

[SidSilver]

What screen do you use (to know the dimensions) ?

[Kepsilonz]

Could you share the wiring used in this image?
What is the little breadboard that we can see in the top of the gb? Is it a graceful shutdown? Thanks

[Goldfish]

Looks awesome!

Can you share the 3d print parts?

Thanks
Thanos

No problem just add the files to thingiverse http://www.thingiverse.com/thing:1724129/#files you might need to tweak for your needs.

[Goldfish]

Could you share the wiring used in this image?
What is the little breadboard that we can see in the top of the gb? Is it a graceful shutdown? Thanks

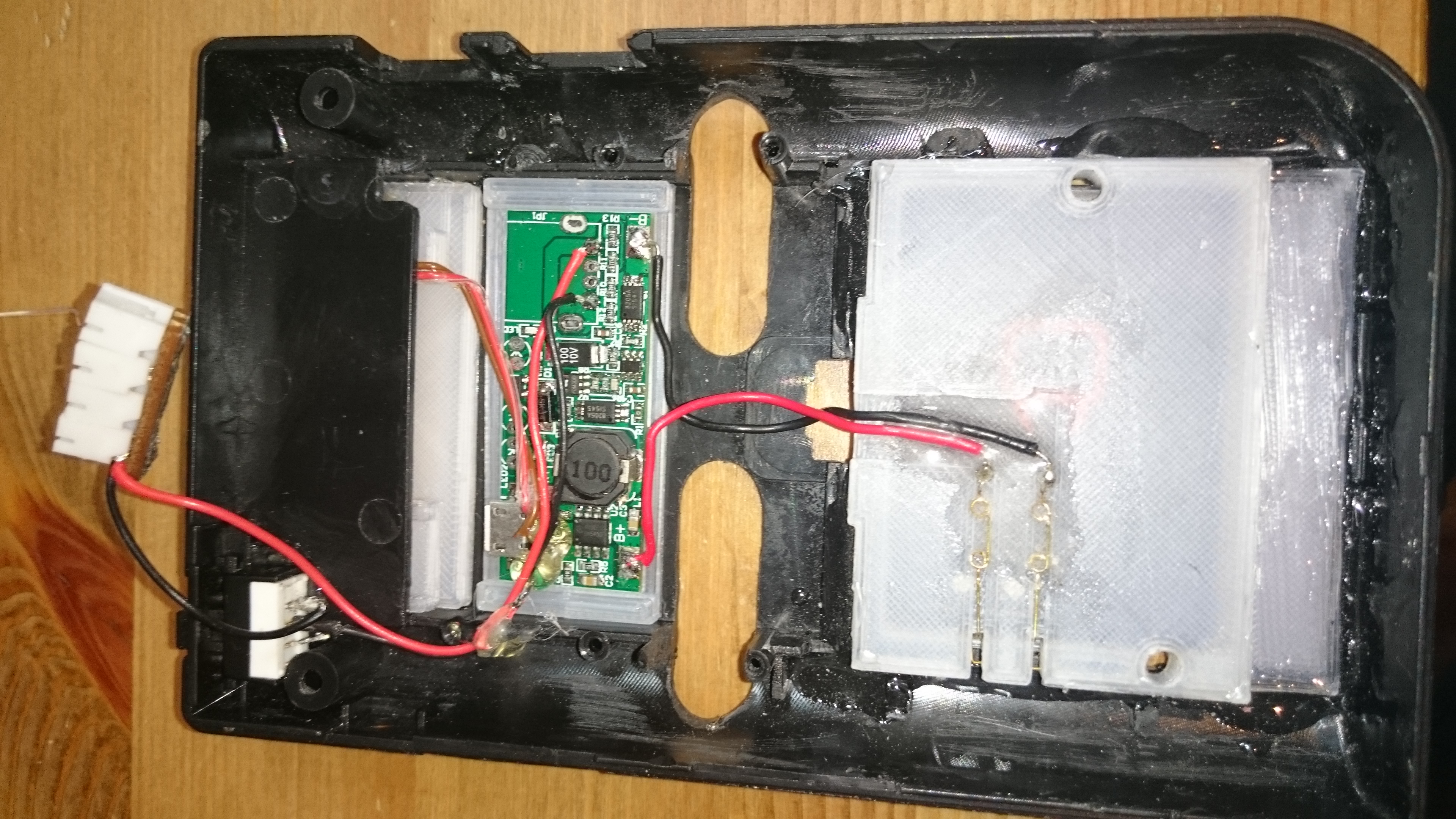

The little breadboard that you see has jst connectors on so i can plug power for the screen usb hub the pi zero and the teeney.
No graceful shutdown yet.

[Goldfish]

What screen do you use (to know the dimensions) ?

I'm using this screen http://sudomod.com/wiki/index.php?title ... te_Display

[Evilz]

Nice !!

How did you make the hole for the L and R buttons ?

Did you cut the cartridge ?
