Delta's GBZ Version 2.0

[DeltaShadow]

Started my second build.

This one I wanted clean as possible as my first one barely closed.

Have been purchasing parts for this one slowly since Helder AIO v1

Parts

[spoiler="Parts"]Forums
Helder
AIO board V2 $47.92

Wermy
3D-Printed Screw Bracket $6
3D-Printed DSL MOUNT $6

Camble
Safe shut down (powerboot) $16.12

Dominator
Screen surround $15.25
Cart labels

Handheldlegend
Step Drill Bit $5.79

Kitsch-bent
kk_gb_zero_b cart $18.50


Ebay
Black housing $11.39
DS Lite GBA card reader $3.99
JST 2.0 PH 2-Pin Connector $5.44
Conductive PADS 2x $10.34
PowerBoost 1000C $22.94


Amazon
BW 3.5 Inch $14.99
JST-XH 5pin $7.98
IDE PATA Flat Ribbon Cable $6.42
micro usb breakout board $2.54
100Pcs 4.5mm Tactile switch $5.40
Wheel Potentiometer 5Pcs $6.15


PiHut
Pi Zero ~$10


3d printed on my own
2nd screw bracket Wermy
screen/button bracket from thingiverse[/spoiler]


Finally got my last part and started the other day.

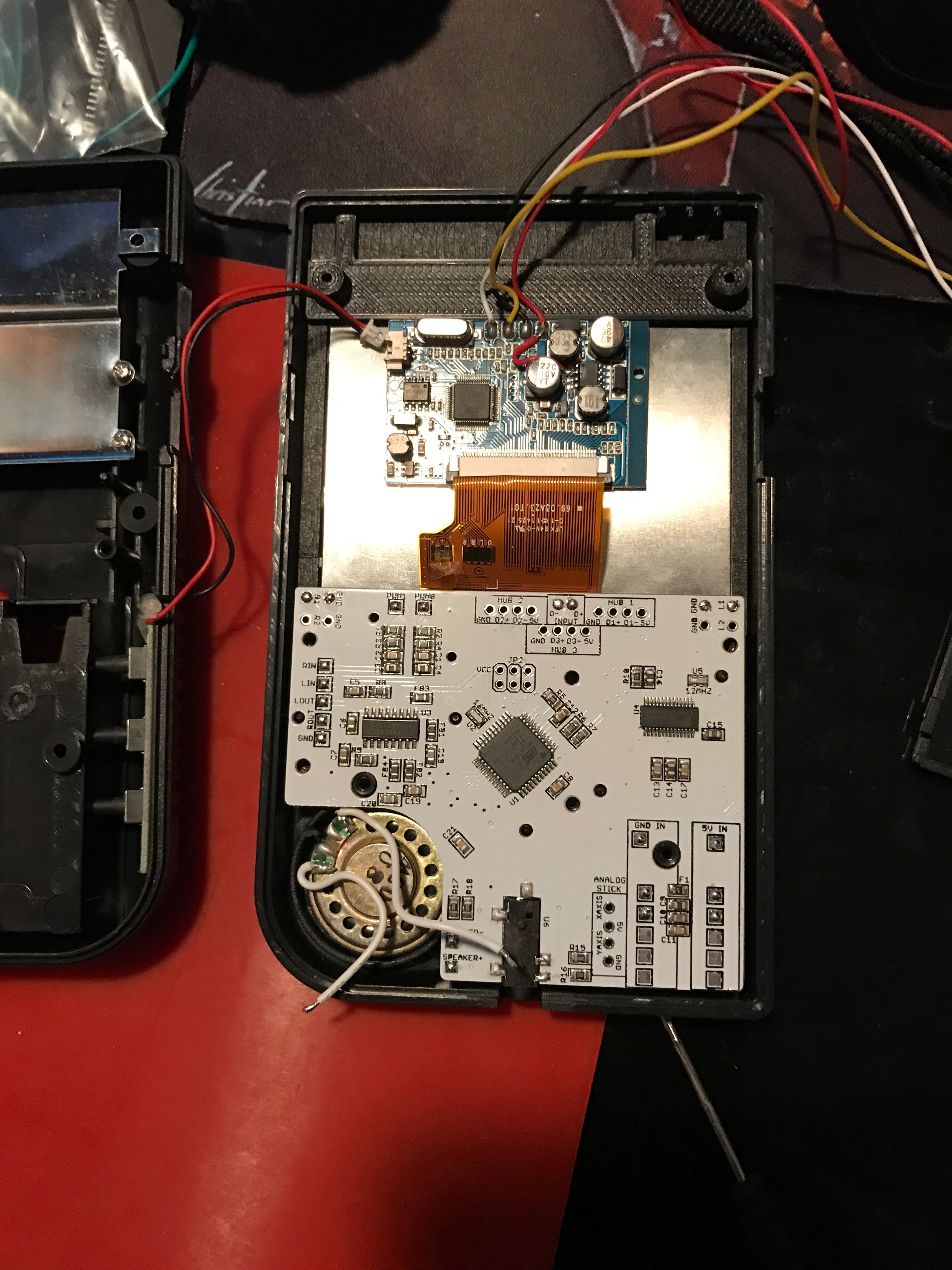

[spoiler="Screen bracket"]


[/spoiler]

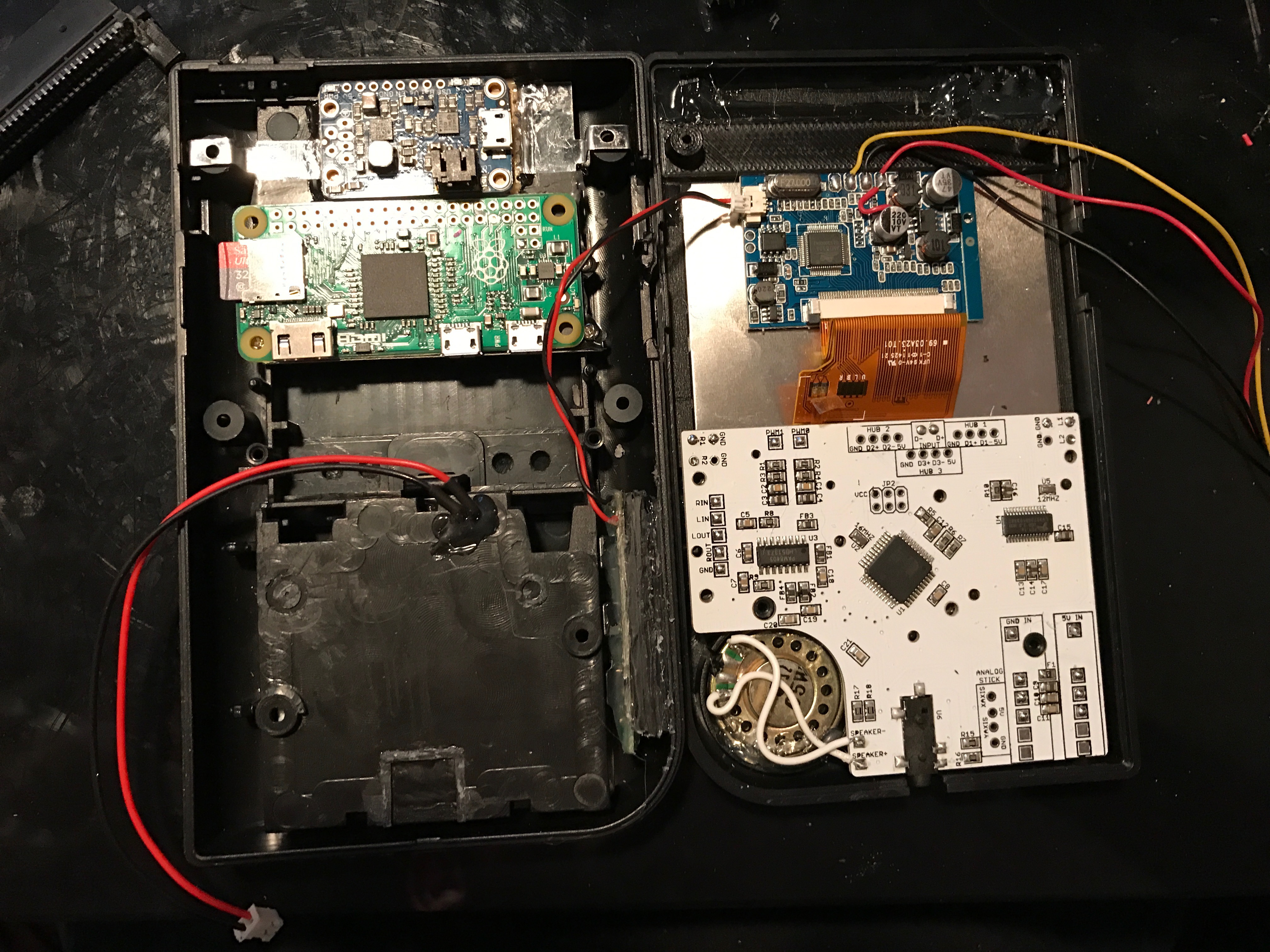

[spoiler="Inside Front"]


[/spoiler]

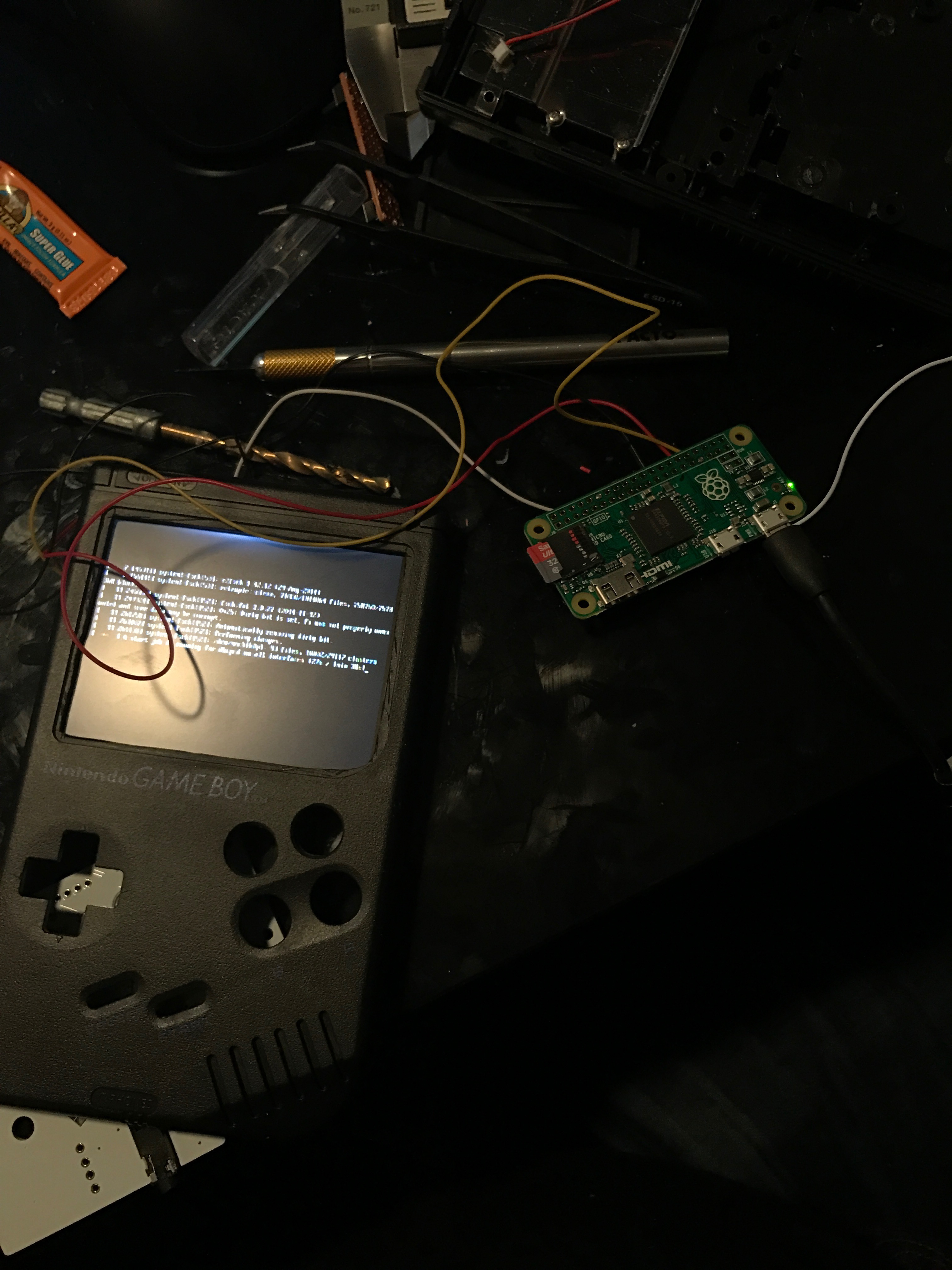

[spoiler="Screen Test"]


[/spoiler]

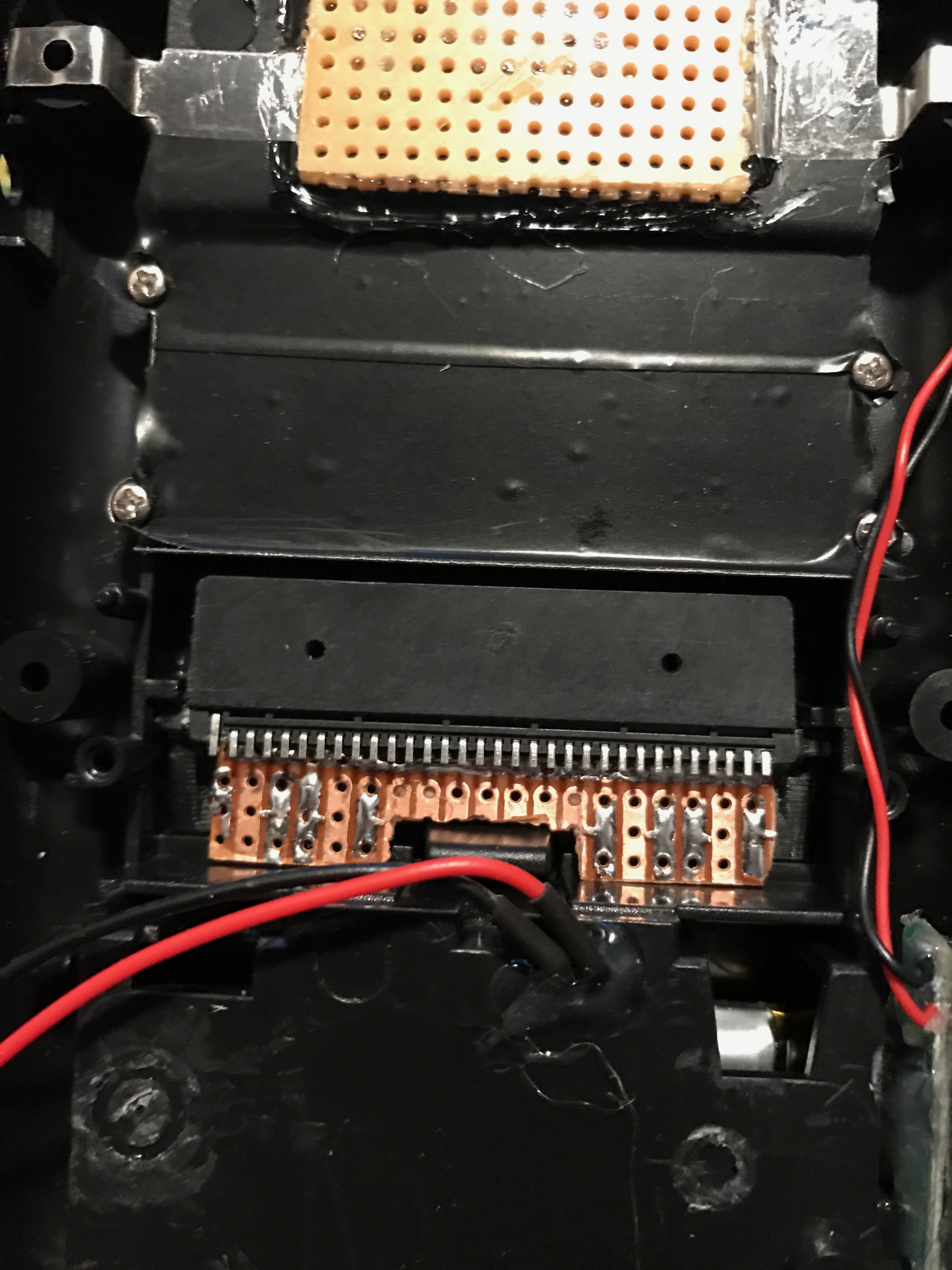

[spoiler="Parts Placement"]


[/spoiler]

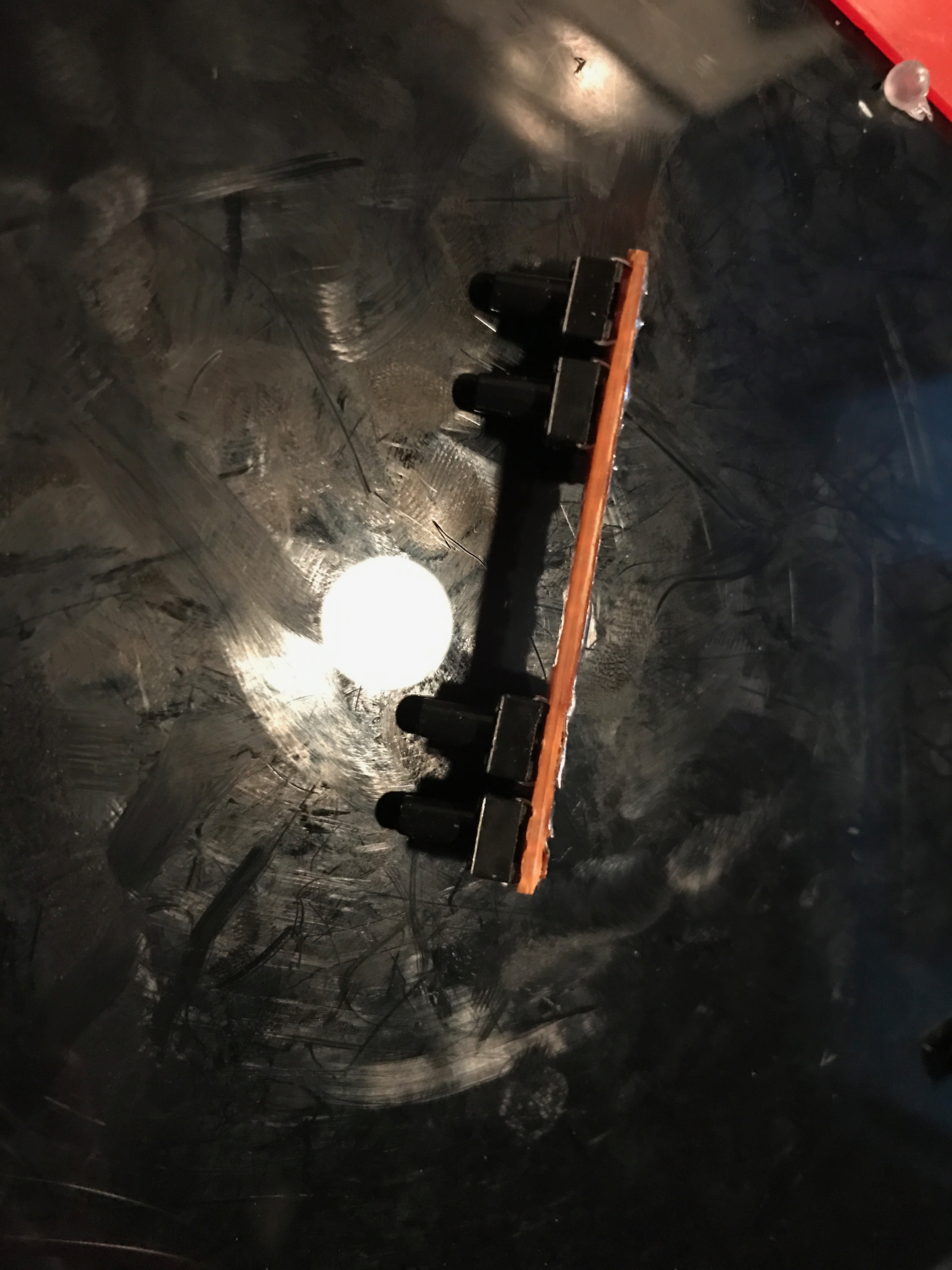

[spoiler="L and R"]





[/spoiler]

Thanks to all the members that I mentioned in my parts list that I purchased the parts from, you make the building process cleaner and smoother!

Will have more to upload very soon!
