Artist_block's GBZ build log *WIP*

[Artist_block]

This is going to be my first build. And this is going to be updated in real time, so feel free to ask/give suggestions, and wish me luck.

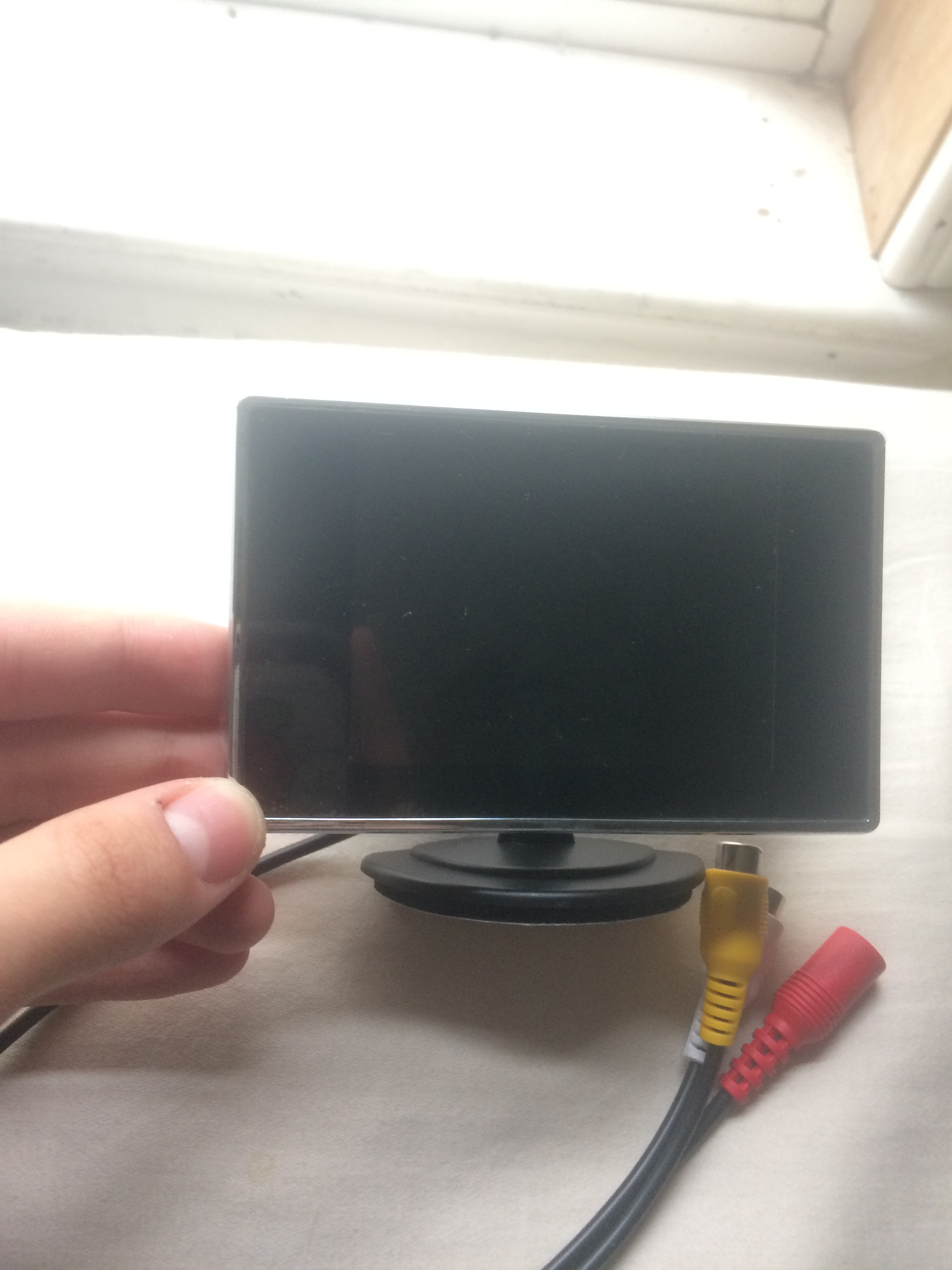

12/13/16 The first of the parts were delivered today which is basically just the "BW 3.5 Inch TFT LCD Monitor." [spoiler="LCD Screen"]

LCD

2016-12-16 14.02.48.jpg (1.05 MiB) Viewed 3945 times

[/spoiler]

12/14/16 It took me awhile and I haven't used the Arduino IDE in a really long time. But I was able to test the screen[spoiler="Arduino/Linux test Screen"]

Arduino Linux test screen

2016-12-16 15.41.59.jpg (984.66 KiB) Viewed 3945 times

[/spoiler] I wasn't able to use the raspberry pi since my usb hub broke . P.S. Does anyone know how to get rid of that white line at the bottom?

[Artist_block]

12/16/16 The motherload of parts arrived.
The parts included:
•3d printed button wells (4 of them arrived that was surprise)
•3d printed lcd mount
•Kitsh Bent I2c controller board ( It arrived bent and I almost sent it back but I was able to "massage" it back into place
•A Power Boost 1000c to charge the 2000mah battery I already had
• Kitsh Bent kk_gb_brkout board
• A "Charge Doctor"
• An otg usb hub
• Otg adapter
• Tactile buttons
• An Adafruit Trinket
• Misc…

[Artist_block]

12/17/16 I burnt the screen. Today I had much success, I was able to load roms, I could ssh into my raspberry Pi, I was even able to get audio out though a usb audio device. But I screwed up trying to make the connection to the screen more permanent by replacing the connectors with jumper wires. A warning to anyone wanting to build this DO NOT CHANGE THE POWER CONNECTOR I burnt mine by confusing the polarity.
