ABH's GameBoy SP ZeroW

Post by ABH » Wed Jul 12, 2017 7:30 am

Hi this is a project i have been working in it for a while and i'd like to share it with you
and your feedback would be very helpfull
Regards
Parts ListShow
First of all ,, Sorry i don't have many picters for screens so i use them from web site to describe how i fit the screen.

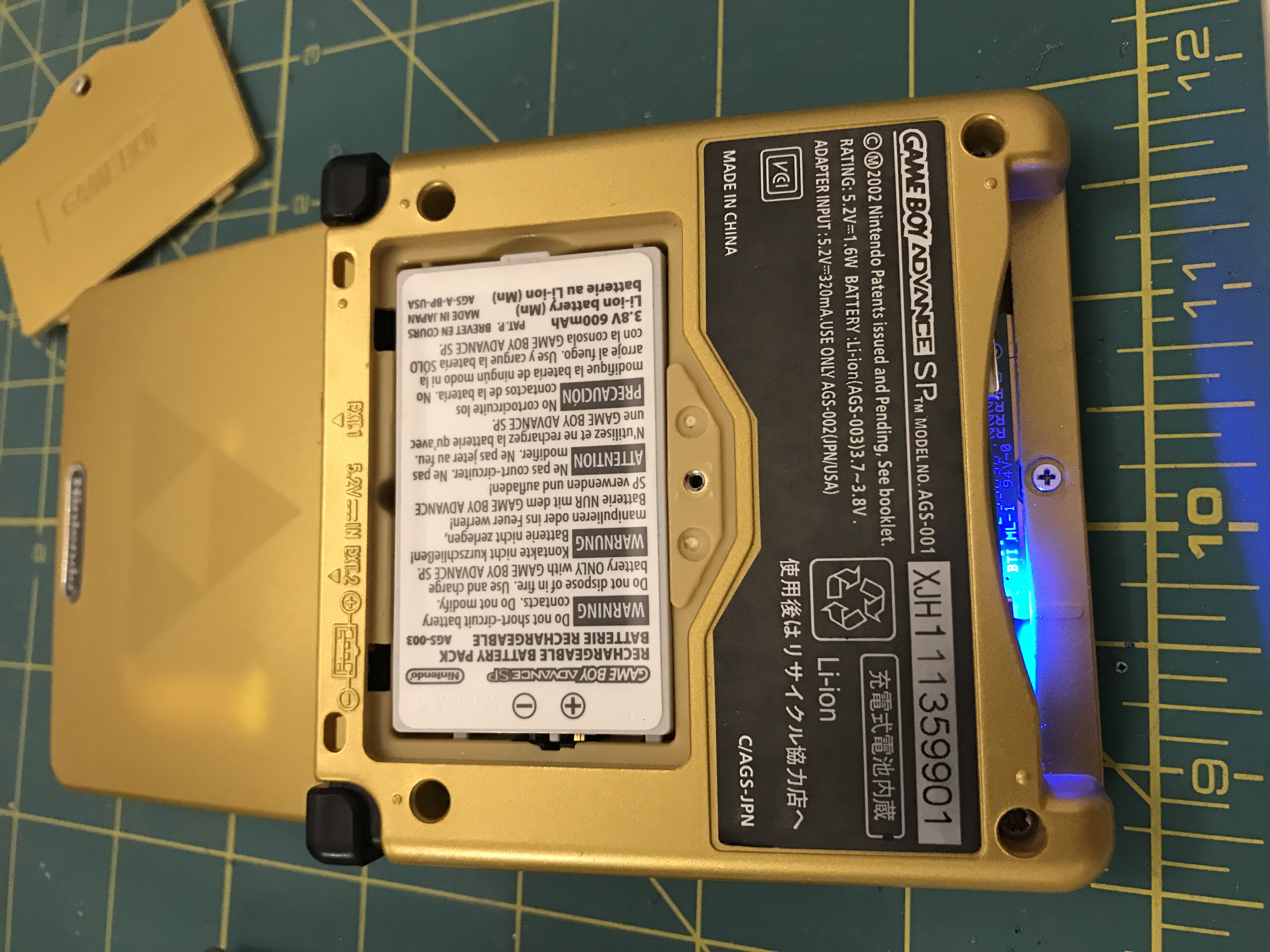

i use orginal gameboy sp battery and it gives me 50 min play ( maby i will upgrade it )
  • I cut down the board to make it fit

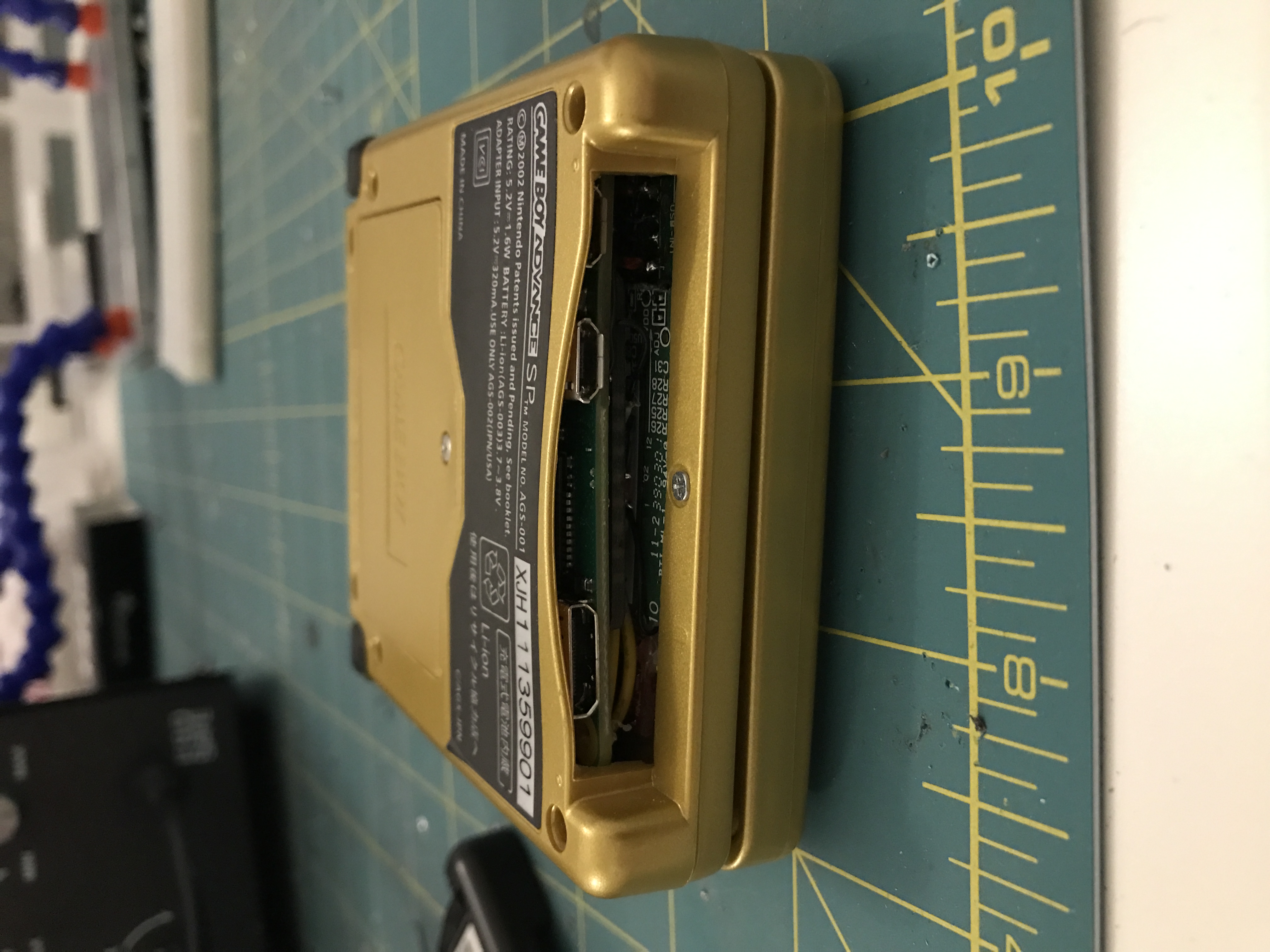

  • It's fit perfectly with the orginal gameboy sp housing

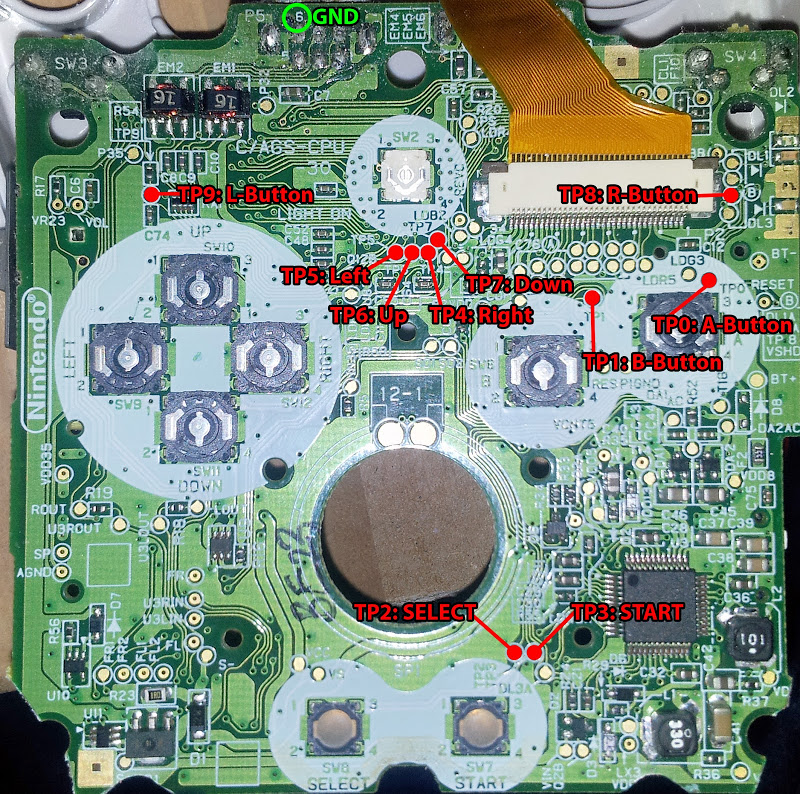

  • this is how i wiring the buttons

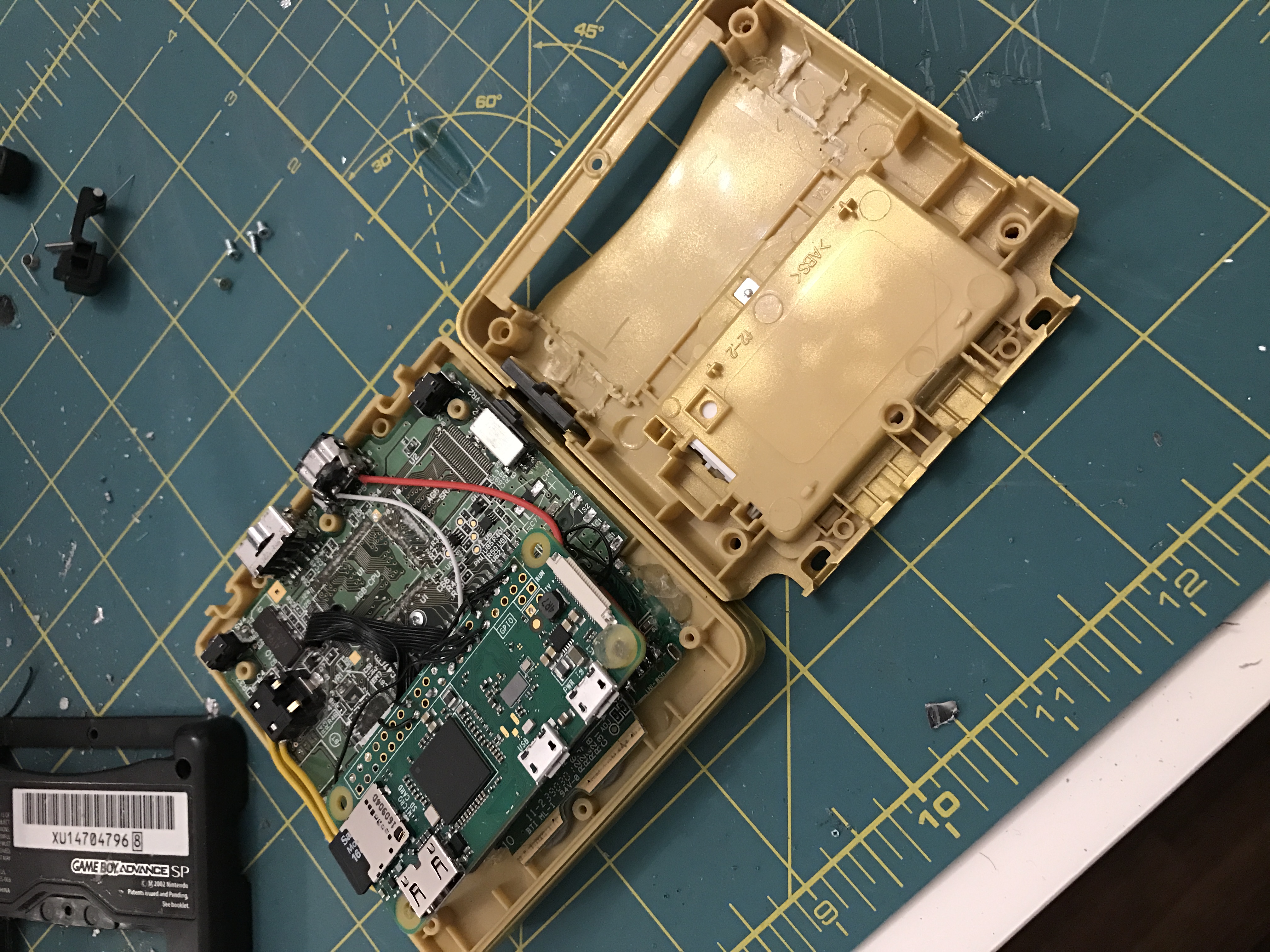

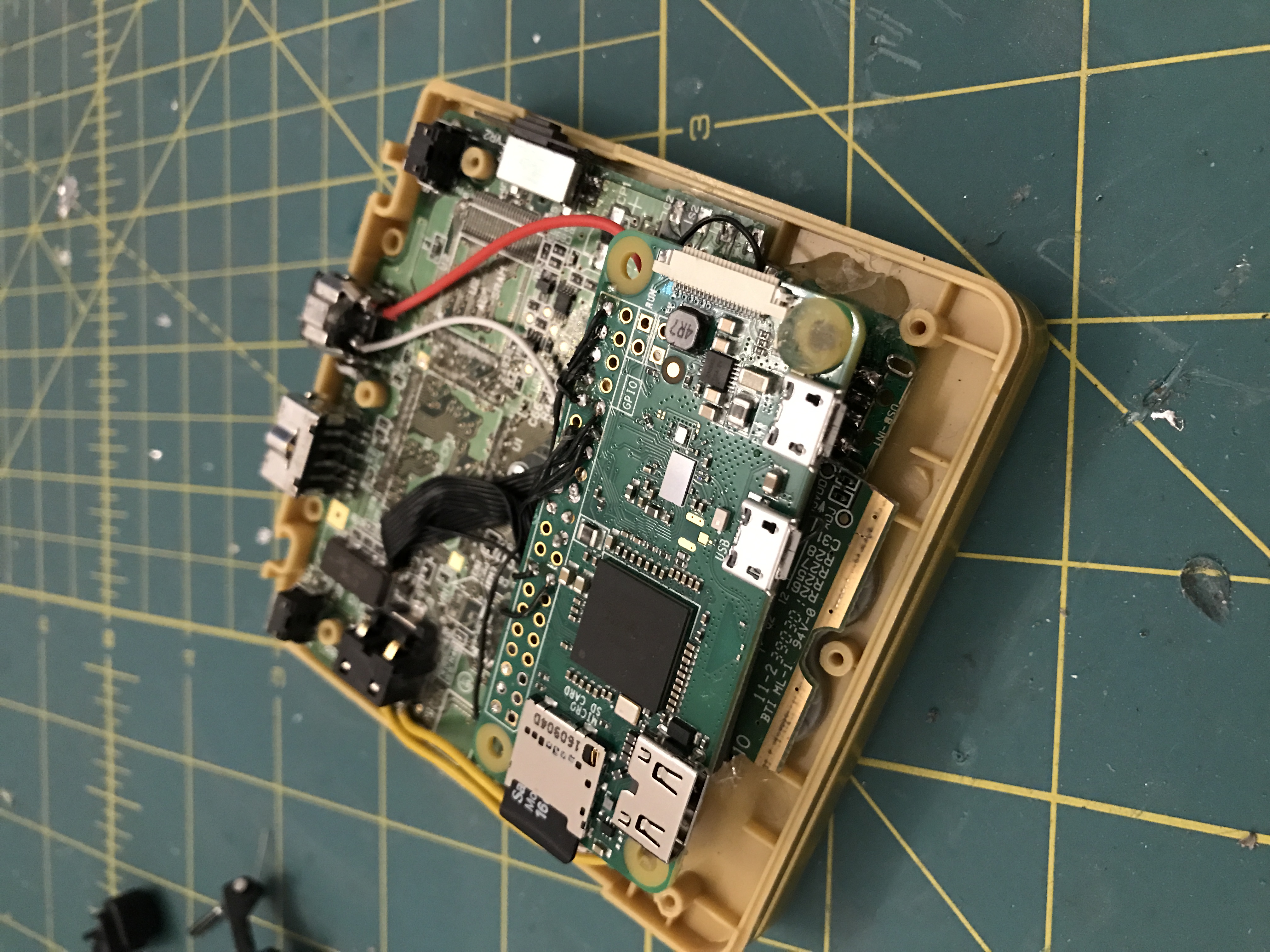

  • this is picturs of how i fit everythings
IMG_6104 copy.jpg
IMG_6104 copy.jpg (3.88 MiB) Viewed 16022 times

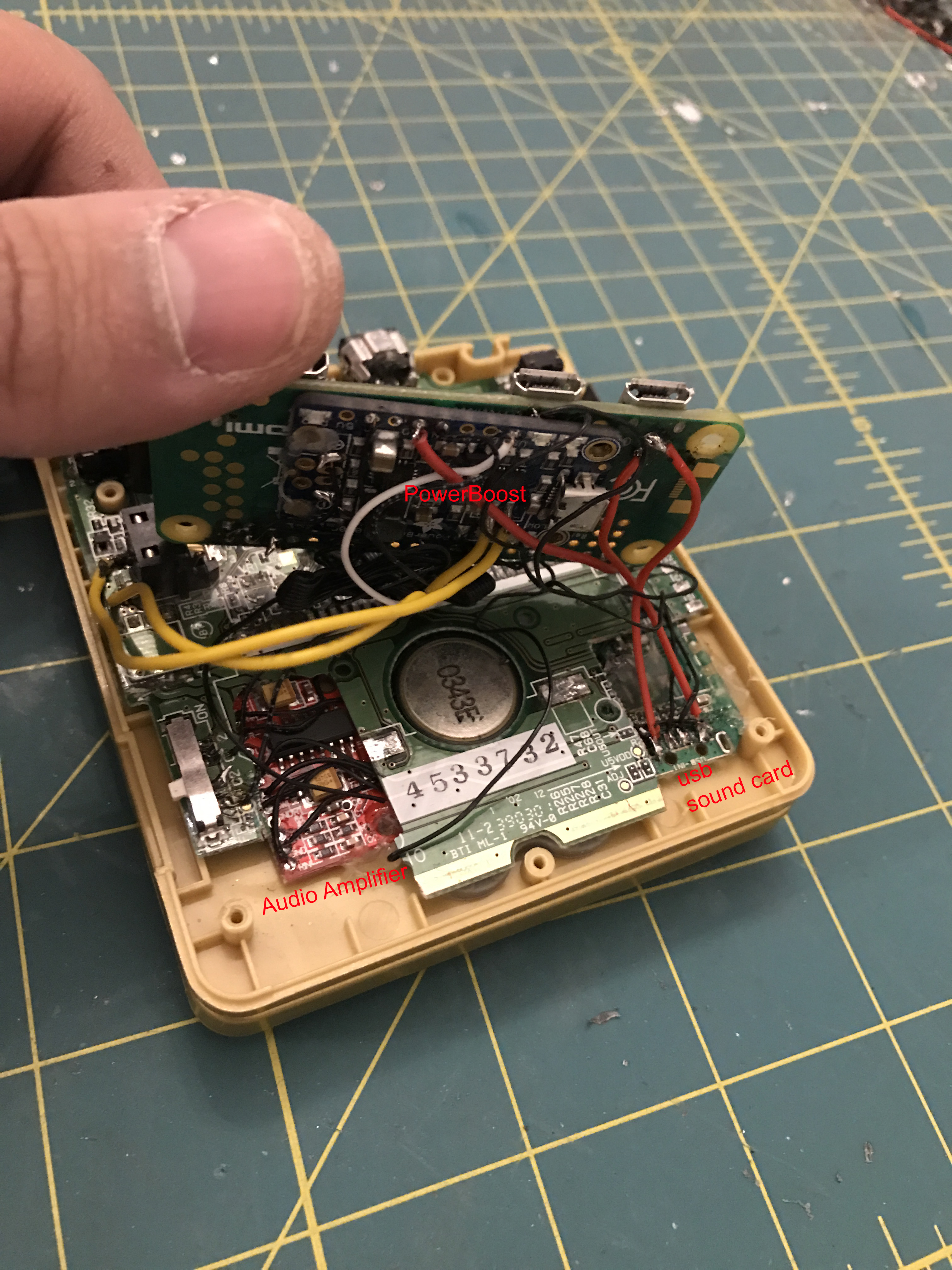

  • 1 & 2 it's screen and buttons wiring

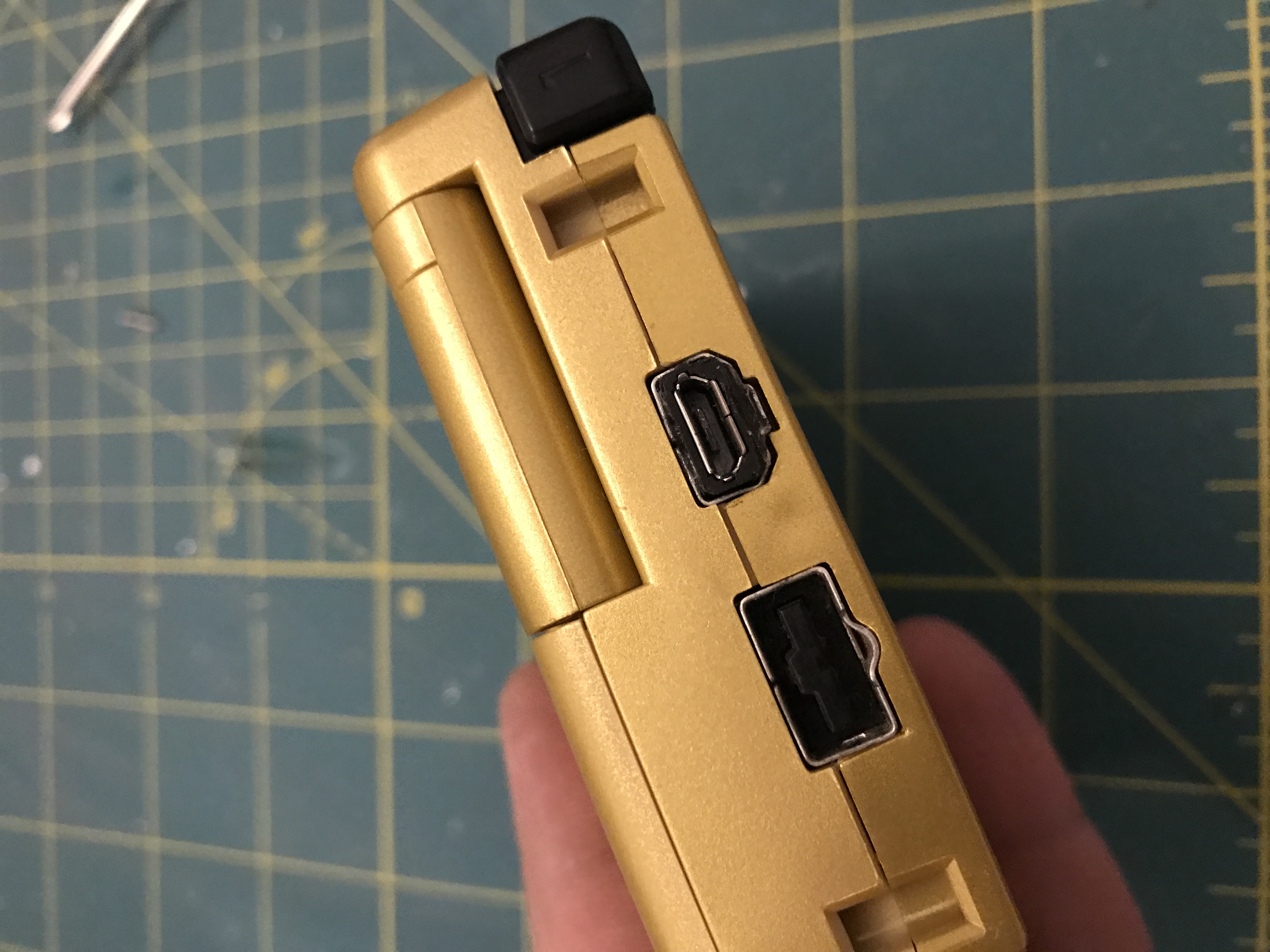

  • I used this port for micro usb

  • Final product

Reference :
How to - Use the GPIO for Buttons instead of a Teensy
How-to: Use USB Audio in Retropie v3.7
https://learn.adafruit.com/running-open ... itft-setup
Many thanks to them

hope you enjoy it
Image Image

Check out my GameBoy Pocket RPI3 build Here
Check out my GameBoy SP build Here
Check out my SupaBoy S build Here

Code: Select all

Enjoy your time ..

User avatar
muniosi
Posts: 99
Joined: Sun Jan 08, 2017 10:21 pm
Has thanked: 157 times
Been thanked: 30 times

Re: ABH's GameBoy SP ZeroW

Post by muniosi » Wed Jul 12, 2017 9:33 am

That's ridiculously impressive. Great job on getting all that to fit in the GBA SP, especially without even removing the battery compartment.
I've just finished my milk.

User avatar
rodocop
Posts: 1356
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 522 times
Been thanked: 492 times

Re: ABH's GameBoy SP ZeroW

Post by rodocop » Wed Jul 12, 2017 9:50 am

This is awesome!

User avatar
ABH
Posts: 170
Joined: Sat May 28, 2016 7:01 pm
Location: Qatar
Has thanked: 64 times
Been thanked: 82 times

Re: ABH's GameBoy SP ZeroW

Post by ABH » Thu Jul 13, 2017 7:39 am

Thank you Guys :)
Image Image

Check out my GameBoy Pocket RPI3 build Here
Check out my GameBoy SP build Here
Check out my SupaBoy S build Here

Code: Select all

Enjoy your time ..

codeman0624
Posts: 107
Joined: Wed Nov 23, 2016 10:19 am
Has thanked: 3 times
Been thanked: 73 times

Re: ABH's GameBoy SP ZeroW

Post by codeman0624 » Fri Jul 14, 2017 10:36 am

Wow great job! You beat me to it, I'm working on an SP build also. Glad to see someone has been able to accomplish it.

How did you fit the micro USB into the connector like that?

User avatar
ABH
Posts: 170
Joined: Sat May 28, 2016 7:01 pm
Location: Qatar
Has thanked: 64 times
Been thanked: 82 times

Re: ABH's GameBoy SP ZeroW

Post by ABH » Fri Jul 14, 2017 12:58 pm

codeman0624 wrote:
Fri Jul 14, 2017 10:36 am
Wow great job! You beat me to it, I'm working on an SP build also. Glad to see someone has been able to accomplish it.

How did you fit the micro USB into the connector like that?
Hi
I desolder it and remove the parta inside
And I placed the micro usb
Wish you luck with your build :)
Image Image

Check out my GameBoy Pocket RPI3 build Here
Check out my GameBoy SP build Here
Check out my SupaBoy S build Here

Code: Select all

Enjoy your time ..

User avatar
oliddell
Posts: 73
Joined: Tue Apr 11, 2017 8:07 am
Has thanked: 22 times
Been thanked: 28 times

Re: ABH's GameBoy SP ZeroW

Post by oliddell » Thu Jul 20, 2017 7:17 am

Wow mate well done really cool build right there

toiletpaper69
Posts: 47
Joined: Sun May 15, 2016 6:21 am
Has thanked: 54 times
Been thanked: 7 times

Re: ABH's GameBoy SP ZeroW

Post by toiletpaper69 » Fri Jul 21, 2017 8:25 pm

Wow I didn't think it was possible.

User avatar
ABH
Posts: 170
Joined: Sat May 28, 2016 7:01 pm
Location: Qatar
Has thanked: 64 times
Been thanked: 82 times

Re: ABH's GameBoy SP ZeroW

Post by ABH » Sat Jul 22, 2017 8:13 am

oliddell wrote:
Thu Jul 20, 2017 7:17 am
Wow mate well done really cool build right there
toiletpaper69 wrote:
Fri Jul 21, 2017 8:25 pm
Wow I didn't think it was possible.
Thank you guys :D
Image Image

Check out my GameBoy Pocket RPI3 build Here
Check out my GameBoy SP build Here
Check out my SupaBoy S build Here

Code: Select all

Enjoy your time ..

User avatar
abrugsch
Posts: 990
Joined: Tue Aug 02, 2016 10:00 am
Has thanked: 367 times
Been thanked: 441 times
Contact:

Re: ABH's GameBoy SP ZeroW

Post by abrugsch » Sat Jul 22, 2017 10:15 am

What screen is that? Adafruit pi-tft?
Edit. Never mind. I found it in the parts list
