SQLEinstein's 1st GameBoy Zero

[SQLEinstein]

First off a big thanks to the entire Sudomod community!

Shout out to @Wermy, @Kite, @Hollyhoo, @Caste, @Dominator, @fdeluxe, @AJRedfern. Everyone up on Discord and the forums.

This was my first time attempting a project like this. I've never soldered anything before and this was quite the challenge, but I've gained a new skill and a new hobby!

Parts
- 1x Raspberry Pi Zero W from Pimoroni with Shipping £12.70 GBP/ 22.66 CAD
- 1x Kite SAIO v0.6 with Shipping £89.98 GBP/ $154.49 CAD
- 1x Translucent Black DMG-01 Case () 8.99$ USD with Shipping $25.51 CAD ->https://www.rosecoloredgaming.com/shop/ ... -vellocet/
- 1x HollyHoo SNES Bracket and Router Guide http://www.sudomod.com/forum/viewtopic.php?f=27&t=2553
- 1x Rear Button Bracket by caste -> http://www.sudomod.com/forum/viewtopic. ... on_well_01
- 1x Black SNES Buttons KitchBent -> http://store.kitsch-bent.com/product/custom-buttons
- 2x easy_1button -> http://store.kitsch-bent.com/product/easy_buttons
- 1x Screen Surround, and 1x Cart Sticker From Dominator, £9.25 GBP/$16.09 CAD
- 1x Black GameBoy Cartridge - $1.60 USD/ 2.08 CND, Free International Shipping
- 1x 3.7V 4000mAh Lipo Polymer Li Battery US, $12.49/ $17.33 CAD USD, Free International Shipping, Link-> http://www.ebay.ca/itm/182408478004
- 1x Adafruit Mini Metal Speaker w/ Wires - 8 ohm
- 1x JST-2PH Cable
- 1x JST Extension Cable
- 1x Lexar 300x 32GB Micro SD Card

Software
- Kite's Retropie Img -> https://github.com/geebles/Super-AIO/releases
- HollyHoo's Stoomtooper Theme -> http://www.sudomod.com/forum/viewtopic. ... 893#p28893
- fdeluxe Splashscreen -> http://www.sudomod.com/forum/viewtopic. ... 270#p36270
- AJRedfern Splashscreen -> http://www.sudomod.com/forum/viewtopic. ... een#p15712

Tools
- Soldering Iron
- Solder 60/40
- Dremel
- Router
- Xacto Knife
- Kapton Tape
- Step Drill Bit
- Helping Hands
- Hot GLue Gun
- Patience!!! Lots of patience.

Some resolved issues to note.
- Changed audio to Alsa in order to enabled Splash Screen audio on start up. -> http://www.sudomod.com/forum/viewtopic. ... 469#p36469
- Commented out Both HDMI and DPI settings in config.txt in order to gain output to my tv.

Images
Front

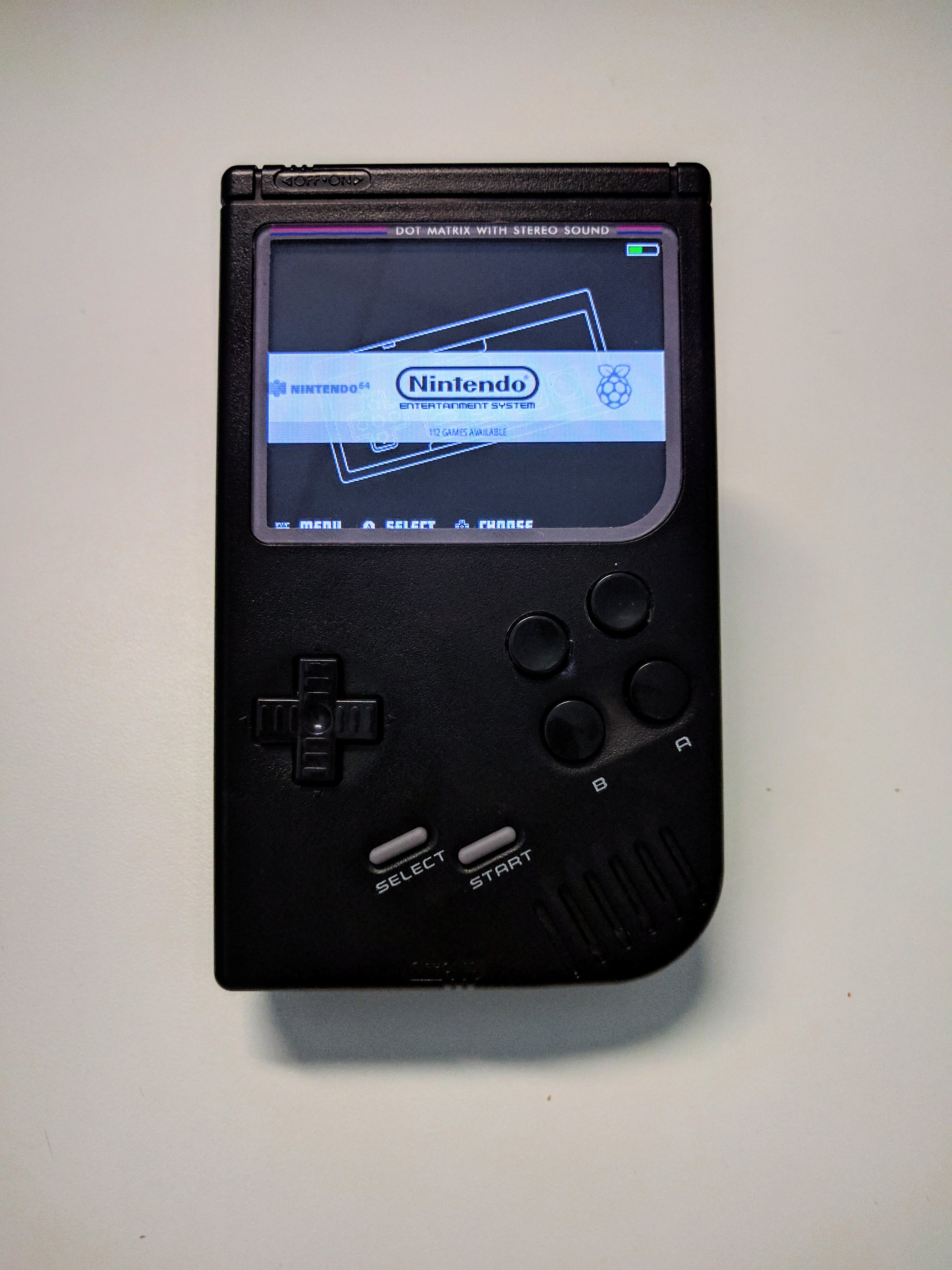

Theme


Back

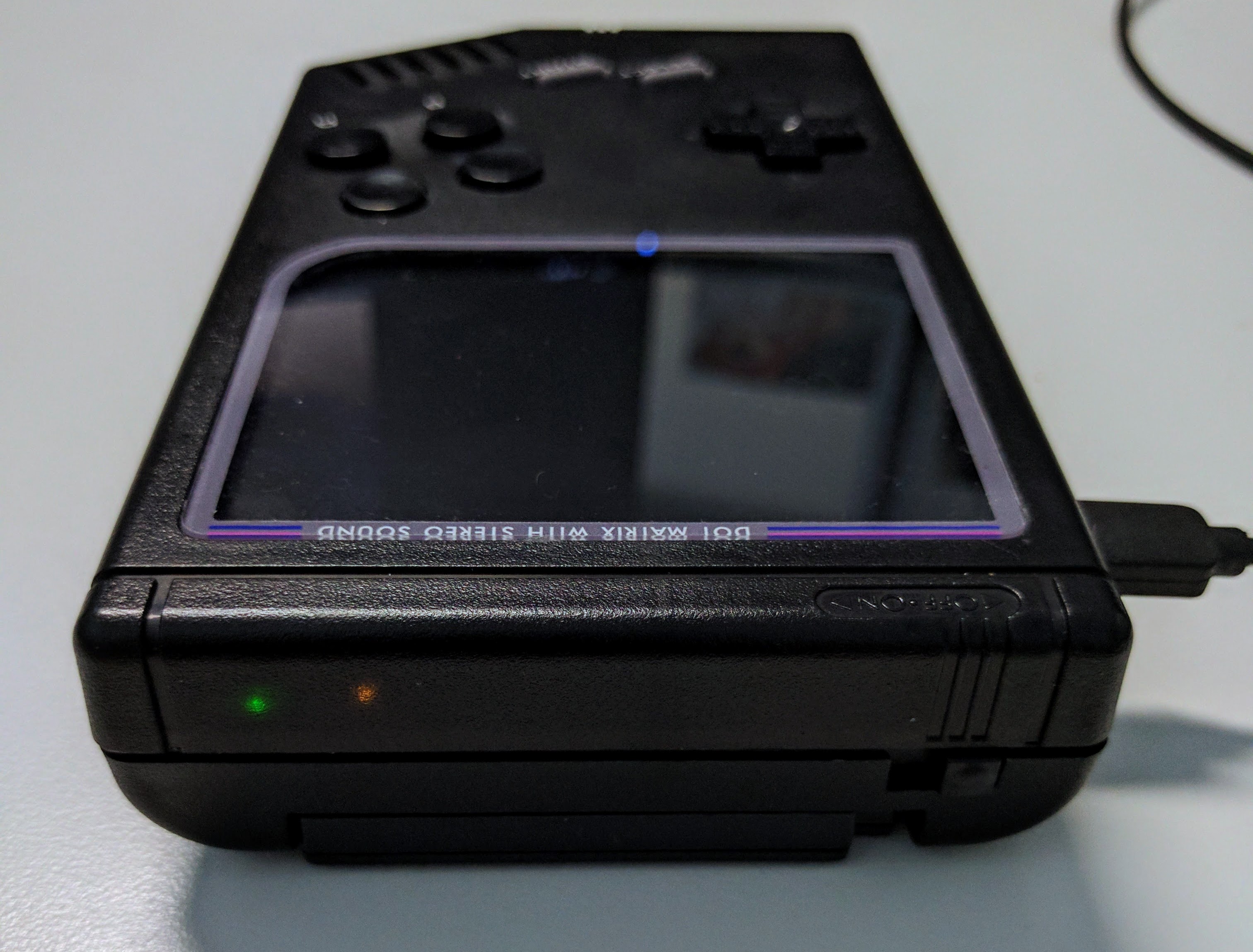

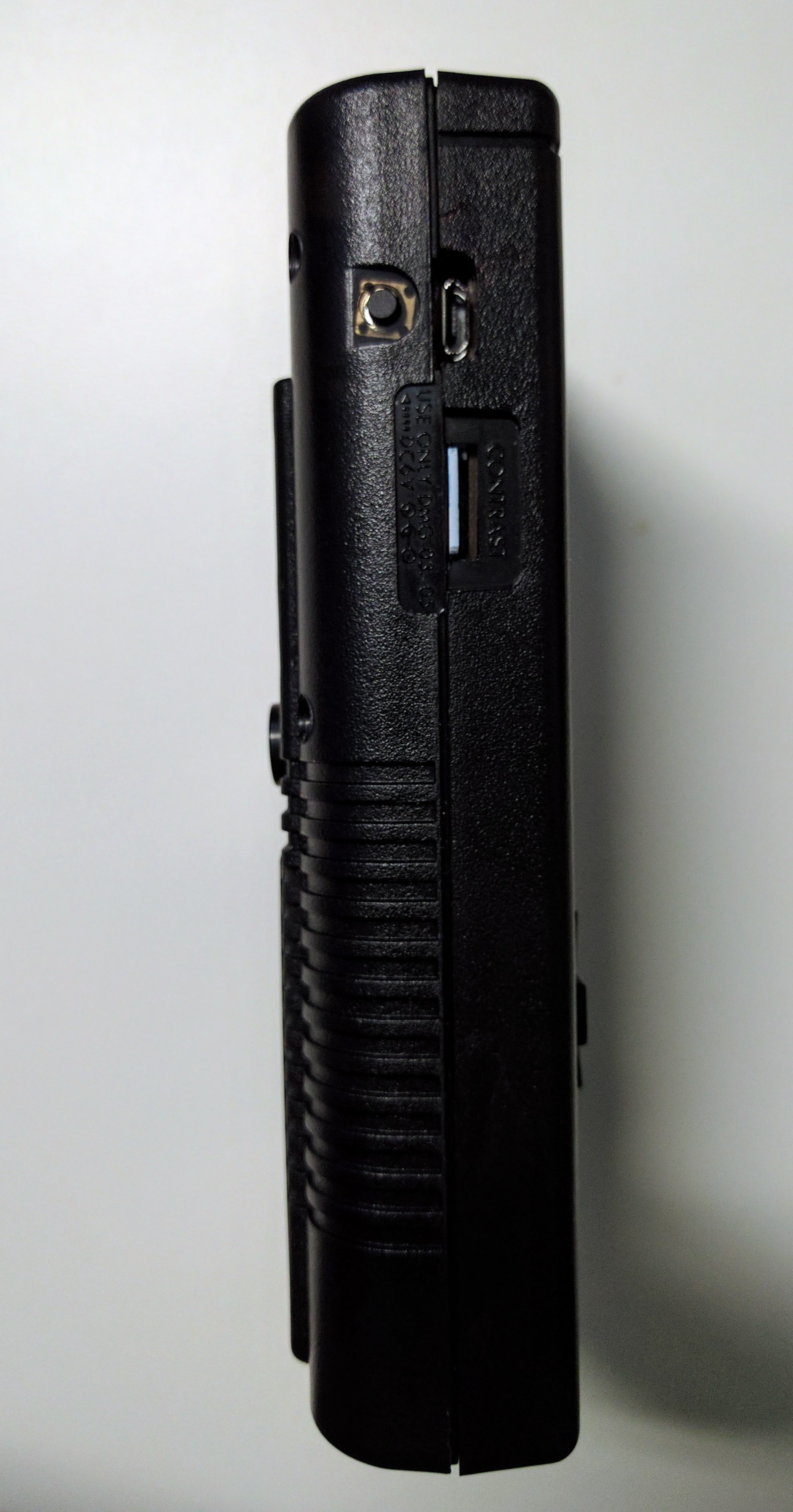

Right Side


Left Side


Battery


Charging

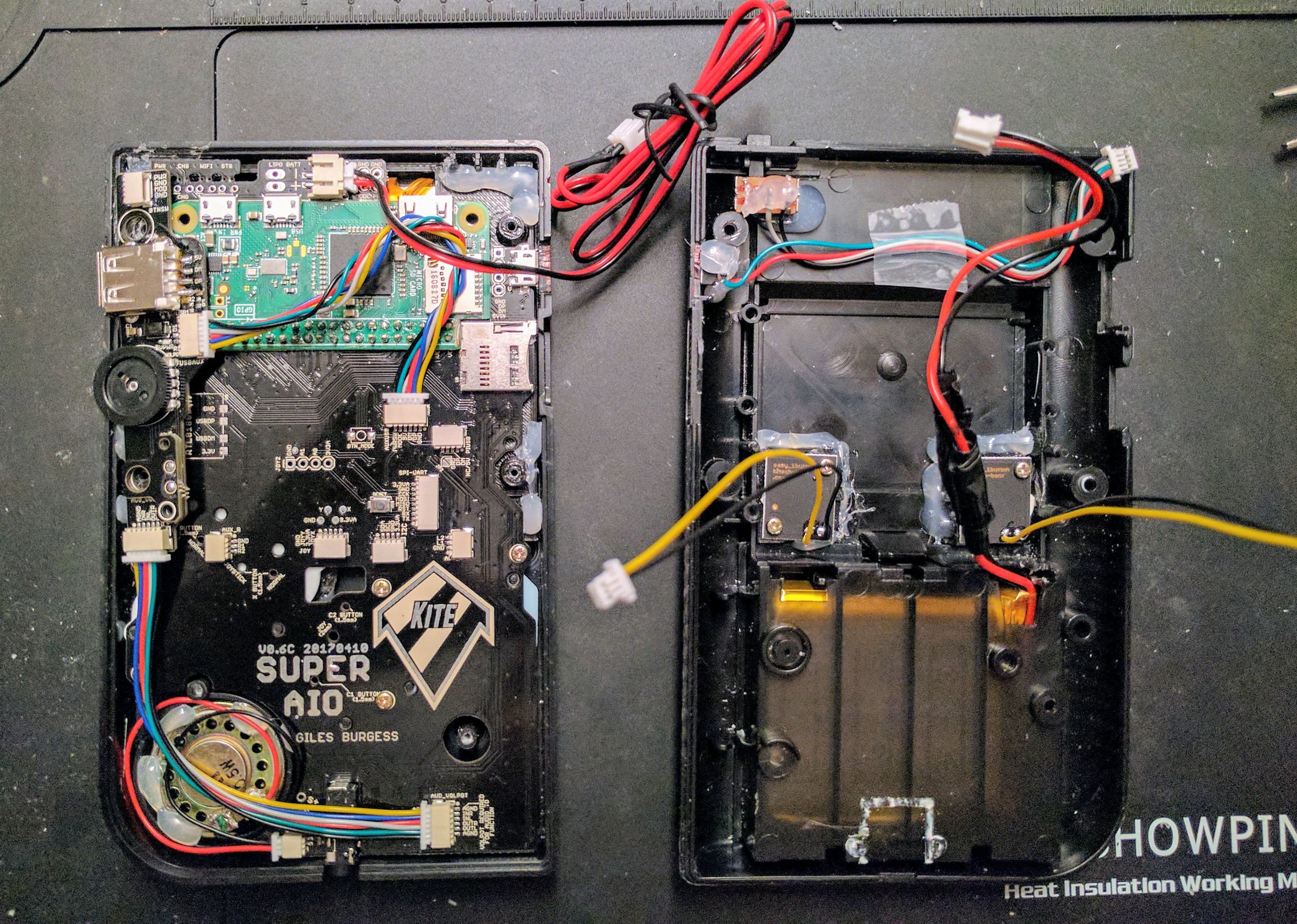

UnAssembled


Ninja Gaiden


I'll add a link here later for all my build photos
