First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Sun Feb 25, 2018 4:55 am

Hi everybody,

While waiting for Kite's CSO, i've been sourcing parts and already got some.
My aim is to do a built with as little glue as possible and using the parts made by the community.

Here is the part list (updating)
DPR high quality grey shell and SNES button set
HoolyHoo's screen bracket
Dextech LiPo battery
Kite's CSO (of course)
Custom screen glass from retropiehandhelds
Hoolyhoo's Glue Less Support Bracket for Kite's Mode/Power Switch board
Derebee's fan mount
Yaya's stickers
Psp joystick


You can follow the progress on instagram: https://www.instagram.com/nicogbpi/

Now i need to decide if i really use the PSP joystick and if I put 2 or 4 buttons on the back.

Any input is welcome
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Sun Feb 25, 2018 5:57 am

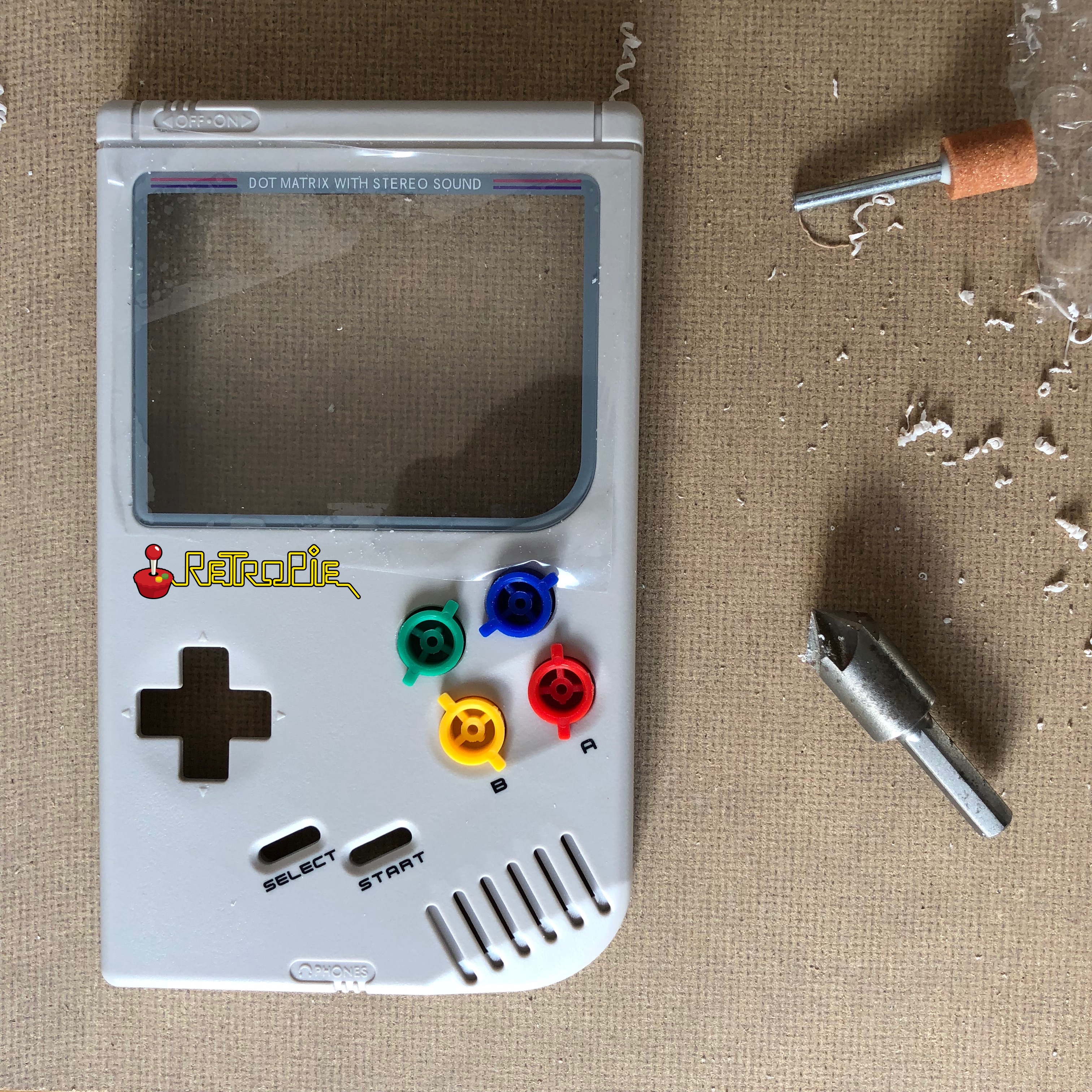

I've designed a logo to fill the blank space at the bottom left corner of the case. can't decide between grey or red.
SpoilerShow
Capture d’écran 2018-02-25 à 13.56.18.jpg
Capture d’écran 2018-02-25 à 13.56.18.jpg (100.54 KiB) Viewed 7454 times
SpoilerShow
Capture d’écran 2018-02-25 à 12.56.37.jpg
Capture d’écran 2018-02-25 à 12.56.37.jpg (150.97 KiB) Viewed 7454 times
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Sun Feb 25, 2018 6:03 am

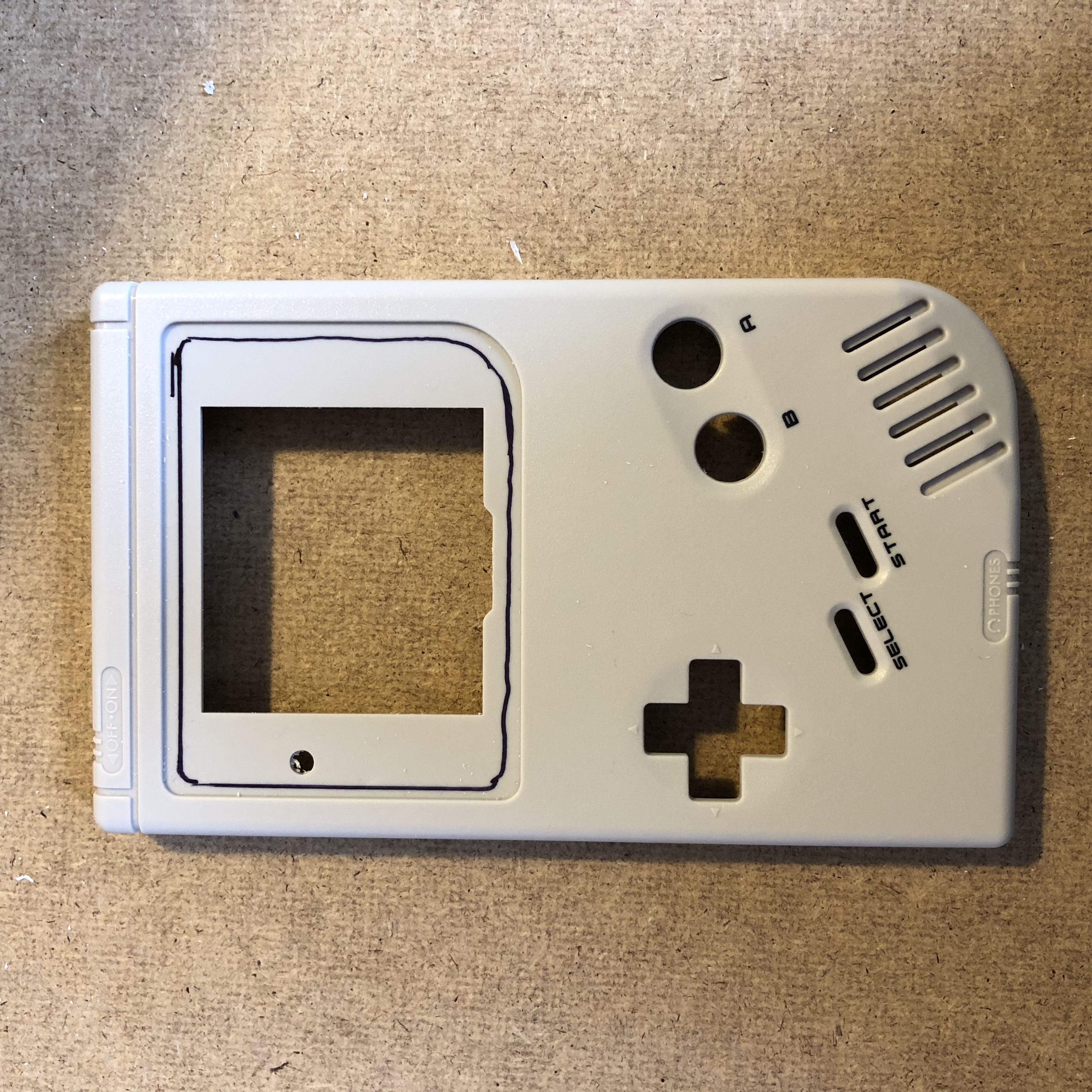

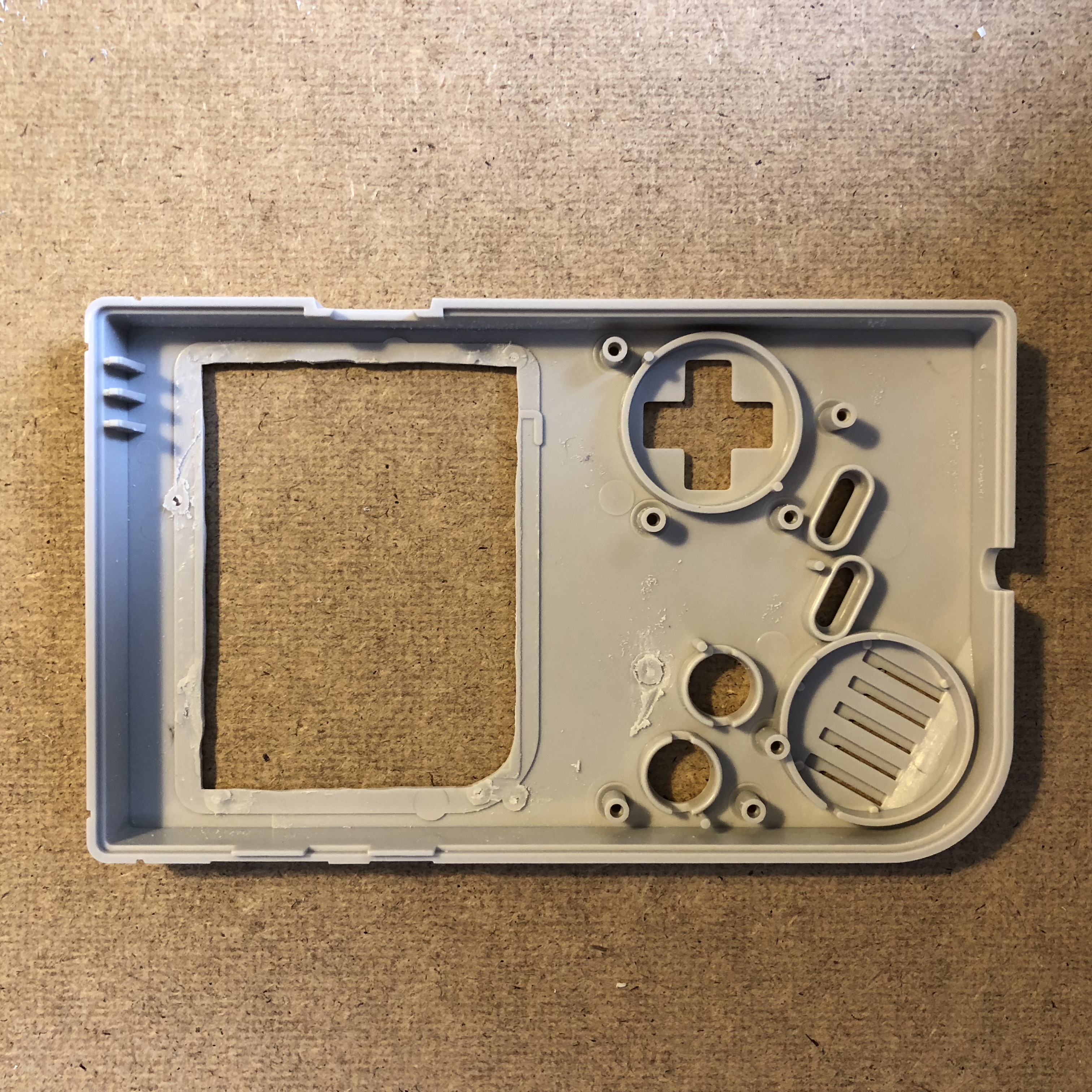

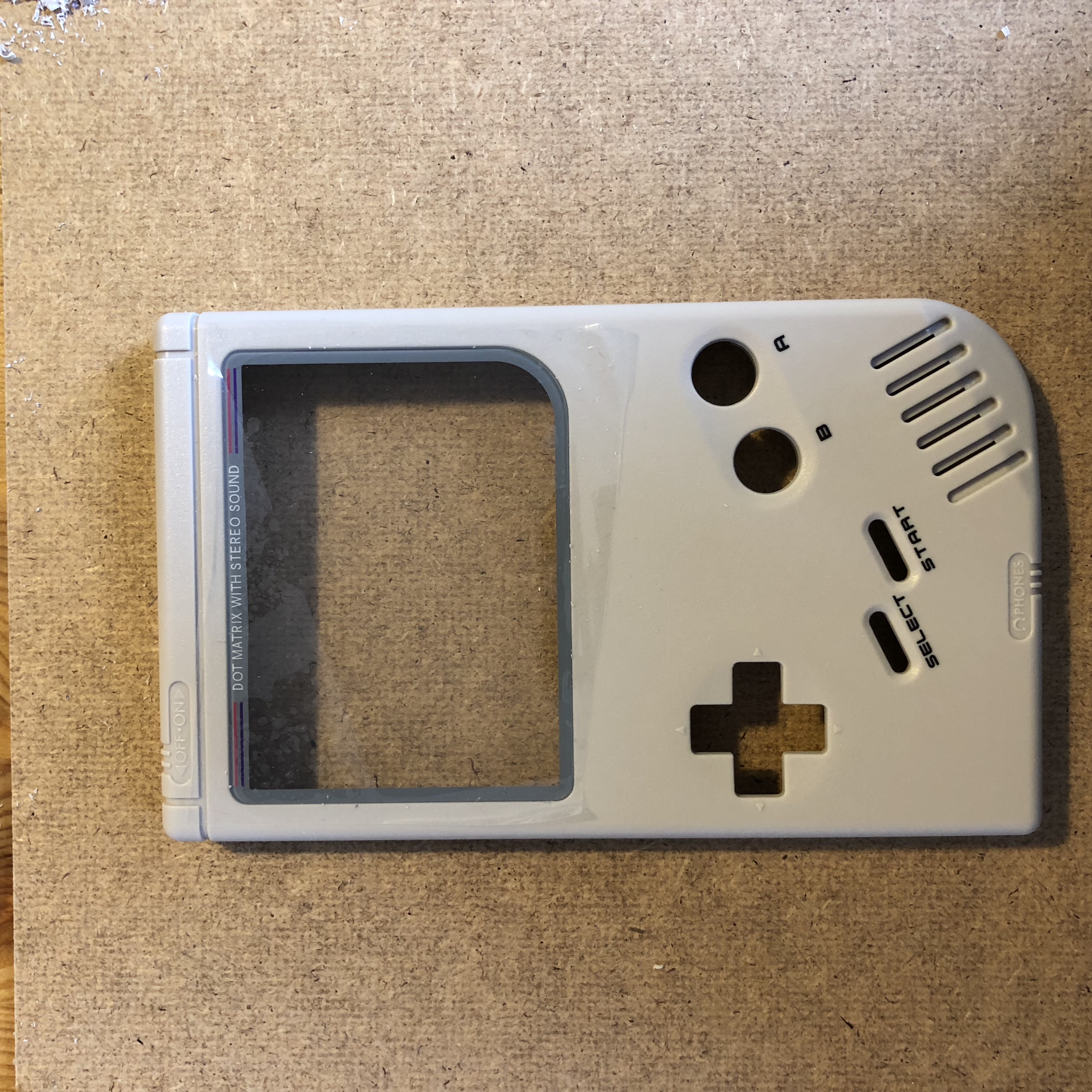

The case has ben moded to fit the battery and the screen cut. Cutting is pretty easy, since the plastic is quite soft.
backShow
frontShow
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Mon Feb 26, 2018 2:40 am

I've been thinking a lot about DPR ones theme.how do you guy like this one?
SpoilerShow
Please pardon my poor photoshop skills
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Mon Mar 05, 2018 12:11 am

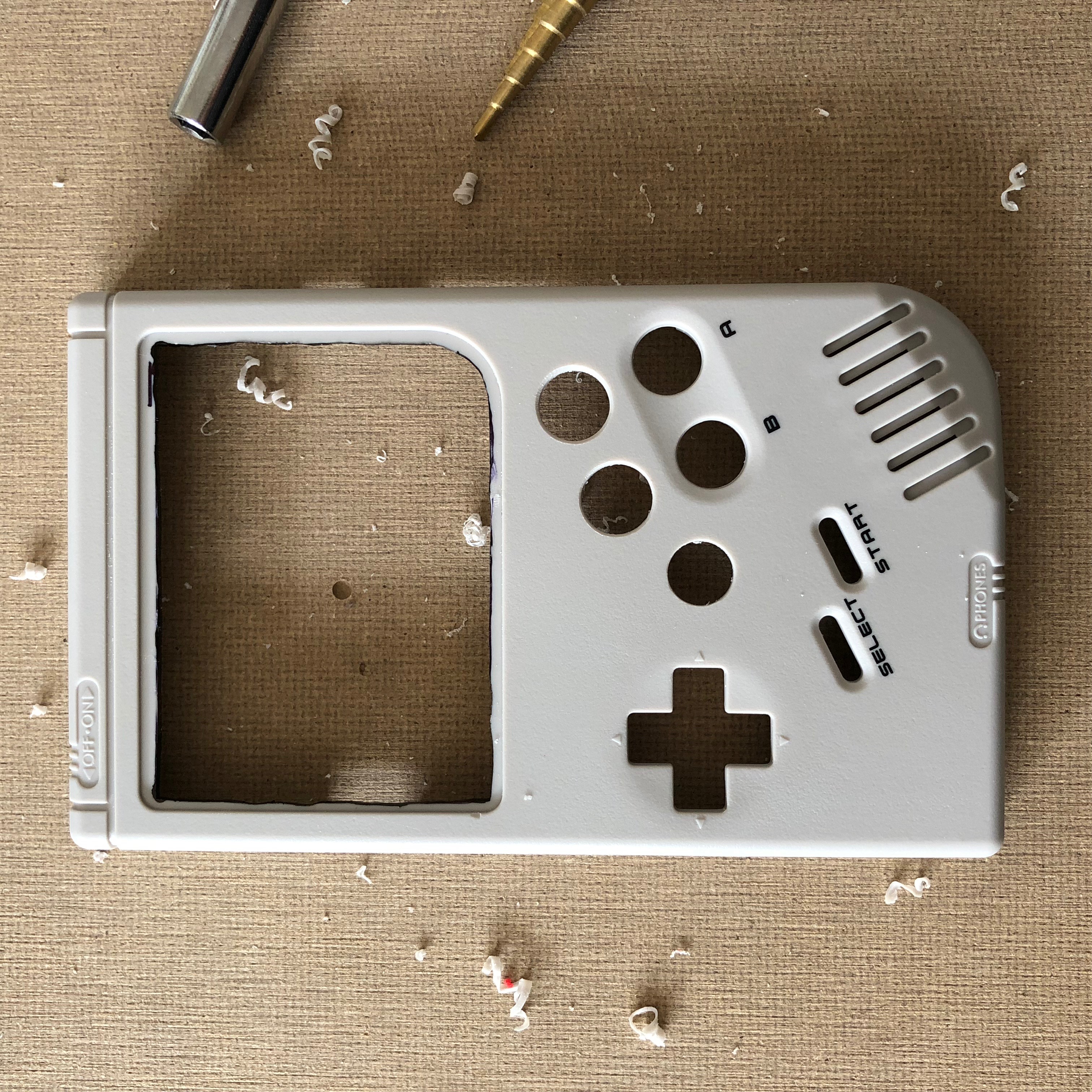

Hi guys, my build is coming along slowly but nicely. all the holes on the front case are cut (X, Y and joystick). screen bracket received.

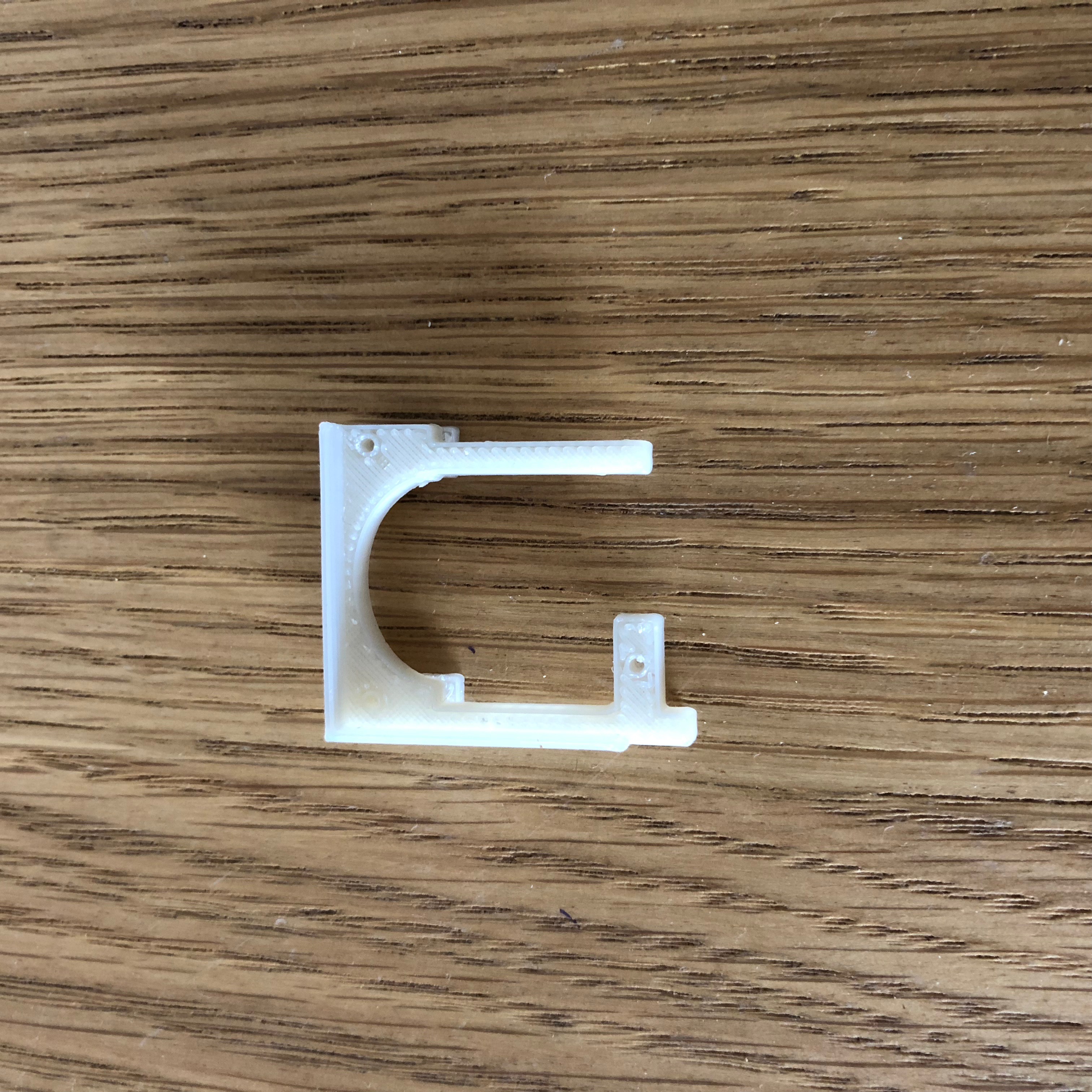

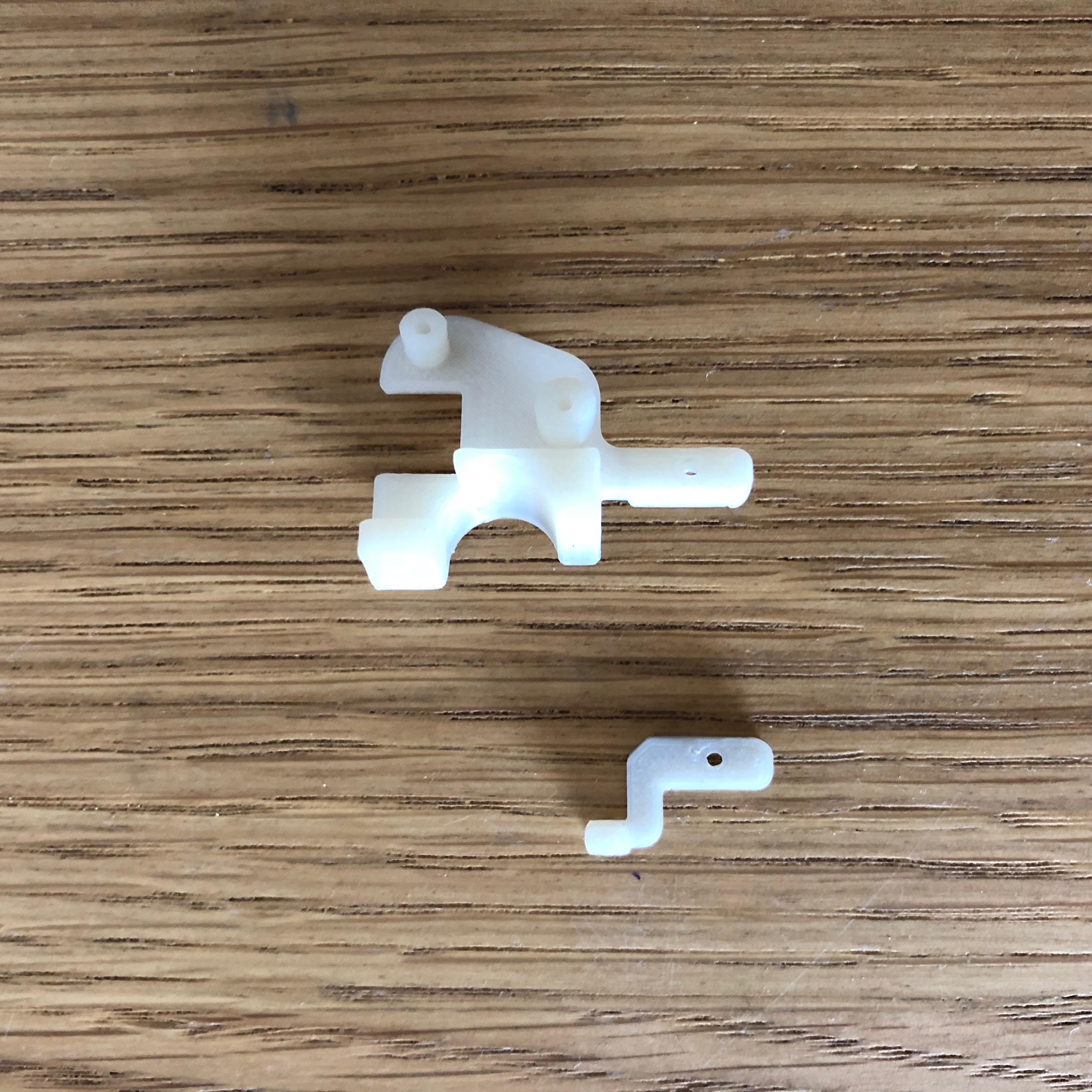

Power switch and fan bracket printed thanks to a local guy who runs a 3D printing shop. (nice guy and really into 3D printing). The battery showed up as well.

And i had a breakthrough last nigh about the logo to put on front. i'll go for the retropie logo. simple and says it all. I just need to find the right size to print it.

One thing is sure, this won't be my only built....
SpoilerShow
Image PNG.png
Image PNG.png (68.13 KiB) Viewed 7178 times
Not much more i can do for the moment. Next step is hoolyhoo's 4 buttons backboard that should be here is a couple of weeks. then Yaya's stickers.
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Mon Mar 05, 2018 7:25 am

SpoilerShow
idea 1.jpg
idea 1.jpg (3.58 MiB) Viewed 7145 times
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

djascher
Posts: 134
Joined: Sat Jan 27, 2018 9:21 pm
Location: Toronto
Has thanked: 47 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by djascher » Mon Mar 05, 2018 8:25 am

How are you printing the logo? That looks pretty cool!!

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Mon Mar 05, 2018 8:43 am

djascher wrote:
Mon Mar 05, 2018 8:25 am
How are you printing the logo? That looks pretty cool!!
Water slide decal paper. Yaya’s Pointed out this technique to me. I’ve made quite a few scale models a few decades ago. So applying it should not be too problematic. The main problem is creating the image and printing it right.
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
VeteranGamer
Posts: 1738
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 528 times
Been thanked: 909 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by VeteranGamer » Mon Mar 05, 2018 8:55 am

Nicode70 wrote:
Mon Mar 05, 2018 8:43 am
djascher wrote:
Mon Mar 05, 2018 8:25 am
How are you printing the logo? That looks pretty cool!!
Water slide decal paper. Yaya’s Pointed out this technique to me. I’ve made quite a few scale models a few decades ago. So applying it should not be too problematic. The main problem is creating the image and printing it right.
creating and printing the decals isnt a problem (its really straight forward).....

design or google the image you want....
get the appropriate decal paper for your printer (either inkjet or laser)
print it (if you don't have a printer find someone that does) (it doesnt have to be ultra professional)
if printed on inkjet apply some clear coat (not needed for laser)
cut and apply your design.....

simple...

heres a easy video to follow....




.

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: First Built, SNES/Custom Them and Kite's CSO

Post by Nicode70 » Mon Mar 05, 2018 8:59 am

VeteranGamer wrote:
Mon Mar 05, 2018 8:55 am
Nicode70 wrote:
Mon Mar 05, 2018 8:43 am
djascher wrote:
Mon Mar 05, 2018 8:25 am
How are you printing the logo? That looks pretty cool!!
Water slide decal paper. Yaya’s Pointed out this technique to me. I’ve made quite a few scale models a few decades ago. So applying it should not be too problematic. The main problem is creating the image and printing it right.
creating and printing the decals isnt a problem (its really straight forward).....

design or google the image you want....
get the appropriate decal paper for your printer (either inkjet or laser)
print it (if you don't have a printer find someone that does) (it doesnt have to be ultra professional)
if printed on inkjet apply some clear coat (not needed for laser)
cut and apply your design.....

simple...

heres a easy video to follow....




.
Yeah the retropi logo i found on google is already in png without background. So it's just a matter of finding the right size i guess.
The paper i found on amazon doesn't need a clear coat.

Sounds like a breeze :D
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922
