Original Black "Play it loud!" Edition - Circuit Sword 640x480 - Build #2

[Damazeltov]

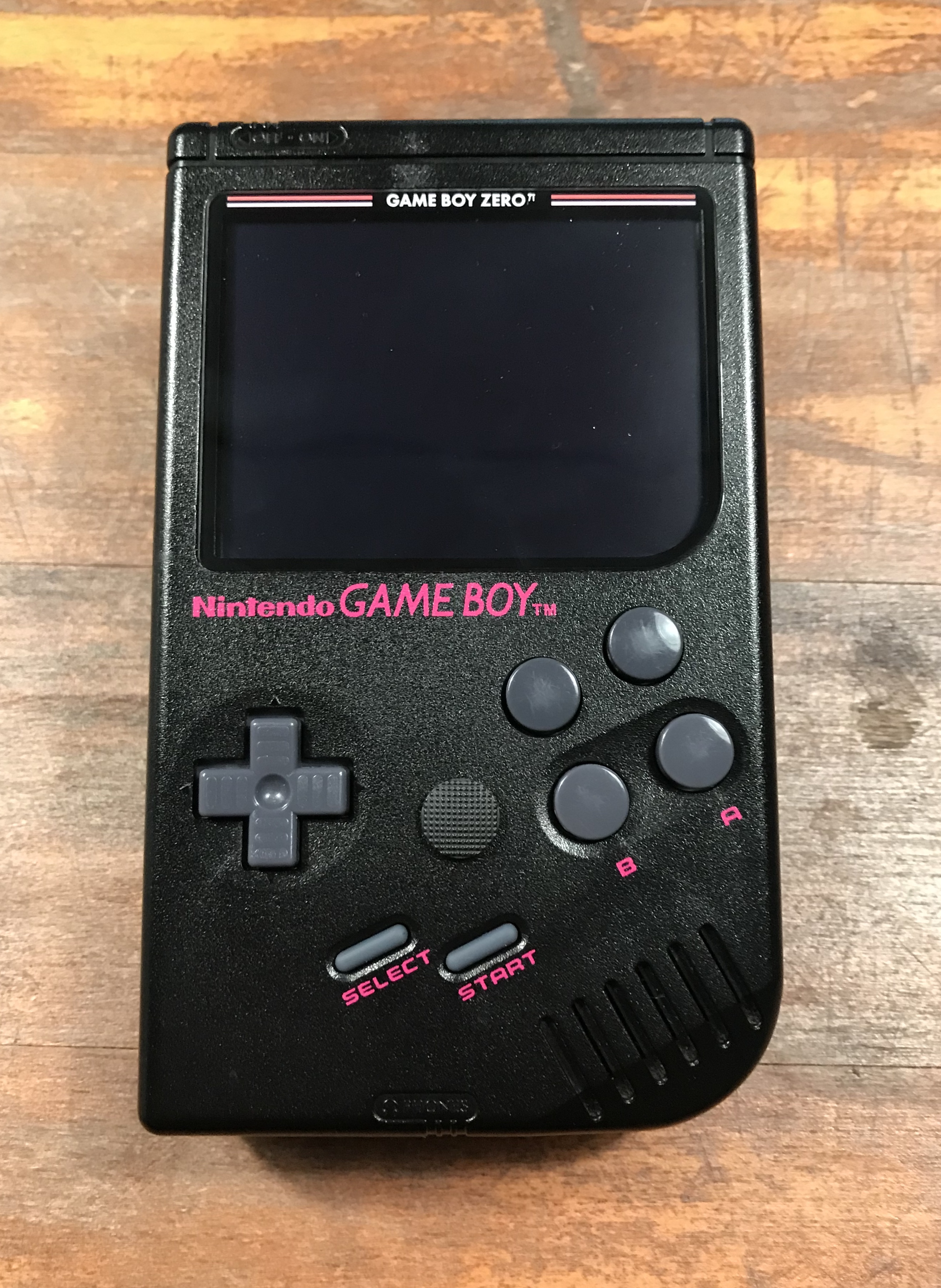

Enjoy my second build!









[hartsmooth]

Clean as hell! Looks like it just rolled off the production line. Nice one.

[ekilla]

I second that! Looks very clean, even if it´s already a Circuit Sword Build. Nice.

[FireFoxGR]

Great build!!

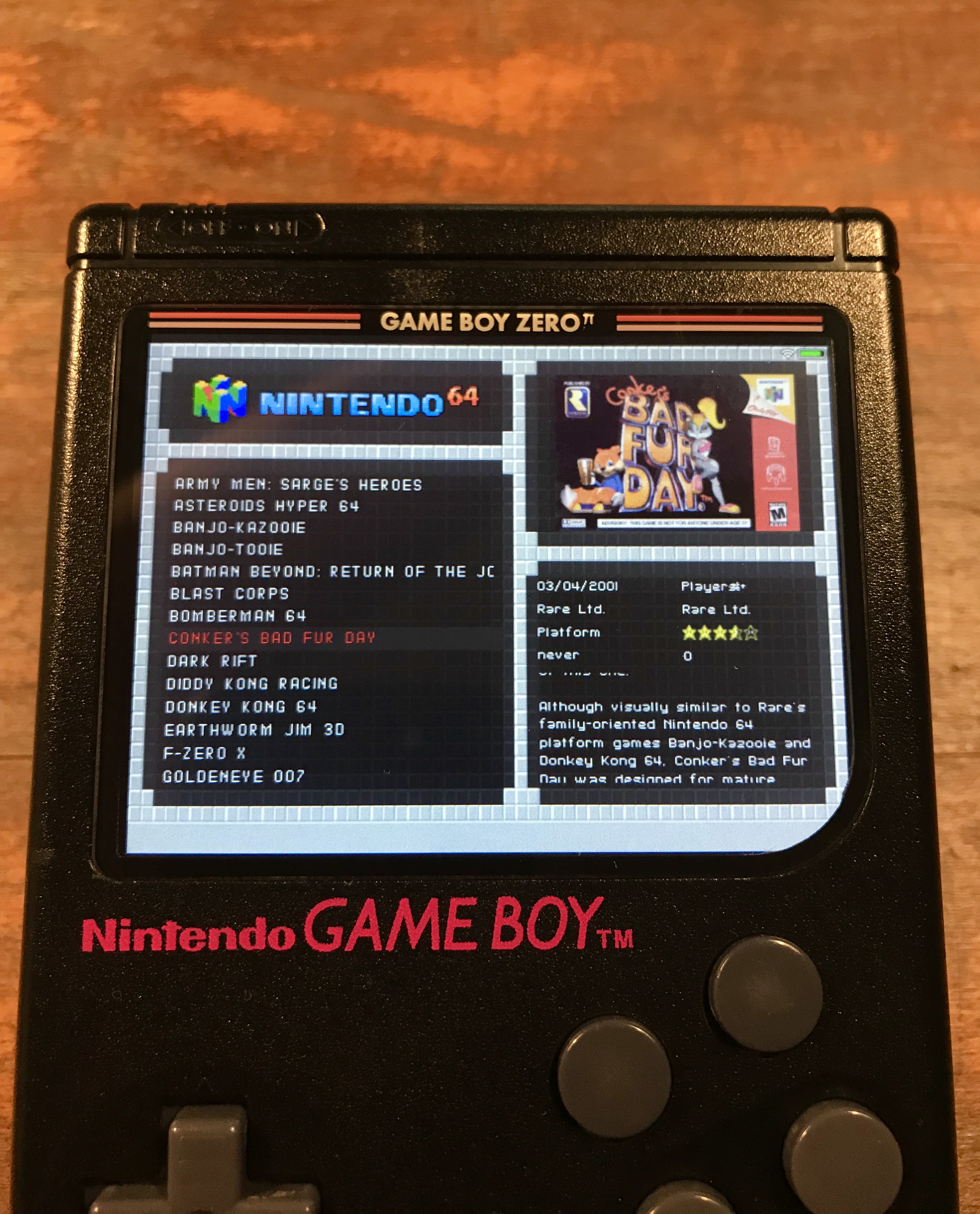

One question... what settings did you use for the 640x480 screen? (overscan-wise)

[Damazeltov]

overscan_left=0
overscan_right=5
overscan_top=15
overscan_bottom=5

Great build!!

One question... what settings did you use for the 640x480 screen? (overscan-wise)

[FireFoxGR]

Did you cut the shell or put it directly there?

[Damazeltov]

I worked out the shell with a grinder, cut the metal case from the screen. It is important to move it as far as possible to the left side, to eliminate the black border.

[reipet]

Do you mind sharing the 3D data for your Screen Bracket with the buttons and Joystick?

[Stiltskin]

Nice build!

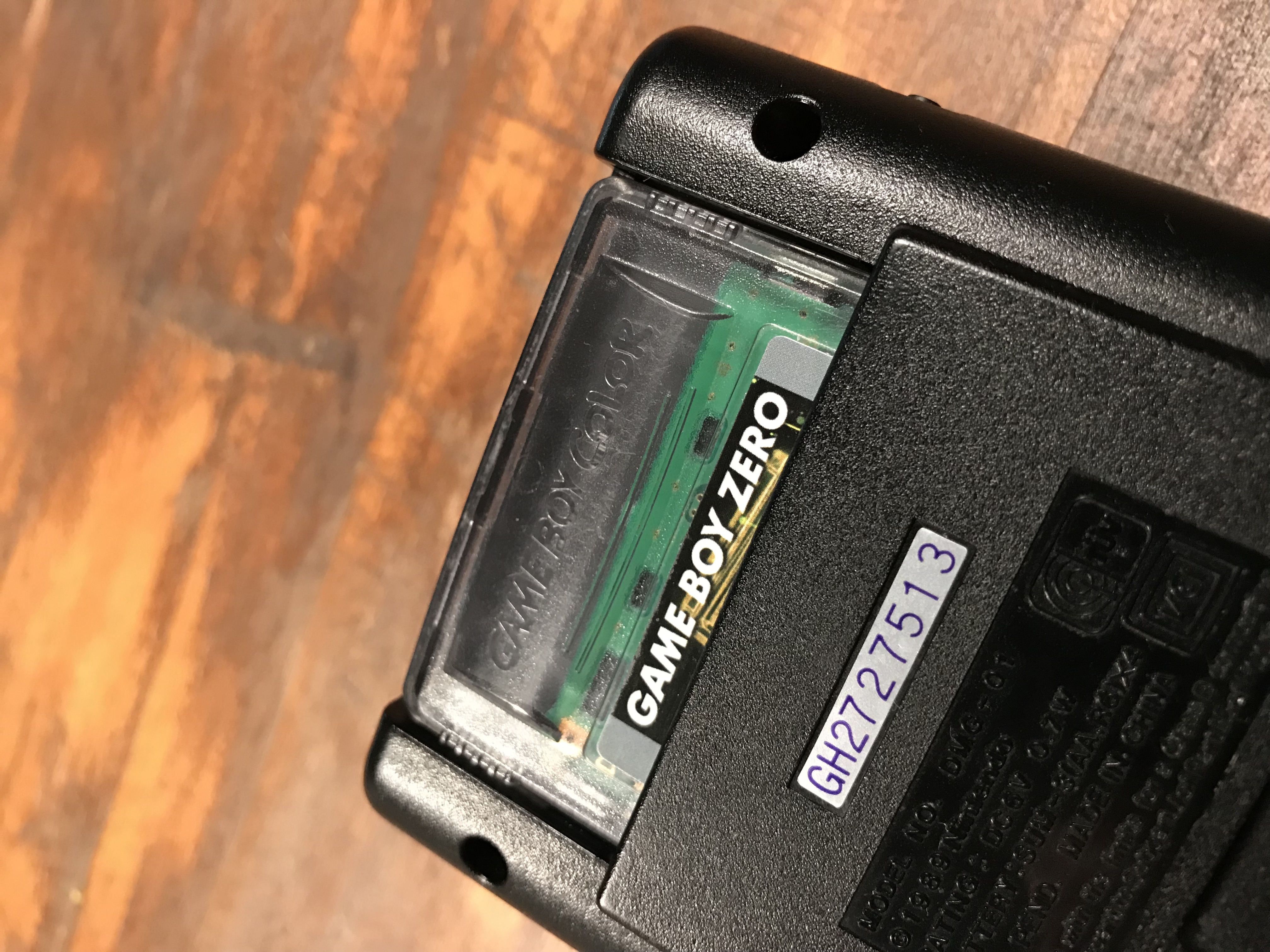

I can see an original cart PCB inserted Was it trimmed? or it just goes all the way through without interference from the back board?

[Damazeltov]

Nice build!

I can see an original cart PCB inserted Was it trimmed? or it just goes all the way through without interference from the back board?

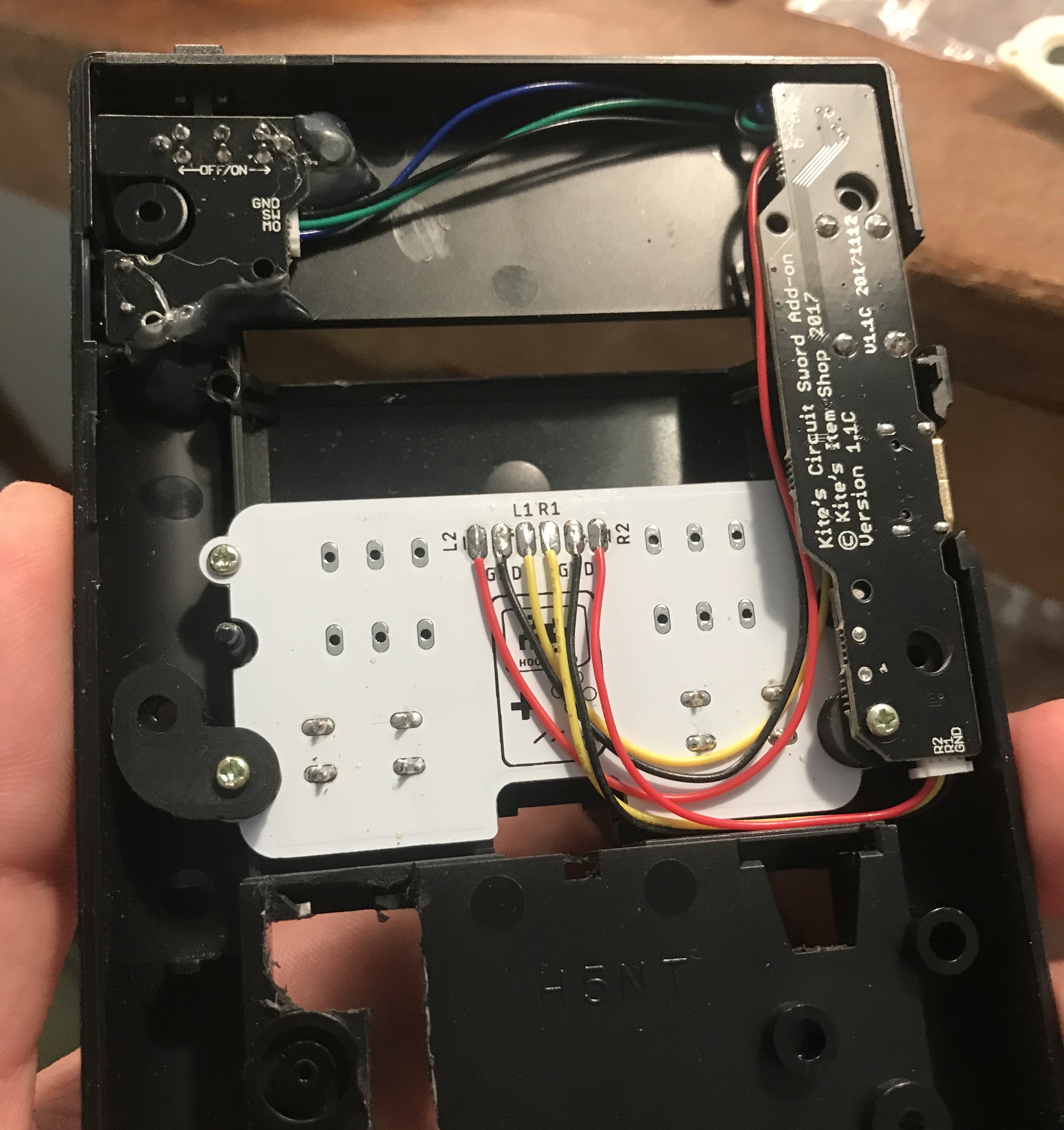

Yeah its trimmed at the shoulder button back board otherwise it would not fit.
